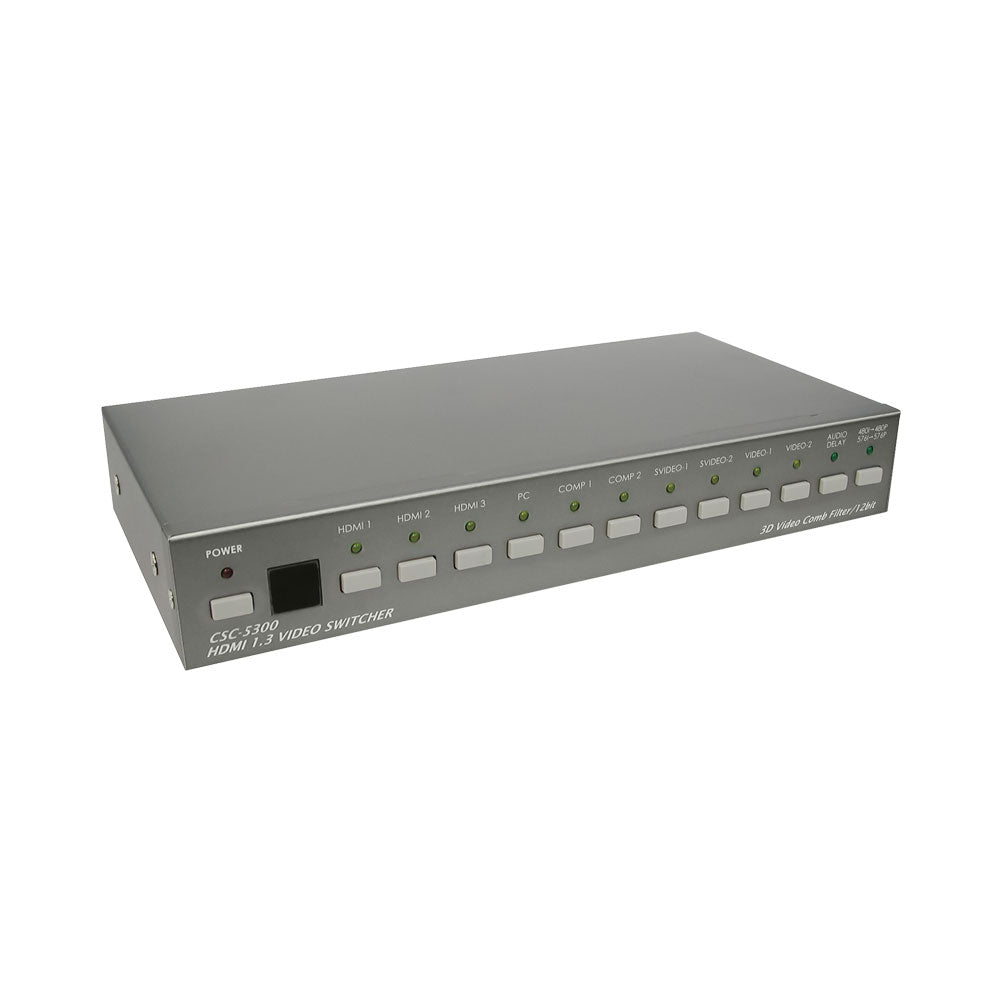

CYP CSC-5300 Multiple Inputs to HDMI Scaler
Professional Multi-Format AV Switching and HDMI Scaling for Integrated Display Systems.
The CYP CSC-5300 Multiple Inputs to HDMI Scaler is a versatile AV switching and scaling solution designed to convert and display multiple analogue and digital video sources through a single HDMI output. Supporting HDMI, PC, Component, Composite and S-Video inputs, this professional scaler delivers seamless source switching with support for resolutions up to 1080p Full HD and WUXGA. Advanced image enhancement technologies including 3D comb filtering, 3D noise reduction and interlace to progressive conversion ensure improved video clarity and smoother playback. With RS232 and IR remote control support, the CSC-5300 is ideal for boardrooms, classrooms, retail displays and professional AV installations.
Features
- Multi-Format AV Scaling - Converts analogue and digital video sources to HDMI output
- Multiple Input Support - Supports HDMI, PC, Component, Composite and S-Video sources
- Full HD Output Resolution - Supports up to 1920×1080p and 1920×1200 WUXGA resolutions
- Advanced Video Processing - Includes 3D comb filter and 3D noise reduction
- Interlace to Progressive Conversion - Converts 480i/576i signals to 480p/576p
- Deep Colour Support - Supports up to 12-bit Deep Colour video processing
- HDMI 1.3 Switching - Delivers reliable high quality HDMI signal transmission
- Audio Delay Function - Adjustable 150ms audio delay support
- Flexible Control Options - Supports IR remote and RS232 control
- Professional Metal Chassis - Durable design for commercial AV environments
Specifications

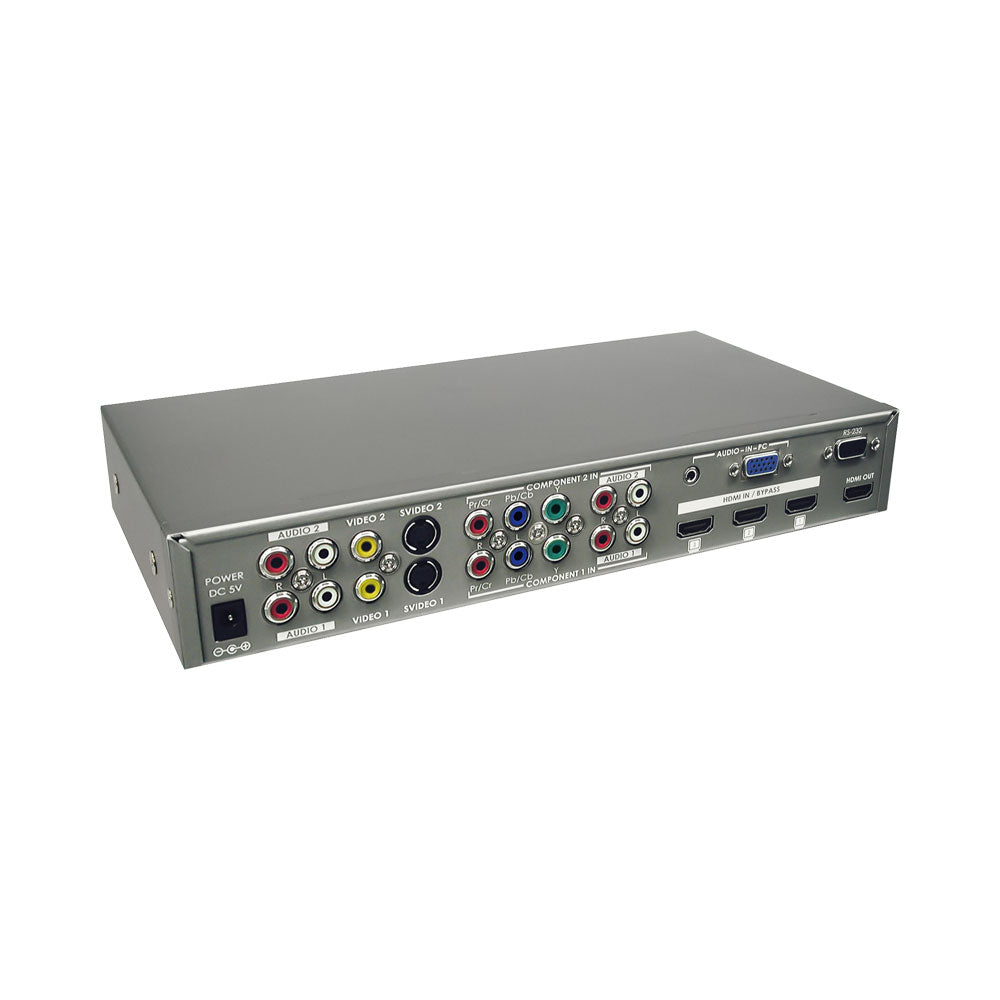

Input Ports
- 3× HDMI Female (Type-A)
- 1× PC Input with Audio
- 2× Component Video (Y/Pb/Pr) with R/L Audio
- 2× Composite Video/S-Video with R/L Audio
- 1× RS232
Output Ports
Compliance
- HDMI 1.3
- HDCP 1.1
- DVI 1.0
Maximum Input Resolution
- HDMI: 1920×1080p @60Hz
- PC: 1920×1200 @60Hz
- Component: 1920×1080p @60Hz
- Composite/S-Video: 480i/576i
Maximum Output Resolution
- HDMI: 1920×1080p @60Hz
- PC/WUXGA: 1920×1200 @60Hz
Other
- Frequency Bandwidth: 2.25Gbps (Single Link)
- Audio Delay: 150ms
- Power Supply: 5V DC 2.6A
- Chassis Material: Metal
- Operating Temperature: 0~40°C
- Colour: Grey
- Dimensions: 280 × 147 × 44mm
- Weight: 1.38kg
