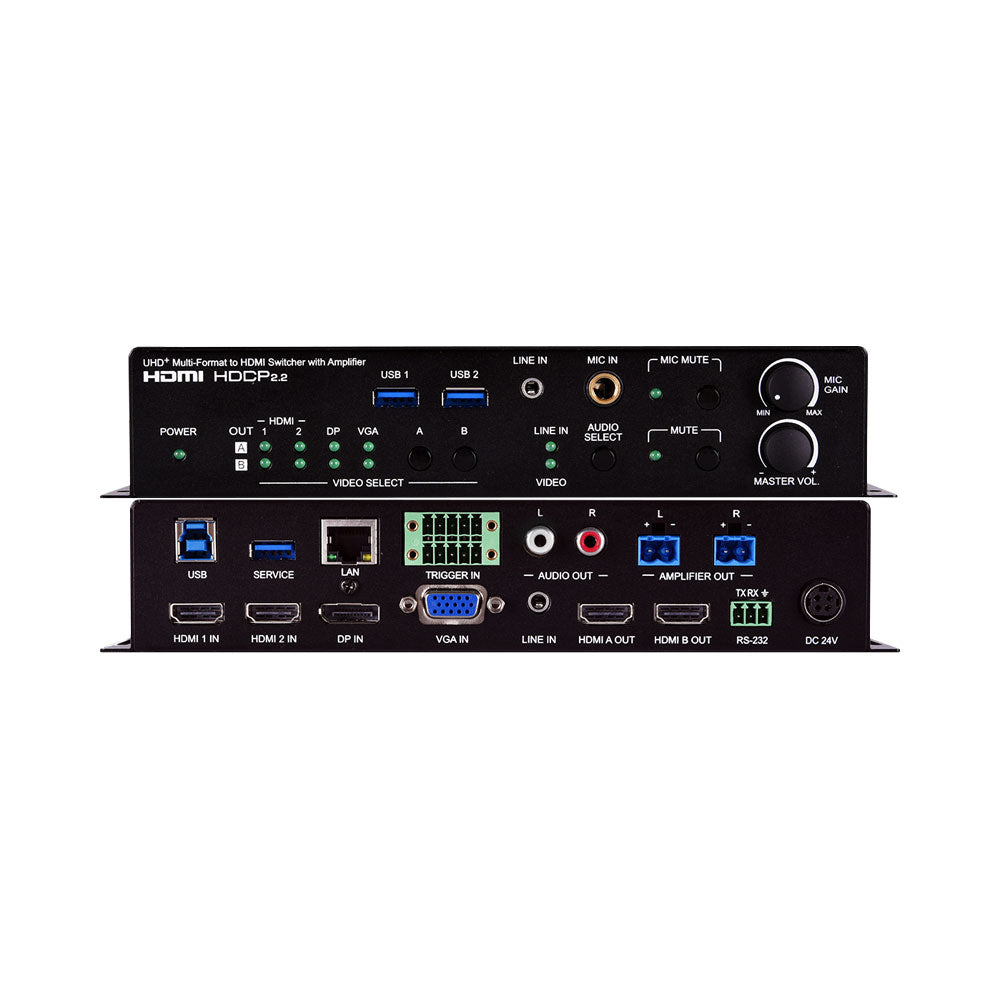

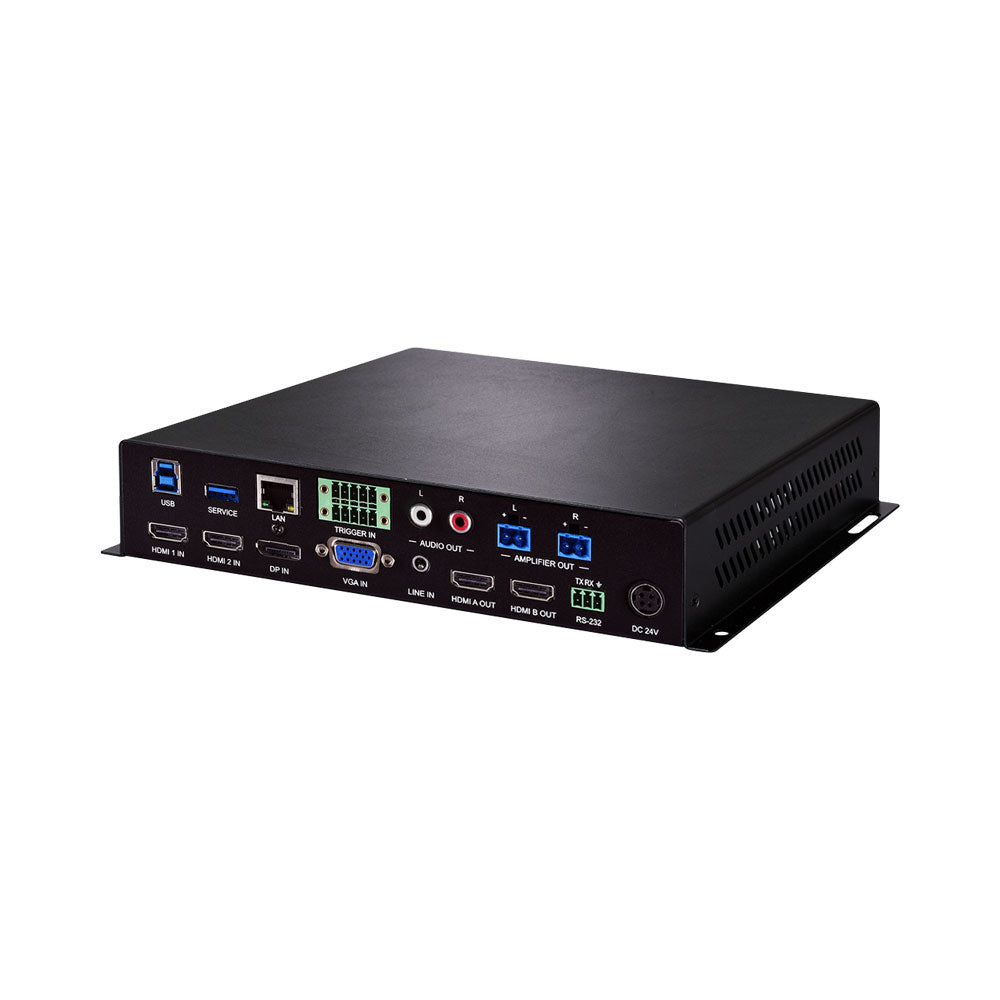

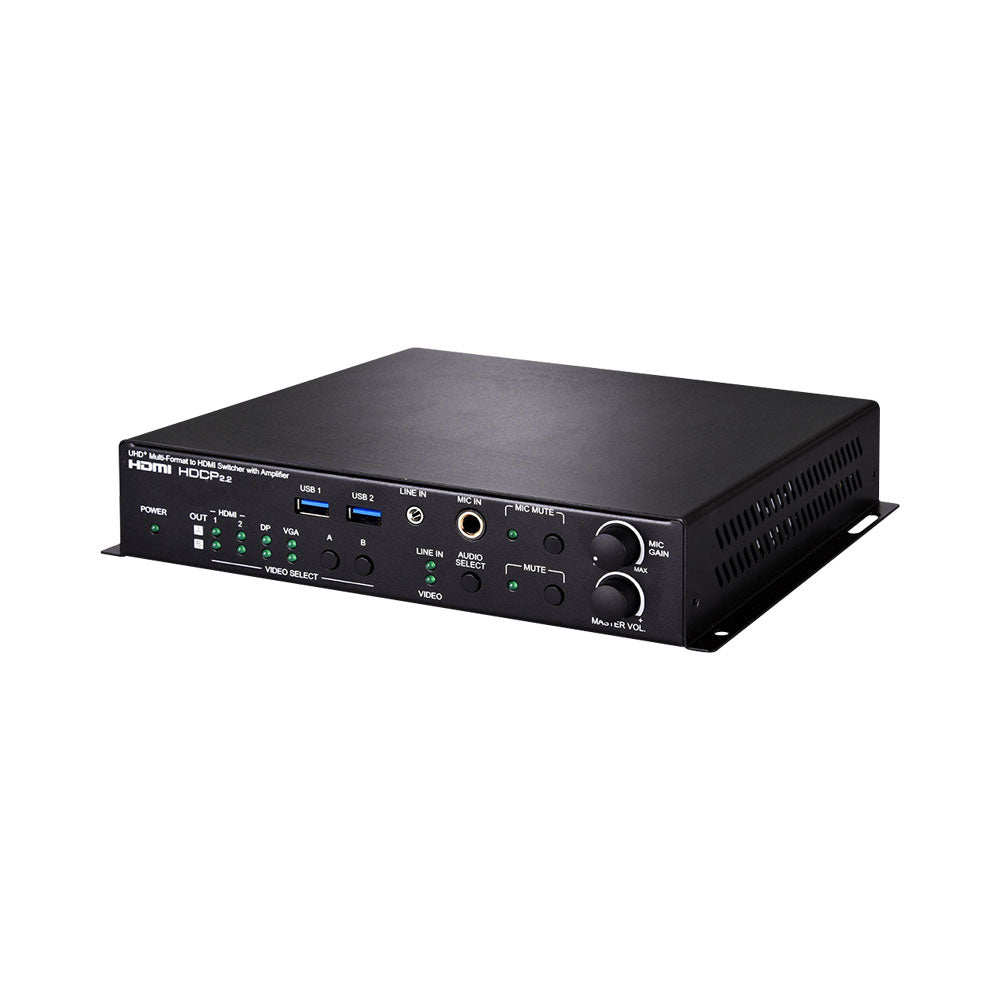

CYP CPLUS-V2030 4K Multi-Format to HDMI Switch with Amplifier
All Your Sources. One Powerful AV Hub.
The CYP CPLUS-V2030 is a versatile 4×2 multi-format switcher designed to simplify complex AV setups. With HDMI, VGA and DisplayPort inputs, it seamlessly routes and processes signals to dual HDMI outputs while delivering integrated audio amplification. Built for professional environments, it combines high-performance video switching, advanced audio processing and flexible control into a single, reliable solution.
Features
- Multi-Format Input Support - HDMI, VGA and DisplayPort inputs for maximum compatibility
- Dual HDMI Outputs - Simultaneous output to two displays with flexible routing
- 4K Video Support - Supports up to 4K @60Hz (4:4:4, 8-bit) on HDMI and DisplayPort
- Integrated Audio Amplifier - 2-channel Class-D amplifier with 20W per channel output
- Advanced Audio Processing - DSP mixing, microphone input, ducking and volume control
- Microphone Integration - 6.35mm input with optional 48V phantom power support
- Audio Matrix Mixing - Flexible audio routing between inputs and outputs
- HDMI Audio Pass-Through - Supports LPCM, Bitstream and HD Bitstream formats
- Event-Based Control - Trigger input and RS-232 for automation and system integration
- Side-by-Side Display Mode - Dual HDMI outputs can drive two displays simultaneously
- Multiple Control Options - RS232, LAN, Web GUI and front panel operation
Specifications
2× Hdmi
1× Vga
1× DisplayPort
2× Unbalanced Stereo (3.5mm)
1× Microphone (6.35mm)
2× Hdmi
1× Stereo (2× RCA)
1× Stereo (2-Pin Terminal Block)
1× RS232 (3-Pin Terminal Block)
1× Trigger (10-Pin Terminal Block)
1× Lan (Rj45)
1× USB3.0 (Type-A)
1× USB3.0 (Type-B)
1× USB3.0 (Type-A, Service)
- HDMI Compliance: HDMI 2.0
- HDCP Compliance: 2.x
- Input Signal Type: 4096 × 2160 @60Hz 8-bit YUV 4:4:4
- Output Signal Type: 4096 × 2160 @60Hz 8-bit YUV 4:4:4
- Maximum Input Resolution:
HDMI: 4096 × 2160 @60Hz
DisplayPort: 4096 × 2160 @60Hz
VGA: 1920 × 1200 @60Hz
- Maximum Output Resolution:
HDMI: 4096 × 2160 @60Hz
- Audio Output: LPCM 8-Channel, HD Bitstream
- Line-In: Max. 2Vrms, 10kΩ, Unbalanced
- Power Supply: 24V 3.75A DC
- Power Consumption: 43W (Without Amplifier)
- Chassis Material: Steel
- Colour: Black
- Dimensions (W x H x D): 231.5 × 44 × 171mm
- Weight: 1.2kg
