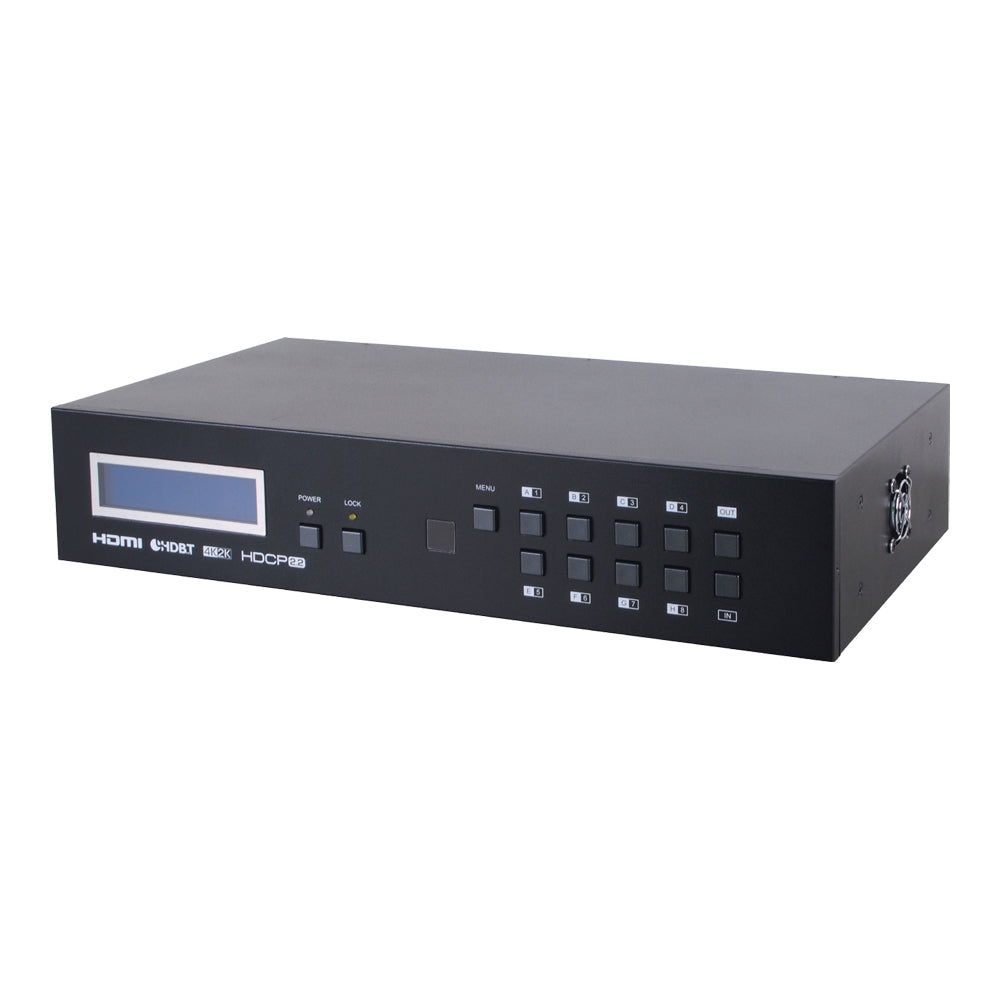

CYP CMPRO-UA8H8CVPL 8×8 HDMI 4K over CAT6 Matrix with 24V PoC and HDCP 2.2
Professional 8×8 HDMI Matrix Switching With Long-Distance 4K UHD Transmission Over CAT6.

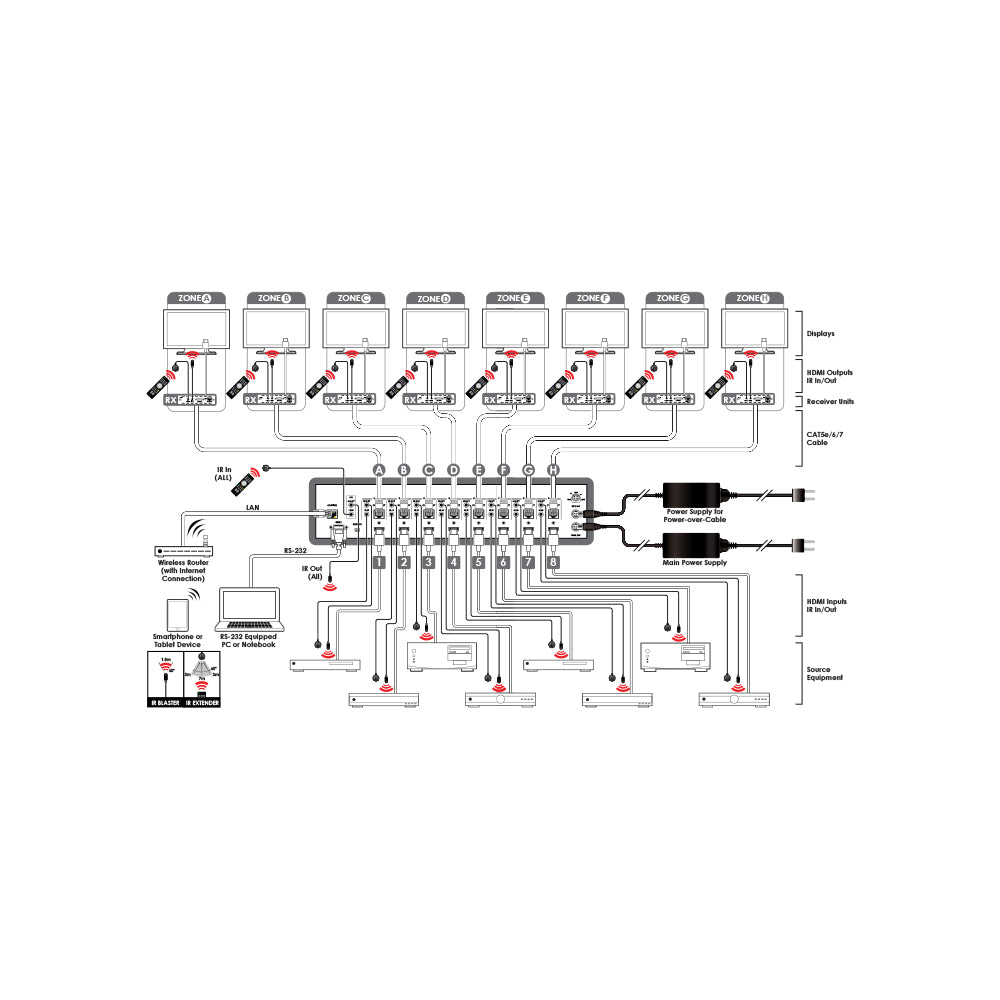

The CYP CMPRO-UA8H8CVPL is a powerful 8×8 HDMI matrix solution designed for professional AV distribution across commercial, education, retail and control room environments. Supporting HDMI 4K UHD video with HDCP 2.2 compliance, this matrix delivers high-quality video, multi-channel audio and control signals over a single CAT5e/6/7 cable up to 60m. Integrated 24V PoC technology powers compatible HDBaseT receivers directly through the cable, simplifying installations and reducing power requirements at remote display locations. Advanced control options including RS232, Telnet, WebGUI, IR and front panel operation provide flexible system management for complex AV deployments.
Features
- 8×8 HDMI Matrix Switching - Route eight HDMI sources to eight independent displays
- 4K Support - Supports resolutions up to 4K2K with HDCP 2.2 compliance
- Long-Distance Distribution - Supports transmission distances up to 60m
- 24V PoC Support - Powers compatible receivers directly through the LAN cable
- Multi-Channel Audio Support - Compatible with LPCM, Dolby TrueHD and DTS-HD Master Audio
- Flexible Control Options - Supports RS232, Telnet, WebGUI, IR remote and front panel control
- 3D Signal Support - Supports 3D video signal bypass
- Bi-directional IR Control - Enables remote source and display device management
- Network Management - Integrated LAN control for remote system administration
Specifications
- HDMI Inputs: 8× HDMI

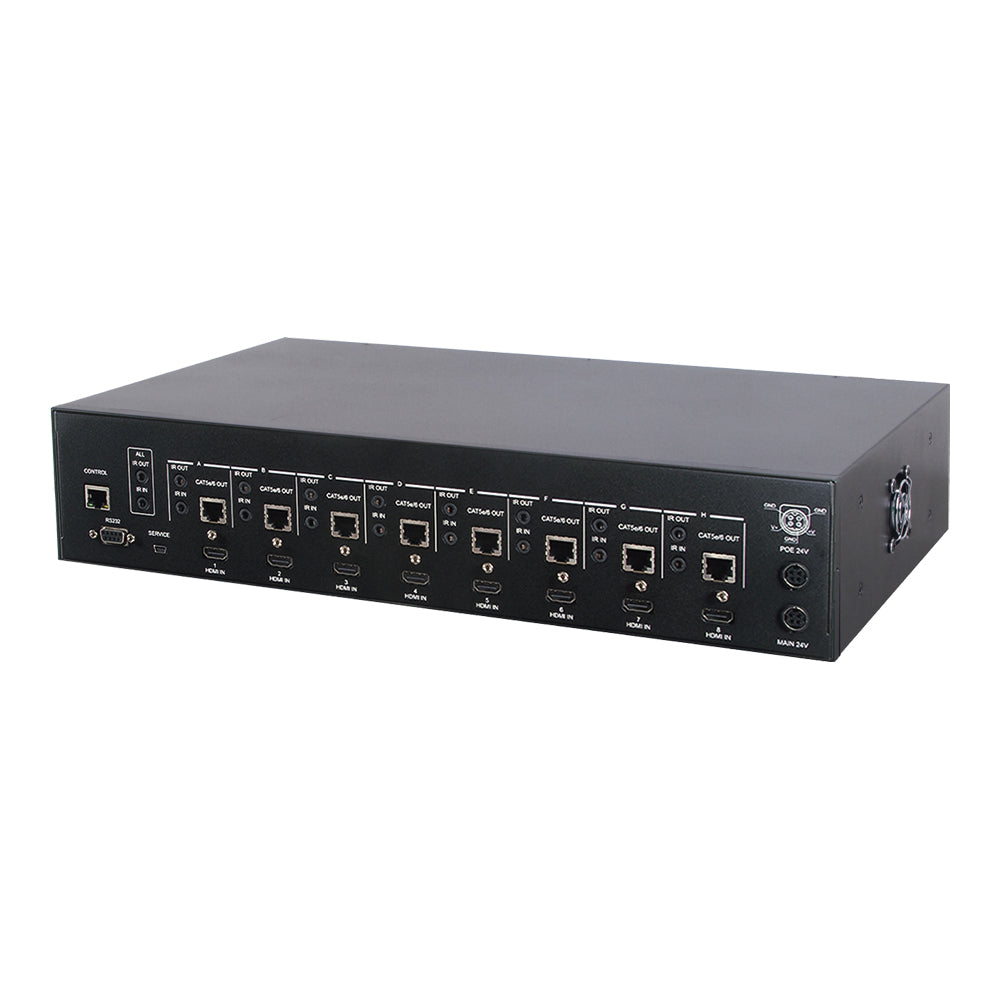

- Input Ports: 8× HDMI, 9× IR (3.5mm), 1× RS-232 (9-Pin D-Sub), 1× Control (RJ45), 1× USB (Service only)
- CAT Outputs: 8× CAT5e/6/7 Outputs
- Video Bandwidth: 300MHz / 9Gbps
- Maximum Resolution: 4K 3840×2160 @60Hz (YUV 4:2:0)
- HDCP Support: HDCP 2.2
- Transmission Distance: up to 60m
- Audio Support: LPCM 2/5.1/7.1CH, Dolby Digital, Dolby TrueHD and DTS-HD Master Audio
- IR Frequency: 30~50kHz
- Control Interfaces: RS232, Telnet, WebGUI, IR and Front Panel
- ESD Protection - ±8kV (Air-Gap Discharge), ±6kV (Contact Discharge)
- Power Supply: 24V 6.25A DC
- Power Consumption: 89W
- Chassis Material: Metal
- Colour: Black
- Dimensions: 438 × 256.7 × 92mm
- Weight: 4.6g
- Operating Temperature: 0~40°C
- Compatible with CYP CH-1527RXPL HDBaseT Receiver for complete HDMI over CAT distribution systems.
