CYP CLUX-H2SDI 1080P HDMI TO 3G-SDI DUAL-OUTPUT CONVERTER

CYP CLUX-H2SDI 1080p HDMI to 3G-SDI Dual-Output Converter

Convert HDMI signals to professional SDI outputs for long-distance AV distribution and broadcast environments.

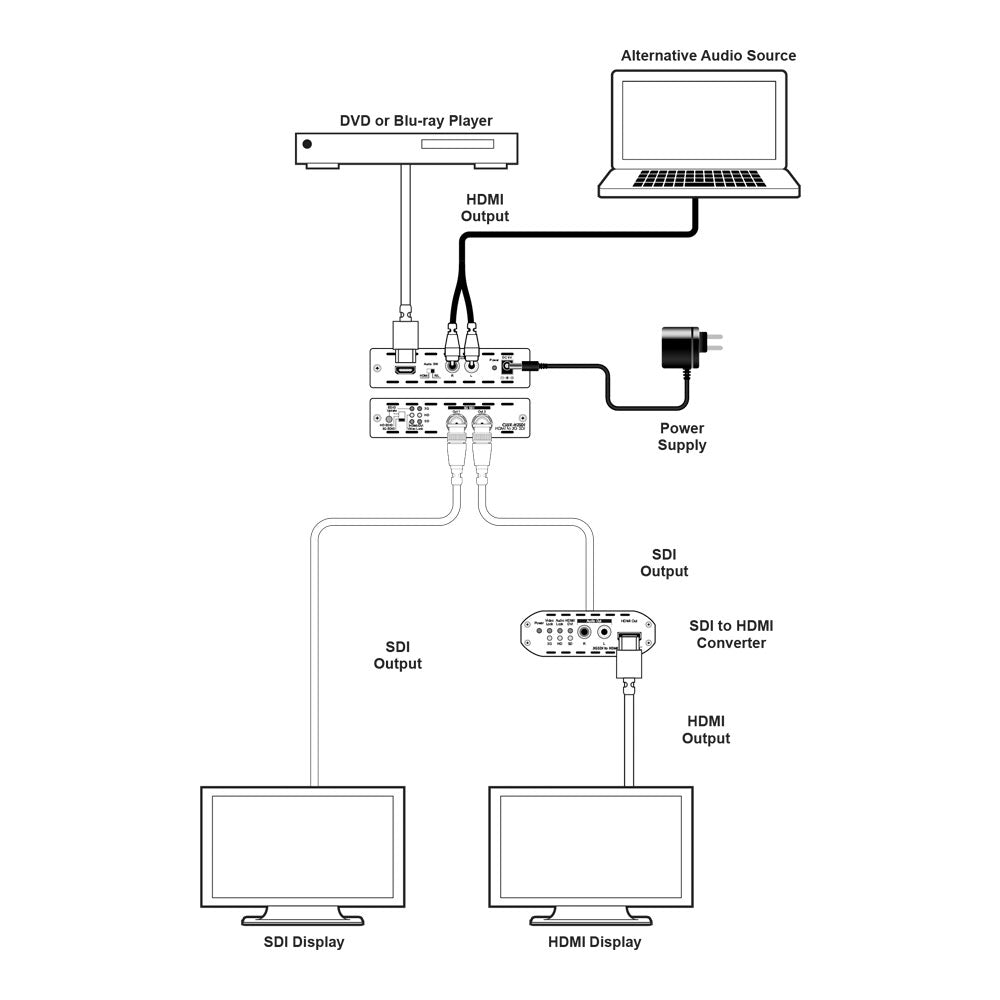

The CYP CLUX-H2SDI allows HDMI signals to be displayed on two SDI displays simultaneously while supporting high bit rates up to 2.97Gbps for high-resolution signal transmission with minimal loss. Supporting resolutions up to 1080p Full HD, this converter delivers reliable signal transmission over long distances without quality loss. Integrated audio embedding, selectable EDID settings and support for SD-SDI, HD-SDI and 3G-SDI standards make it ideal for broadcasting, professional AV integration, surveillance and digital signage applications.

Features

• Dual SDI Outputs - Simultaneously displays one HDMI source on two SDI displays
• Full HD Support - Supports resolutions up to 1080p @60Hz
• 3G-SDI Conversion - Converts HDMI signals to SD-SDI, HD-SDI and 3G-SDI formats
• Long Distance Transmission - Supports SDI output distances up to 300m (SD-SDI) depending on signal format
• Integrated Audio Embedding - Supports up to 8-channel PCM audio over HDMI
• External Audio Input - Allows stereo analogue audio embedding for DVI sources
• Selectable EDID Modes - Includes built-in and recordable EDID functionality for improved compatibility
• Professional Broadcast Standards - Supports SMPTE 259M-C, 292M, 424M and 425M-AB

Specifications

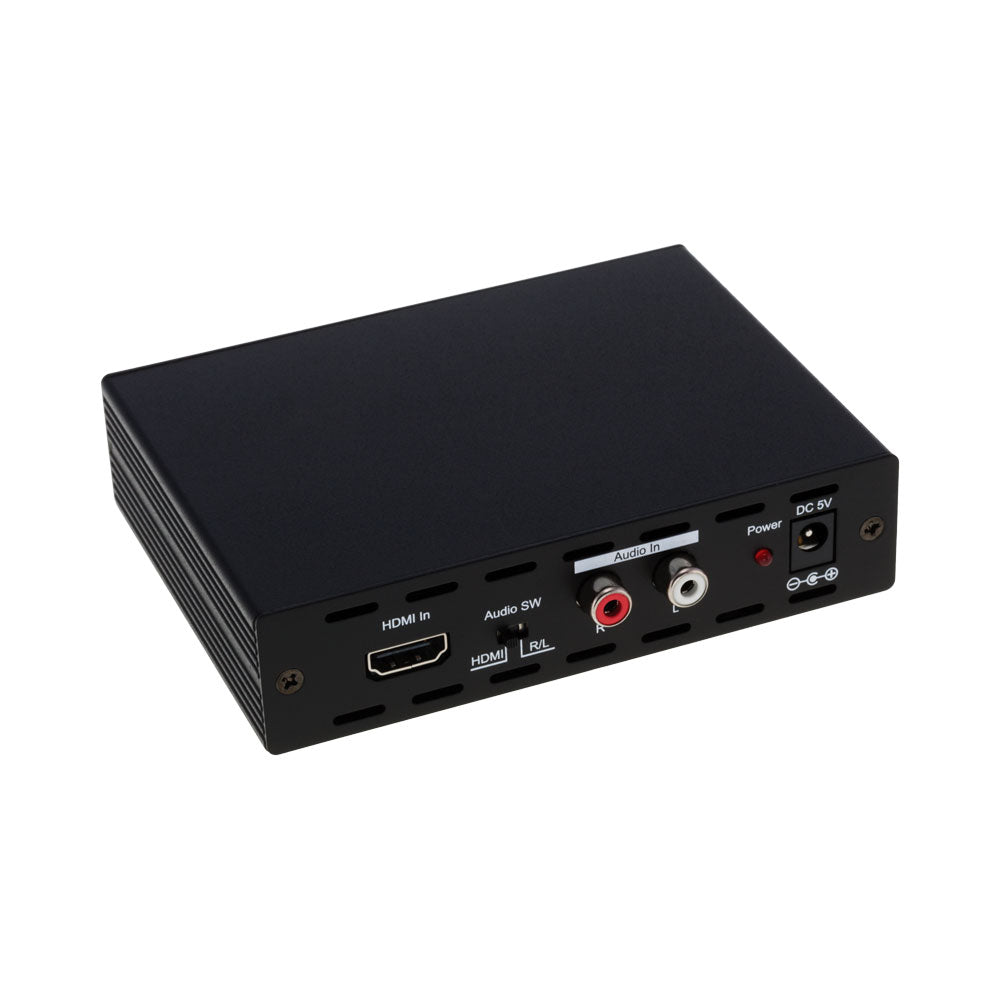

Input

• 1× HDMI
• 1× Stereo Audio (R/L)

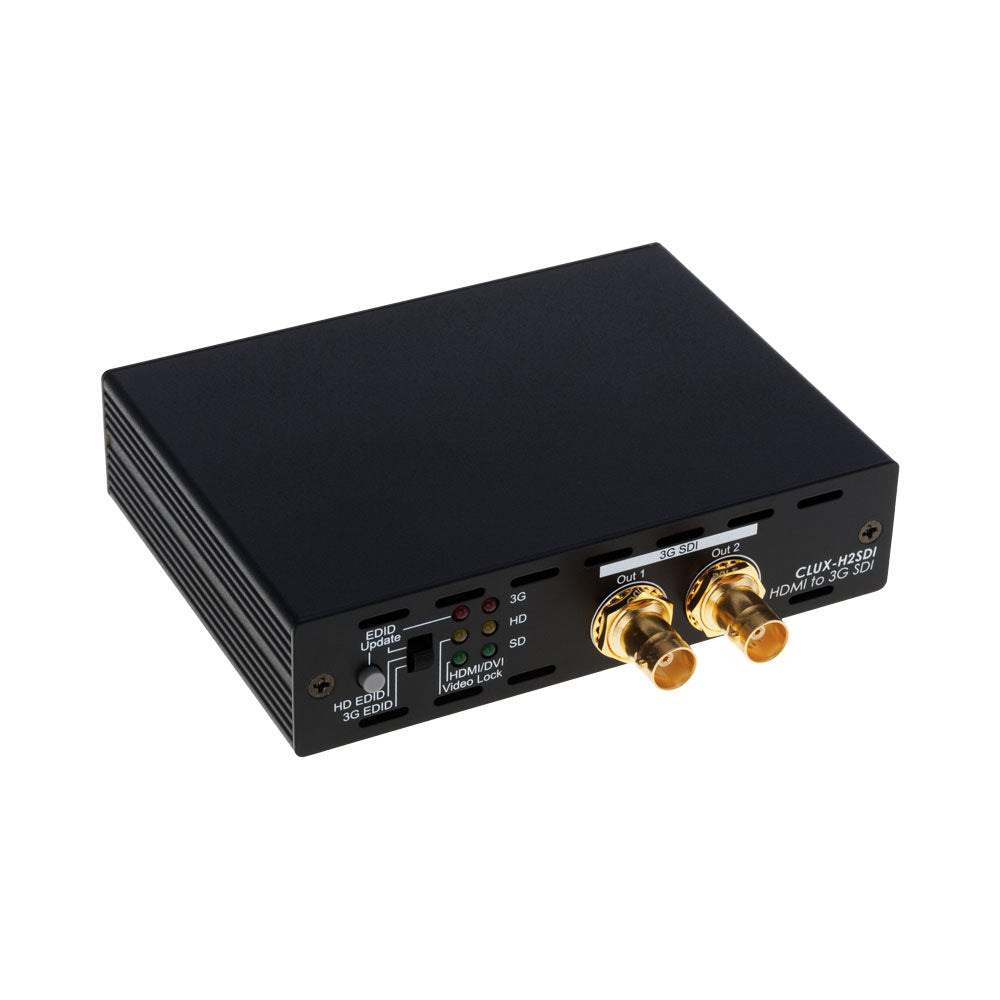

Output

• 2× BNC (SD/HD/3G-SDI)

Hdmi Timing Support

• 480i @59.94
• 576i
• 720p @50/59.94/60
• 1080i @50/59.94/60
• 1080p @23.98/24/25/29.97/30/50/59.94/60

Sdi Standards

• SD-SDI: SMPTE 259M-C
• HD-SDI: SMPTE 292M
• 3G-SDI: SMPTE 424M/425M-AB

Sdi Transmission Rates

• 2.970Gbps
• 2.970/1.001Gbps
• 1.485Gbps
• 1.485/1.001Gbps
• 270Mbps

Sdi Cable Distance

• Up to 100m (3G-SDI)
• Up to 200m (HD-SDI)
• Up to 300m (SD-SDI)

Audio Support

• Up to 8CH PCM 48kHz via HDMI
• 2CH Analogue Stereo for DVI Audio Embedding

Other

• Video Bandwidth: 225MHz / 6.75Gbps
• Power Supply: 5V DC 2.6A
• Power Consumption: 5.5W
• ESD Protection: ±8kV Air-Gap Discharge, ±4kV Contact Discharge
• Dimensions: 125 × 115 × 30mm
• Weight: 275g
• Chassis Material: Metal
• Colour: Black
• Operating Temperature: 0~40°C
• Storage Temperature: -20~60°C
• Relative Humidity: 20~90% RH (Non-Condensing)
