CYP CLUX-1HLR 1080p HDMI Video Wall Rotation Processor
Rotate, Split and Scale with Complete Video Wall Control.
The CYP CLUX-1HLR is a powerful HDMI video wall processor designed to rotate, split and distribute a single Full HD source across multiple displays. By combining multiple units with an HDMI splitter or matrix, it enables highly flexible large-scale video wall configurations. Setup is simplified with intuitive Video Wall PC software, allowing users to visually design and configure layouts in a graphical WYSIWYG interface.
Features
- 1080p HDMI Processing - Supports Full HD resolution for clear and detailed video output
- Video Wall Scaling - Splits a single source across multiple displays for large-format viewing
- Rotation Function - Supports 90°, 180° and 270° rotation for flexible display orientation
- Advanced Rotation Mode - Enables horizontal and vertical warping with zoom and full 360° rotation in 1° increments
- Scaler Mode Controls - Supports video mirror, flip and freeze functions
- Audio Pass-Through Support - Supports LPCM 2.0, 5.1 and 7.1, Bitstream and HD Bitstream formats
- Image Adjustment Controls - Fine-tune contrast, brightness, hue, sharpness and aspect ratio
- Custom EDID Management - Ensures optimal compatibility between source and display devices

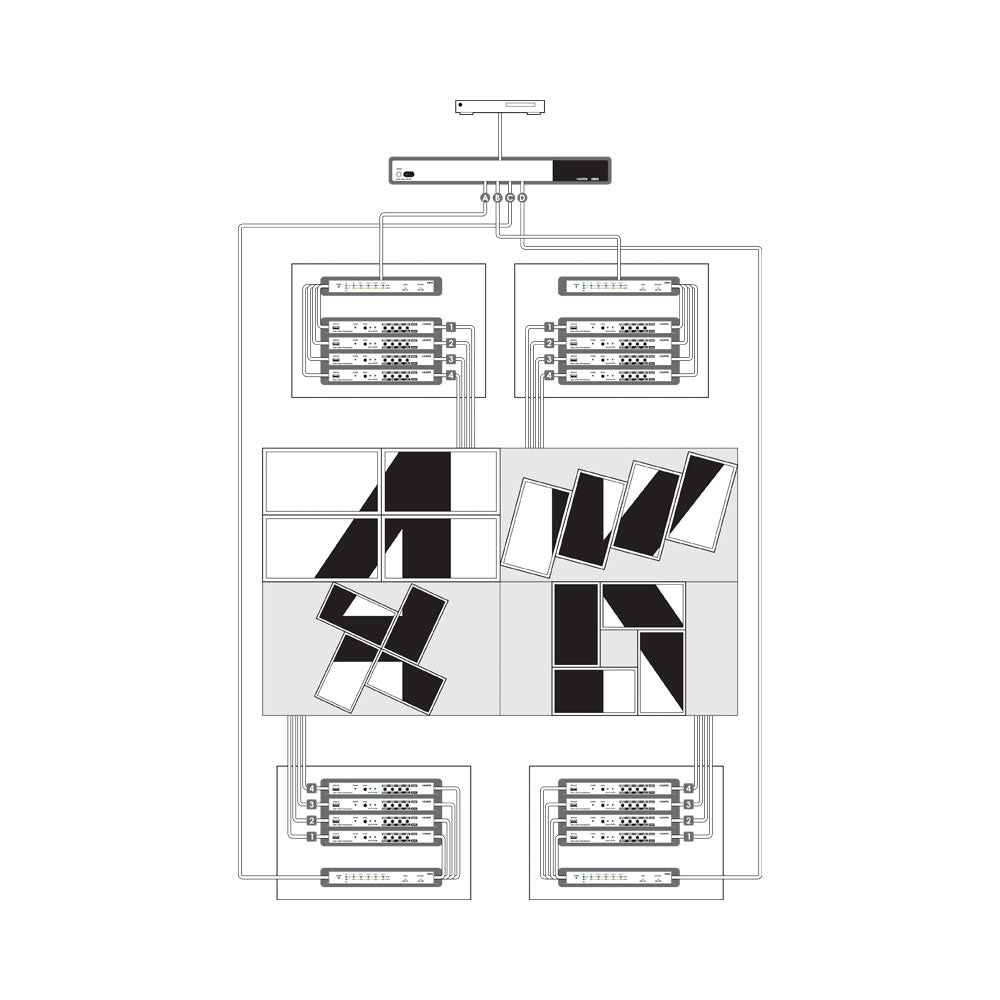

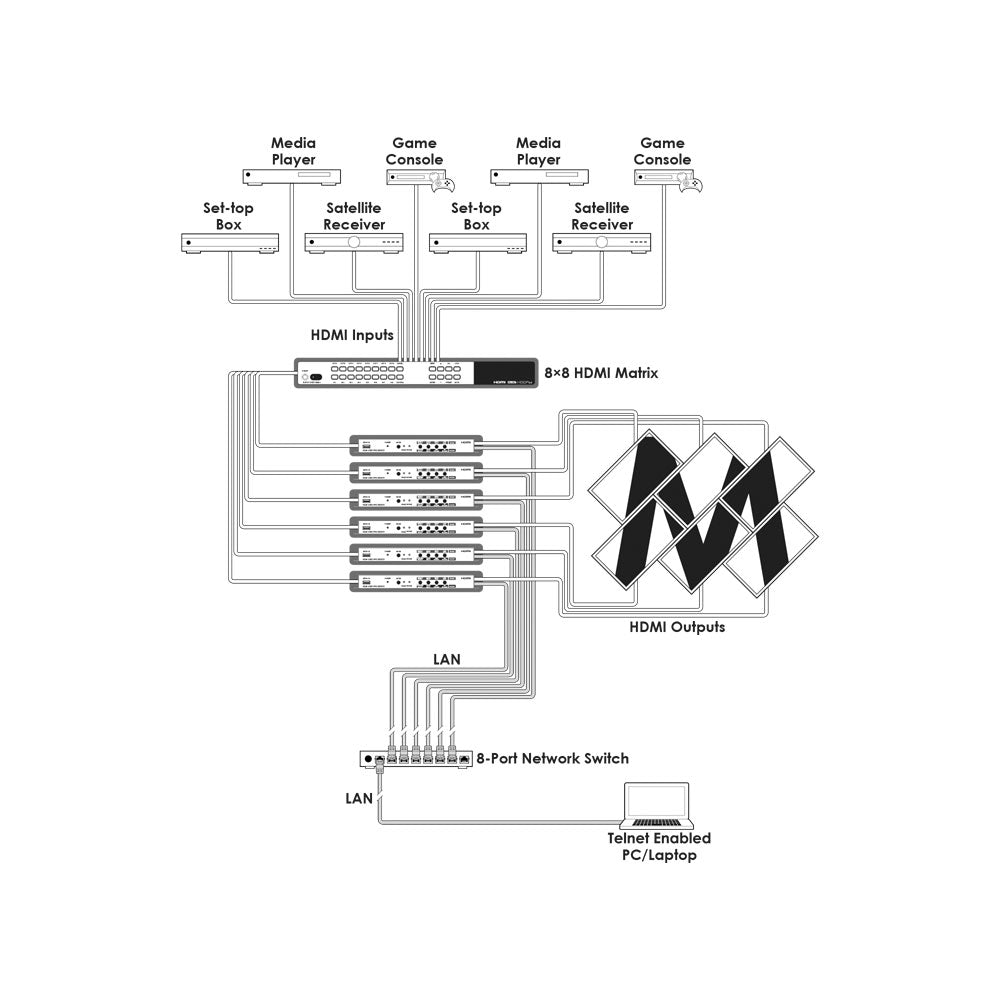

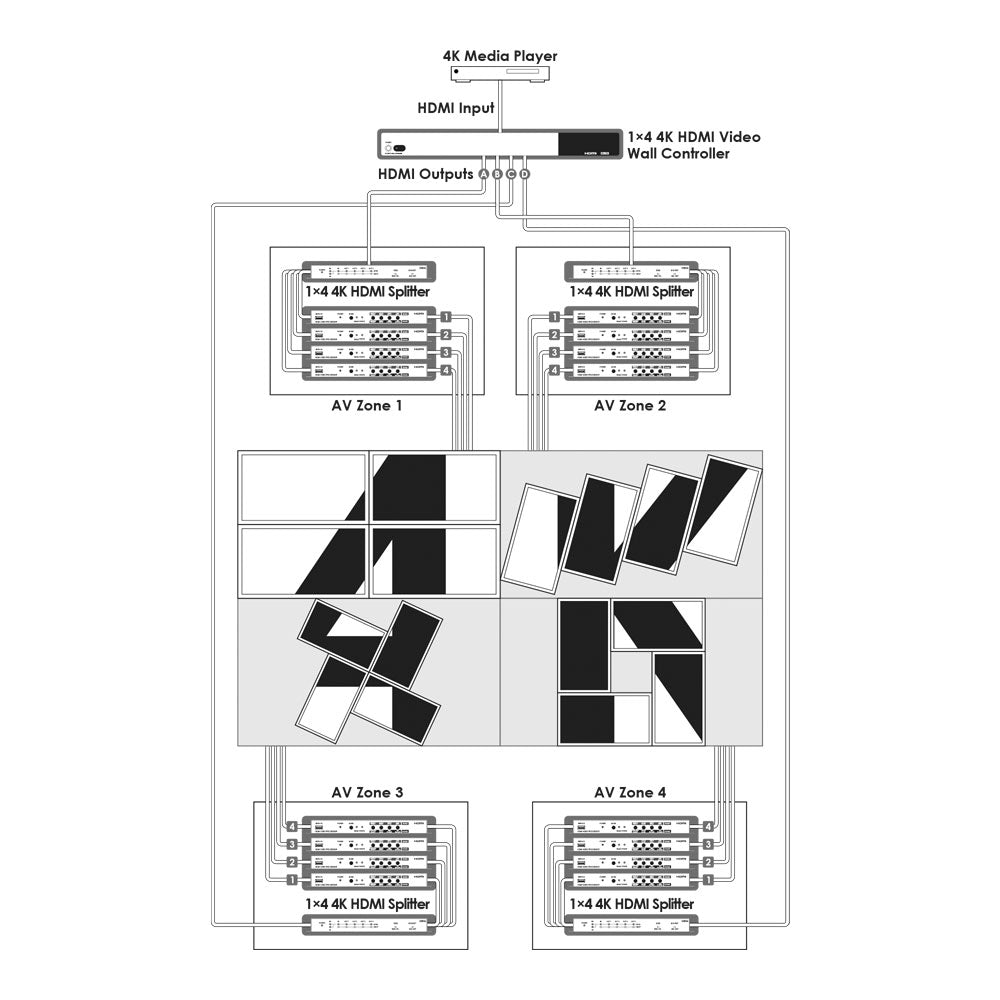

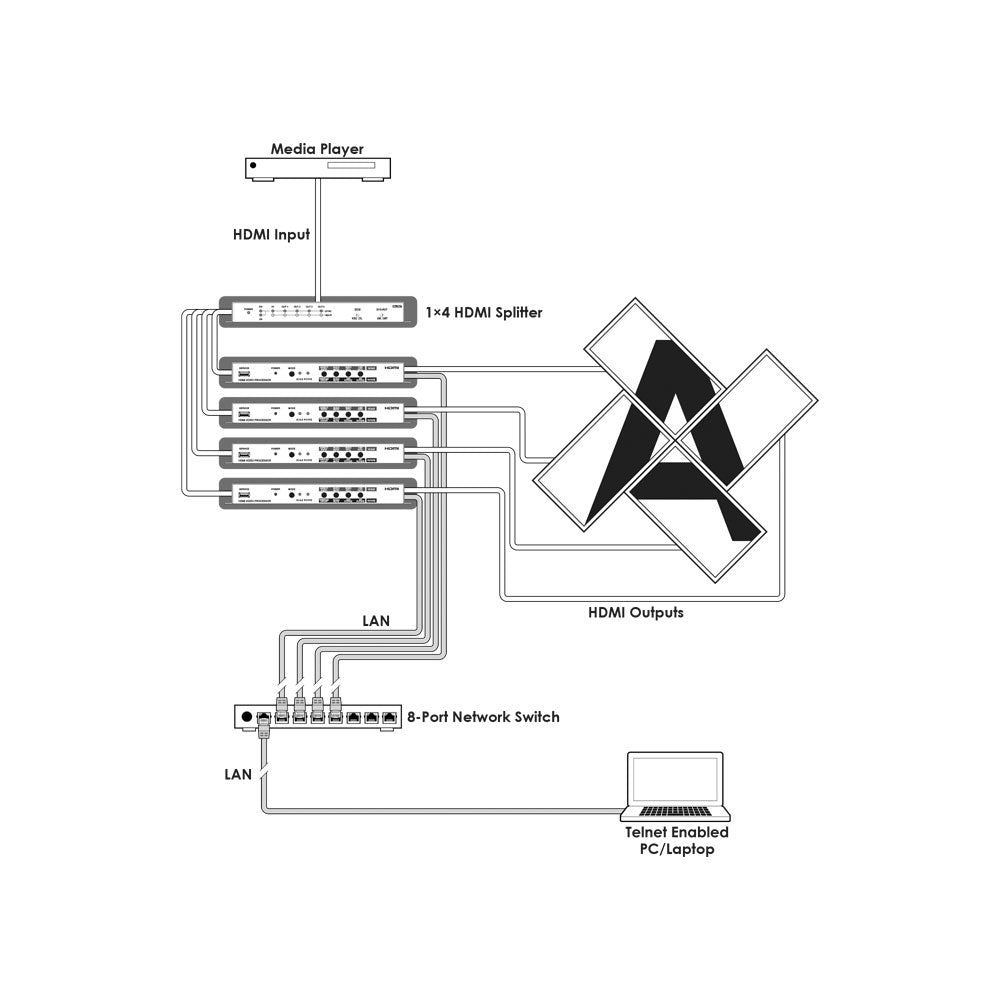

- Scalable Video Wall Expansion - Combine multiple units via HDMI splitter or matrix for larger installations
- WYSIWYG Software Control - Graphical PC software enables easy visual layout and configuration

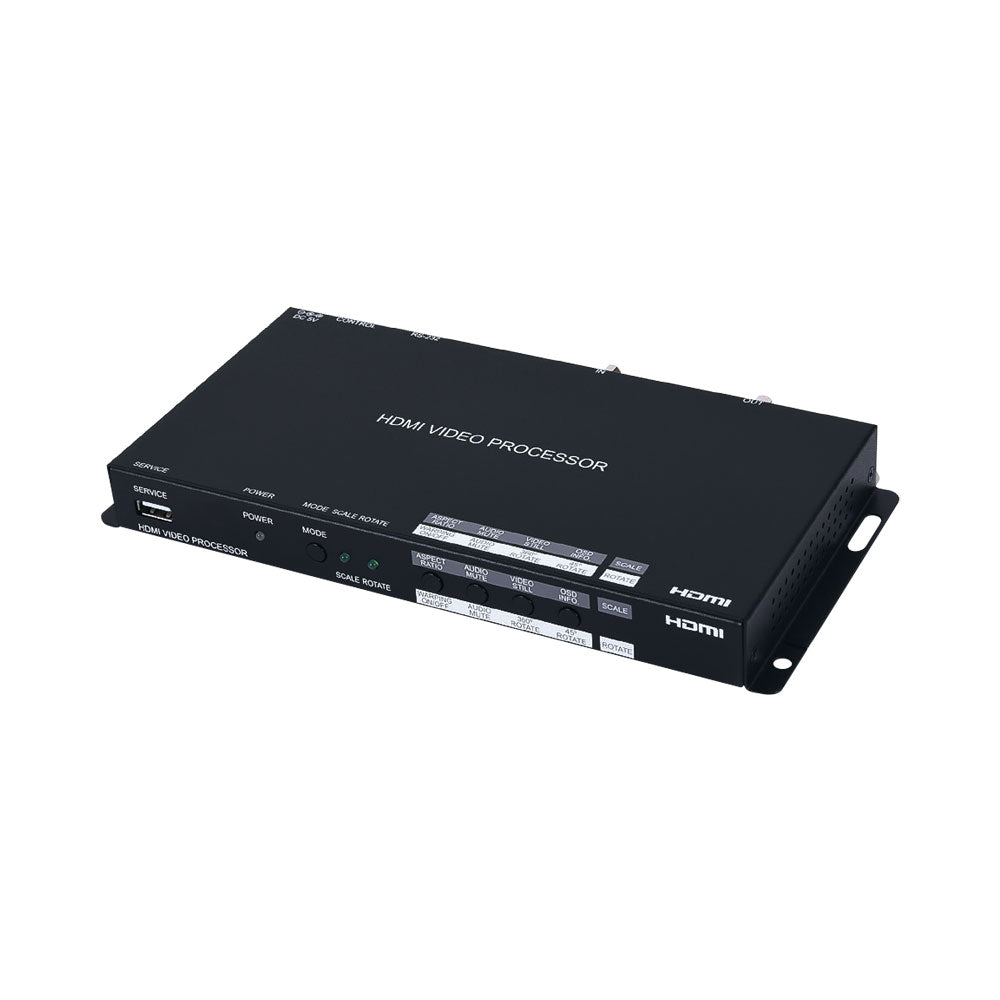

- Flexible Control Options - Front panel with OSD, plus Telnet, RS232 and PC software control
Specifications

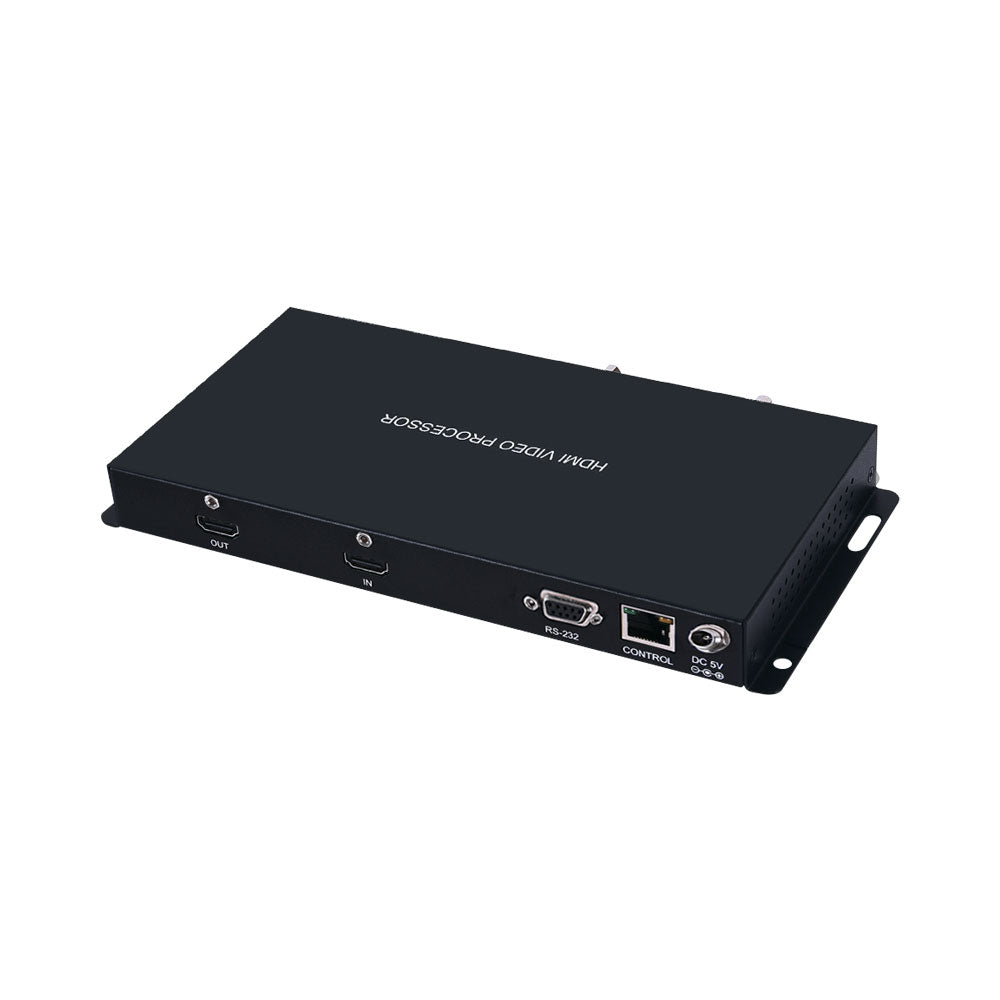

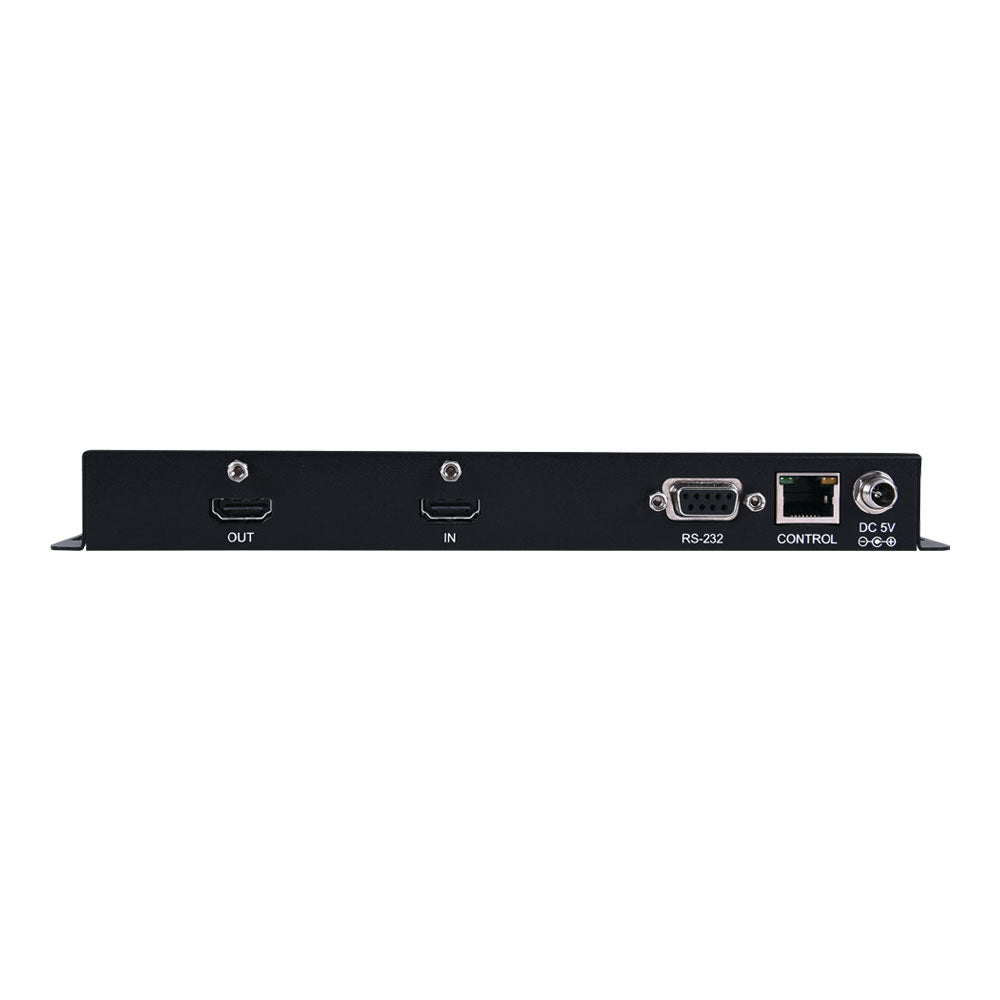

- Input Port: 1× HDMI
- Output Port: 1× HDMI
- Control I/O: 1× RS232, 1× LAN
- HDMI Compliance: HDMI 1.3
- HDCP Compliance: 1.4
- Input Signal: 1920×1080 @60Hz 12-bit YUV 4:4:4
- Output Signal: 1920×1080 @60Hz 12-bit YUV 4:4:4
- Maximum Input Resolution: 1920×1200 @60Hz
- Maximum Output Resolution: 1920×1200 @60Hz
- Power Supply: 5V 2.6A DC
- Power Consumption: 5.9W
- Chassis Material: Steel
- Colour: Black
- Dimensions: 231.5 × 25 × 117mm
- Weight: 652g
