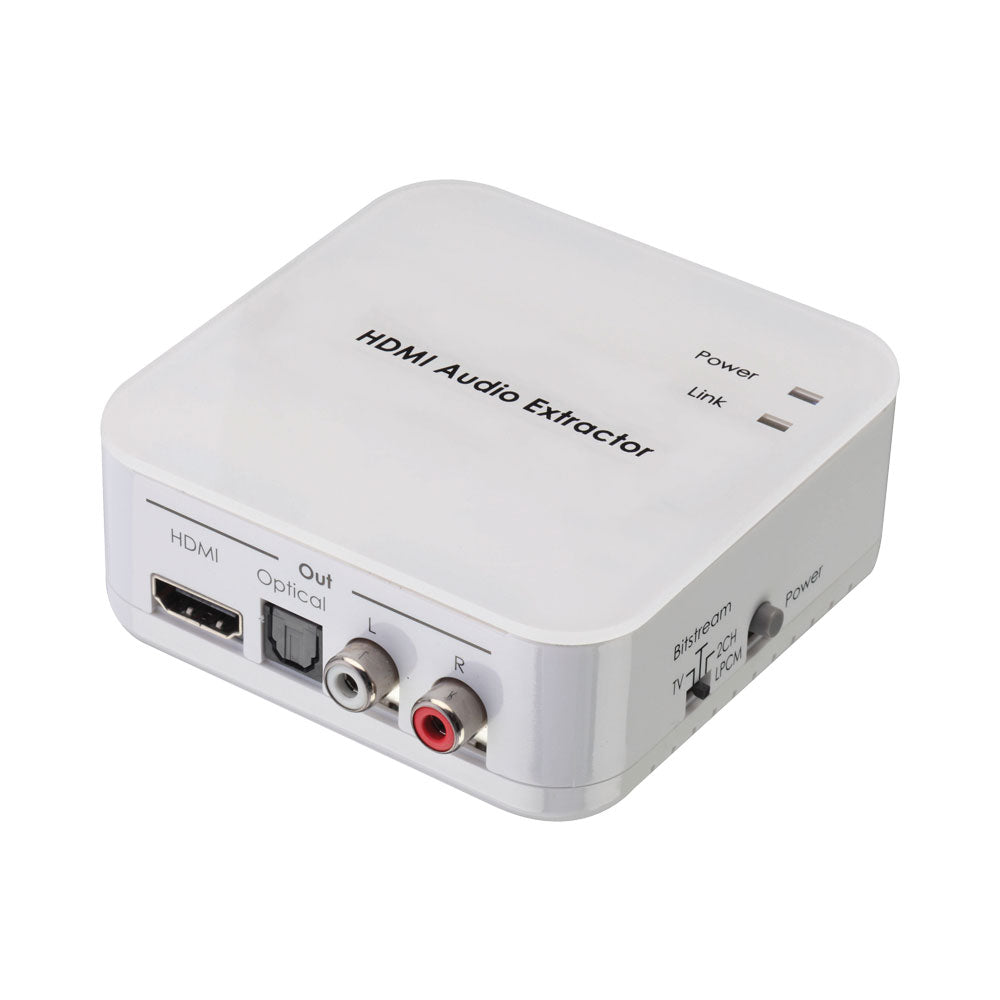

CYP CLUX-11CD HDMI to Digital/Analogue Audio Extractor
Extract high-quality audio from HDMI sources with the CYP CLUX-11CD HDMI Audio Extractor. Designed for professional AV and home entertainment environments, this compact solution converts HDMI audio into digital optical or analogue stereo outputs for amplifiers, speakers and legacy audio systems. Supporting HDMI audio sampling rates up to 192kHz and HBR audio formats, it delivers flexible audio integration without compromising video performance.
Features
- HDMI Audio Extraction - Separates audio from HDMI sources for dedicated audio output
- Dual Audio Outputs - Supports both Optical S/PDIF and analogue stereo L/R audio
- High Audio Compatibility - Supports LPCM, Dolby Digital, DTS and HBR audio formats
- EDID Management - Select between TV, Bitstream and LPCM audio modes
- 3D HDMI Support - Compatible with 3D HDMI video signals

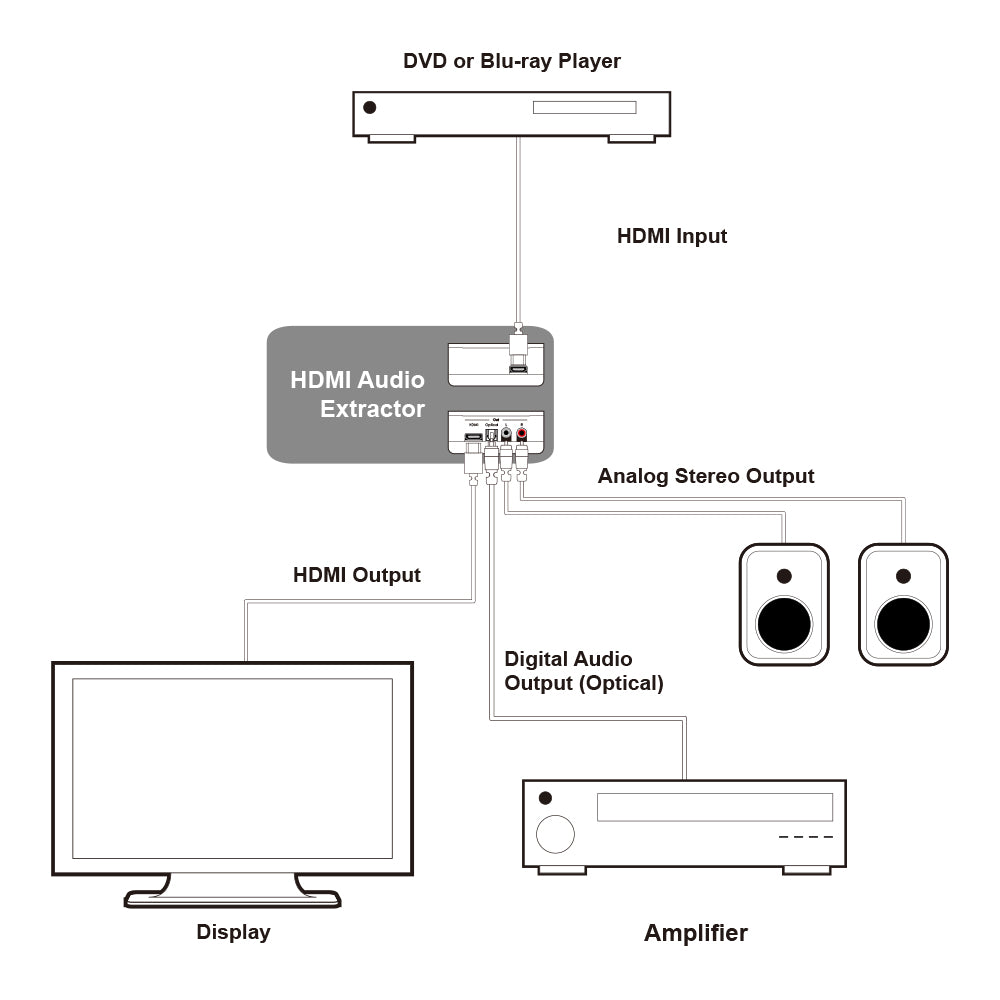

- Flexible AV Integration - Ideal for amplifiers, active speakers and non-HDMI AV receivers
- Long Distance HDMI Support - Supports HDMI cable runs up to 15m at 1080p 8-bit
- Compact Low Power Design - Efficient operation for professional AV installations
Specifications

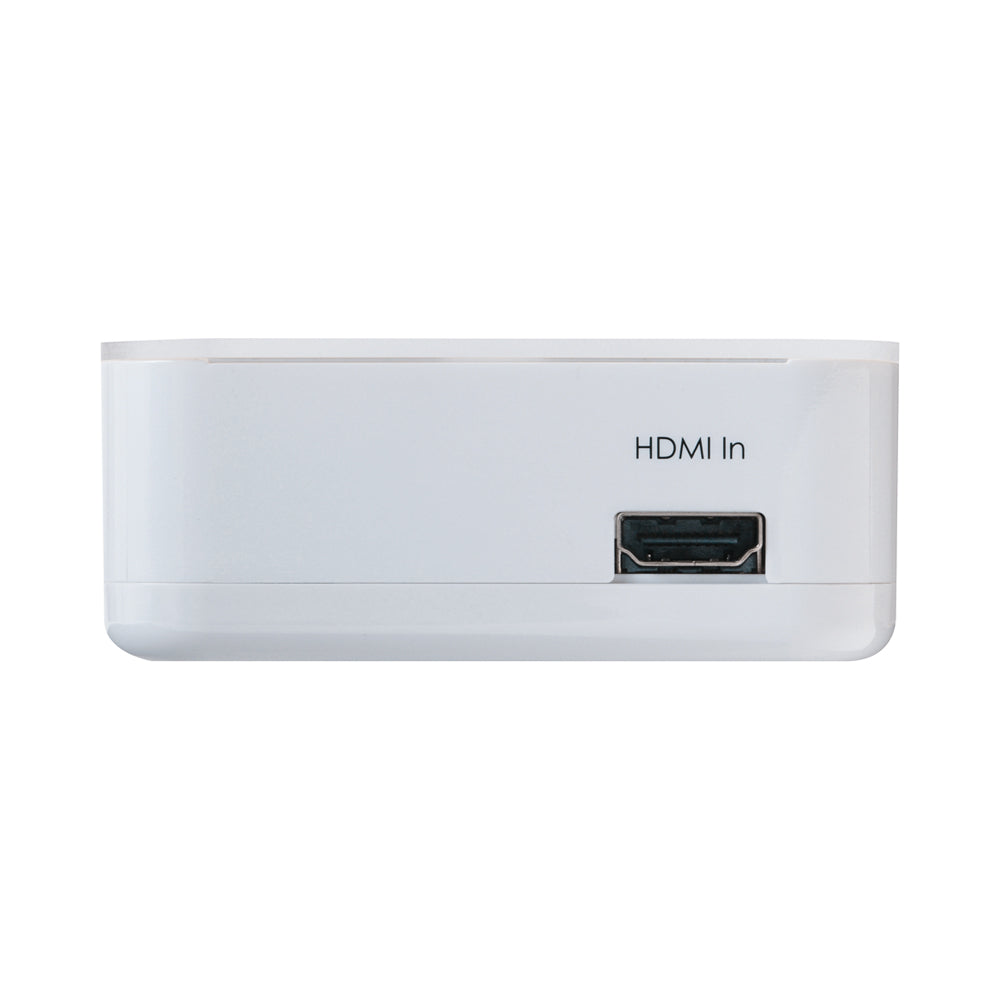

- Input Port: 1× HDMI
- Output Ports: 1× HDMI, 1× Optical, 1× Analogue L/R
- HDMI Audio Sampling Rate: Up to 192kHz
- Optical Audio Sampling Rate: Up to 48kHz
- HDMI Audio Formats: LPCM 2/5.1/7.1CH, Dolby 5.1, DTS 5.1, DD+, Dolby TrueHD and DTS-HD
- Optical Audio Formats: LPCM 2CH, Dolby 5.1 and DTS 5.1
- Analogue Audio Format: Stereo 2CH
- TMDS Clock Frequency: 225MHz
- HDMI Compliance: HDMI, HDCP 1.2 and DVI 1.0
- HDMI Cable Distance: Up to 15m at 1080p 8-bit
- Power Supply: 5V 1.2A
- Power Consumption: 2.1W
- Dimensions: 90.7 × 85.8 × 34mm
- Weight: 107g
- Chassis Material: Plastic
- Colour: White
