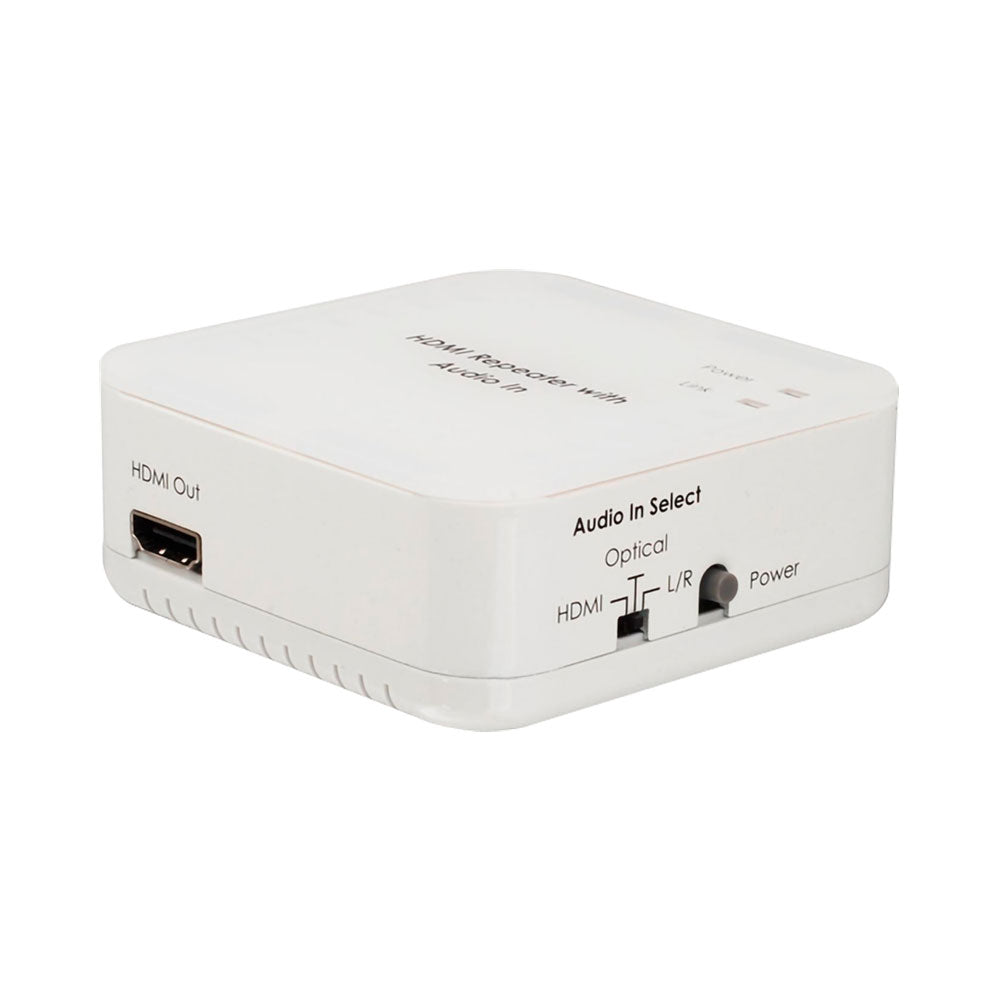

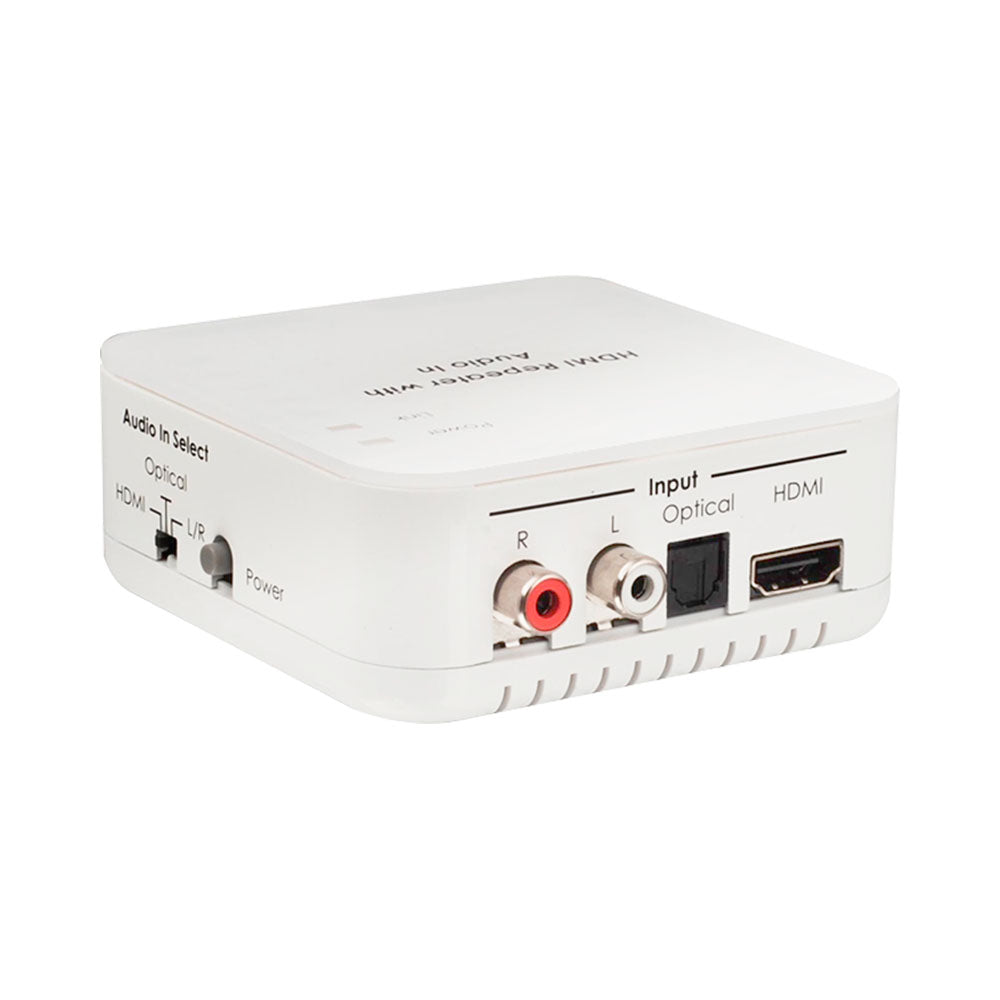

CYP CLUX-11CA HDMI Audio Inserter
Add External Stereo or Digital Audio to HDMI Signals with Ease.

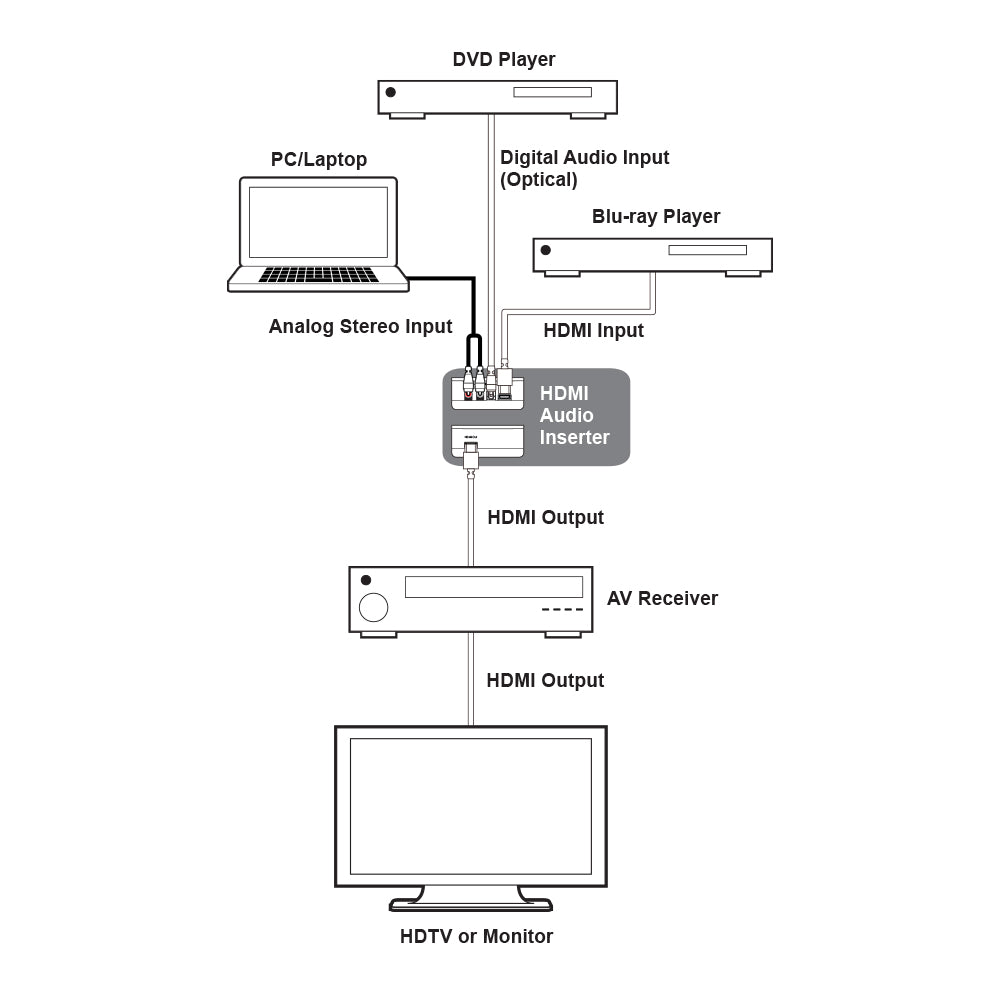

The CYP CLUX-11CA HDMI Audio Inserter allows users to embed external analogue or digital audio signals directly into an HDMI output stream. Designed for AV integration, home entertainment and professional multimedia environments, this compact device supports stereo analogue audio and optical digital audio insertion while maintaining Full HD 1080p video quality. With support for high-bit-rate audio formats, Dolby and DTS surround sound, as well as 3D video signals, the CLUX-11CA is ideal for enhancing HDMI installations where separate audio sources need to be integrated into a single HDMI connection.
Features
- HDMI Audio Insertion - Embeds external audio into HDMI output signals
- Multiple Audio Inputs - Supports analogue stereo and optical digital audio
- Full HD Video Support - Supports resolutions up to 1920×1080p @60Hz (12-bit)
- High Bit Rate Audio Support - Compatible with advanced surround sound formats
- HDMI 1.4a Support - Ensures reliable HDMI and DVI compatibility
- 3D Signal Support - Compatible with 3D HDMI video formats
- Optical Audio Support - Supports LPCM, Dolby Digital and DTS Digital Audio
- Extended HDMI Transmission - Supports up to 15m cable distance at 1080p 8-bit or 10m at 12-bit
Specifications
Input Ports
- 1× HDMI (Max. 1920×1080p @60Hz)
- 1× Optical Digital Audio
- 1× L/R Analogue Audio
Output Port
- 1× HDMI
- HDMI Compliance: HDMI 1.4a (DVI 1.0)
- HDCP Compliance: HDCP 1.4
- Maximum Resolution: 1920×1080p @60Hz
Hdmi Audio Support
- LPCM 2/5.1/7.1
- Dolby 5.1
- DTS 5.1
- Dolby Digital+
- Dolby TrueHD
- DTS-HD Master Audio
Optical Audio Support
- LPCM 2
- Dolby Digital
- DTS Digital Audio 5.1
Audio Sampling Rates
- HDMI up to 192kHz
- Optical S/PDIF up to 48kHz
Other
- TMDS Clock Frequency: up to 225MHz
- HDMI Cable Distance: Up to 15m at 1080p (8-bit), up to 10m at 1080p (12-bit)
- Power Supply: 5V 1A
- Power Consumption: 2.7W
- Chassis Material: Plastic
- Chassis Colour: White
- Dimensions: 90.7 × 34 × 85.8mm
- Weight: 107g
