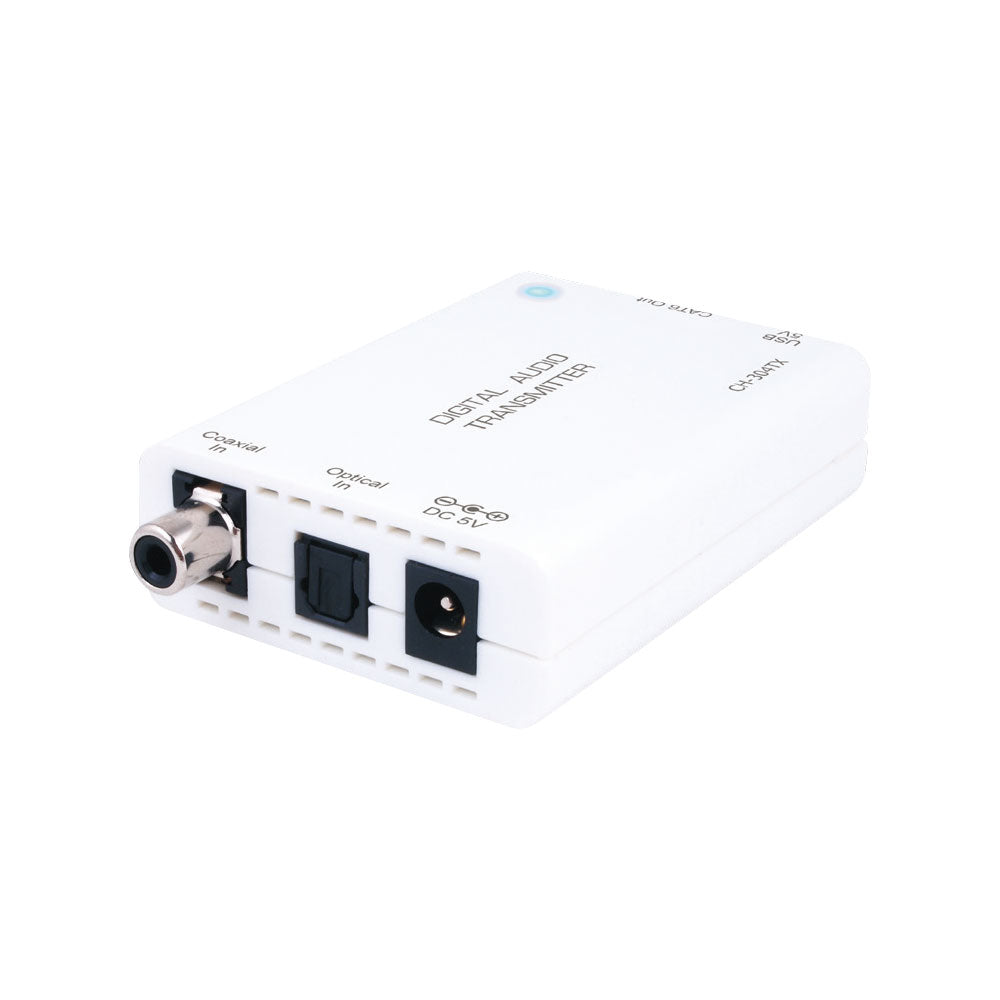

CYP CH-304TX Digital Audio over CAT5e/6/7 Transmitter
Send Digital Audio Further. Clean. Stable. Reliable.
The CYP CH-304TX Transmitter allows you to extend high-quality digital audio signals over a single CAT5e/6/7 cable, delivering both optical and coaxial audio up to 150 metres. Designed for flexibility and ease of installation, it supports multiple audio formats and dual input options, making it ideal for professional AV setups and home entertainment systems.
Features
- Long-Distance Audio Extension - Transmits digital audio up to 150m over CAT cable
- Dual Input Support - Accepts both Optical and Coaxial digital audio sources
- High-Quality Audio Formats - Supports LPCM 2CH, Dolby Digital and DTS 5.1
- Wide Sampling Rates - Supports up to 96kHz digital audio
- Flexible Power Options - Powered via USB or DC adaptor
- Single-Side Power Operation - Only one unit requires power for both transmitter and receiver to operate (use either USB or DC power per unit, not both)
- Simple Single Cable Setup - Uses one CAT5e/6/7 cable for transmission
Specifications

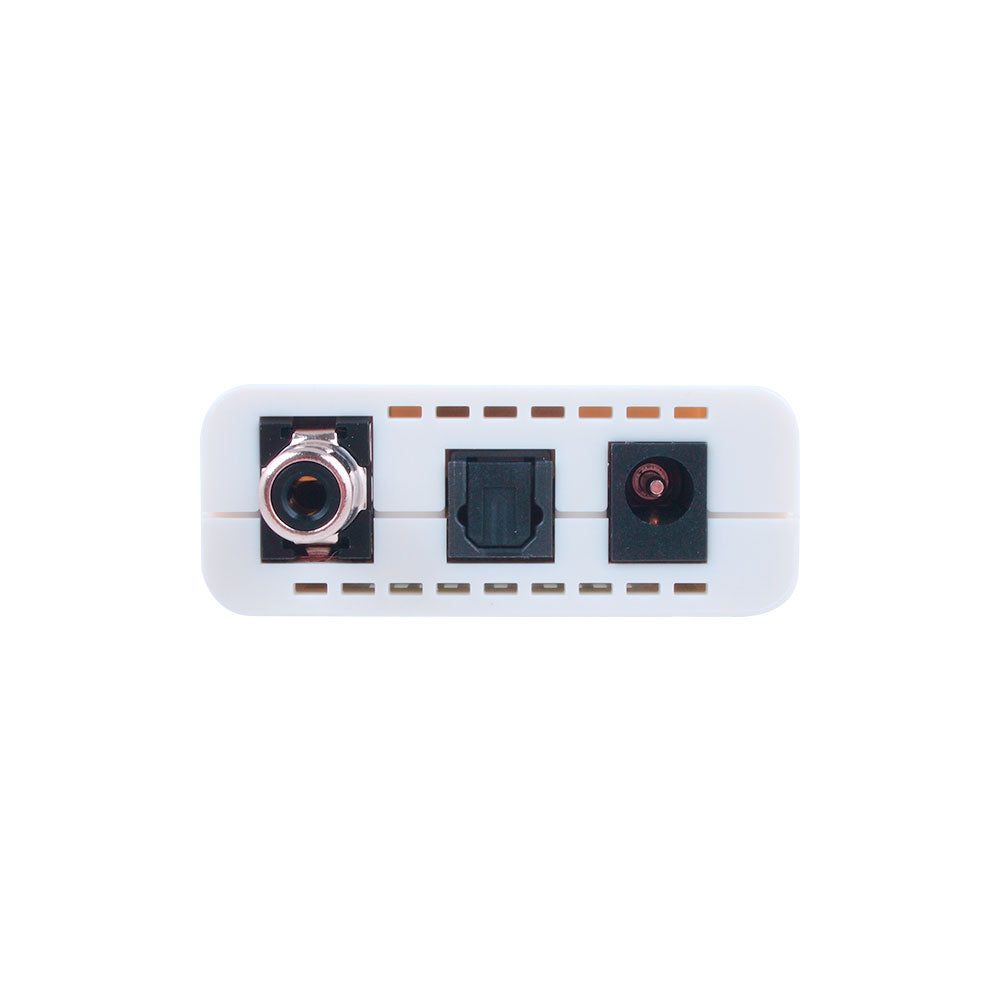

- Input Ports: 1x Coaxial, 1x Optical

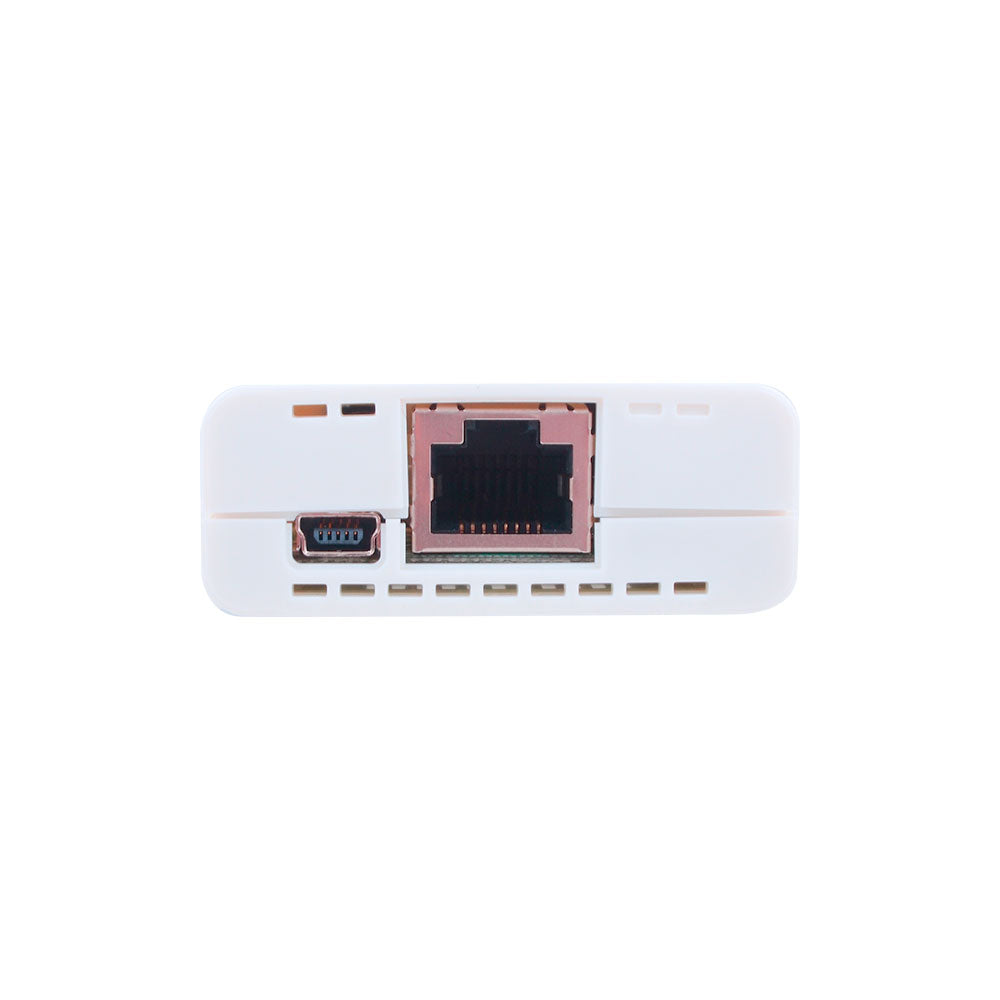

- Output Port: 1x CAT6
- Max. Distance: 150m over CAT5e/6/7
- Sample Rate: 32 / 44.1 / 48 / 88.2 / 96kHz
- Power Supply: 5V 1A DC or USB Power
- Power Consumption: 2W
- Dimensions: 70 x 50 x 22mm
- Weight: 50g
- Chassis Material: Plastic
