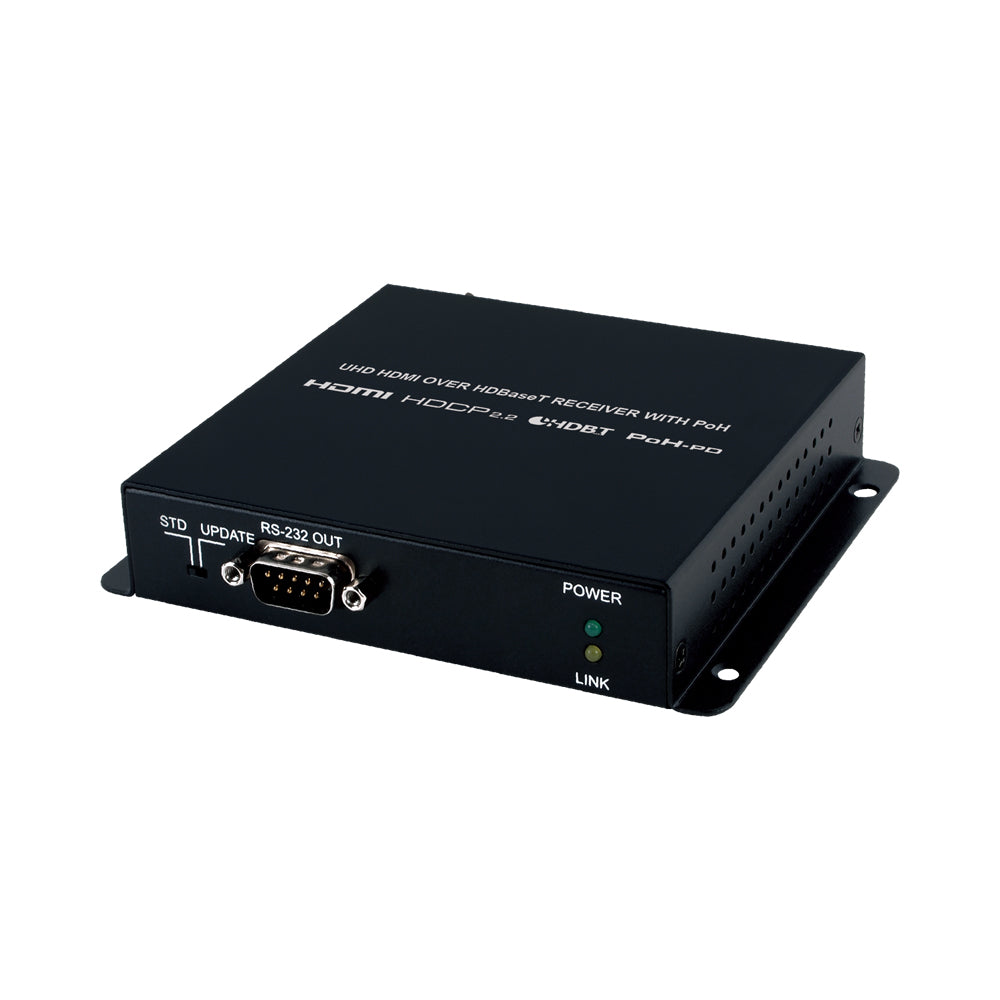

CYP CH-1527RXPL 60m 4K HDMI over HDBaseT Receiver with 48V PoH
Professional 4K HDMI Extension over a Single CAT6 Cable.
The CYP CH-1527RXPL is a professional UHD HDMI over HDBaseT receiver designed for high-quality long-distance AV signal transmission. Supporting resolutions up to 4K @60Hz with YUV 4:2:0, the receiver delivers uncompressed HDMI, IR and RS232 control signals over a single CAT6 cable up to 60m. With integrated 48V PoH support, the receiver can be powered directly from the compatible transmitter for cleaner and more flexible installations. Ideal for boardrooms, digital signage, education, hospitality and control room environments, the CMPRO-UA8H8CVPL acts as the HDBaseT transmission matrix while the CH-1527RXPL receives and outputs crystal-clear UHD HDMI signals at the display endpoint. With integrated 48V PoH support, the receiver can be powered directly from the matrix switch, simplifying installations and reducing cabling requirements.
Features
- 4K UHD HDMI Support - Supports resolutions up to 4096 × 2160 @60Hz YUV 4:2:0
- HDBaseT Transmission - Extends HDMI, IR and RS232 over a single CAT6 cable
- Long Distance Extension - Transmits signals up to 60m over CAT6 cable
- 48V PoH Support - Receiver powered directly from compatible transmitter
- HDMI 2.0 and HDCP 2.x Compatible - Ensures reliable UHD content playback
- RS232 Pass-Through - Supports advanced serial control integration up to 115200bps
- IR Control Extension - Supports IR frequencies from 30~50kHz
- CEC Bypass Support - Enables HDMI CEC signal pass-through
- Multi-Channel Audio Support - Supports LPCM 2.0/5.1/7.1, Bitstream and HD Bitstream audio
- Compact Metal Housing - Durable professional-grade design for AV installations
- Firmware Update Support - RS232 field firmware upgrade capability
Specifications
- Model: CH-1527RXPL
- Product Type: HDMI over HDBaseT Receiver
- HDMI Compliance: HDMI 2.0 (DVI 1.0)
- HDCP Compliance: HDCP 2.x
- Maximum Resolution: 4096 × 2160 @60Hz YUV 4:2:0
- Transmission Distance: up to 60m

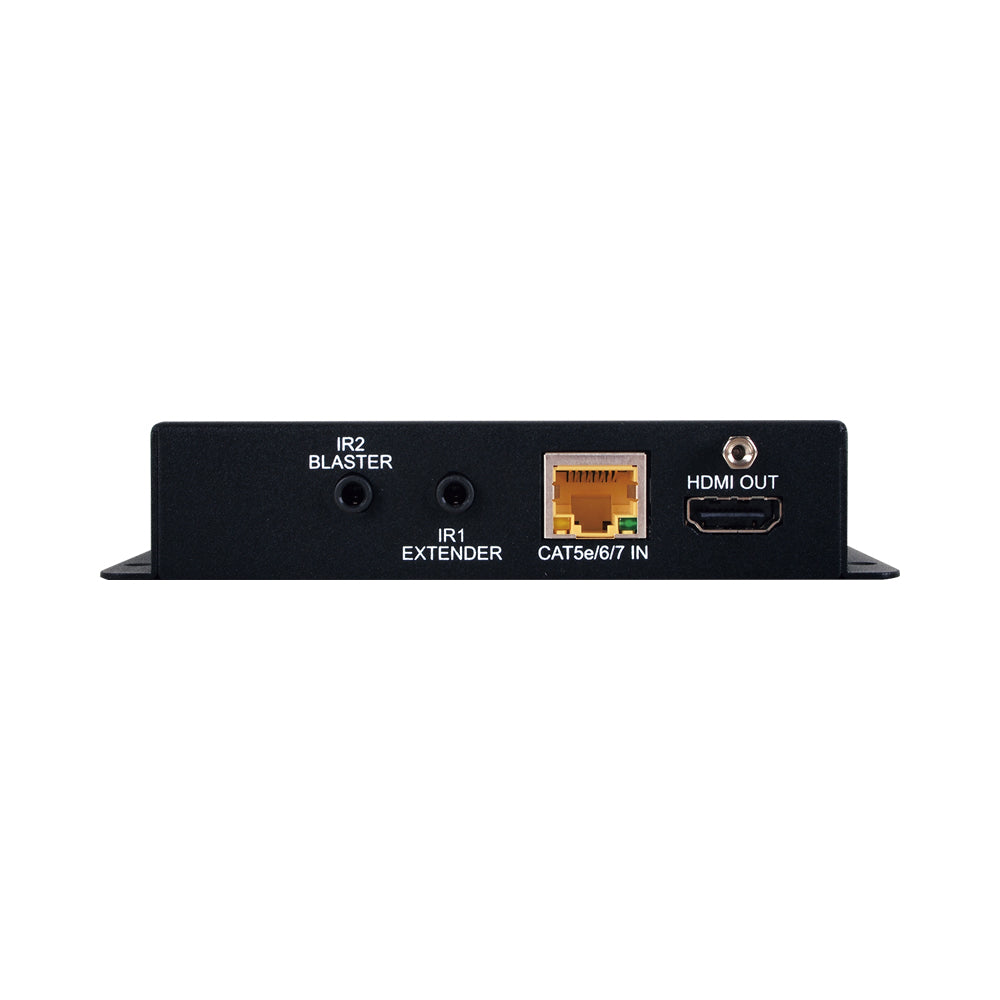

- Input Interface: 1× HDBaseT (RJ45), 1× IR Extender (3.5mm)

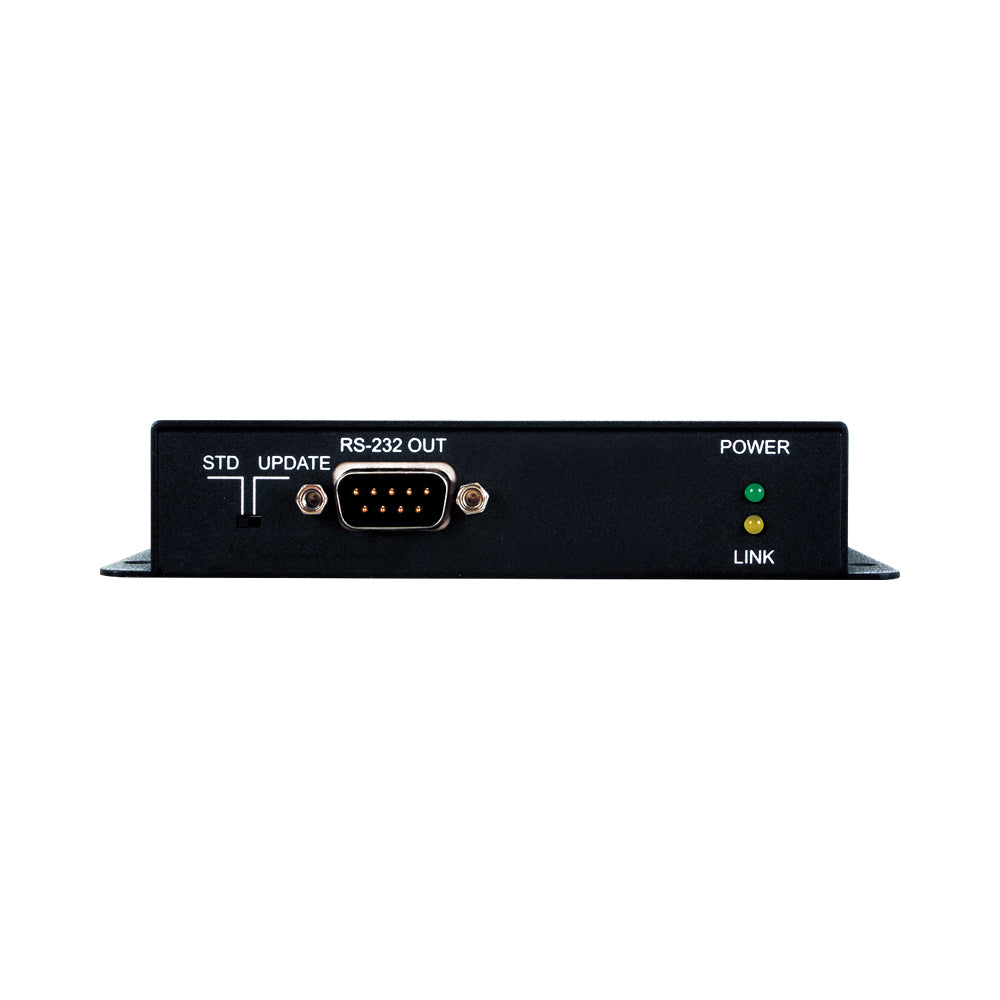

- Output Interface: 1× HDMI, 1× RS232 (DE-9), 1× IR Blaster (3.5mm)
- Supported Audio: LPCM 2.0/5.1/7.1, Bitstream, HD Bitstream
- IR Frequency Range: 30~50kHz
- Power Input: 48V 0.83A DC
- Power Consumption: 13.5W Max.
- Chassis Material: Metal
- Colour: Black
- Dimensions: 108 × 29 × 116mm
- Weight: 366g
- Operating Temperature: 0~40°C
- Pair with CYP CMPRO-UA8H8CVPL 8×8 HDMI 4K over CAT6 Matrix Switch
