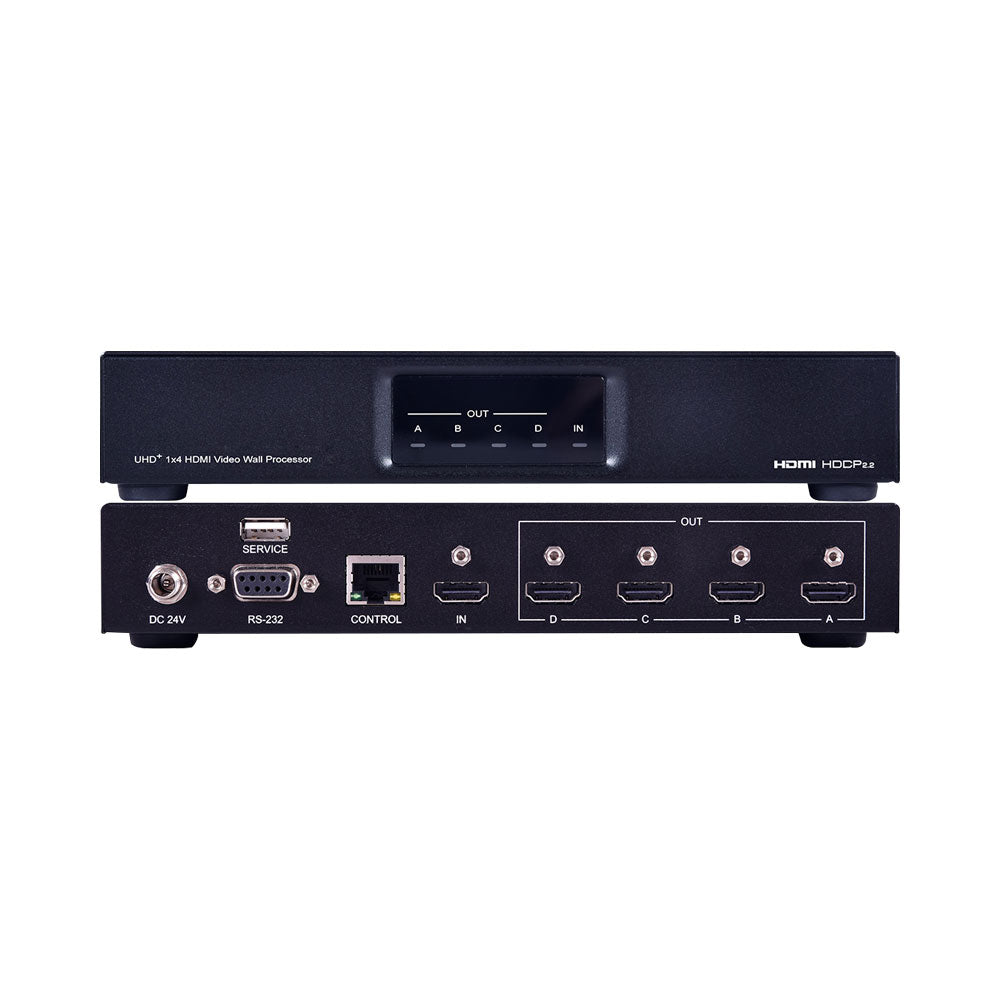

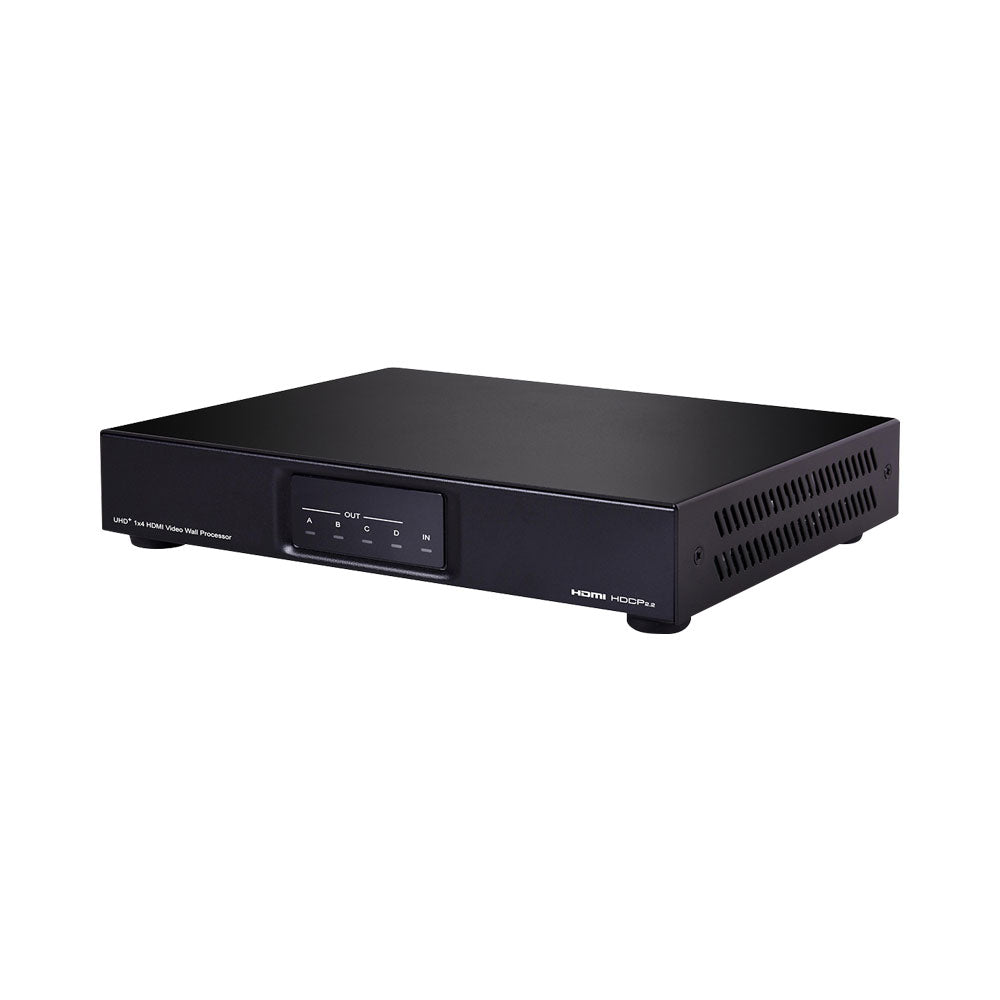

CYP CDPS-4KQ-AD 4K 1×4 HDMI Video Wall Processor
Create Impactful 4K Video Walls. Precision Control. Seamless Performance.
Transform any standard HDMI source into a stunning 2×2 video wall with the CYP CDPS-4KQ-AD. Designed for professional AV environments, this powerful processor delivers high-quality 4K input support with smooth scaling to four Full HD outputs, ensuring a seamless and visually striking display. With advanced bezel compensation, flexible EDID management and multiple control options, it provides complete control and adaptability for demanding installations.
Features
- 4K HDMI Input Support - Supports up to 18Gbps (600MHz) for high-bandwidth 4K sources

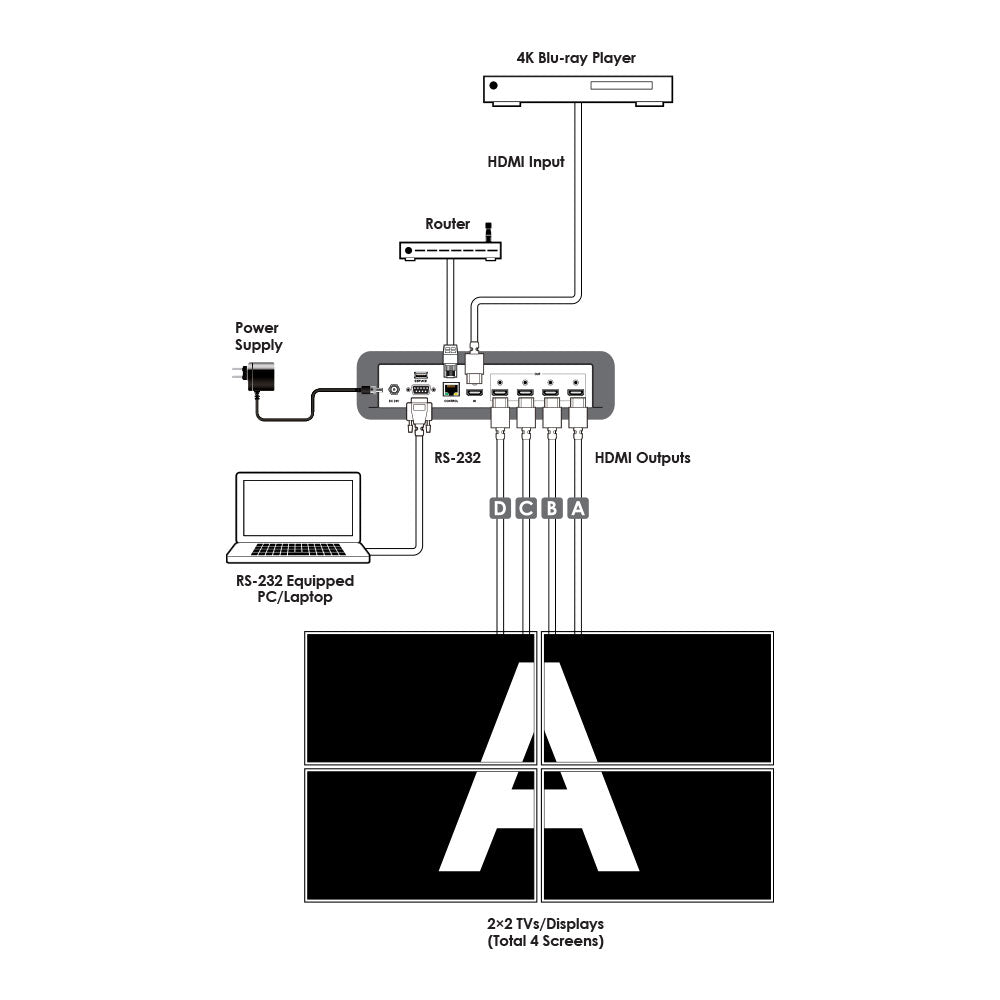

- 2×2 Video Wall Processing - Converts a single HDMI source into four synchronised outputs
- Fixed Full HD Outputs - 4x HDMI outputs fixed at 1080p @60Hz for consistent display performance
- Advanced 4K Compatibility - Supports up to 4096 × 2160 @60Hz (4:4:4, 8-bit) input
- HDR Handling - Supports 4K @24Hz (4:4:4) and 60Hz (YUV 4:2:0) up to 12-bit with automatic HDR to SDR conversion
- Bezel Compensation - Maintains seamless image alignment across multiple displays
- Audio Pass-Through - Supports LPCM 2.0 / 5.1 / 7.1, Bitstream and HD Bitstream formats
- Signal Event Automation - RS-232 control enables event-triggered display control
- Flexible Control Options - OSD, RS-232, Telnet and PC software control
- Dedicated PC Software - Easy configuration and full video wall customisation
Specifications

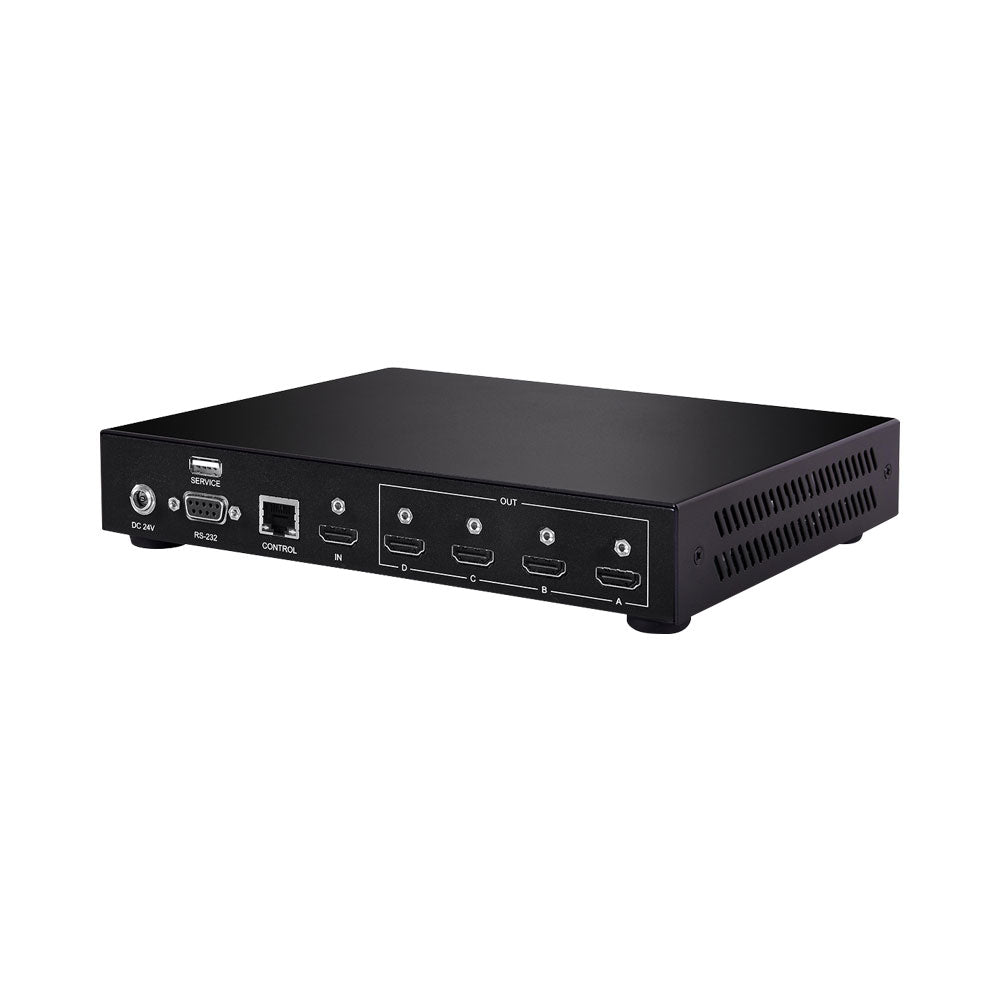

- Input Port: 1x HDMI
- Output Ports: 4x HDMI
- Control Ports: 1x RJ45 (Control), 1x RS232
- Service Port: 1x USB
- HDMI Compliance: HDMI 2.0 (DVI 1.0)
- HDCP Compliance: 2.x
- Input Signal Type: 4096 × 2160 @60Hz 8-bit YUV 4:4:4
- Output Signal Type: 1920 × 1080 @60Hz 8-bit
- Maximum Input Resolution: 4096 × 2160 @60Hz
- Maximum Output Resolution: 1920 × 1080 @60Hz
- Audio Input: HDMI 2CH / 7.1CH LPCM, Bitstream, HD Bitstream
- Audio Output: HDMI 2CH / 7.1CH LPCM, Bitstream, HD Bitstream
- Chassis Material: Steel
- Colour: Black
- Dimensions (W x H x D): 215 x 47 x 158mm
- Weight: 652g
- Power Supply: 24V 0.75A
- Power Consumption: 9W
- Firmware Update: USB Flash Drive, PC Application
