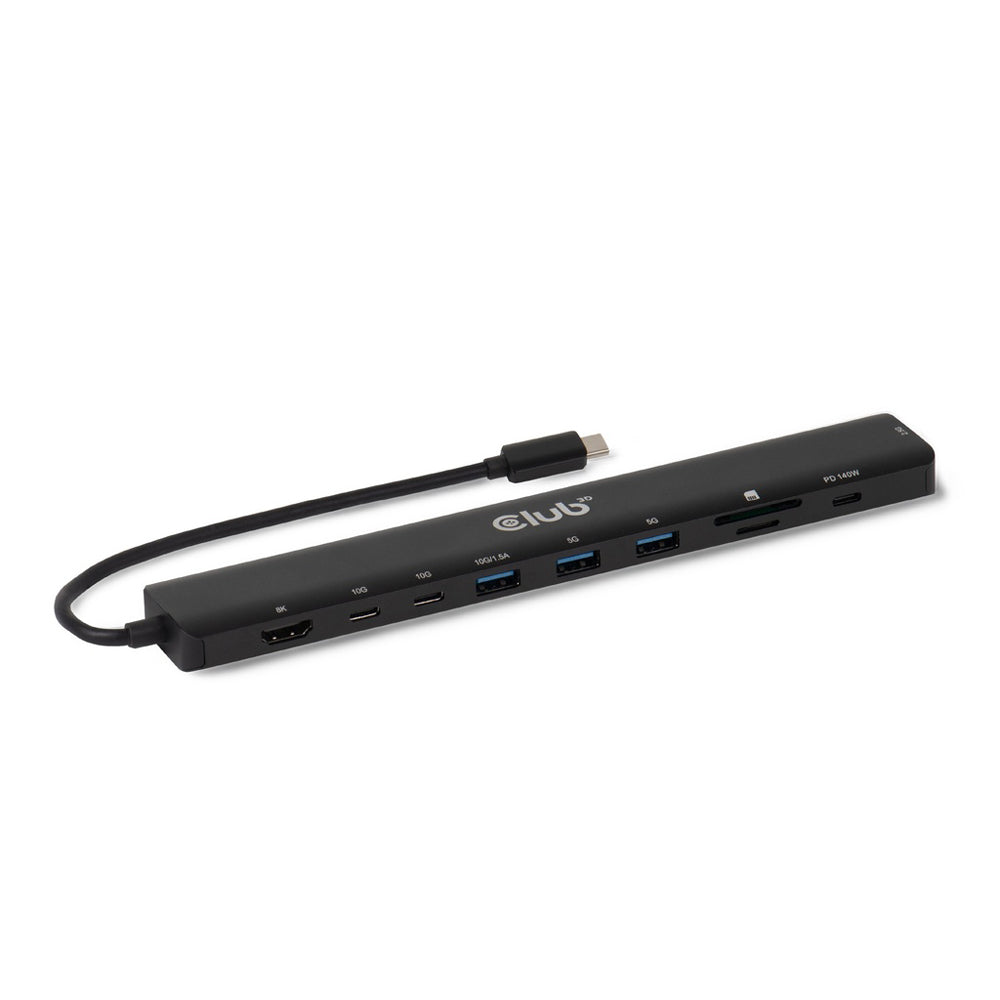

CLUB3D CSV-2550 USB TYPE-C 10-IN-1 PORT REPLICATOR WITH 8K @30HZ HDMI AND PD3.1 MAX. 140W

Features

• 8K HDMI Output - up to 8K @30Hz or 4K @120Hz for ultra-sharp visuals
• 140W Power Delivery 3.1 - Charge your laptop while powering your setup
• 2.5Gbps Ethernet - Ultra-fast, stable wired network connection
• High-Speed USB Ports - up to 10Gbps for fast data transfer and device connectivity
• SD and MicroSD Slots - Simultaneous card access for quick file transfers
• Plug-and-Play - Driverless setup for instant productivity

Specifications

• Input:
• 1× USB Type-C (10Gbps, Host)
• Output:

- 1× Hdmi 2.1

• 1× RJ45 Ethernet (10/100/1000/2.5Gbps)
• 1× USB Type-C PD 3.1
• 2× USB Type-C (10Gbps)
• 1× USB Type-A (10Gbps)
• 2× USB Type-A (5Gbps)
• 1× SD Card Slot
• 1× MicroSD Card Slot
• Video Support:
• up to 8K @30Hz or 4K @120Hz
• DisplayPort 1.4 Alt Mode
• 8-bit / 10-bit / 12-bit Colour Depth
• HDCP 2.3 and HDCP 1.4
• Data Transfer:
• USB3.2 Gen2 (up to 10Gbps)
• USB3.2 Gen1 (up to 5Gbps)
• Power Delivery:
• PD 3.1 up to 140W Input
• up to 125W Pass-Through to Host
• 15W Reserved for Dock Operation
• Fast Role Swap Support
• Networking:
• 2.5 Gigabit Ethernet
• Supports Wake-on-LAN
• Card Reader:
• SD and MicroSD (UHS-I, up to 104MB/s)
• Supports Simultaneous Use
• Downstream Charging: up to 7.5W per Port (USB Type-C and USB Type-A)
• Compatibility:
• OS: Windows 10 and Above, macOS
• Supports USB Type-C Devices with DP Alt Mode
• Cable Length: Approx. 19cm
• Connector Dimensions (USB Type-C): 3.62 × 1.2 × 0.63cm
• Box Dimensions: 7 × 3.2 × 3.5cm
• Device Weight: 109g
• Total Weight: 154g
• Meets ROHS, FCC and CE EMI Requirements
