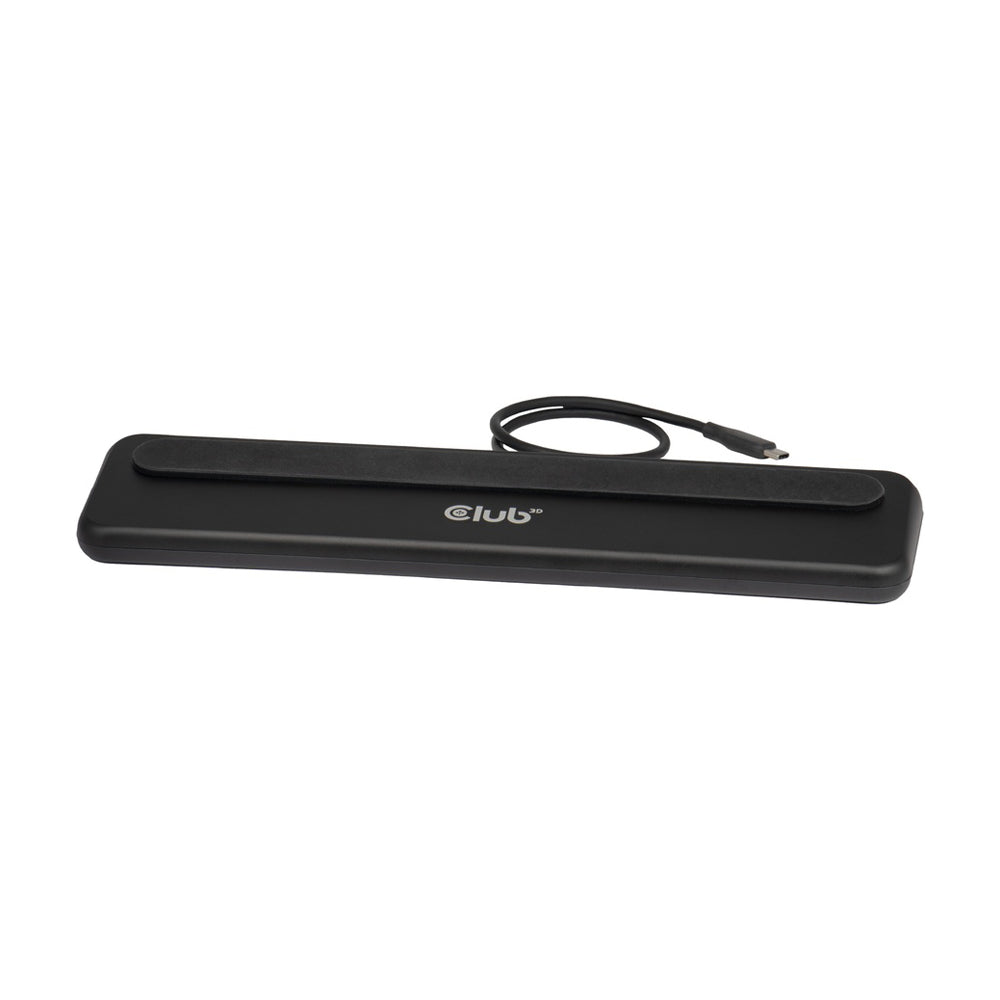

CLUB3D CSV-2541 USB TYPE-C 12-IN-1 TRIPLE DISPLAY PORT REPLICATOR WITH 8K @30HZ HDMI AND PD3.0 MAX. 100W

Features

• Triple Display Support - Drive up to three displays from one connection (1× 4K @60Hz plus 2× 4K @30Hz)
• 8K and Dual 4K Output - Supports 8K @30Hz or dual 4K @60Hz
• Power Delivery 3.0 - up to 100W charging for laptop and devices
• Multiple Video Outputs - 2× HDMI and 1× DisplayPort for flexible display setups
• High-Speed USB Ports - USB Type-A and USB Type-C for everyday connectivity
• Gigabit Ethernet - Stable wired network up to 1Gbps
• SD and MicroSD Card Slots - Simultaneous access for fast file transfers
• Fast Role Swap - Prevents disconnection when unplugging power
• Ergonomic Design - Improves airflow and cable management for cleaner setups

Specifications

• Input:
• 1× USB Type-C (Host, DP 1.4 Alt Mode)
• Output:

- 2× Hdmi

• 1× DisplayPort 1.4
• 1× USB Type-C PD
• 3× USB Type-A (5Gbps)
• 1× RJ45 Ethernet (10/100/1000Mbps)
• 1× SD Card Slot
• 1× MicroSD Card Slot
• 1× 3.5mm Audio Jack
• Video Support:
• up to 8K @30Hz
• Dual 4K @60Hz
• Triple Display: 4K @60Hz + 2× 4K @30Hz
• DisplayPort 1.4 Alt Mode with DSC
• HDR Support
• HDCP 2.3 and HDCP 1.4
• RGB and YCbCr Colour Formats (4:4:4 / 4:2:2 / 4:2:0)
• 8-bit / 10-bit / 12-bit Colour Depth
• Data Transfer: USB3.2 Gen1 (5Gbps)
• Power Delivery:
• PD 3.0 up to 100W
• Fast Role Swap Support
• Total USB Output up to 12W (5V 2.4A)
• Networking: Gigabit Ethernet (10/100/1000Mbps)
• Card Reader: SD and MicroSD (UHS-I, up to 104MB/s) Simultaneous Use
• OS Support: Windows 10 and Above
• Connector Dimensions (USB Type-C): 3.62 × 1.2 × 0.63cm
• Box Dimensions: 36.8 × 10.6 × 7.5cm
• Device Weight: 438g
• Total Weight: 950g
• Meets ROHS, FCC and CE EMI Requirements
