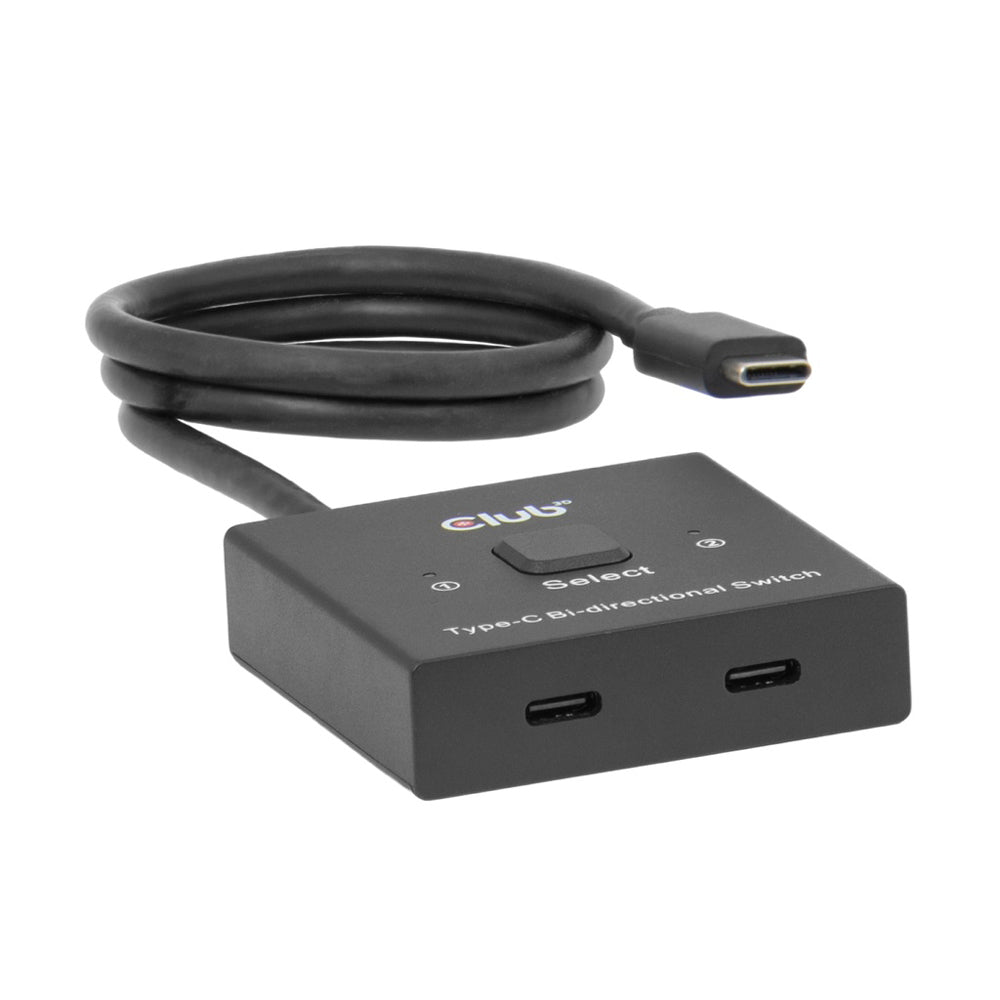

CLUB3D CSV-2511 USB TYPE-C BI-DIRECTIONAL 8K @60HZ VIDEO, 10GBPS DATA AND 100W POWER DELIVERY SWITCH

Features

• USB Type-C Bi-Directional Switch - Switch between two sources or two displays with one device
• 8K @60Hz and 4K @120Hz Support - Ultra-high resolution with smooth visual performance
• DisplayPort 1.4 Support - up to 32.4Gbps bandwidth for high-performance video
• USB3.2 Gen2 - up to 10Gbps data transfer for fast connectivity
• Power Delivery 3.0 - up to 100W charging with pass-through support
• Dual Switching Modes - One source to two displays or two sources to one display
• One-Button Switching - Quick toggle with LED indicators for active port status
• HDCP Pass-Through - Secure content transmission across connected devices
• USB Type-C Powered - Requires 5V input for operation with low power consumption
• Wide Compatibility - Supports USB Type-C and Thunderbolt devices across all operating systems

Specifications

• Input:
• 1× USB Type-C (Host)
• 1× USB Type-C (5V Power Input)
• Output:
• 2× USB Type-C
• Video Support:
• up To 8K @60Hz or 4K @120Hz
• DisplayPort 1.4 (32.4Gbps Bandwidth)
• Data Transfer:
• USB3.2 Gen2
• up to 10Gbps
• Power Delivery:
• PD 3.0 up to 100W
• Requires 5V USB Type-C Power Input
• Low Power Consumption (Approx. 0.1W)
• Functionality:
• Bi-Directional Switching (2 Sources to 1 Display or 1 Source to 2 Displays)
• One-Button Switching with LED Status Indicators
• HDCP Pass-Through
• Compatibility:
• OS: All Major Operating Systems
• Supports USB Type-C and Thunderbolt Devices
• Cable Length: Approx. 0.5m
• Device Dimensions: 5.5 × 5.5 × 1.5cm
• Connector Dimensions (USB Type-C): 3.62 × 1.2 × 0.63cm
• Box Dimensions: 14.5 × 14.5 × 4.5cm
• Device Weight: 61g
• Total Weight: 110g
• Meets ROHS, FCC and CE EMI Requirements
