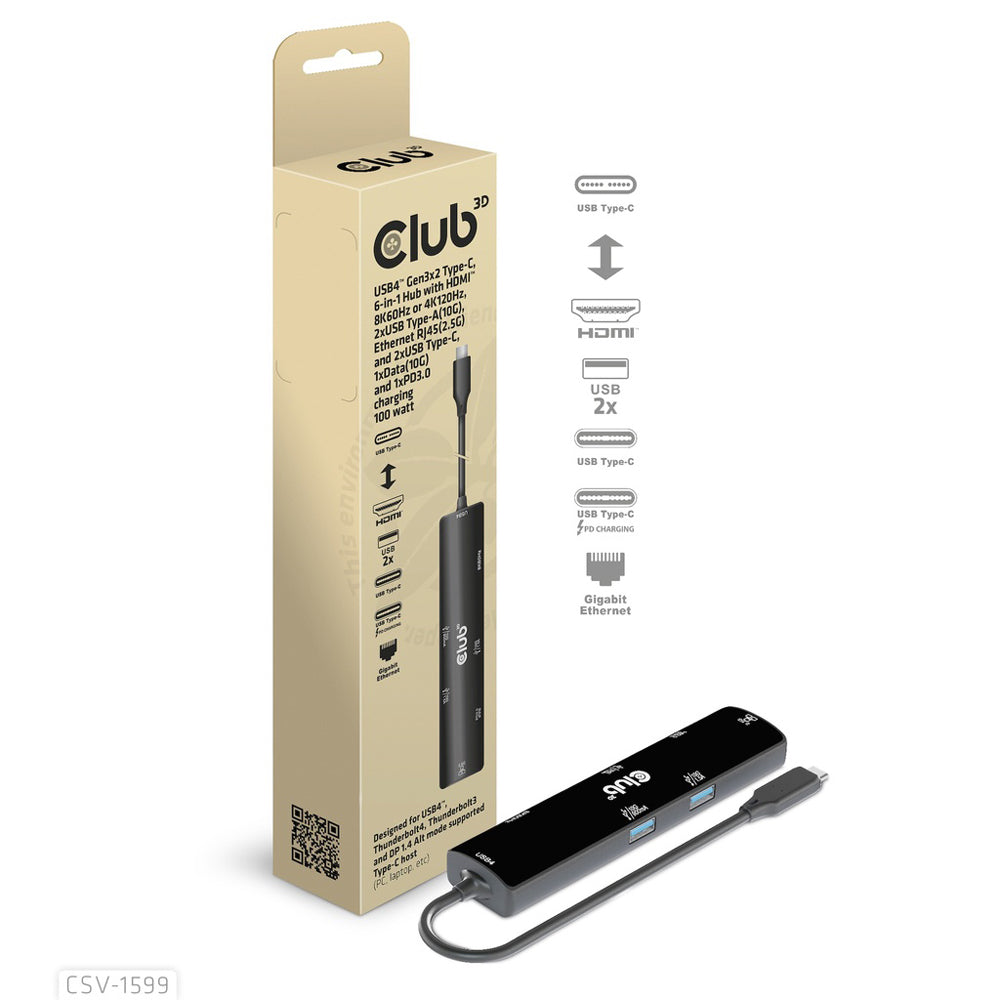

CLUB3D CSV-1599 USB4.0 GEN3X2 6-IN-1 PORT REPLICATOR

Features

• USB4.0 Gen3x2 Performance - Up to 40Gbps bandwidth for ultra-fast data transfer
• 8K HDMI Output - Supports 8K at 60Hz or 4K at 120Hz with HDR10+
• 6-in-1 Connectivity - HDMI, 2× USB Type-A, 1× USB Type-C data, 1× USB Type-C PD, 1× RJ45
• 2.5GbE Ethernet - High-speed wired network up to 2.5Gbps
• 100W Power Delivery - PD3.0 charging with up to 85W pass-through to host
• USB3.2 Gen2 Ports - 10Gbps data transfer on USB Type-A and Type-C ports
• Multi-Platform Support - Works with USB4.0, Thunderbolt 4, Thunderbolt 3 and DP Alt Mode
• Smart Power Distribution - Dedicated power for hub operation with stable device charging
• Advanced Protection - Over-current, over-voltage and short-circuit protection

Specifications

• Cable Length: 2m
• Input: 1× USB Type-C (USB4.0, Host Connection)
• Video Output: 1× HDMI
• up to 8K @60Hz or 4K @120Hz
• HDR10+ Support
• HDCP 2.3 and HDCP 1.4
• RGB and YCbCr Colour Formats (4:4:4 / 4:2:2 / 4:2:0)
• 8-bit / 10-bit / 12-bit Colour Depth
• USB Ports:
• 2× USB Type-A (10Gbps)
• 1× USB Type-C Data (10Gbps)
• Downstream Charging up to 7.5W (Type-C and One Type-A)
• Shared Charging up to 24W Across USB Ports
• Power Delivery:
• 1× USB Type-C PD 3.0 Input
• up to 100W input, 85W Pass-Through to Host
• Fast Role Swap Support
• Networking:
• 1× RJ45 Ethernet (10/100/1000/2.5Gbps)
• Auto-Negotiation and Wake-on-LAN Support
• Compatibility: USB4.0, Thunderbolt 4, Thunderbolt 3, DP Alt Mode
• Protection: Over-current, Over-Voltage and Short-Circuit Protection
• Total Length: Approx. 40cm
• Device Dimensions: 14.7 × 3.1 × 1.8cm
• Box Dimensions: 6 × 24 × 3.5cm
• Device Weight: 92g
• Total Weight: 136g
• Meets RoHS, FCC and CE EMI Requirements
• OS Support: Windows, Apple OS, Chrome OS
