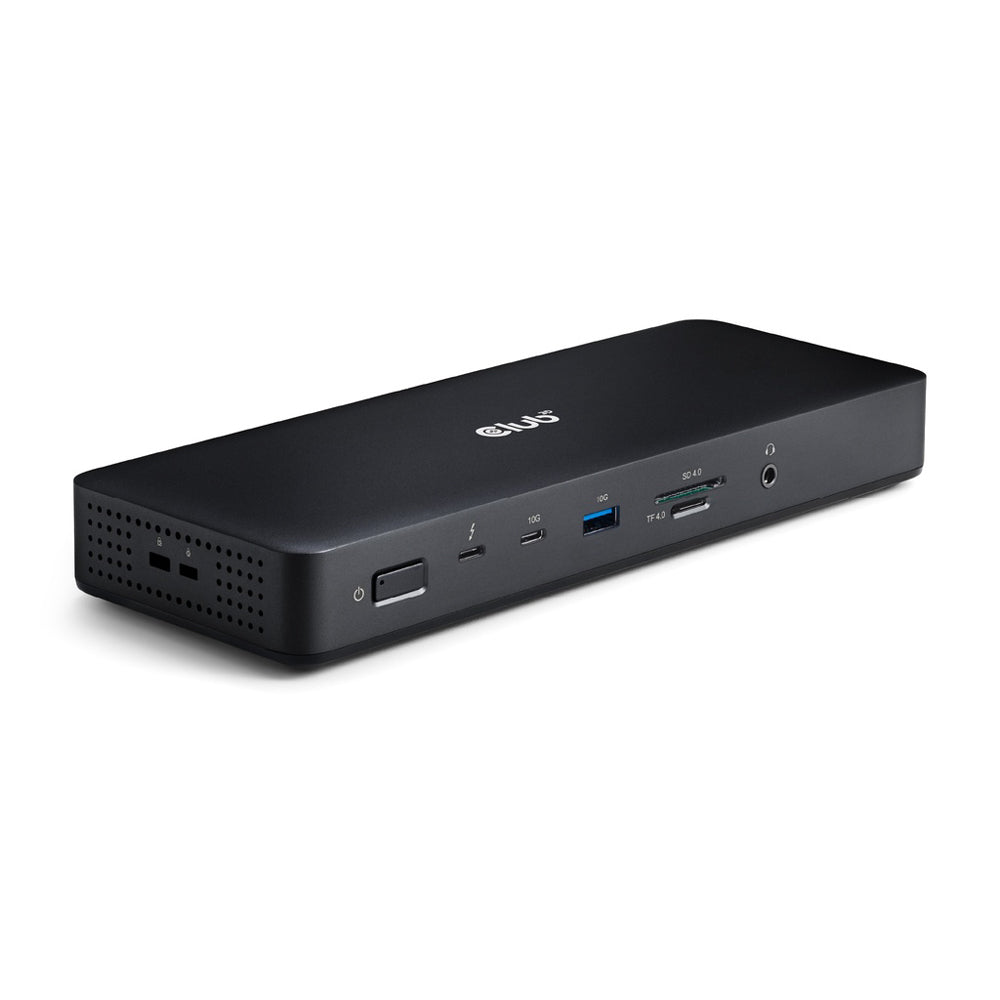

CLUB3D CSV-1583 THUNDERBOLT 4 16-IN-1 QUADRA DISPLAY PORT REPLICATOR WITH 8K @30HZ HDMI AND PD3.0 MAX. 140W

Features

• 16-in-1 Quadra Display Dock - Advanced multi-display Thunderbolt 4 docking solution
• Quadra Display Support - Drive up to four displays from a single connection
• 40Gbps Thunderbolt 4 - Ultra-fast data, video and power delivery performance
• 8K and Dual 4K Output - Supports 8K @30Hz or dual 4K @60Hz displays
• DisplayLink Technology - Enables extended multi-display support across platforms
• High-Speed USB Ports - up to 10Gbps for fast data transfer and connectivity
• 2.5Gbps Ethernet - High-speed, stable wired network connection
• Smart Power Distribution - Optimises power delivery between dock and host
• Up to 96W Laptop Charging - Keeps your device powered during use
• Universal Compatibility - Supports Thunderbolt 4, USB4.0, Thunderbolt 3 and DP Alt Mode systems

Specifications

• Input:
• 1× Thunderbolt 4 (40Gbps, USB Type-C Host)
• Output:
• 2× Thunderbolt 4
• 3× DisplayPort

- 2× Hdmi

• 1× USB Type-C
• 3× USB Type-A
• 1× RJ45 Ethernet (2.5Gbps)
• 1× SD/TF Card Slot
• 1× 3.5mm Audio Jack
• 1× DC Power Input
• Video Support:
• Quadra Display Support (up to 4× Displays)
• up to 8K @30Hz or Dual 4K @60Hz
• DisplayLink Enabled for Extended Displays
• Supports Multi-Stream Transport (MST)
• Data Transfer:
• Thunderbolt 4 up to 40Gbps
• USB Ports up to 10Gbps
• Power Delivery:
• up to 140W Total Power (Dock and Host)
• up to 96W Charging to Host
• Smart Power Distribution
• Networking: 2.5 Gigabit Ethernet
• Card Reader:
• SD 4.0 (up to 312MB/s)
• Supports SD and MicroSD
• Compatibility:
• Supports Thunderbolt 4, USB4.0, Thunderbolt 3 and DP Alt Mode
• OS: Windows 10 and Above, macOS
• Security:
• Kensington Lock Slot
• Nano Lock Slot Support
• Cable Length: 0.8m Thunderbolt 4 Cable
• Device Dimensions: 22.5 × 8.5 × 2.9cm
• Power Supply Dimensions: 16 × 6.5 × 3cm
• Box Dimensions: 27.5 × 12.5 × 8.7cm
• Device Weight: 594g
• Total Weight: 1.39kg
• Meets ROHS, FCC and CE EMI Requirements
