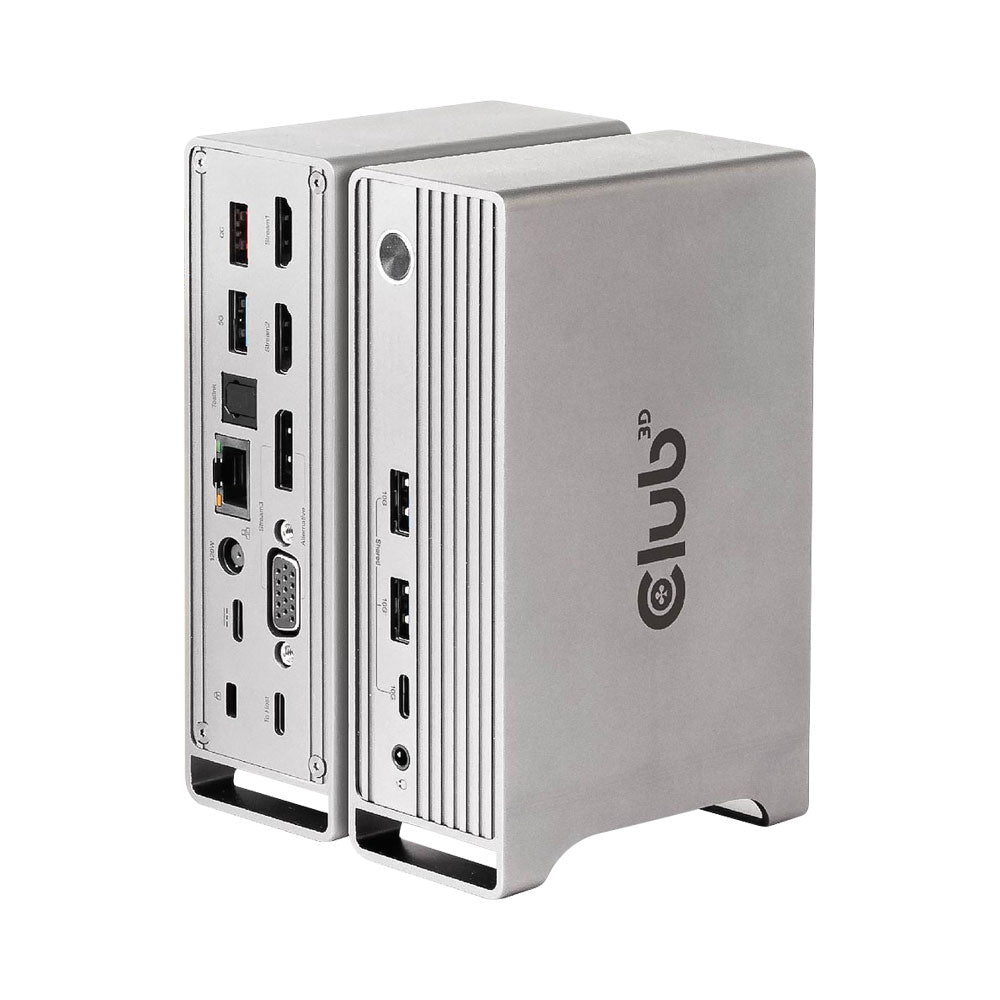

CLUB3D CSV-1564W65 USB GEN1 TYPE-C TRIPLE DISPLAY DYNAMIC PD CHARGING DOCK

Features

• Supports Output through MST up to 3 displays (2x HDMI plus VGA or 2x HDMI plus DisplayPort)
• DisplayPort and VGA are alternate (DisplaPort has priority over VGA)
• When 3 displays are connected - 16.2Gbps bandwidth will be shared
• Single Display Support - HDMI max
• 4K @60Hz, DisplayPort max
• 4K @60Hz, VGA max
• 1920 x 1200 @60Hz
• DisplayPort and HDMI supports RGB 4:4:4/ YCbCr 4:4:4/ YCbCr 4:2:2, deep colour 8/10-bit, HDR, HDCP2.2 & 1.4
• DisplayPort supports DP++ which enables to connect a passive DisplayPort to HDMI port to connect HDMI display
• Gigabit Ethernet
• USB3.2 Gen2 with max
• 10Gbps data transfer
• Digital audio with max
• 96KHz/24-bit sampling rate
• Type-C female supports max
• 100W PD Charging with fast role swap of PD3.0, supports smart power which allows to distribute power according to actual consumption of the connected devices
• Max
• 120W power supply from DC Adapter, supports smart power according to actual consumption of the connected devices, the host can get power ranging from 60W to 100W

Shipping Dimensions

• Length: 23 cm
• Width: 16 cm
• Height: 10 cm
• Weight: 1.40 kg
