16Ch NVR VIGI NVR2016H
Manufacturer overview

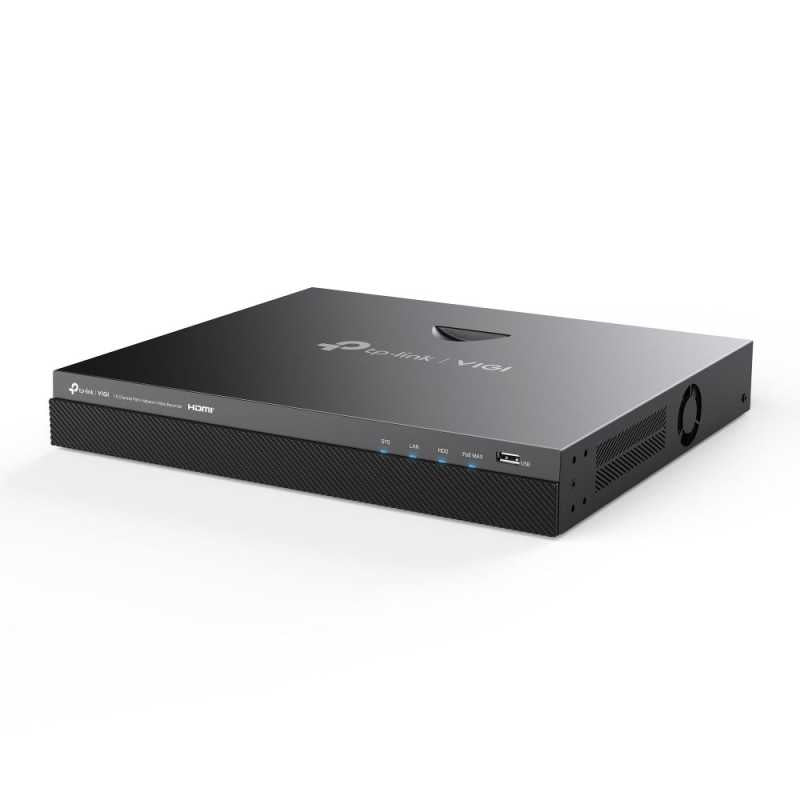

Security Never Shuts Down. VIGI NVR2016H 16 Channel Network Video Recorder
One-Click System Initialize**. VIGI NVRs enable quick camera additions, HDD initialization, and storage scheduling with a single click, reducing setup expenses.
Specifications
| IP Video Input |
16-Channel |
| Incoming Bandwidth |
160 Mbps |
| Outgoing Bandwidth |
160 Mbps |
| HDMI Output Resolution |
1 Channel, Resolution: 3840x2160/30Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz |
| VGA Output Resolution |
1 Channel, Resolution: 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz |
| Video Output Mode |
HDMI and VGA Independent / Simultaneous Output |
| Multi-View Display |
1/4/6/8/9/16 |
| Audio Compression |
G.711A/G.711U/G.726 |
| Video Compression |
H.265+/H.265/H.264+/H.264 |
| Record Resolution |
8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Synchronous Playback |
16-Channel |
| Capability |
• 25fps：10-ch@1080P• 30fps:2-ch@8MP、4-ch@5MP、5-ch@4MP、6-ch@3MP |
| Record Mode |
• Manual Recording• Scheduling Recording• Motion Detection Recording |
| Playback Mode |
• Instant Playback• Regular Playback• Tag Playback• Event Playback |
| Backup Mode |
• Regular Backup• Video Clip Backup |
| Playback Function |
• Play• Pause• Stop• Fast Forward• Fast Backward• Play By Frame• Full Screen• Video Clip• Export Clip• Digital Zoom• Lock Recording• Audio On/Off |
| Protocol |
UPnP (Plug and Play), NTP (Network Timing), SMTP, DNS, TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, RTSP, SSL/TLS, RTP, IPv4, ARP, IPv6, SNMP |
| Mobile Phone Access |
Android, iOS |
| Web Browser |
Chrome (57+), Firefox (52+), Edge (91+), Safari (11+) |
| Interoperability |
ONVIF Profile G/S/T, CGI |
| Network Interface |
1, RJ-45 10/100/1000 Mbps Self-Adaptive Ethernet Interface |
| USB Interface |
1 Front USB 2.0 Port, 1 Rear USB 3.0 Port |
| Audio Interface |
1-ch RCA Input; 1-ch RCA Output |
| Alarm In/Out |
6/4 |
| Serial Interface |
N/A |
