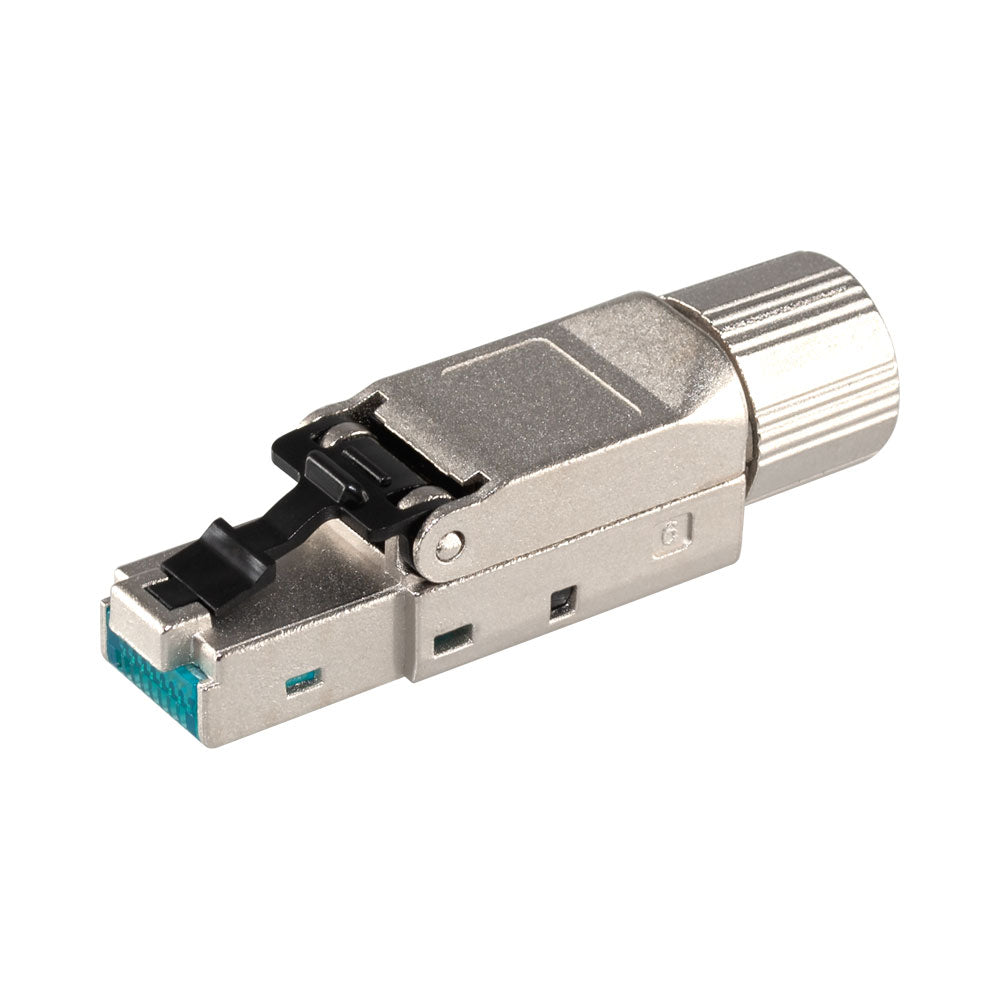

CAT6A SHIELDED TOOLESS RJ45 PLUG

Features

• CAT6A Shielded Toolless RJ45 Plug - Meets CAT6A performance requirements for 10-Gigabit Ethernet applications
• Up to 550MHz Bandwidth - Supports high-speed data transmission for demanding network environments
• Toolless Termination Design - Enables fast easy installation without special tools
• Zinc-Alloy Full Shielding - Reduces EMI and RFI interference for improved signal integrity
• Integrated PCB Circuit Board - Delivers low attenuation loss and high return loss performance
• Supports T568A and T568B Wiring - Clear colour labels simplify correct termination
• Phosphor-Bronze IDC Contacts - Rated for over 250 terminations with corrosion resistance
• Gold-Plated Contacts - 50μ gold plating supports up to 1500 mating cycles
• Snap-Lock Protective Cap - Prevents excessive cable bending detachment and contact damage after termination
• Accepts 24AWG Conductors - Suitable for solid network cable installations

Specifications

• Contact Resistance (Max.): 100mΩ
• Insulation Resistance (Min.): 500MΩ
• Return Loss (dB) 5.9dB
• Dimensions (W × H × D): 53.5 × 14.8 × 14.1mm

Shipping Dimensions

• Weight: 0.10 kg
