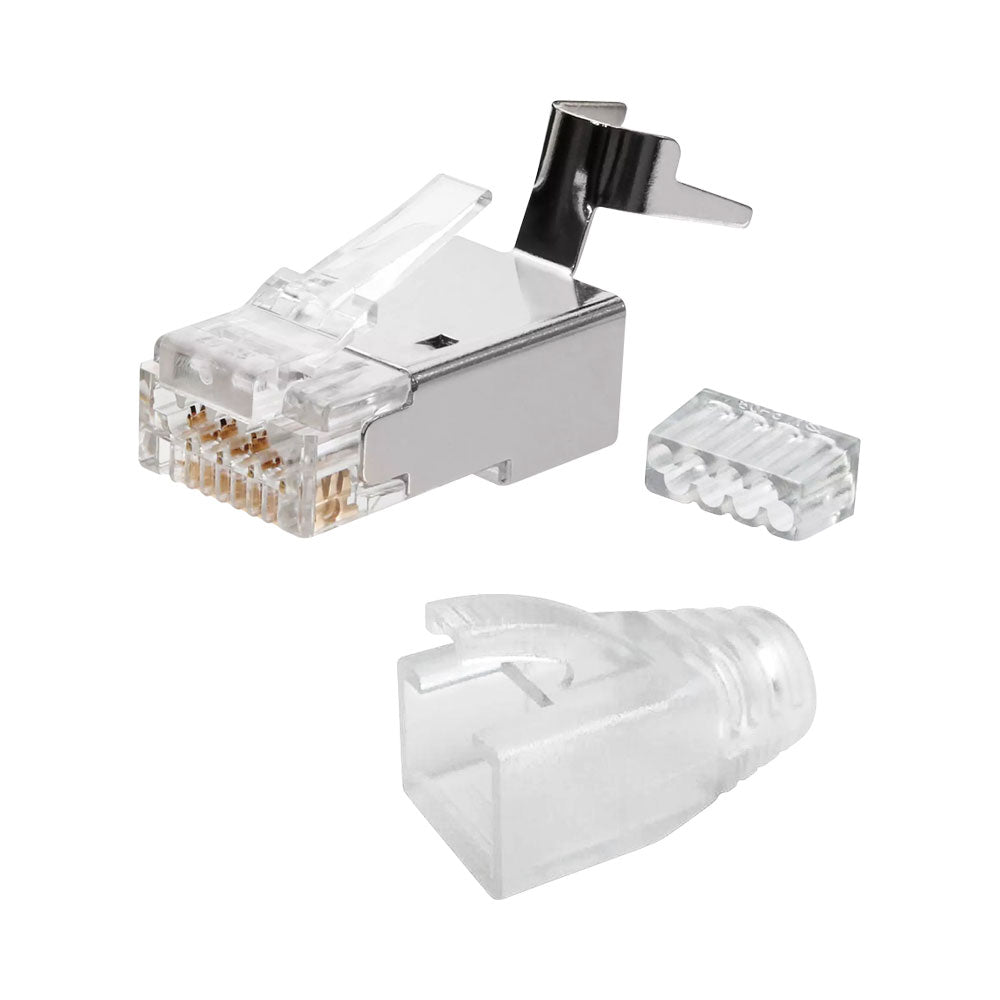

CAT6A / CAT7 STP EASY PASS PLUG & BOOT

POWER OVER ETHERNET (PoE) FEATURES

• Maximum Power from PSE: 90W
• Maximum Power at PD: 71.3W
• Number of Energized Pair: 4×
• IEEE 802.3bt: Type-4 Class-8
• IEC: 60512-99-002:2022

Specifications

• Contact Pins (Conductors) Material: Copper-Alloy
• Shielded: Copper-Alloy
• Gold Plating Thickness: 50u"
• Housing Material: Polycarbonate
• Housing: UL 94-V2
• Mating Cycles: 1,200 Min.
• Height of 8P8C Contact Pins: 6.02mm ±0.13mm
• Storage Temperature: -40°C~70°C
• Operating Temperature: <35°C
• Relative Humidity: <70% RH
• UL Applications: 250V AC Max. @2A
• Dielectric Withstanding Voltage: 1000V AC in 60s
• Insulation Resistance: 500MΩ
• Contact Resistance: 20mΩ Max.
• Two-Level Hole with Insert: 4+4

Compliant With International Standards

• IEC 60512-99-002
• IEEE 802.3bt Type-4 Class-8
• ANSI/TIA-568.2-D
• ISO/IEC 11801
• IEC 60603-7-51
• EN 50173-1
• EN 50173-2
• IEC 61935-2
• ANSI/TIA-1096-A (Formerly FCC Part 68.5 Subpart F)

Shipping Dimensions

• Length: 2 cm
• Width: 1 cm
• Height: 0.5 cm
• Weight: 0.01 kg
