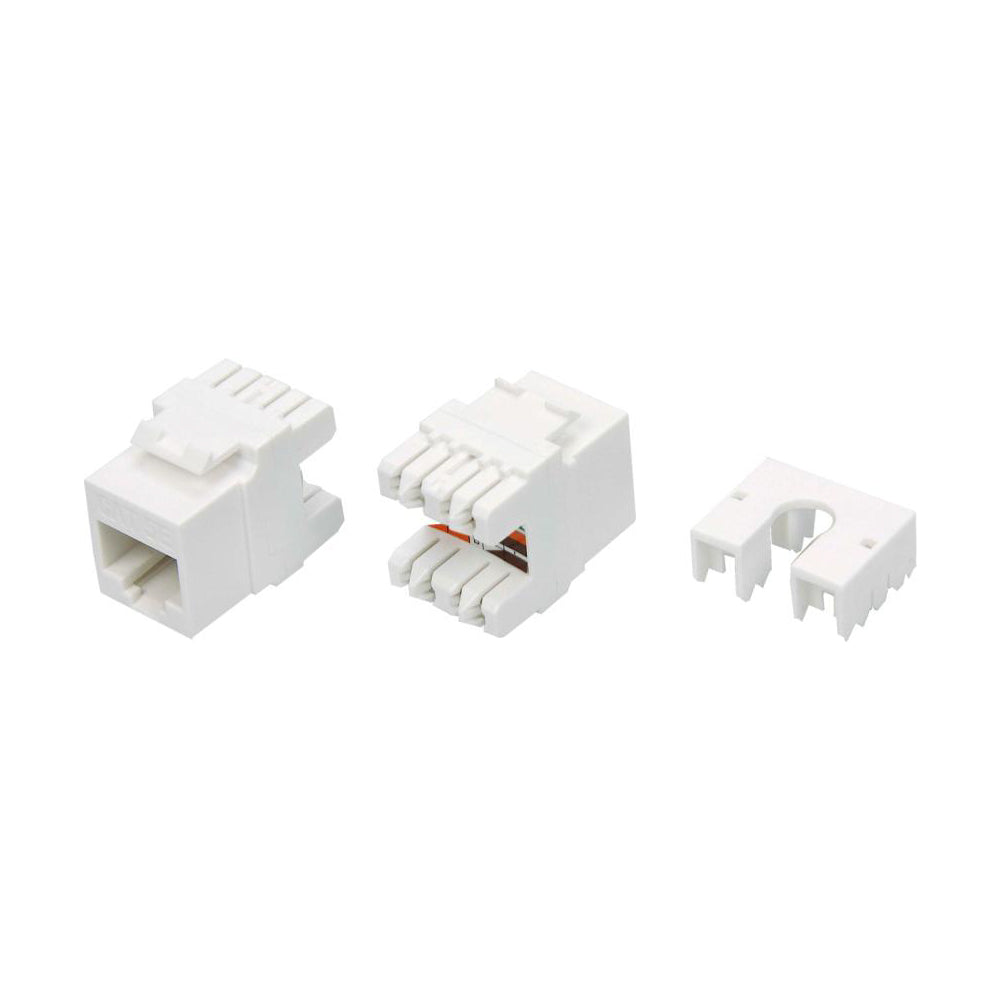

CAT6 KEYSTONE WHITE LQ (LKA110-6U)

Features

• CAT6 Compliant Performance - Supports high-speed Gigabit Ethernet applications
• Up to 1Gbps Data Transmission - Ensures reliable network connectivity
• Standard 8P8C RJ45 Keystone Design - Compatible with common keystone systems
• Low Signal Loss - Designed for low attenuation and high return loss
• Easy Punch-Down Termination - TIA/EIA 568A and 568B wiring compatible
• Compact Keystone Form Factor - Fits standard wall plates and patch panels
• Durable Housing - Built for long-term dependable installations
• Ideal for Structured Cabling - Suitable for home office and commercial network environments

Specifications

• Wiring Standard: TIA/EIA 568A and 568B
• Supported Speeds: Up to 1Gbps
• Frequency: Up to 250 MHz
• Termination Method: Punch-Down
• Broad Cable Support - Accepts 22~26 AWG Network Cables
• Contact Material: Phosphor-Bronze with Gold Plating
• Housing Material: High Temperature Thermoplastic
• Contact: Phosphor-Bronze
• Contact Resistance (Max.): 20mΩ
• Insulation Resistance (Min.): 500MΩ
• Return Loss (dB) 5.2dB
• Dimensions (W × H × D): 16 × 27.8 × 20.3mm
