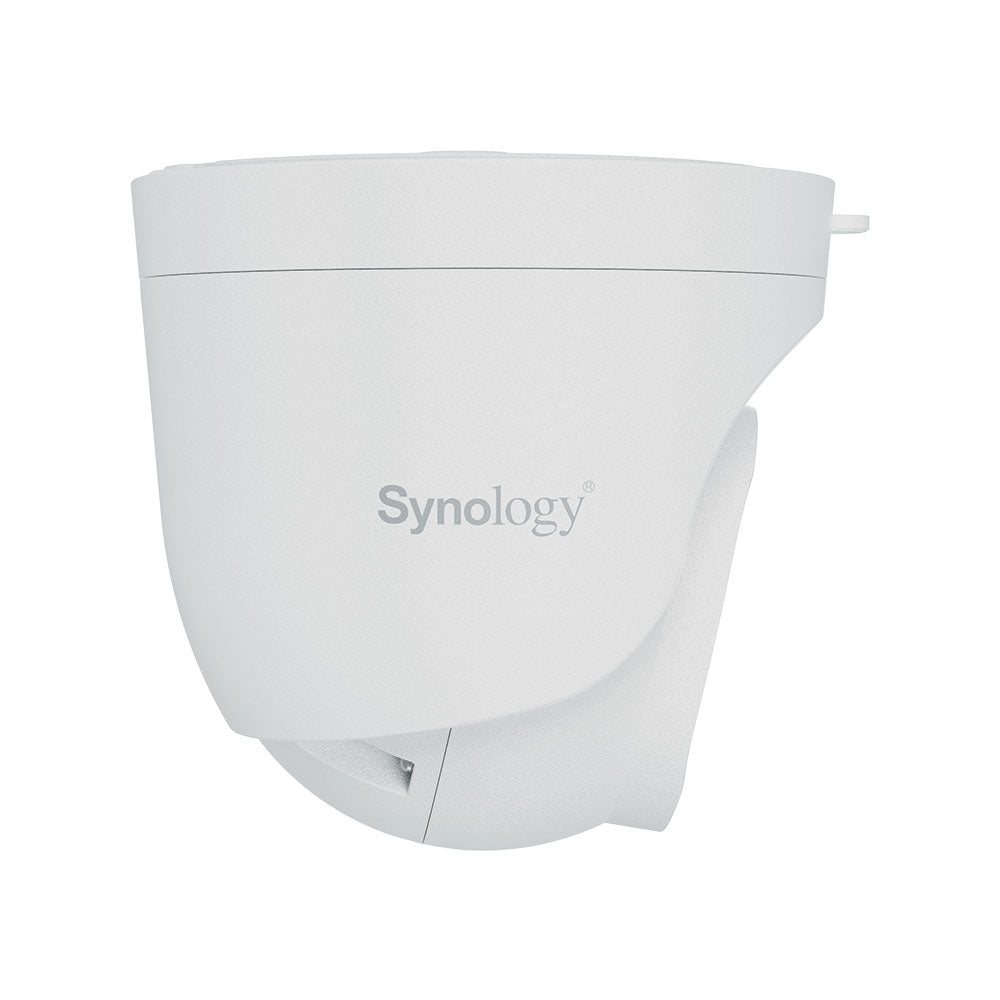

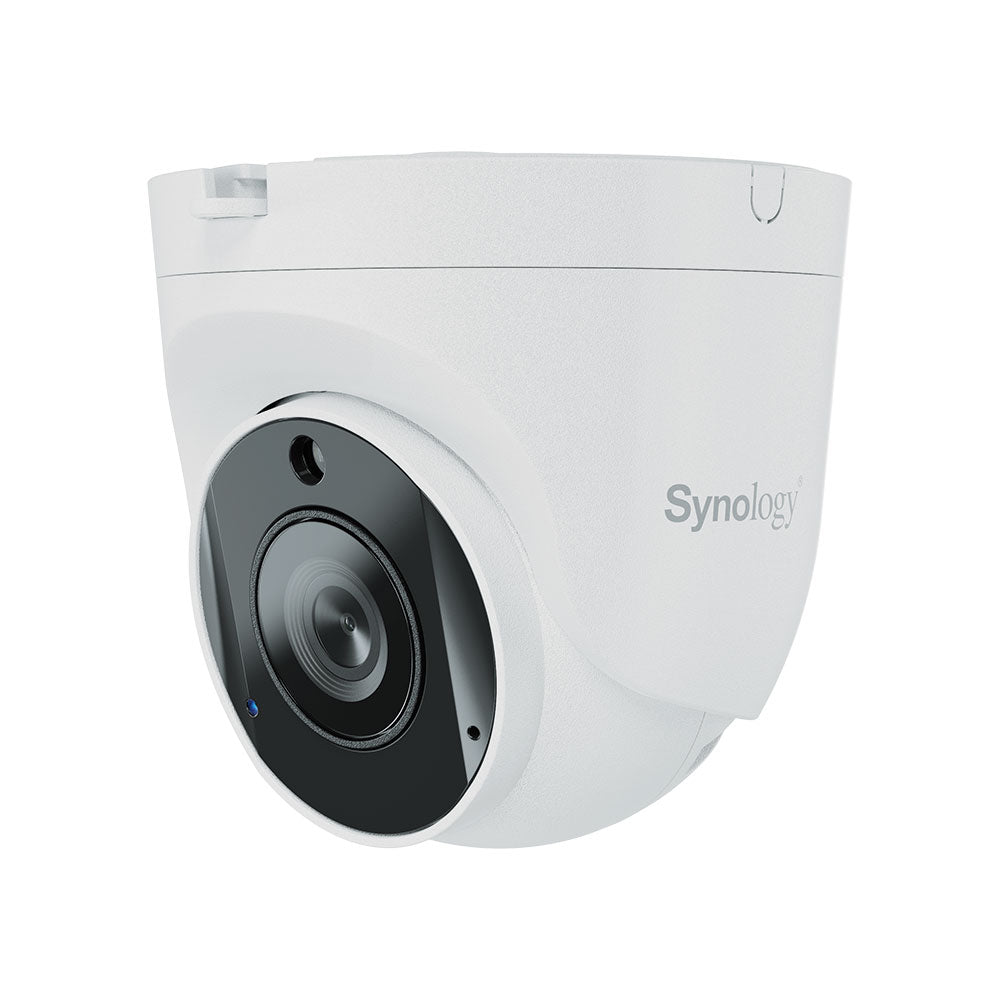

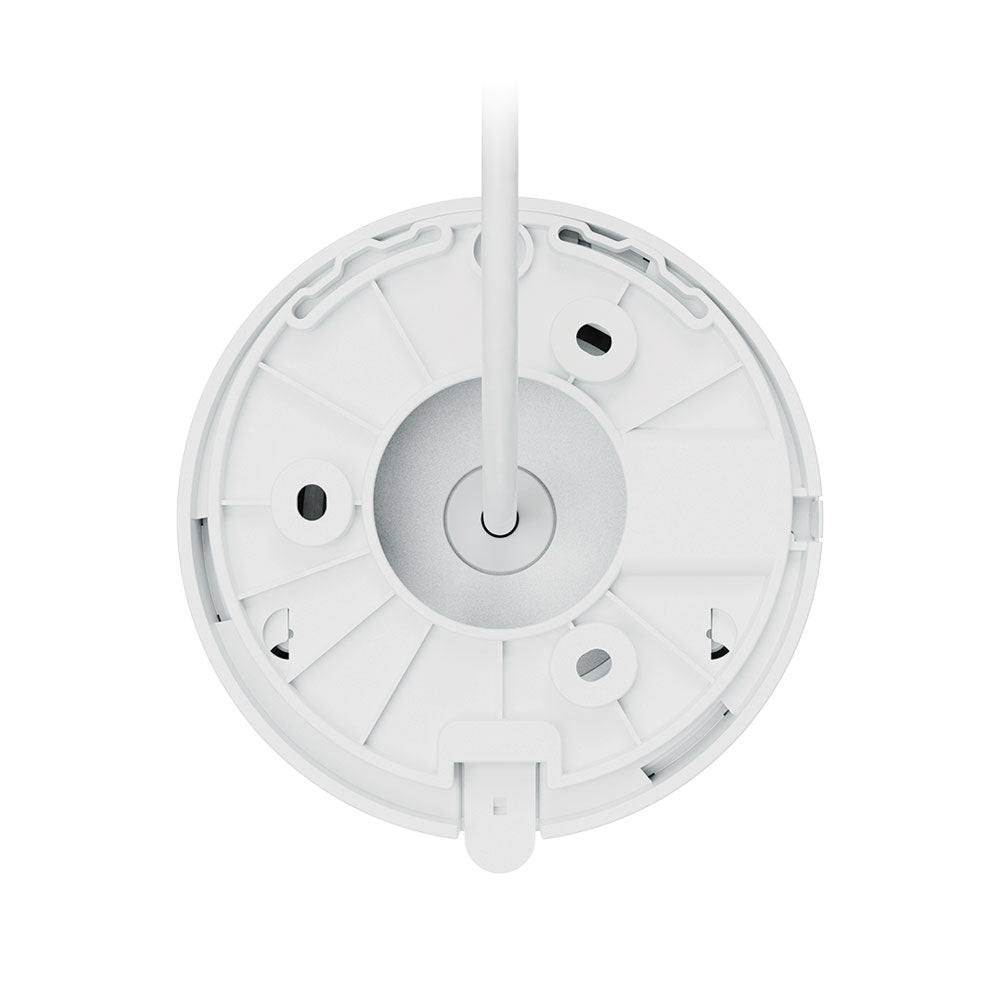

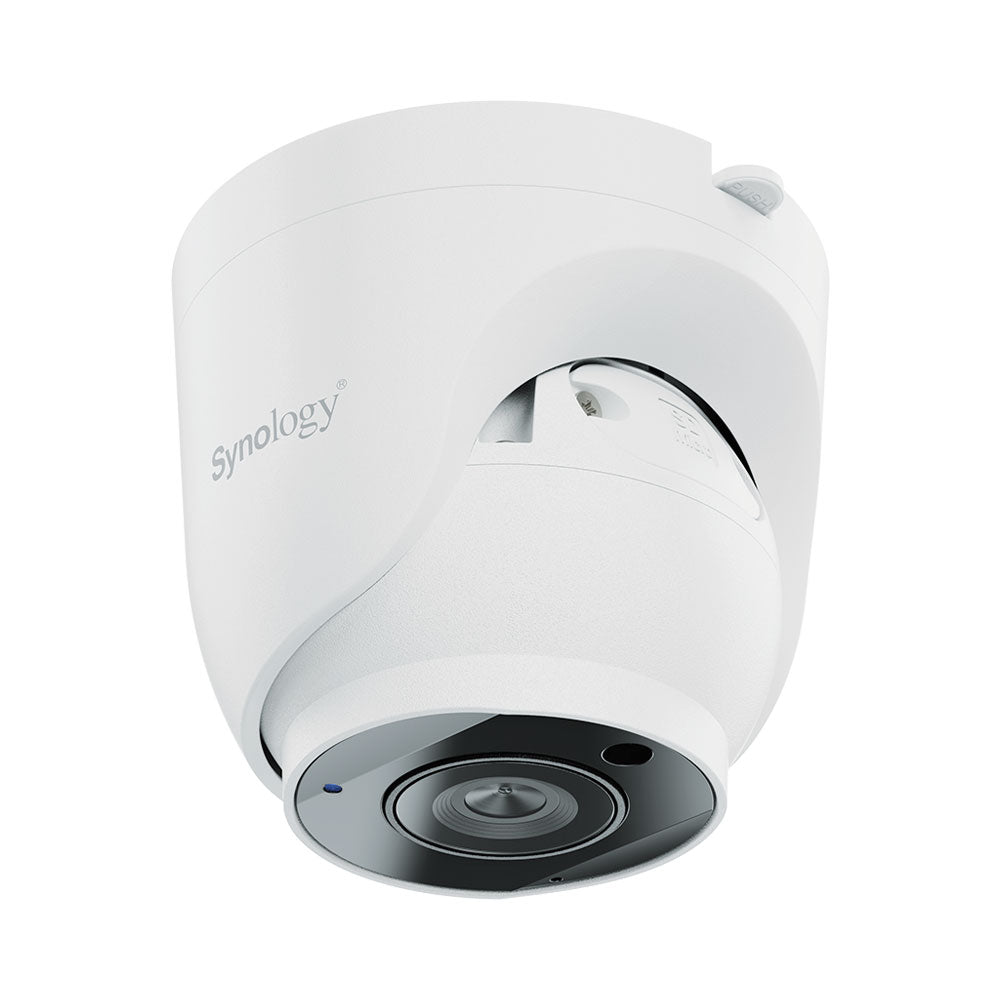

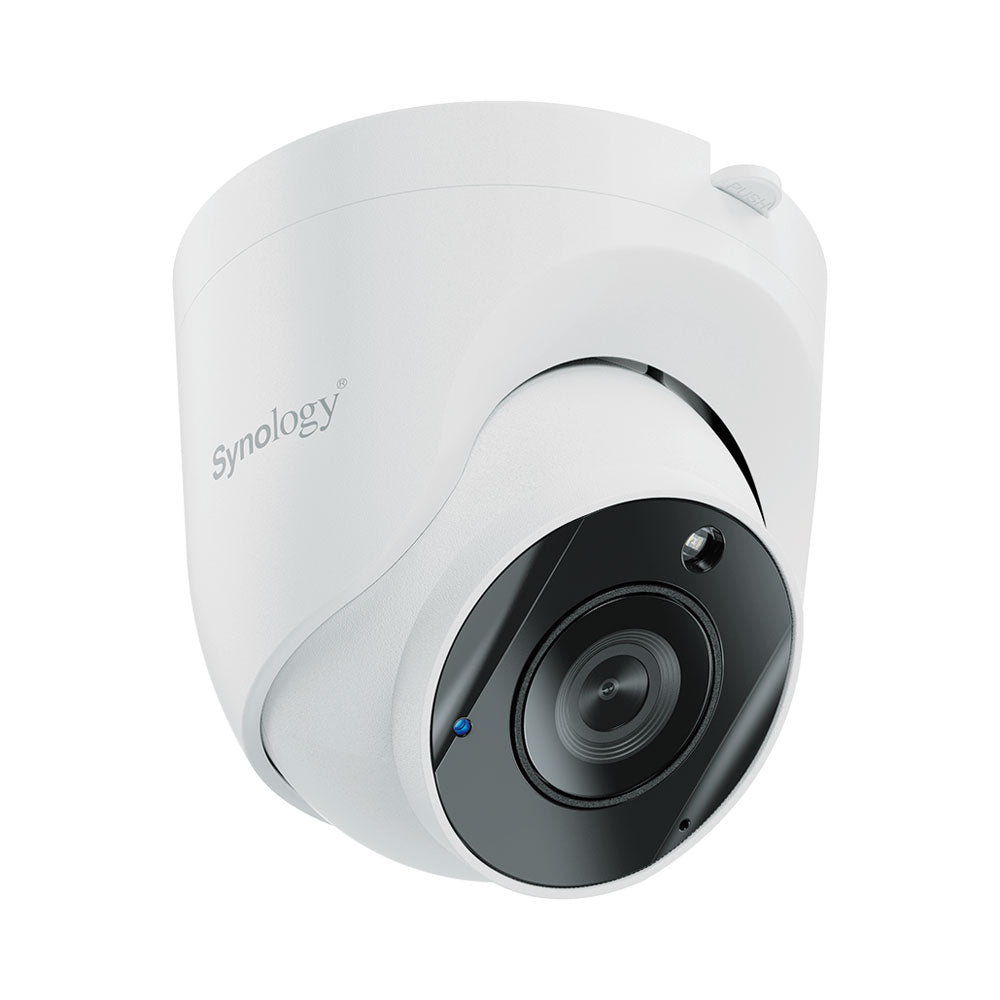

Synology TC500 5MP Wide-Angle Turret Network Camera
AI-Powered Camera for Integrated Smart SurveillanceSynology cameras are designed to pair with Surveillance Station, providing unparalleled ease of use thanks to quick and easy setup, batch configuration, and seamless firmware updates. They feature camera-based AI that enhances Surveillance Station deployments with smart capabilities. The TC500 is a versatile IP67 rated 5MP wide-angle AI camera suitable for both indoor and outdoor use. Boasting a high resolution of 2880 × 1620 @30FPS, 110° horizontal wide-angle view and night vision capability. The TC500 captures all the details you need.
Features
- Crisp Video, Night and Day - 5MP sensor with wide-angle lens, recording @30FPS, and high-power IR LED for 30m of night vision
- Edge AI Detection and Search - On-camera AI powers people and vehicle detection, intrusion detection and instant search
- No Device License Required - Camera requires no Surveillance Station Device License or activation
- Failover Edge Recording - Supports failover recording onto microSD, in case of network failure
- Security and Compliance - Suitable for sensitive applications thanks to HTTPS/SRTP support and US NDAA/TAA compliance
Specifications
Hardware SPECIFICATIONS
Optical
Image Sensor: 1/2.7"
IR LED Wavelength: 850nm
Max. IR Distance: 30m (0.001 lux)
Shutter Speed: 1/16000 s to 1/30 s
Day & Night: Automatically Removable Infrared-Cut Filter
Lens
Lens TypeF: ixed Focal
Focal Length: 2.8mm
Field of View: 110° H, 56° V, 132° D (LDC ON)
DORI: D: 60m, O: 24m, R: 12m, I: 6m
Aperture: F1.8
Video
Max. Video Resolution: 2880×1620 @30FPS
Multi-Exposure HDR: Yes
Dnr: 3Dnr, 2Dnr
Audio
Microphone: Yes
I/O
Ethernet: 1× RJ45 10M/100M Ethernet Port
Reset: Yes
On-Board Storage: 1× MicroSD Card Slot, Support Micro SDHC/SDXC Card up to 128GB
Supported File Format: exFAT
Note: SD card is not included
Power Supply
IEEE 802.3af Type 1 Class 3 or 12V DC
Note: Compatible DC power adapter: 12V/1A (Ø2.1mm)
The product does not include a PoE switch or a 12V DC power adapter. Please purchase separately.
General
Form Factor: Turret
Dimensions: Ø97×88mm
Weight: 387g
Temperature
Operating Condition: Starting Temperature: -30°C to 50°C
Operating Temperature: -30°C to 50°C (IR Off)
Operating Temperature: -30°C to 40 °C (IR On)
Operating Humidity: 5%~95% (Non-Condensing)
Storage Condition: Storage Temperature: -40°C to 60°C
Storage Humidity: 5%~95% (Non-Condensing)
Certifications
Fcc, Cb, Ic, Ce, Ukca, Bsmi, Vcci, Rcm, Kc, Jate
Environment: REACH Compliant, WEEE Compliant, ROHS Compliant
Waterproof: IP67
Vandal: IK10
NDAA Compliant: Yes
TAA Compliant: Yes
Warranty: 3-Years
Software SPECIFICATIONS
Video & Audio
Main Stream: 2880 × 1620 @30FPS; 2560 × 1440 @30FPS; 2304 × 1296 @30FPS; 1920 × 1080 @30FPS; 1280 × 720 @30FPS
Sub Stream: 1920 × 1080 @15FPS; 1280 × 720 @30FPS
Video Format: H.264, H.265
Bitrate Control: VBR, MBR
Audio Compression: G.711
Audio Denoise: Yes
Image Adjustment: Brightness, Contrast, Sharpness, Saturation, White Balance, Exposure Control, High Dynamic Range (HDR), 3D/2D Noise Reduction, 50/60 Hz Flicker Reduction, Day/Night Mode, Overlay
Day/Night Mode: Auto, Day, Night, Schedule
Video Orientation: Mirror, Flip, Rotation (0°, 90°, 180°, 270°)
Privacy Mask: Removeable/Unremovable Mode, up to 5 zones
Max RTSP Connections: 4
Analytics
Event Analytics: Audio Detection, Tampering Detection, Motion Detection
People & Vehicle: People Detection, Vehicle Detection, Crowd Detection, Loitering Detection
Intrusion: One-Way or Two-Way
Instant Search: Motion, Vehicle, People
Security
IP Filter: Auto Block, Allow/Block list
Connection Management: Yes
Firmware Update: Automatically Update to the Important Version, Automatically Update to the Latest Version, Manual Upload
Signed Firmware: Yes
HTTPS: Yes
SRTP: Yes
Storage Management
Storage: SD Card & Synology NAS
SD Card Recording Mode: Event Analytics, Disconnected with NAS
Note: SD Card capacity under 128GB is tested by Synology
Camera Web Interface
Liveview: Yes
Network: Auto Block, Allow/Block List, Connection Management, Fixed IP/DHCP
System: Reset, Restart, Manual Firmware Upgrade, DST, Time Zone, NTP Server
Camera Log Export: Yes
Supported Browsers: Google Chrome
Supported Language: English, Deutsch, Français, Italiano, Español, Dansk, Norsk, Svenska, Nederlands, Русский, Polski, Magyar, Português do Brasil, Português Europeu, Türkçe, Český, ภาษาไทย, 日本語, 한국어, 繁體中文, 简体中文
Software Requirement
Surveillance Station: Surveillance Station 9.1 or Higher
Surveillance Station Client: Surveillance Station Client Version 2.1.0 or Higher
DS Cam: Android DS cam 3.7.0 or Higher, iOS DS cam 5.6.0 or Higher
Camera Tool: 1.0.0
Note: Built-in Surveillance Device License
