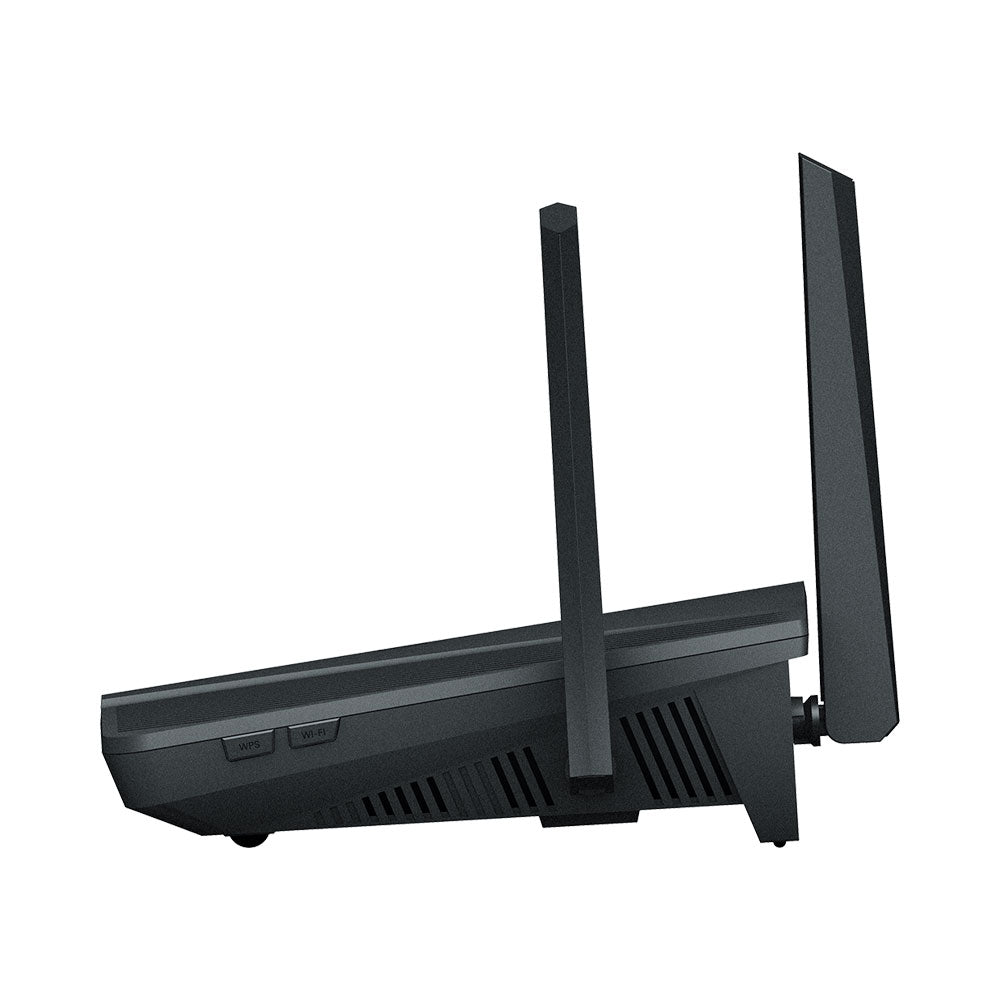

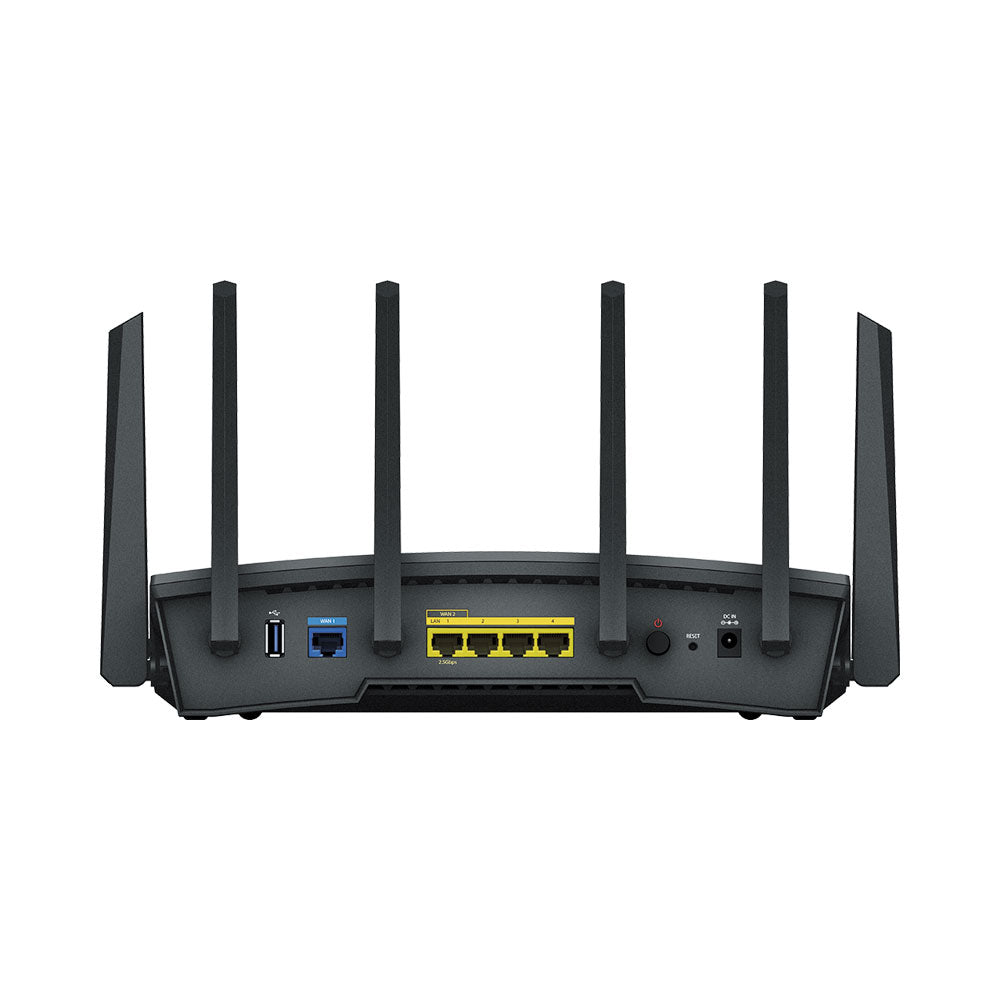

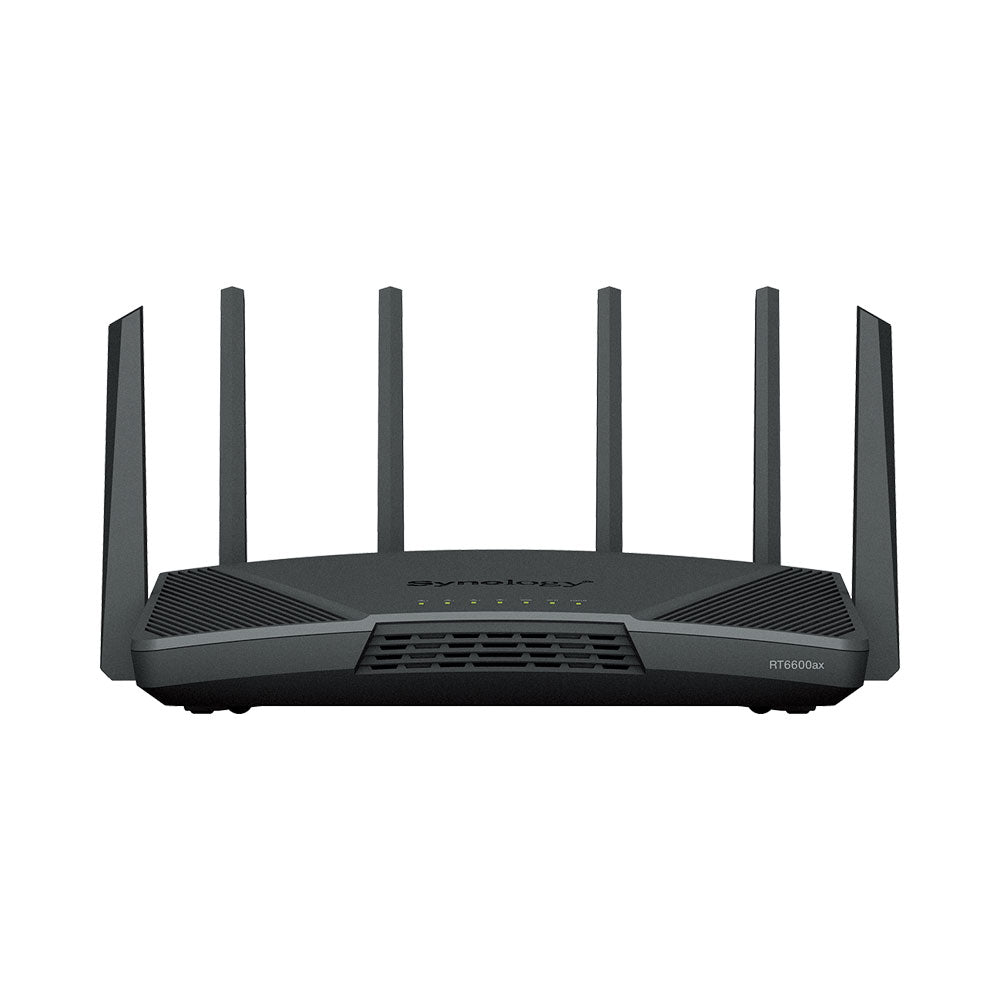

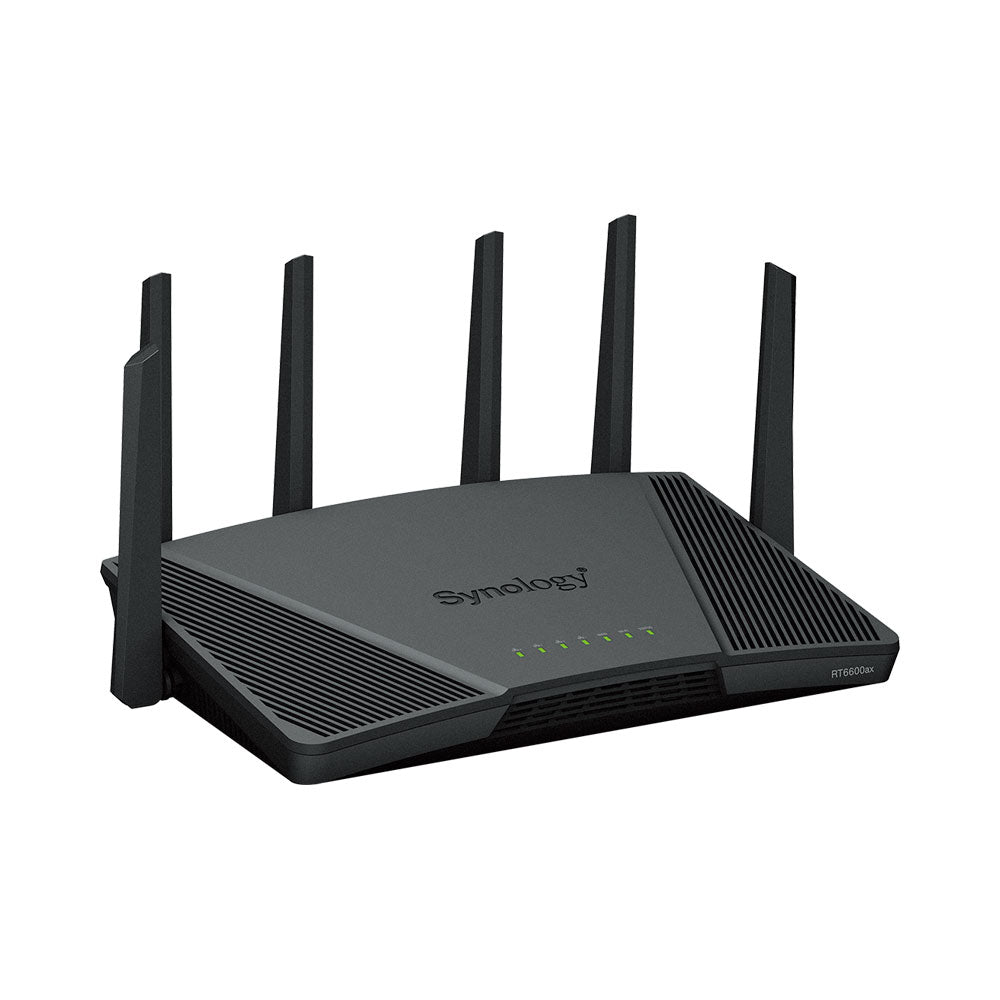

Synology RT6600ax Tri-Band Wi-Fi 6 Router
Ultrafast and secure wireless connectivity for your home, office, and everything in between
Built around the new Wi-Fi 6 standard, the RT6600ax tri-band router can deliver up to 6.6Gbps in combined wireless throughput. The three radios work in tandem with the configurable 2.5GbE WAN/LAN port to ensure the maximum connection speed for each device. Powered by our constantly evolving Synology Router Manager operating system, the RT6600ax is designed to make securing and managing your network simple.
Features
- Supercharged Performance - Expanded 5.9GHz spectrum support enables additional high-speed 80 and 160MHz channels
- Built for Fast Networking - 2.5GbE port enables support for the fastest ISPs and can optionally be configured as a LAN port
- Secure Network Foundation - Create and define up to 5 separate networks to segregate and contain vulnerable devices
- Granular Management Tools - Parental controls, web filtering, traffic control and threat prevention put you in control over your network
- Simple Remote Access - Comprehensive VPN server solution with remote desktop and site-to-site tunnelling provides flexible and secure remote connectivity
Specifications
Hardware
Cpu
- Quad-Core 1.8GHz
- Hardware Acceleration Engine: Layer 4 / Layer 7
Memory
Antenna Type
- 4× MIMO Omni-Directional High-Gain Dipole (5.0GHz)
- 2× MIMO Omni-Directional High-Gain Dipole (2.4GHz & 5.0GHz)
LAN Port
WAN Port
External Ports
- 1× USB3.2 Gen1 (5V, 0.5A Power Output)
Wireless
IEEE 802.11ax
- 5.0GHz: 1,200Mbps
- 2.4GHz: 600Mbps
- 4×4 160MHz
- Simultaneous Tri-Band Wi-Fi
* Note: 160MHz is Not Supported in Canada and Australia
Wi-Fi Encryption
- WPA/WPA2-Personal
- WPA3-Personal / WPA3-Enterprise
- Wi-Fi Enhanced Open (OWE)
Button and Switch
- WPS, Power, Reset, Wi-Fi On/Off
Physical
- Size (H × W × D): 175 × 230 × 65mm
- Weight: 1kg
- Operating Temperature: 5~40°C
- Storage Temperature: -20~60°C
- Relative Humidity: 5~95% RH
Power
- AC Input Power Voltage: 100~240VAC
- Power Frequency: 50/60Hz, Single Phase
- Power Consumption: 11.1W (Access)
Software (SRM SPECIFICATIONS)
Wireless
- Seamless Roaming: 802.11k/v/r Support
- Guest Network: Yes
- Maximum Number of Wi-Fi SSID: 15×
- Maximum Connected Devices: 200+
Network
- Operating Mode: Wireless AP
- IPv6 Support: Yes
- DHCP Server/Client
- NAT (Network Address Translation): Yes
- QoS (Quality of Service): Yes
- Traffic Control and Traffic Monitor: Yes
- VPN Server: PPTP, OpenVPN, L2TP/IPSec
- VPN Client: PPTP, OpenVPN
Security
- Firewall
- SPI Firewall
- DoS Protection
- Auto Block
- Safe Access (Web Filter, App Filter)
- Threat Prevention
- Intrusion Detection
Management
- Synology Router Manager (SRM)
- QuickConnect and DDNS
- Wake on LAN/WAN
- SNMP
- SSH
- Configuration Backup and Restore
Mobile Apps
- DS Router (Android / iOS)
- VPN Plus (Android / iOS)
- DS File (Android / iOS)
