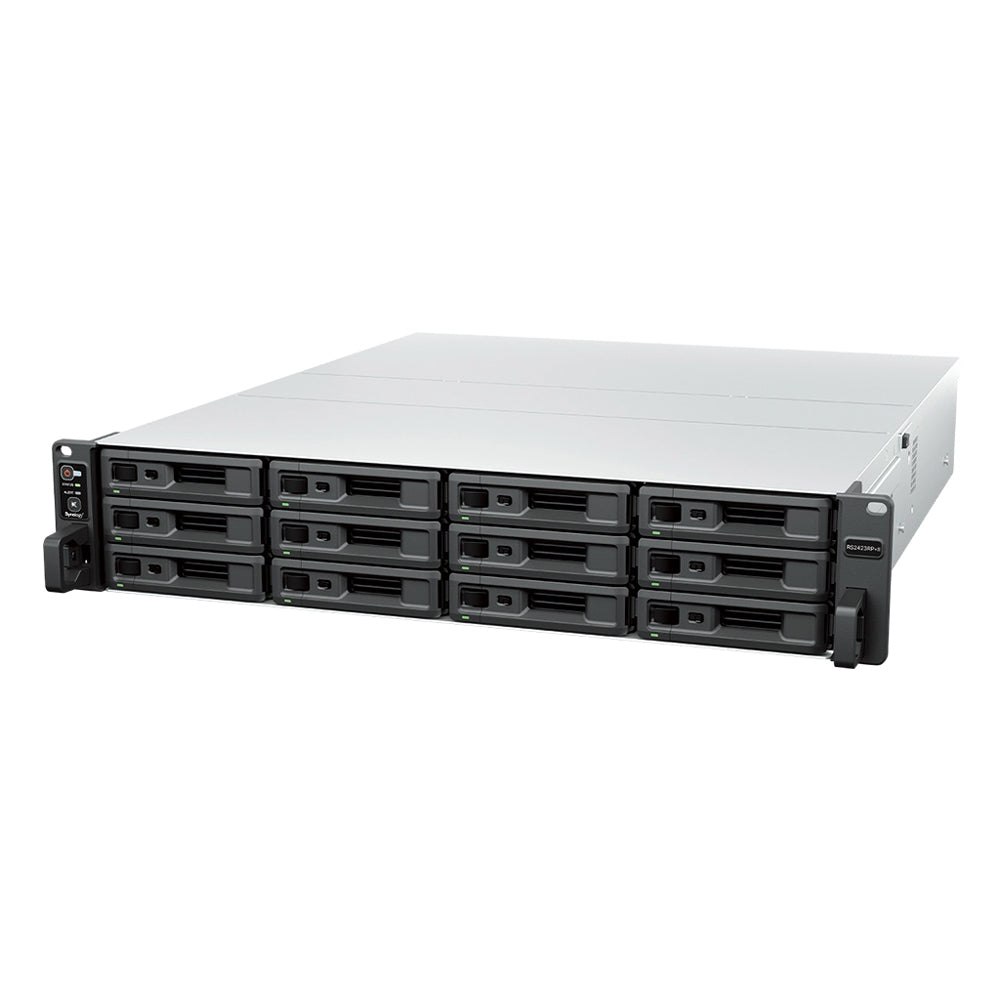

Synology RackStation RS2423RP+II 12-Bay NAS - AMD Ryzen V1780B 3.35GHz Quad-Core CPU, 8GB RAM, Diskless
High-Performance Business Storage with Built-In 10GbE and Redundant Power.
The Synology RackStation RS2423RP+II is a powerful 2U 12-bay NAS designed for centralised business storage, backup, file sharing, virtualisation and surveillance. Its AMD Ryzen V1780B quad-core processor, 8GB DDR4 ECC memory and built-in 10GbE connectivity deliver sequential performance of more than 3,500MB/s read and 1,700MB/s write. Twelve hot-swappable SATA drive bays support HDD and SSD configurations, while an RX1223RP expansion unit can increase capacity to 24-bays. Dual hot-swappable 550W power supplies, Synology High Availability and Snapshot Replication help protect uptime and business data, while DSM provides an extensive suite of backup, collaboration, virtualisation and security tools.
Features
- 12-Bay Rackmount Storage - Supports up to twelve 3.5" SATA HDDs or 2.5" SATA SSDs
- AMD Ryzen Processing - Quad-core AMD Ryzen V1780B processor delivers up to 3.6GHz turbo performance
- ECC Memory Protection - Includes 8GB DDR4 ECC memory to help detect and correct memory errors
- High Sequential Performance - Delivers over 3,500MB/s read and 1,700MB/s write throughput
- Built-In 10GbE - Provides high-speed networking without requiring an additional interface card
- Expandable Networking - PCIe slot supports selected 10GbE and 25GbE network adapters
- Scalable Capacity - Expands to 24 drive bays with one optional Synology RX1223RP Expansion Unit
- Hot-Swappable Drives - Replace compatible drives without shutting down the system
- Redundant Power Supplies - Dual hot-swappable 550W power supplies help maintain uptime
- SSD Cache Support - Supports SATA SSD cache or optional M.2 NVMe cache adapter cards
- Business Backup Platform - Protects PCs, servers, virtual machines, SaaS applications and other Synology systems
- High Availability Support - Pairs with an identical compatible NAS for automatic service failover
- Snapshot Protection - Provides scheduled snapshots, replication and immutable data protection options
- Virtualisation Ready - Certified for VMware, Microsoft Hyper-V, Citrix XenServer and OpenStack environments
- Surveillance Management - Supports up to 75 IP cameras depending on codec, resolution and workload
- Synology DSM - Provides centralised storage, backup, collaboration, security and system management
Specifications
- Form Factor: 2U
- Processor: AMD Ryzen V1780B
- Processor Cores: 4
- Processor Threads: 8
- Processor Architecture: 64-Bit
- Processor Frequency: 3.35GHz Base, up to 3.6GHz Turbo
- Hardware Encryption Engine: Supported
- System Memory: 8GB DDR4 ECC UDIMM
- Pre-Installed Memory: 1× 8GB
- Memory Slots: 2
- Maximum Memory Capacity: 32GB
- Drive Bays: 12×
- Supported Drive Types: 3.5" SATA HDD and 2.5" SATA SSD
- Maximum Drive Bays: 24 with 1× RX1223RP Expansion Unit
- Hot-Swappable Drives: Supported

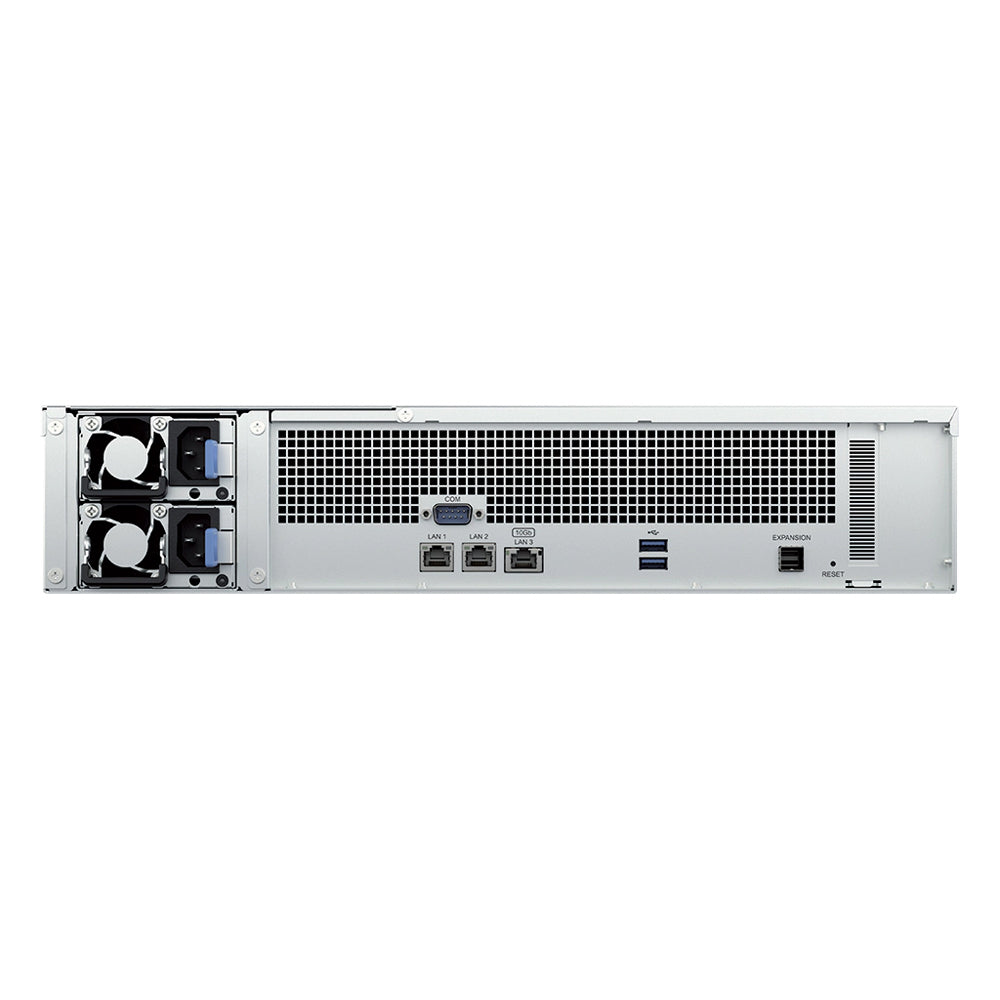

- Built-In Network Ports: 1× 10GbE RJ45 and 2× 1GbE RJ45
- USB Ports: 2× USB3.2 Gen1
- Expansion Port: 1× Mini-SAS HD
- PCIe Expansion: 1× PCIe Gen3 ×8 Slot with ×4 Link
- Maximum Sequential Read Performance: Over 3,500MB/s
- Maximum Sequential Write Performance: Over 1,700MB/s
- Supported RAID Types: Synology Hybrid RAID, Basic, JBOD, RAID0, RAID1, RAID5, RAID6 and RAID10
- Internal File System: Btrfs
- Maximum Single Volume Size: 108TB or 200TB with 32GB Memory
- Maximum Internal Volumes: 64
- Maximum SMB Connections: 510
- Maximum Local Users: 1,024
- Maximum Shared Folders: 256
- Recommended Virtual Machines: up to 8
- Maximum Surveillance Cameras: up to 75, Depending on Configuration
- Default Surveillance Licences: 2
- Power Supply: 2× 550W Redundant Power Supplies
- AC Input: 100~240V AC, 50/60Hz
- System Fans: 3× 60mm
- Power Consumption: 114.86W Access, 42.33W HDD Hibernation
- Noise Level: 56.2dB(A)
- Rack Compatibility: 4-Post 19" Rack
- Compatible Rail Kit: Synology RKS-02, Sold Separately
- Dimensions: 88 × 482 × 578mm
- Weight: 11.9kg
- Operating Temperature: 0°~35°C
- Storage Temperature: -20~60°C
- Operating Humidity: 8~80% RH
- Maximum Operating Altitude: 5,000m
- Certifications: FCC, CE, BSMI, VCCI, RCM, UKCA, EAC, CCC, KC, BIS and UL
- Environmental Compliance: RoHS
- Warranty: 3-Years, Extendable to 5-Years with Eligible Warranty Options
Notes
- This is a diskless NAS and storage drives are not included
- The Synology RKS-02 sliding rail kit is sold separately
- The RX1223RP Expansion Unit is sold separately
- Volumes larger than 108TB require 32GB memory
- SSD caching through M.2 NVMe drives requires a compatible optional adapter card
