Synology NVR1218 Network Video Recover with HDMI Out - Diskless
Boost I/O Performance with M.2 NVMe SSD
The Synology M2D20 is an M.2 SSD adapter supporting M.2 NVMe SSDs in both 22110 and 2280 form factors. For those looking to boost the performance and responsiveness of latency-sensitive applications, the M2D20 allows you to make use of M.2 NVMe SSD to accelerate I/O performance without occupying any drive trays. In conjunction with Synology SNV3000 series NVMe SSD, M2D20 provides a reliable and streamlined storage experience for Synology systems.
Features
- Standalone Surveillance Solution: Built-in 1080p HDMI output for direct monitor connection
- PC-Free Deployment: Easy installation without requiring a computer or internet connection
- POS System Integration: Combines transaction records with surveillance footage for enhanced audit tracking
- 4× Free Camera Licenses Included: Scalable up to 12× IP cameras
- Mobile App Support: Monitor live feeds and recordings remotely via Synology mobile app
- Energy-Efficient Operation: Power-saving NVR runs below 15W
- Expandable Storage: Supports up to 7× HDDs with optional DX517 expansion unit
Specifications
Hardware
- Configuration: Supports up to 12× Cameras (4× Camera Licenses Pre-Installed)
- CPU: Embedded NVR SoC Dual-Core 1.0GHz
- Memory: DDR3 1GB
- Compatible Drive Type: 2× 3.5" SATA (Hard Drives Not Included)
External Ports

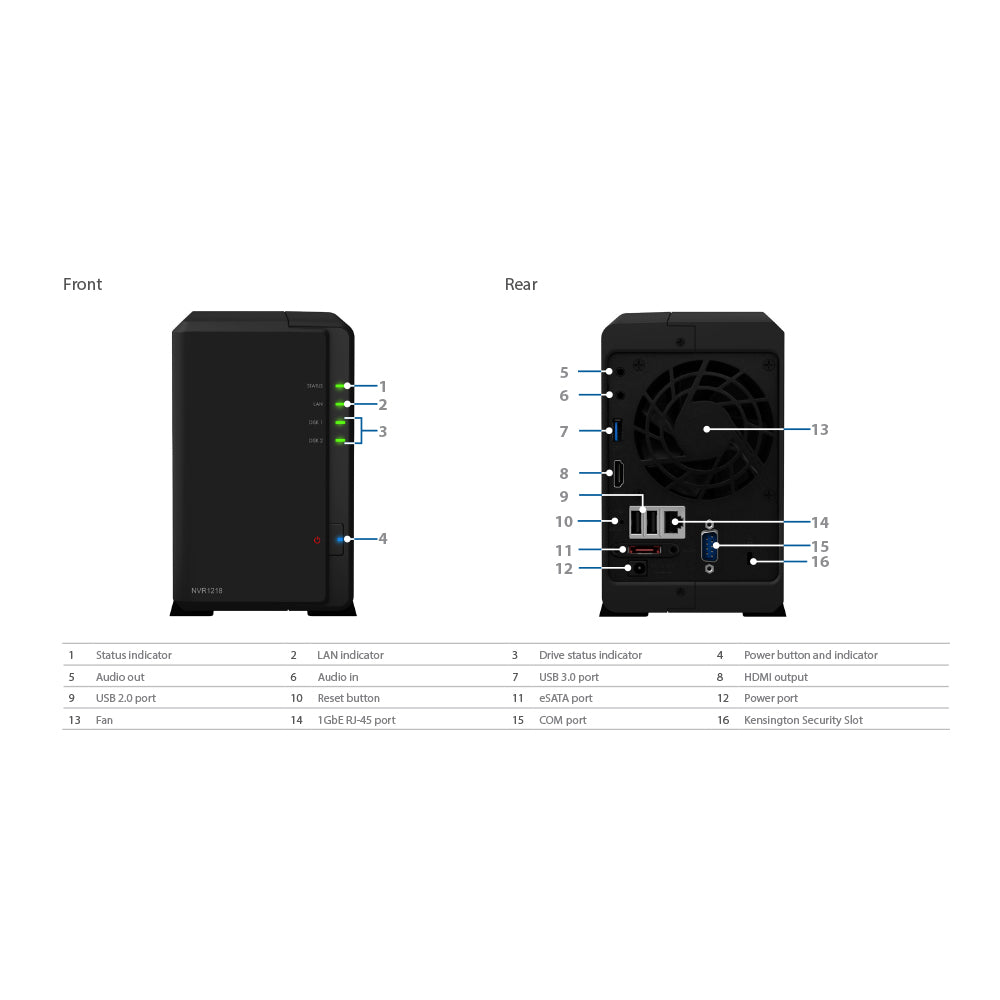

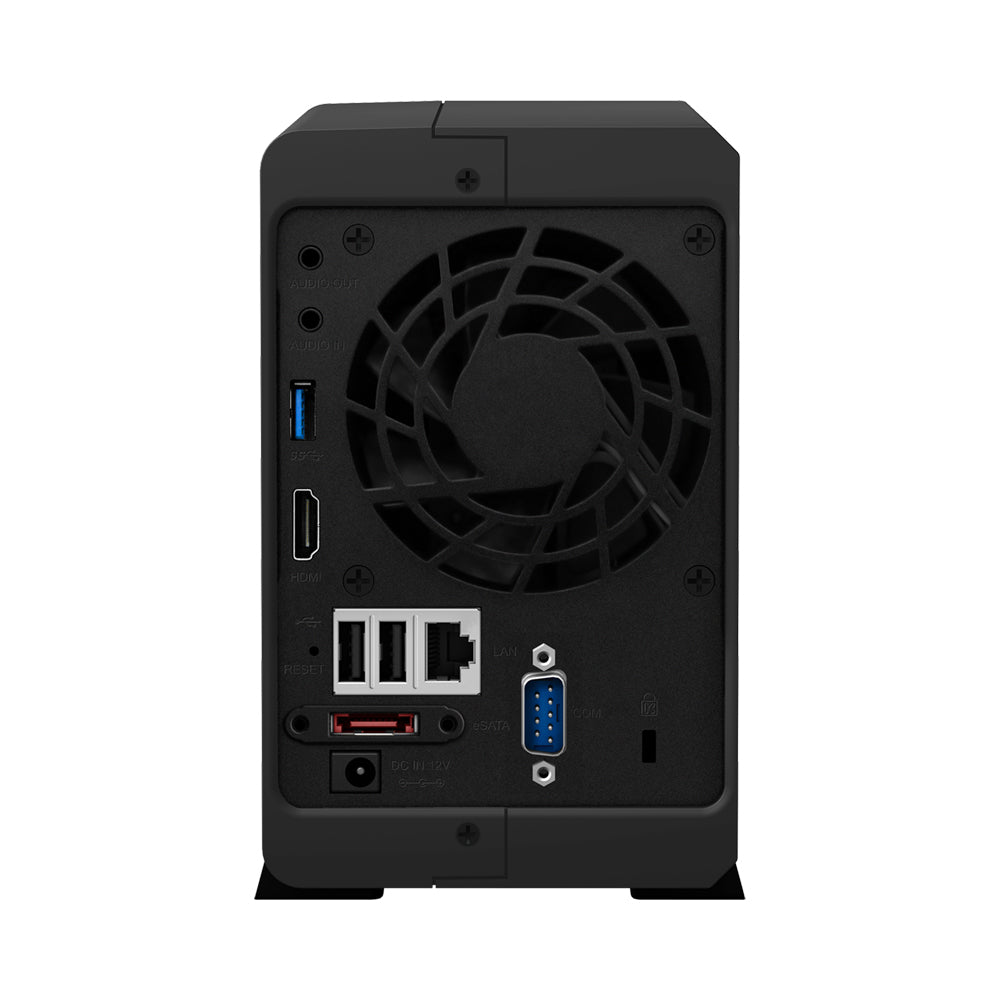

- 1× USB3.0, 2× USB2.0, 1× eSATA, 1× HDMI, 2× 3.5mm Audio Jack (Input/Output), 1× COM (For POS System Connection)
Display and Network
- Supported Video Output Resolution: 1920×1080 (1080p) @60Hz
- LAN: 1× Gigabit (RJ45)
- Supported USB Devices: USB Storage, Keyboard, Mouse, Joystick, UPS
Physical
- Dimensions (H × W × D): 165 × 100 × 225.5mm
- Weight: 0.9kg
Power and Environment
- AC Input Power Voltage: 100~240VAC
- Power Frequency: 50~60Hz, Single Phase
- Power Consumption: 13.64W
- Operating Temperature: Adapter: 0~40°C, Chassis: 5~45°C
- Storage Temperature: -20~60°C
- Relative Humidity: 5~95% RH
- Agency Certifications: FCC Class B, CE Class B, BSMI Class B
General Specification
- File System: Internal ext4, External ext4, ext3, FAT, NTFS, HFS+ (Read Only)
Supported RAID Type
- Synology Hybrid RAID (SHR), Basic, JBOD, RAID 0, RAID 1, RAID 5 (with DX517), RAID 6 (with DX517)
Storage Management
- Maximum Single Volume Size: 16TB
- Maximum Internal Volume: 256×
- Maximum Shared Folder: 256×
Surveillance Station
- Maximum IP Camera: 12× Channels (360fps @720p)
Supported Video Codecs
- MJPEG, MPEG-4, MxPEG, H.264, H.265 (MxPEG and H.265 Do Not Support Local Display)
Recording Modes
- Manual, Continuous, Motion Detection, I/O Alarm, Action Rule, Customised
Playback
- Timeline Playback, Frame-by-Frame, Digital Zoom, Embedded Watermark for Evidence Integrity
Camera Support
- ONVIF 2.6 (Profile-S Certified, Profile-G for Edge Recording)
- PTZ Support
- Adjustable Bit-Rate (Constant and Variable)
