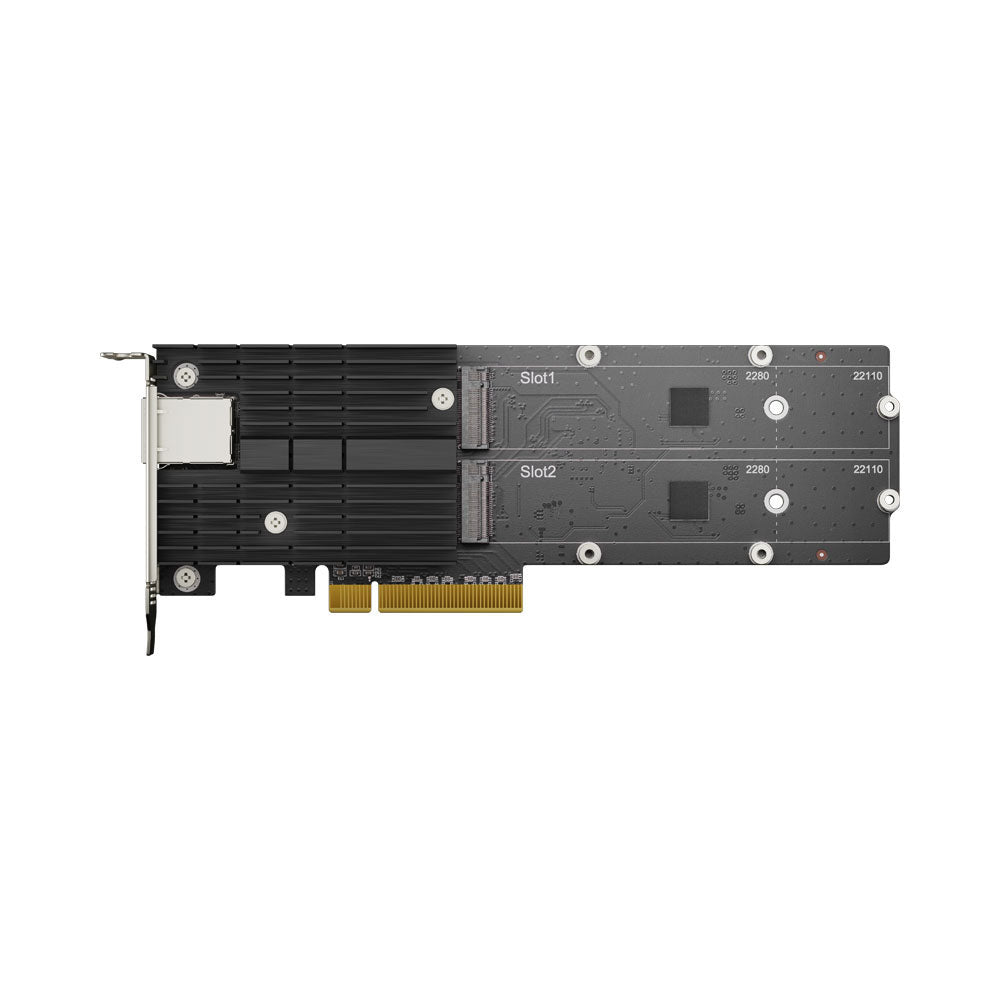

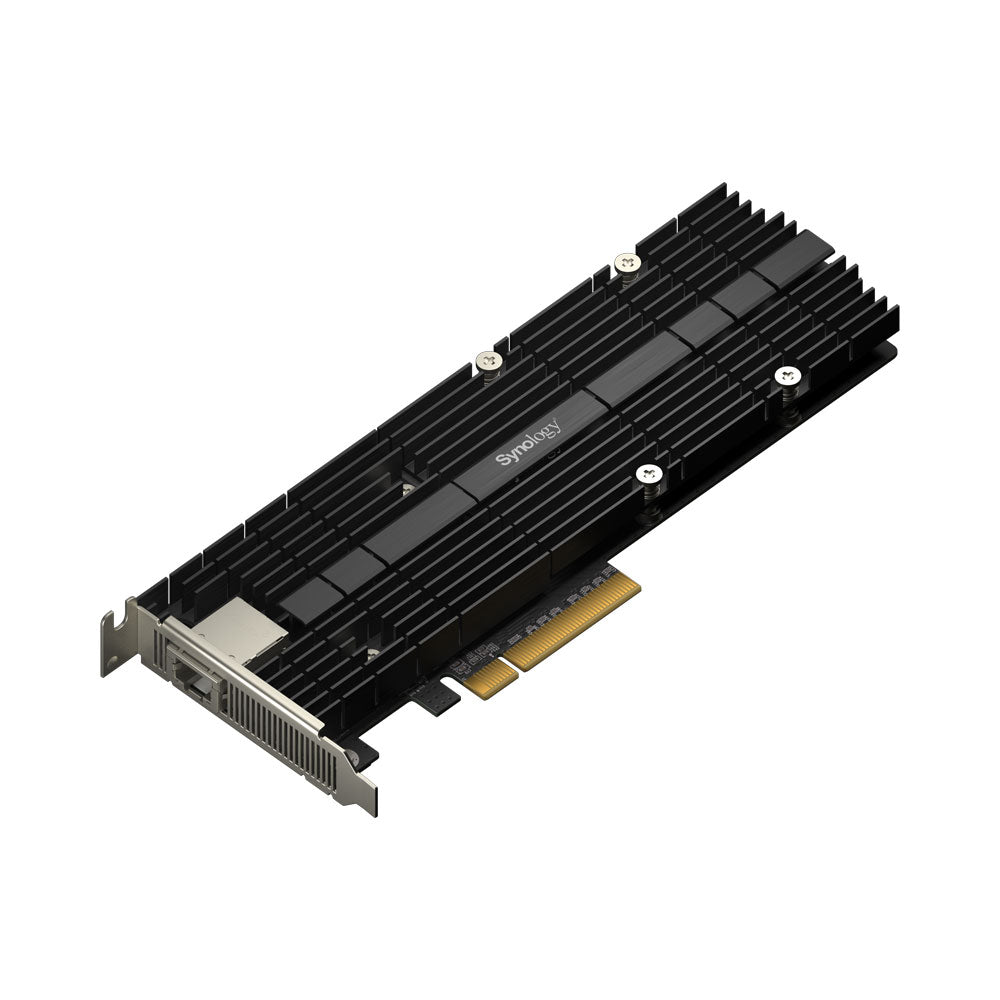

Synology E10M20-T1 M.2 SSD and 10GbE Combo PCIe Card for Performance Acceleration
10GbE Bandwidth and M.2 SSD Cache, All at Once
Synology E10M20-T1 helps you boost I/O performance and network bandwidth simultaneously using just one PCIe expansion slot on your Synology NAS.
Features
- 10GbE Ready - Achieve Multi-Gig Ethernet Transmission Speeds of up to 10Gbps
- NVMe Enabled - Accelerate Random I/O Performance with the Dual M.2 2280/22110 NVMe SSD Slots
- Dedicated Cache Slots - Free up Primary Drive Bays for Data Storage
Applied Models
NVMe SSD
- SA Series: SA6400, SA3610, SA3600, SA3410, SA3400
- 25 Series: RS2825RP+
- 23 Series: RS2423RP+II, RS2423RP+, RS2423+
- 22 Series: RS822RP+, RS822+, DS3622xs+, DS2422+
- 21 Series: RS4021xs+, RS3621xs+, RS3621RPxs, RS2821RP+, RS2421RP+, RS2421+, RS1221RP+, RS1221+
- 20 Series: RS820RP+, RS820+
- 19 Series: DS2419+II, DS2419+, DS1819+
- 18 Series: RS3618xs, RS2818RP+, DS3018xs, DS1618+
- 17 Series: RS18017xs+, RS4017xs+, RS3617xs+, RS3617RPxs, DS3617xs
Note:
- DSM Version Requirement: 6.2.3-25426 or Later Version
- DSM Version Requirement for RS18017xs+, RS4017xs+, RS3618xs, RS3617xs+, RS3617RPxs, DS3617xs and DS3617xsII: 7.0.1 or Later Version
Specifications
General
- Host Bus Interface: PCIe 3.0 x8
- Bracket Height: Low Profile and Full Height
- Size (H × W × D): 68.9 × 170.6 × 13.6mm
- Operating Temperature: 0~40°C
- Storage Temperature: -20~60°C
- Relative Humidity: 5~95% RH
Network
- IEEE Specification Compliance, IEEE 802.3x Flow Control, IEEE 802.3ad Link Aggregation, IEEE 802.3ab Gigabit Ethernet, IEEE 802.3an 10Gbps Ethernet
Data Transfer Rates
Network Operation Mode
Supported Features
- 9KB Jumbo Frame
- TCP/UDP/IP Checksum Offloading
- TCP Segmentation Offload (TSO)
Warranty
- 5-Years (The Warranty Period Starts from the Purchase Date as Stated on Your Purchase Receipt)
