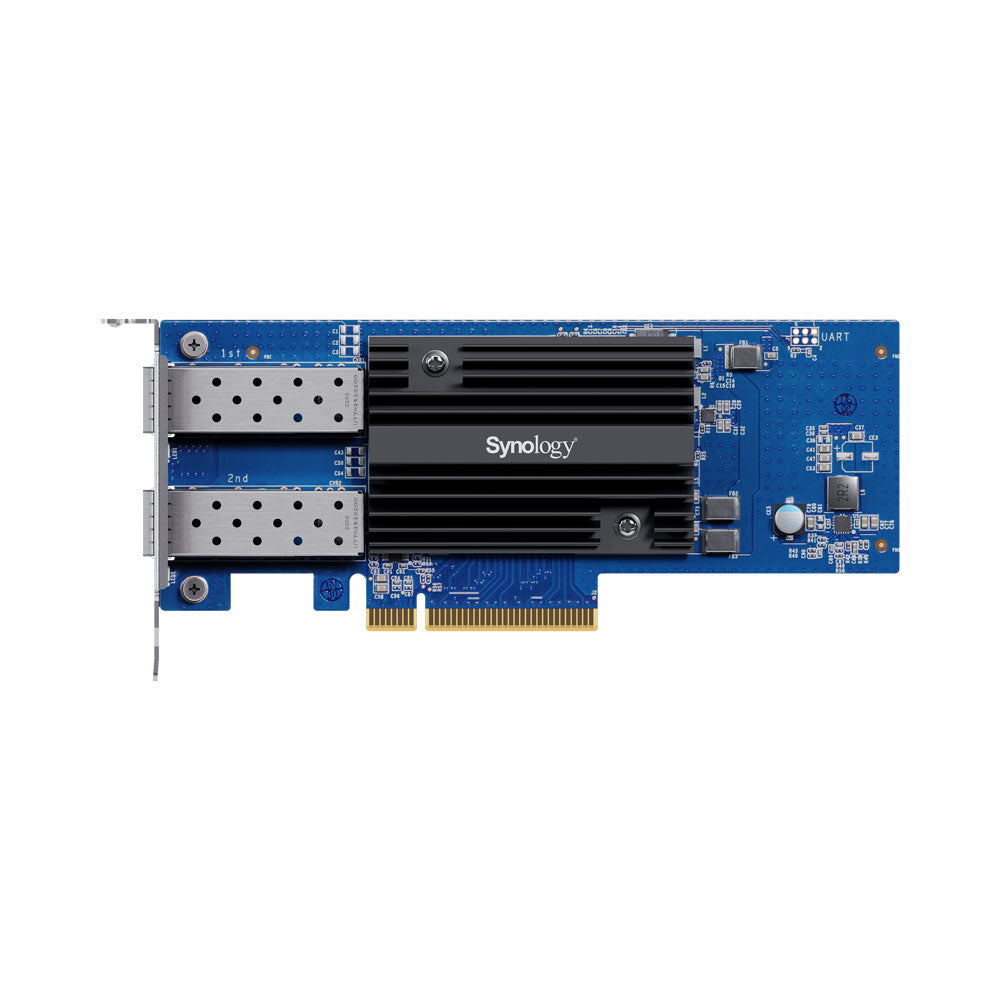

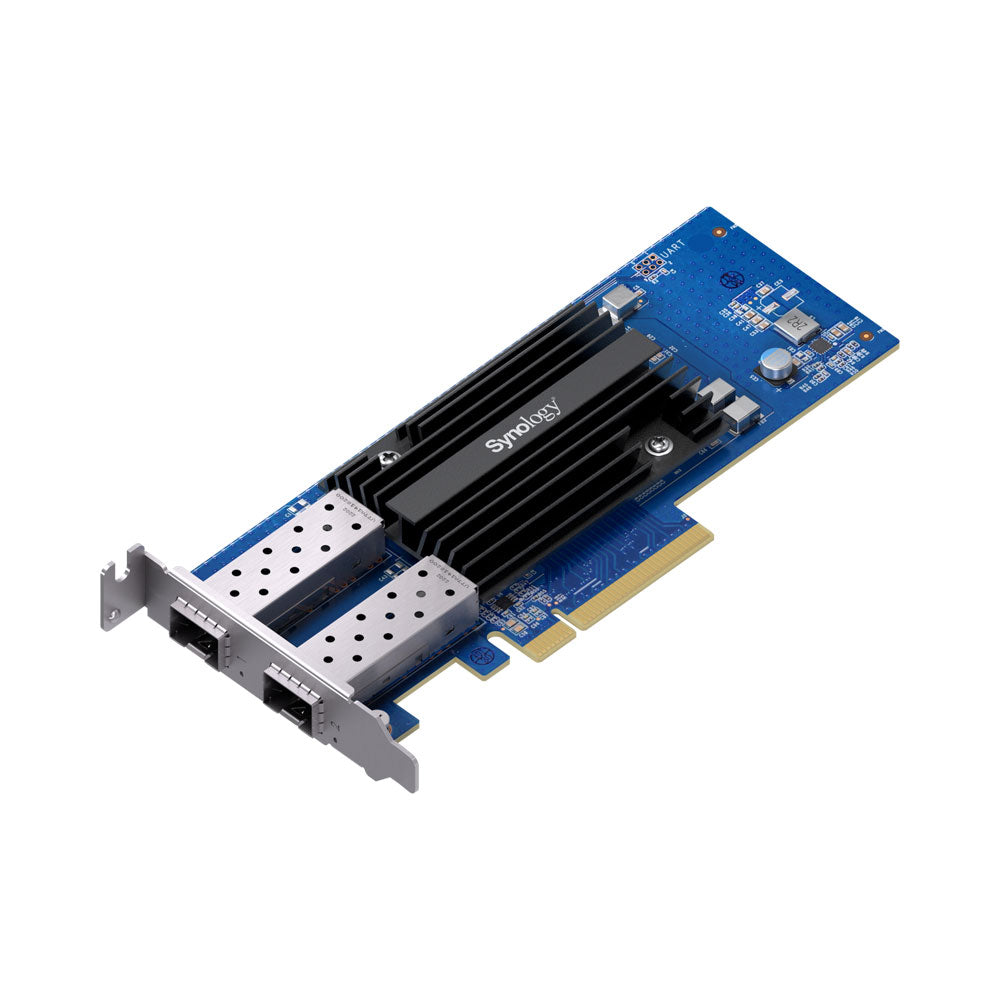

Synology E10G30-F2 Dual-Port 10GbE SFP+ PCIe Network Card for Synology Systems
The Synology E10G30-F2 is a high-performance dual-port 10GbE SFP+ PCIe expansion card designed to unlock ultra-fast network throughput for compatible Synology NAS systems. Built for enterprise storage, virtualisation and high-bandwidth workloads, it delivers reliable 10GbE fibre connectivity with low latency and high efficiency.
Features
- High Bandwidth - Two 10GbE ports support high-performance storage applications
- Flexible SFP+ Options - Supports SR and LR transceivers and DAC options
- Link Aggregation Support - Enables higher simultaneous throughput, port failover and load balancing
- Built for Synology - Purpose-built for use with Synology systems
- Warranty - Protected for longer with Synology's 5-year limited warranty
Applied Models
- FS series: FS6400, FS3600, FS3410, FS3400, FS2500
- HD series: HD6500
- SA series: SA6400, SA3610, SA3600, SA3410, SA3400D, SA3400, SA3200D
- UC series: UC3400, UC3200
- 23 series: RS2423RP+, RS2423+, DS1823xs+
- 22 series: RS822RP+, RS822+, DS3622xs+, DS2422+
- 21 series: RS4021xs+, RS3621xs+, RS3621RPxs, RS2821RP+, RS2421RP+, RS2421+, RS1221RP+, RS1221+, DS1821+, DS1621xs+, DS1621+
- 20 series: RS820RP+, RS820+
- 19 series: RS1619xs+, DS2419+II, DS2419+, DS1819+
- 18 series: RS3618xs, RS2818RP+, RS2418RP+, RS2418+
- 17 series: RS4017xs+, RS3617xs+, RS3617RPxs, DS3617xs
- Note: DSM Version Requirement: 7.1.1-42962 Update 5 or Later Version
Specifications
General
- Host Bus Interface: PCIe 3.0 x8
- Bracket Height: Low Profile and Full Height
- Dimensions (H × W × D): 69 × 168 × 17.3mm
- Operating Temperature: 0~40°C
- Storage Temperature: -20~60°C
- Relative Humidity: 5~95% RH
Network
- IEEE Specification Compliance: IEEE 802.3ad Link Aggregation, IEEE 802.3ae 10Gbps Ethernet
Data Transfer Rates
Supported Features
- TCP Segmentation Offload (TSO)
- Receive Side Scaling (RSS)
- Generic Segmentation Offload (GSO)
- 1.5~9KB Jumbo Frame
- TCP/UDP Checksum Offload
- Transmit Side Scaling (TSS)
- SR-IOV
- Large Receive Offload (LRO)
Warranty
- 5-Years (The Warranty Period Starts from the Purchase Date as Stated on Your Purchase Receipt)
