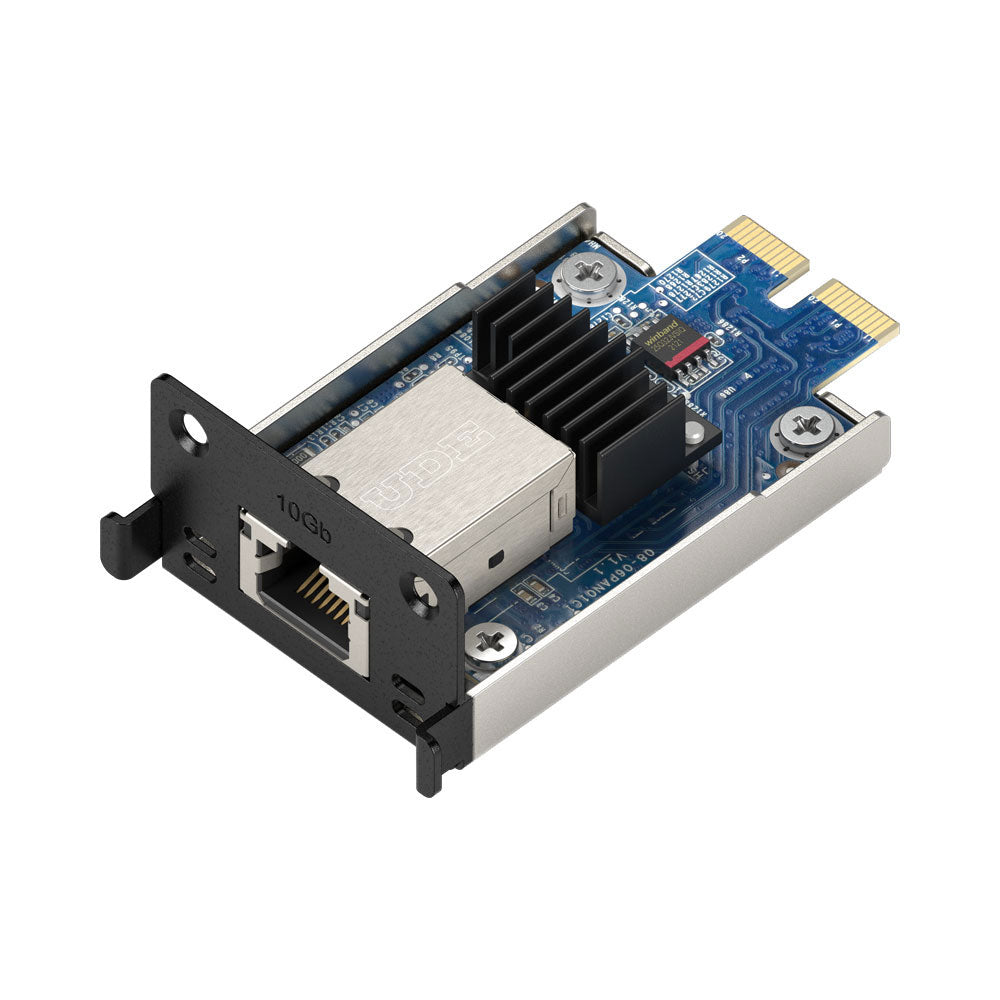

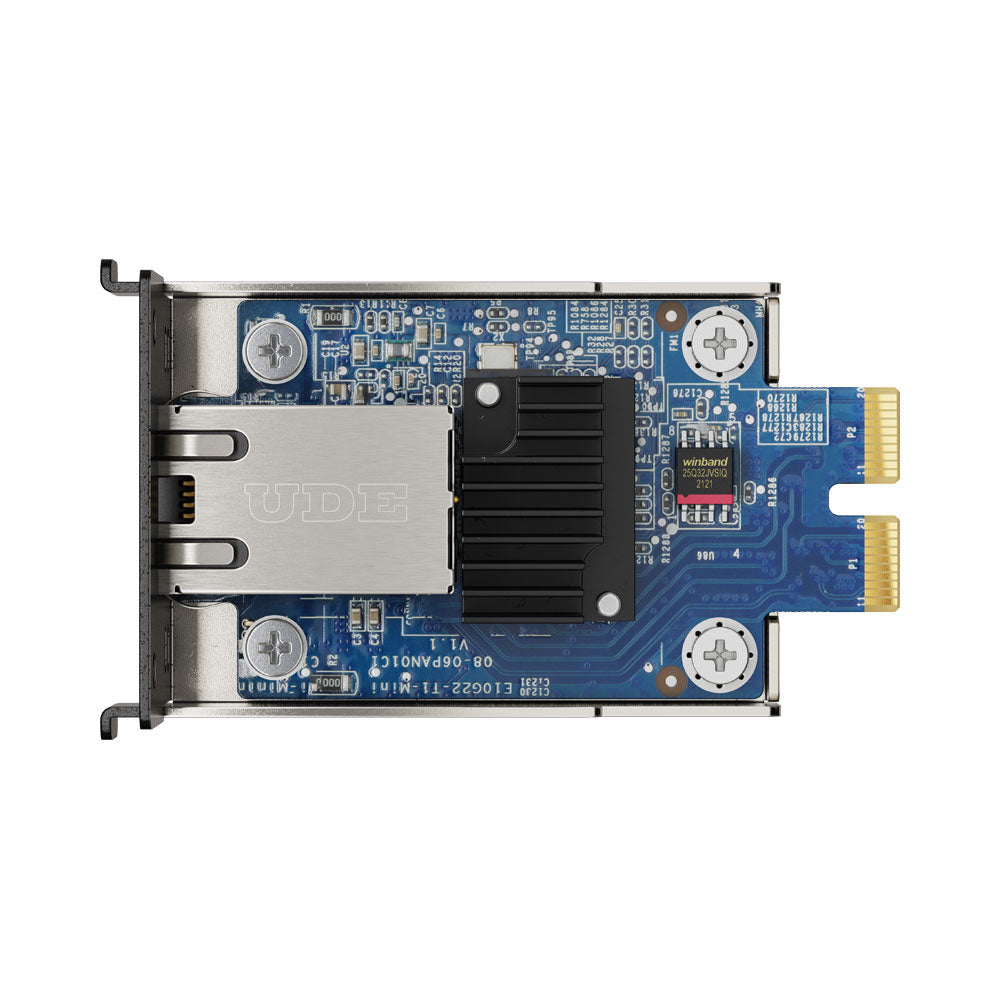

Synology E10G22-T1-Mini 10GbE RJ45 PCIe Network Card - Upgrade Module for Compact Synology Servers
The Synology E10G22-T1-Mini Network Upgrade Module is designed to easily and quickly upgrade your Synology system with 10GbE connectivity. Simple installation, low implementation cost and support for nearly any network environment makes it the ideal solution for small businesses and home users looking to maximise the performance potential of their deployments.
Features
- High Bandwidth - Expands system capabilities with 10GbE connectivity to support higher resolution video editing, concurrent backup ingestion and more
- Flexible Integration - Supports 1 / 2.5 / 5 / 10GbE connections to work with nearly any RJ45 network environment
- For Synology by Synology - Designed for maximum performance and reliability in Synology systems
Applied Models
- DP Series: DP340
- 25 Series: DS1525+
- 23 Series: DS923+, DS723+
- 22 Series: RS422+, DS1522+
- Note: DSM Version Requirement: 7.1.1-42962 Update 4 or Later Version
Specifications
General
- Host Bus Interface: PCIe 3.0 x2
- Dimensions (H × W × D): 26.37 × 45.38 × 75.7mm
- Operating Temperature: 0~40°C
- Storage Temperature: -20~60°C
- Relative Humidity: 5~95% RH
Network
- IEEE Specification Compliance: IEEE 802.3x Flow Control, IEEE 802.3u Fast Ethernet, IEEE 802.3ab Gigabit Ethernet, IEEE 802.3bz 2.5Gbps / 5Gbps Ethernet, IEEE 802.3an 10Gbps Ethernet
Data Transfer Rates
- 100Mbps, 1Gbps, 2.5Gbps, 5Gbps, 10Gbps
Supported Features
- 9KB Jumbo Frame
- TCP/UDP/IP Checksum Offloading
- Auto-Negotiation Between 100Mb/s, 1Gb/s, 2.5Gb/s, 5Gb/s and 10Gb/s
- TCP Segmentation Offload (TSO)
- Large Send Offload (LSO)
- Receive Side Scaling (RSS)
- Generic Receive Offload (GRO)
- Generic Segmentation Offload (GSO)
Warranty
- 3-Years (The Warranty Period Starts from the Purchase Date as Stated on Your Purchase Receipt)
