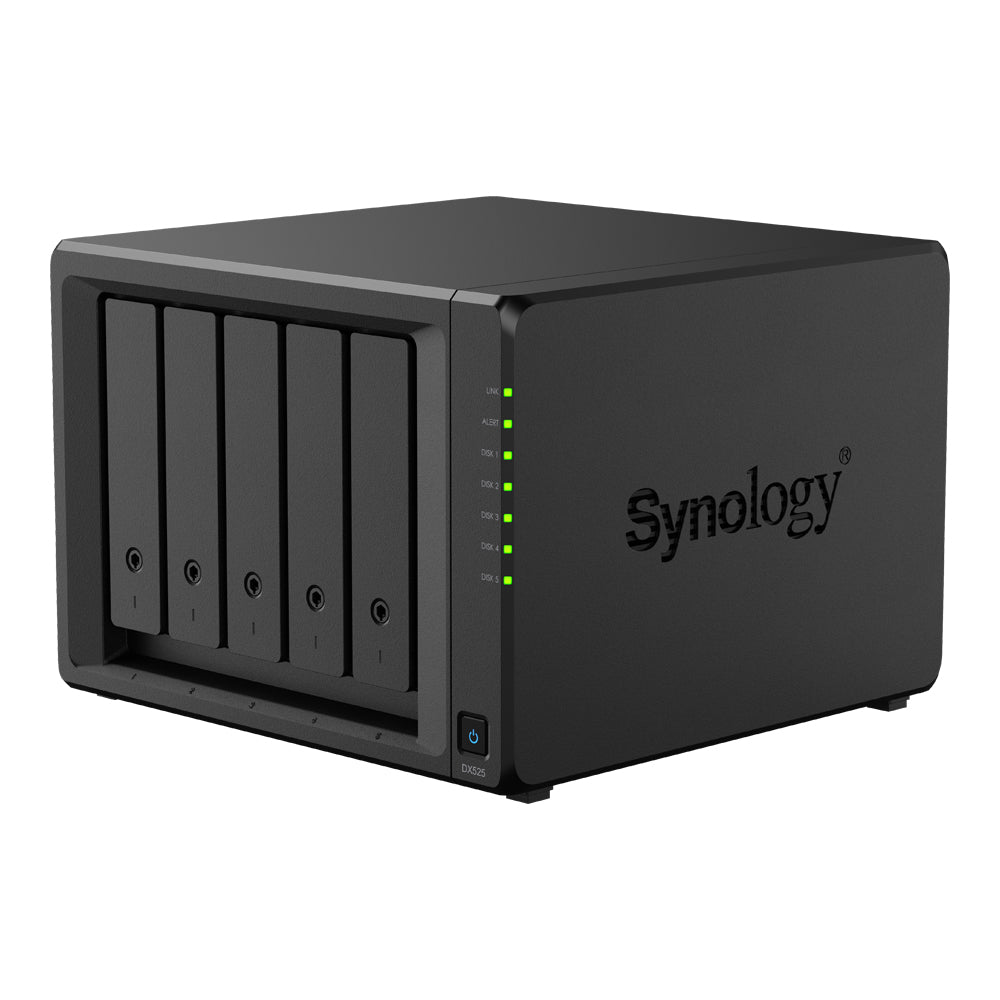

Synology DX525 5-Bay NAS Expansion Unit
Seamless Storage Expansion Without Interrupting Your Workflow
The Synology DX525 provides a convenient way to expand the storage capacity of a compatible Synology DiskStation with five additional drive bays. Supporting both 3.5" SATA HDDs and 2.5" SATA SSDs, it enables new storage volumes to be created or existing volumes to be expanded through Synology DiskStation Manager. Plug-and-play installation and hot-swappable drive support allow storage upgrades and drive replacements with minimal service interruption. The DX525 can also be configured as a separate local backup volume, helping protect important data stored on the host DiskStation. A supplied USB Type-C expansion cable provides a dedicated connection to the host NAS, while synchronised power recovery, dual cooling fans and RAID management through DSM provide convenient and dependable operation.
Features
- Five-Bay Storage Expansion - Adds five additional drive bays to a compatible Synology DiskStation
- Flexible Drive Support - Compatible with supported 3.5" SATA HDDs and 2.5" SATA SSDs
- Online Volume Expansion - Expand existing volumes or create new volumes without interrupting services
- Hot-Swappable Drive Bays - Install or replace supported drives without powering down the system
- Plug-and-Play Setup - Additional drive bays become available through DSM after connection
- DSM Storage Management - Manage drives, storage pools, volumes and RAID configurations through Synology DSM
- Dedicated Local Backup - Can be configured as a separate volume for local DiskStation backups
- USB Type-C Expansion Connection - Provides a dedicated high-speed connection to the host DiskStation
- Synchronised Power Recovery - Power behaviour is synchronised with the connected Synology DiskStation
- Dual-Fan Cooling - Two 92mm fans provide reliable airflow across installed drives
- Lockable Drive Trays - Help protect installed drives against unauthorised removal
- Kensington Security Slot - Supports compatible security locks for added physical protection
- Expandable Warranty - Three-year hardware warranty can be extended to five years in supported regions
Specifications
Storage
- Drive Bays: 5
- Supported Drive Types: 3.5" SATA HDD and 2.5" SATA SSD
- Hot-Swappable Drives: Supported
- RAID Management: Through Synology DSM
- Drives Included: None
Connectivity
- Expansion Port: 1
- Expansion Connection: USB Type-C
- Expansion Cable: USB Type-C Expansion Cable Included
Compatible Synology Models
- DS1825+
- DS1825neo+
- DS1525+
- DS1525neo+
- DS925+
- DS925neo+
- DS725+
- DS725neo+
Cooling And Acoustics
- System Fans: 2× 92mm
- Rated Noise Level: 20.4dB(A)
Power
- Power Adapter: 90W
- AC Input: 100~240V AC, 50/60Hz, Single Phase
- Power Consumption: 35.37W During Access
- HDD Hibernation Consumption: 7W
- Power Recovery: Synchronised with the Connected Synology DiskStation
Physical Specifications
- Dimensions: 166 × 230 × 223mm
- Weight: 2.46kg
- Operating Temperature: 0~40°C
- Storage Temperature: -20~60°C
- Operating Humidity: 8~80% RH
- Storage Humidity: 5~95% RH
- Security Slot: Kensington Security Slot
Certifications And Warranty
- Certifications: FCC, CE, BSMI, UKCA, EAC, VCCI, RCM, KC and BIS
- Environmental Compliance: RoHS
- Warranty: Three-Year Limited Hardware Warranty, Extendable to Five Years in Supported Regions
Notes
- The DX525 is an expansion unit and requires a compatible Synology DiskStation to operate
- Compatible drives are mandatory. Confirm support on Synology’s compatibility list before purchasing or installing drives
