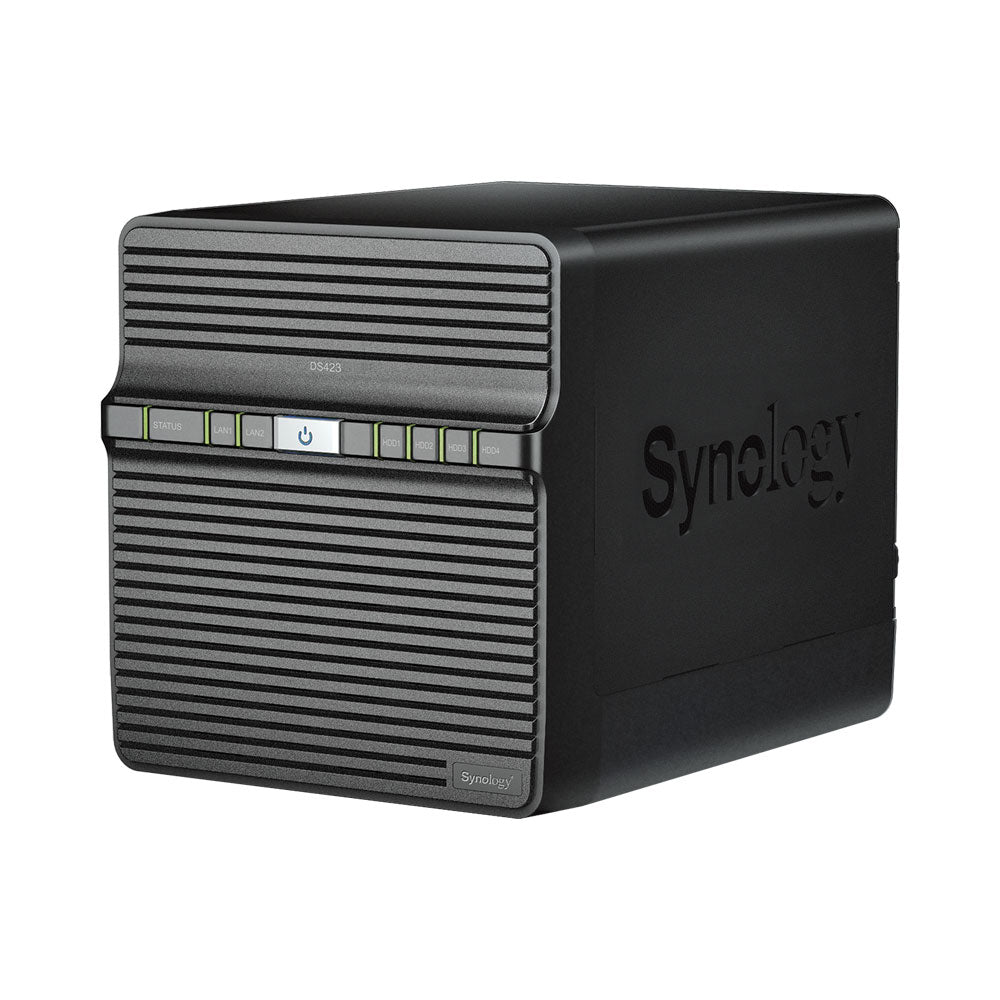

Synology DiskStation DS423 4-Bay NAS - Realtek RTD1619B 1.7GHz Quad-Core CPU, 2GB RAM, Diskless
Private Cloud Hub for Essential File and Media Management
The Synology DiskStation DS423 offers four bays of storage and everything you need to consolidate, organise and secure your data. Leverage built-in solutions in Synology DiskStation Manager (DSM) to sync and access files across multiple devices, create a digital photo hub for work or leisure or secure your premises with intelligent video surveillance tools.
Features
- Centralised Data Storage - Consolidate up to 72TB of data and enjoy 100% data ownership and multi-platform access from anywhere
- Secure Sharing and Syncing - Safely access and share files and media from anywhere and keep friends, partners or collaborators on the same page
- Simple Data Protection - Back up your media and documents to multiple destinations and leverage snapshots to protect against malware
- Versatile Surveillance - Protect your home or business with intuitive monitoring, archiving and analysis tools for up to 30× IP cameras
Specifications
Processor
- CPU Model: Realtek RTD1619B
- CPU Core: 4
- CPU Architecture: 64-bit
- CPU Frequency: 1.7GHz
- Hardware Encryption Engine: Yes
Memory
- System Memory: 2GB DDR4 non-ECC
Storage
- Drive Bays: 4×
- Drive Type: 3.5" SATA HDD, 2.5" SATA SSD
- Hot Swappable Drive: Yes
Supported RAID Type
- Basic, JBOD, RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, Synology Hybrid RAID
External Ports
- RJ45 1GbE LAN Ports: 2×
- USB3.2 Gen1 Ports: 2×
Appearance
- Size (H × W × D): 166 × 199 × 223mm
- Weight: 2.18kg
- System Fans: 2× 92mm
- Fan Speed Mode: Full-Speed Mode, Cool Mode, Quiet Mode
- Brightness Adjustable Front LED Indicators: Yes
Others
- Noise Level: 22.9 dB(A)
- Wake on LAN / WAN: Yes
- Power Supply Unit / Adapter: 90W
- AC Input Power Voltage: 100~240V AC
- Power Frequency: 50/60Hz, Single Phase
- Power Consumption: 32.41W (Access), 8.31W (HDD Hibernation)
Temperature
- Operating Temperature: 0~40°C
- Storage Temperature: -20~60°C
- Relative Humidity: 5~95% RH
File System
- Internal Drives: Btrfs, EXT4
- External Drives: Btrfs, EXT4, EXT3, FAT, NTFS, HFS+, exFAT
Storage Management
- Maximum Single Volume Size: 108TB
- Maximum Internal Volume Number: 64×
- SSD Cache: No
- Btrfs File System: Yes
File Services
- Maximum Concurrent SMB Connections: 500×
- Maximum Local User Accounts: 2,048×
- Maximum Shared Folders: 512×
Surveillance Station
- Default Licenses: 2×
- Maximum IP Cameras and Total FPS (H.264): up to 30
- Maximum IP Cameras and Total FPS (H.265): up to 30
Warranty
- 2-Year Hardware Warranty (Extendable to 4-Years with Extended Warranty Plus)
