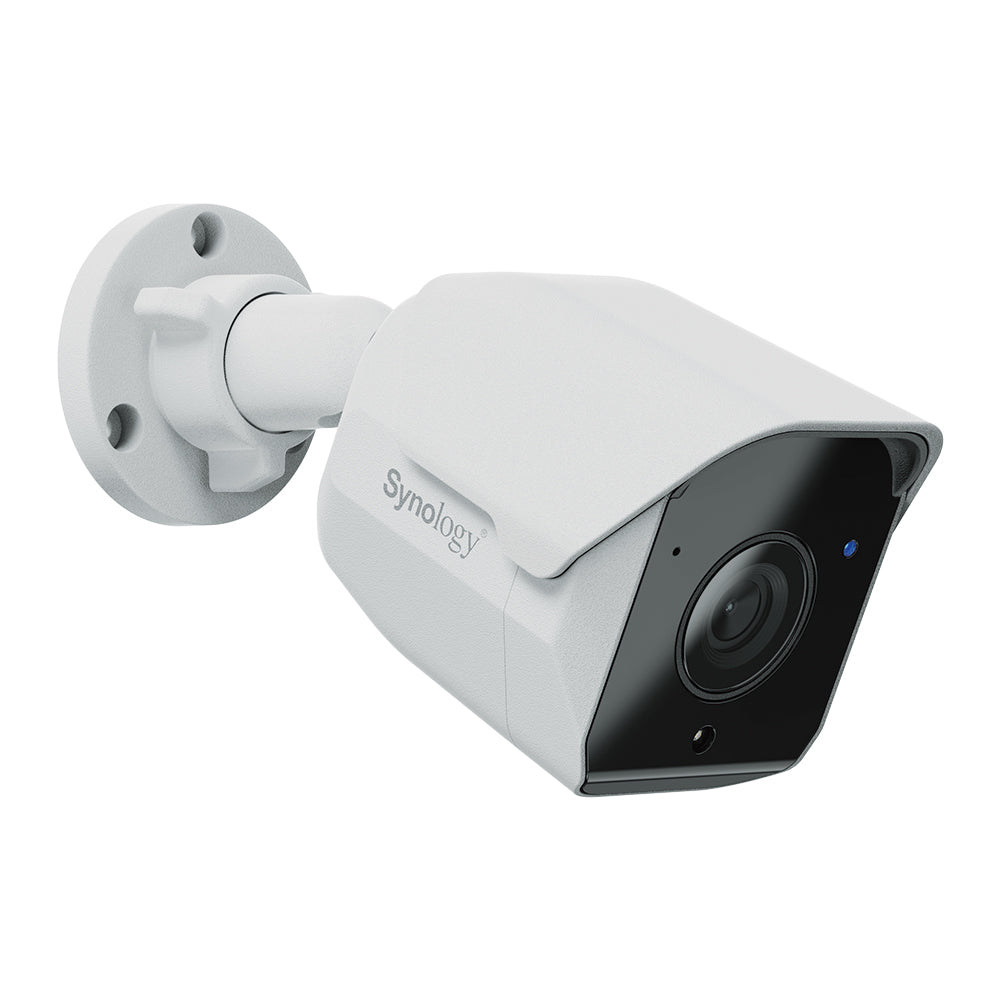

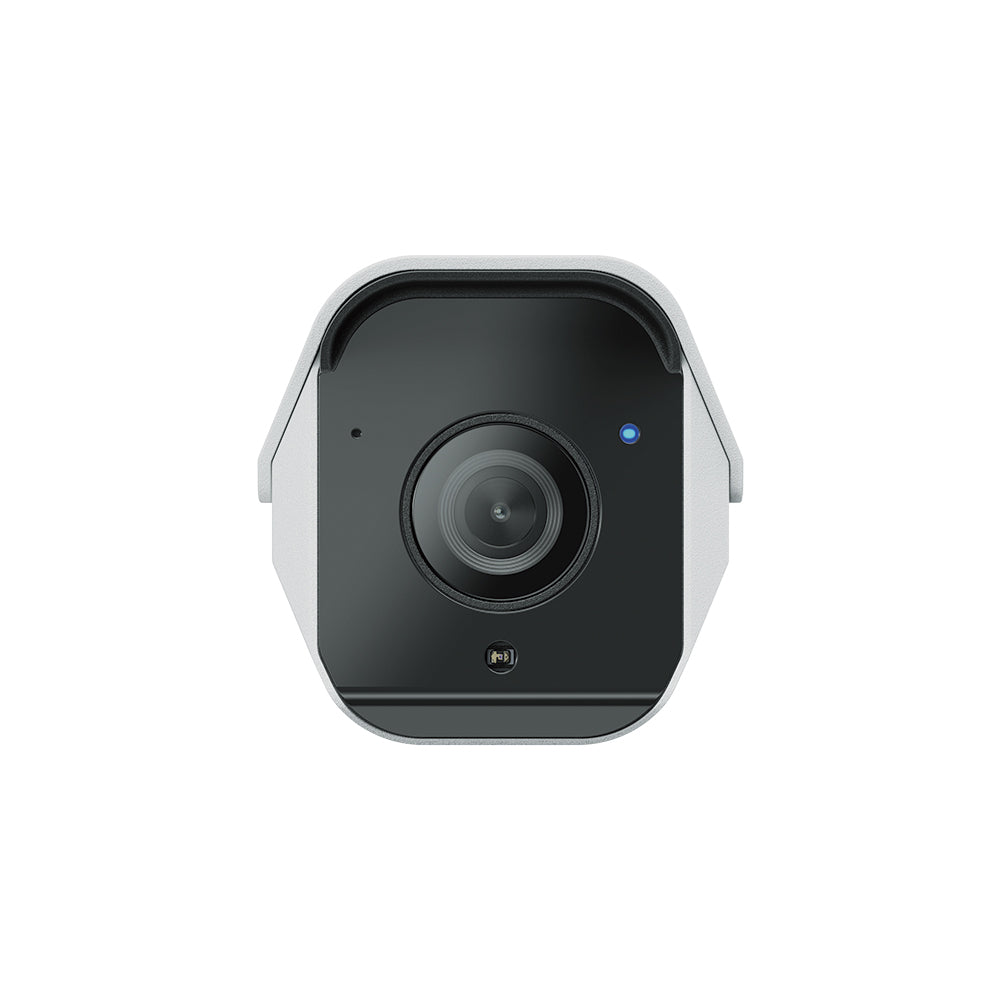

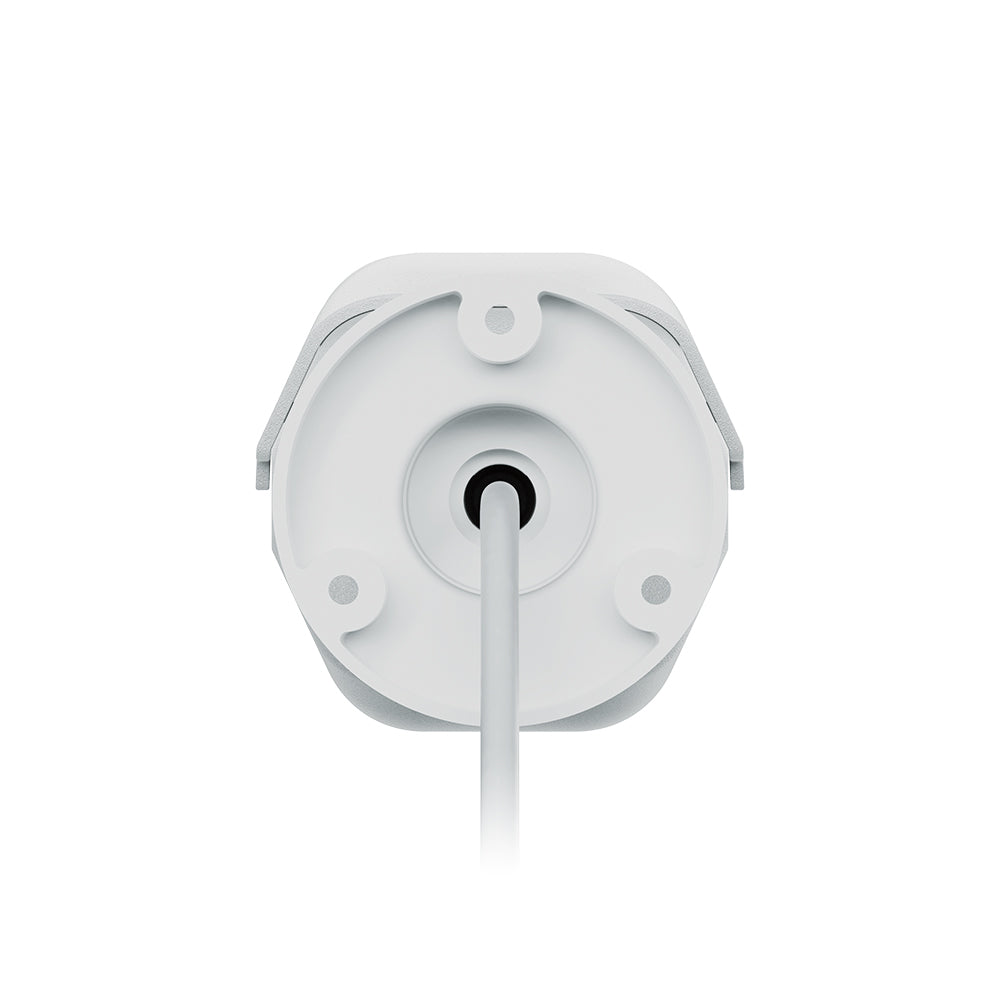

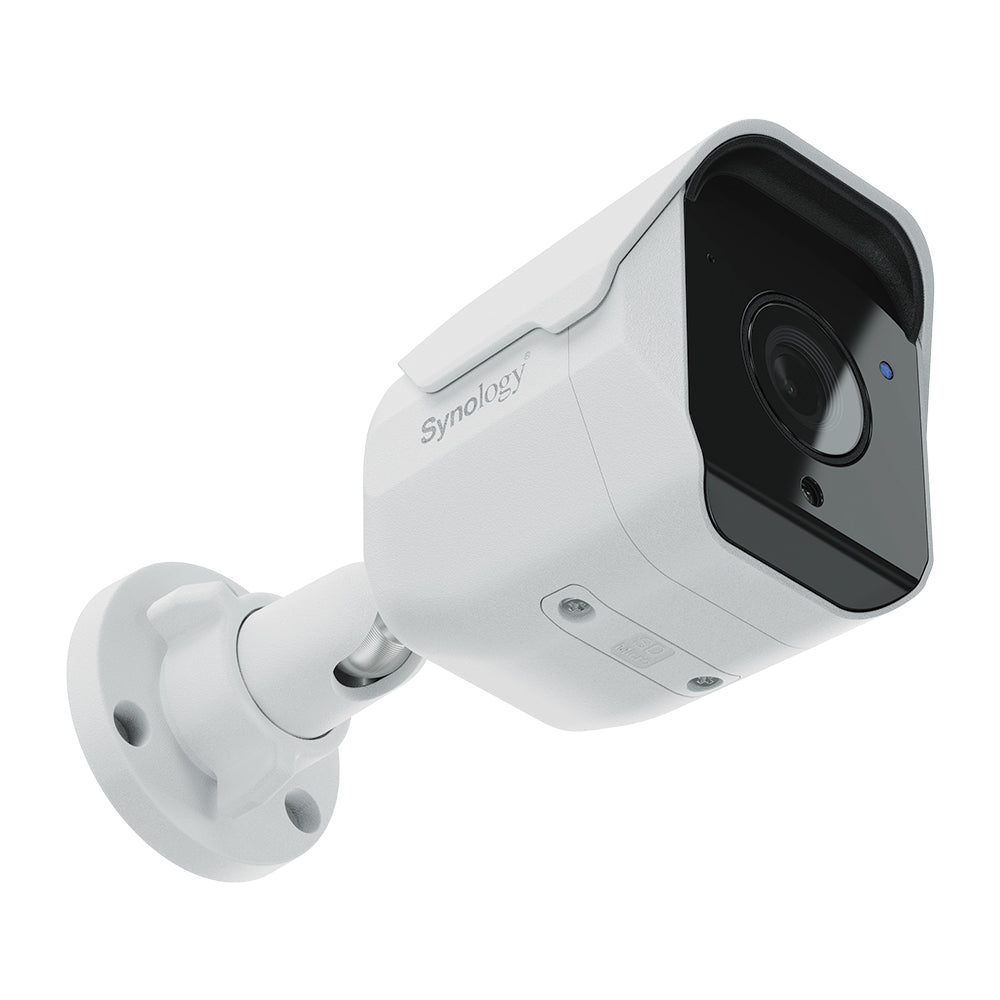

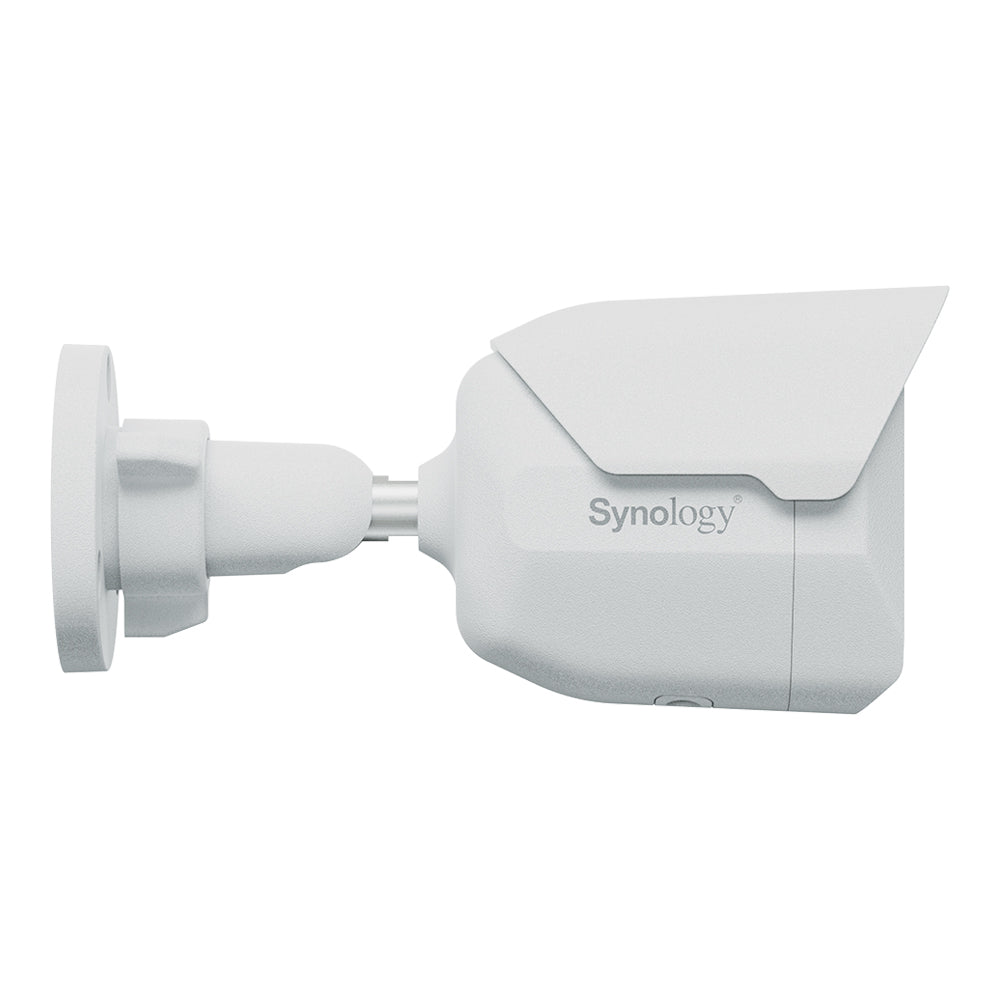

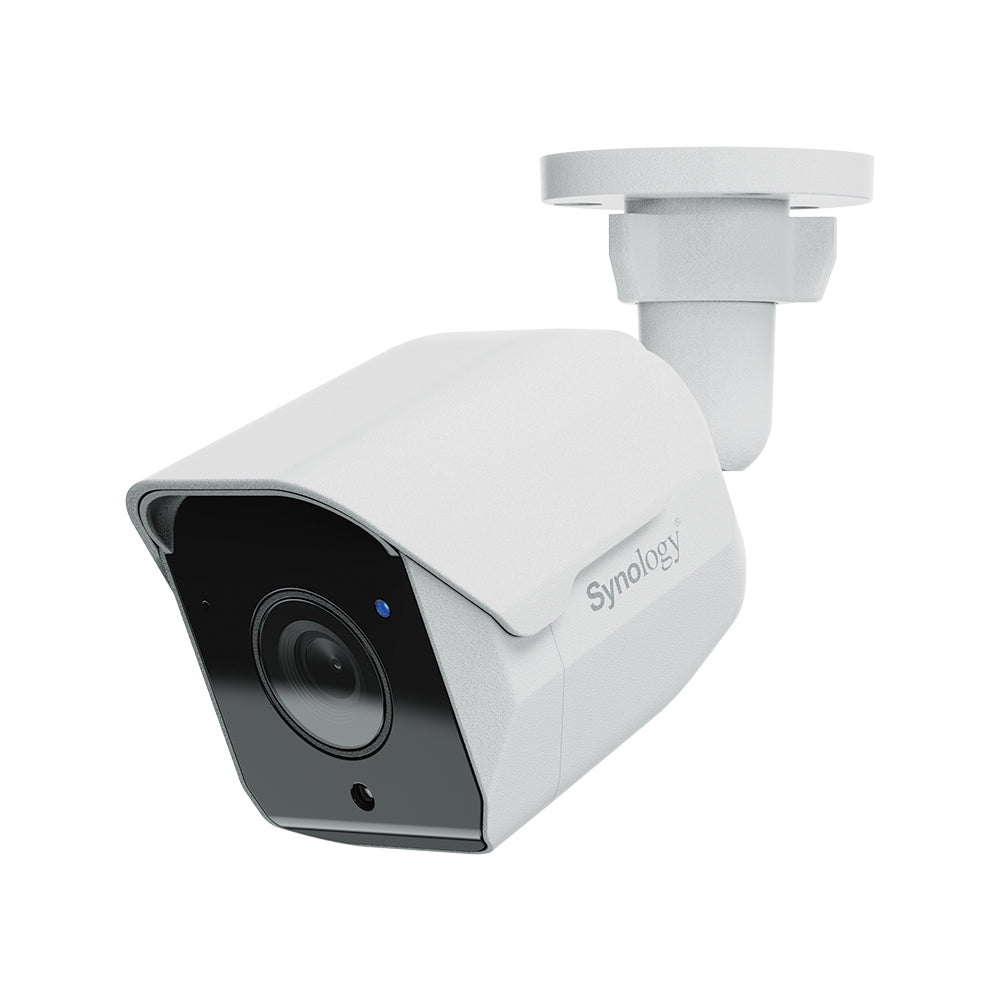

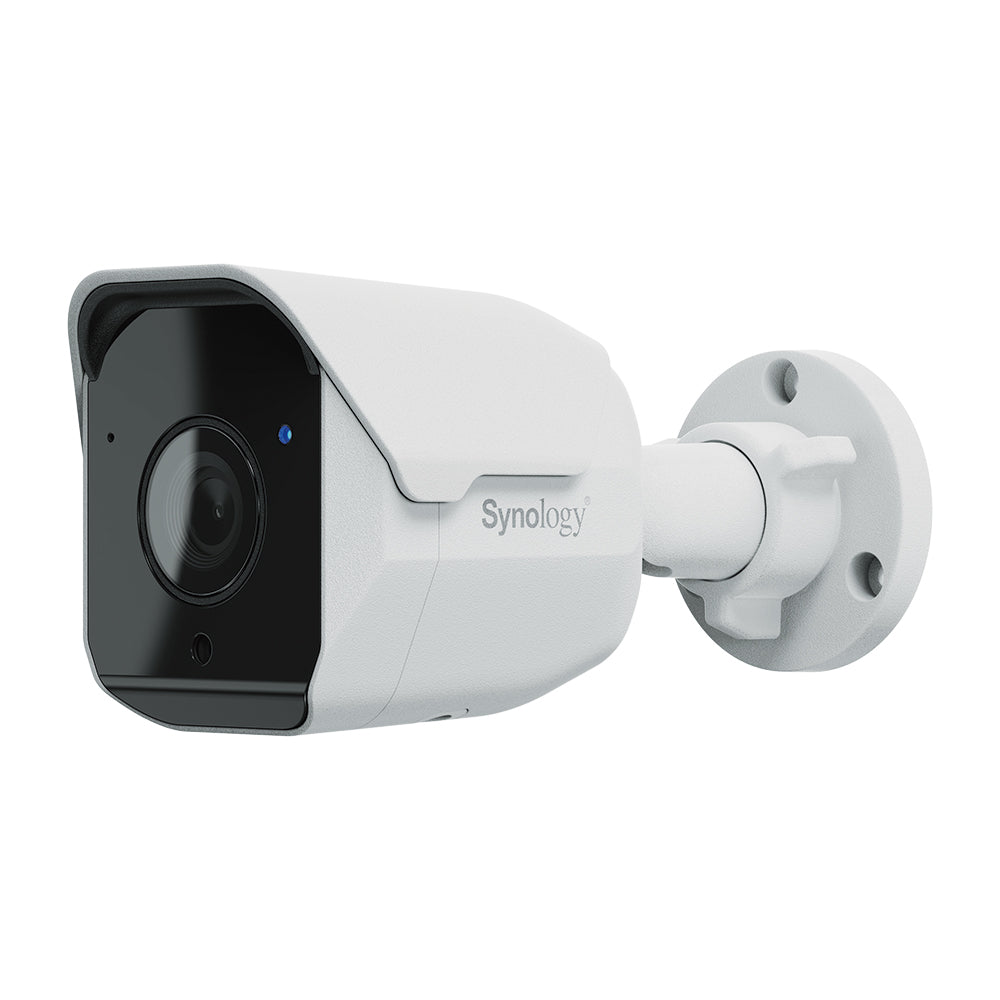

SYNOLOGY BC500 5MP IP67 OUTDOOR POE AI BULLET CAMERA WITH 30M IR NIGHT VISION

Synology BC500 5MP IP67 Outdoor PoE AI Bullet Camera with 30m IR Night Vision

Sharper Vision. Smarter Security.

The Synology BC500 is a 5MP outdoor bullet camera that combines detailed video, intelligent detection and streamlined Surveillance Station integration. Its 2880 × 1620 resolution, wide 110° horizontal field of view and multi-exposure HDR deliver clear coverage across challenging lighting conditions. Four high-power infrared LEDs provide night vision up to 30 metres, while IP67 ingress protection supports reliable outdoor operation. Built-in AI distinguishes people and vehicles, detects intrusion, monitors loitering and enables fast searches through recorded footage. Integrated PoE simplifies installation by carrying power and data over one network cable, with optional 12V DC power also supported. A built-in microphone enables audio monitoring, while microSD edge recording helps preserve footage during network interruptions. No separate Surveillance Station device licence is required when used with a compatible Synology recording server.

Features

• Detailed Wide-Angle Video - Records 5MP video at up to 30fps, with a 110° horizontal field of view and multi-exposure HDR
• 30m IR Night Vision - Four high-power infrared LEDs provide clear monitoring in low-light and dark environments
• Intelligent AI Analytics - Detects people, vehicles, loitering, crowd activity and virtual-boundary intrusions for more relevant alerts
• Faster Incident Investigation - Instant Search and digital people tracking help operators locate and follow important activity
• Failover Edge Recording - Automatically records to a microSD card if the connection to the recording server is interrupted
• Simplified PoE Installation - Transmits power and network data through one Ethernet cable with optional 12V DC power also supported
• Outdoor-Ready Protection - IP67 ingress protection supports dependable operation in exposed environments
• Seamless Surveillance Station Integration - Enables centralised configuration, monitoring, event management and firmware updates
• No Separate Device Licence Required - Connects to a compatible Synology Surveillance Station system without an additional camera licence
• Secure and Compliant - Supports HTTPS, SRTP, signed firmware and NDAA/TAA-compliant deployments

Specifications

Camera

• Image Sensor: 1/2.7"
• Maximum Resolution: 5MP, 2880 × 1620
• Maximum Frame Rate: 30fps
• Day and Night Operation: Automatic Removable Infrared-Cut Filter
• IR LED Wavelength: 850nm
• Infrared LEDs: 4× 1W
• Maximum IR Distance: 30m at 0.001 Lux
• Shutter Speed: 1/16000~1/30 Seconds

Lens

• Lens Type: Fixed-Focal
• Focal Length: 2.8mm
• Aperture: F1.8
• Horizontal Field of View: 110°
• Vertical Field of View: 56°
• Diagonal Field of View: 132°
• DORI Distance: Detection 60m, Observation 24m, Recognition 12m, Identification 6m
• Replaceable Lens: No

Video

• Main Stream Resolutions: 2880 × 1620, 2560 × 1440, 2304 × 1296, 1920 × 1080 and 1280 × 720 at up to 30fps
• Sub Stream Resolutions: 1920 × 1080 at 15fps or 1280 × 720 at 30fps
• Video Compression: H.264, H.265
• Maximum Bitrate: 8,192Kbps
• Bitrate Control: Maximum Bitrate, Variable Bitrate
• High Dynamic Range: Multi-Exposure HDR
• Noise Reduction: 2DNR, 3DNR
• Image Adjustments: Brightness, Contrast, Sharpness, Saturation, White Balance and Exposure Control
• Flicker Reduction: 50Hz, 60Hz
• Day and Night Modes: Auto, Day, Night, Schedule
• Video Orientation: Mirror, Flip and 0°, 90°, 180° or 270° Rotation
• Privacy Masking: Up to Five Zones
• Maximum RTSP Connections: 4×

Audio

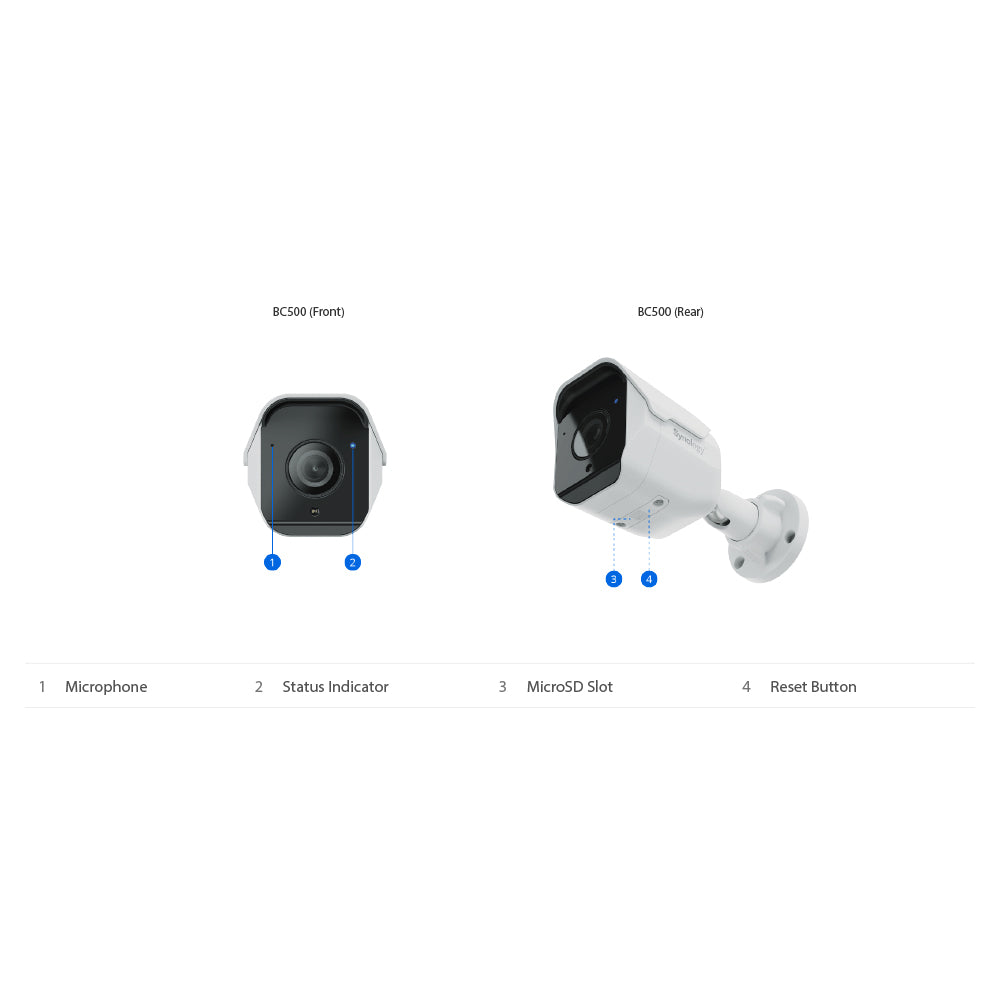

• Built-In Microphone: Yes
• Audio Communication: One-Way Audio Input
• Audio Compression: G.711
• Audio Denoising: Supported
• Built-In Speaker: No
• Two-Way Audio: No

Ai And Event Analytics

• People Detection: Supported
• Vehicle Detection: Supported
• People and Vehicle Counting: Supported
• Crowd Detection: Supported
• Loitering Detection: Supported
• Intrusion Detection: One-Way or Two-Way Crossing Detection
• Motion Detection: Supported
• Audio Detection: Supported
• Tampering Detection: Supported
• Instant Search: People, Vehicles and Motion
• People Auto Tracking: Supported
• Detection Zones: Configurable

Storage

• Edge Storage: 1× microSD Card Slot
• Validated microSD Capacity: Up to 256GB
• Supported microSD Format: exFAT
• Network Storage: Compatible Synology NAS and DVA Systems
• Failover Recording: Supported
• microSD Card Included: No

Network And Security

• Ethernet Interface: 1× 10/100Mbps RJ45
• Third-Party Integration: ONVIF
• Supported Protocols: HTTP, HTTPS, TLS 1.2, TCP/IP, UDP, IPv4, UPnP, RTSP, NTP, DHCP, SSL, RTP and SRTP
• IP Address Configuration: Fixed IP, DHCP
• HTTPS Encryption: Supported
• SRTP Video Protection: Supported
• Signed Firmware: Supported
• IP Filtering: Allow and Block Lists
• Automatic Connection Blocking: Supported
• Privacy Masking: Supported
• Video Watermarking: Supported with Compatible Synology Surveillance Systems

Power

• Power Options: IEEE 802.3af Type 1 Class 3 PoE or 12V DC
• Compatible DC Adapter: 12V 1A, 2.1mm Connector
• Power Consumption: 4.8W
• PoE Switch or Injector Included: No
• 12V DC Power Adapter Included: No

Physical

• Form Factor: Bullet
• Dimensions: Ø110 × 161mm
• Weight: 353g
• Colour: White
• Ingress Protection: IP67

Operating Environment

• Starting Temperature: -30~50°C
• Operating Temperature with IR Off: -30~50°C
• Operating Temperature with IR On: -30~40°C
• Operating Humidity: 5~95% RH, Non-Condensing
• Storage Temperature: -40~60°C
• Storage Humidity: 5~95% RH, Non-Condensing

Compatibility And Compliance

• Synology Surveillance Station: Supported
• Minimum Surveillance Station Version: 9.1
• Surveillance Station Device Licence: Not Required
• DS Cam Support: Android and iOS
• NDAA Compliant: Yes
• TAA Compliant: Yes
• Environmental Compliance: REACH, WEEE and RoHS
• Certifications: FCC, CB, IC, CE, UKCA, BSMI, VCCI, RCM, KC and JATE

Warranty

• Standard Hardware Warranty: 3 Years

Notes

• People Auto Tracking is performed digitally within the video image. The BC500 does not contain a motorised pan-and-tilt mechanism.
• Facial recognition and licence-plate recognition require a compatible Synology DVA-series NVR and are not performed independently by the camera.
• Advanced AI functions and centralised management features may require Synology Surveillance Station. Feature availability through third-party ONVIF systems may vary.
