Features
- Camswitch Plus network switches are 803.af/at Power over Ethernet (POE) 10/100 switches designed especially to meet the challenges of IP video installation
- An optional POE input enables remote positioning and range extension, or a local power supply can be specified for maximum power budget

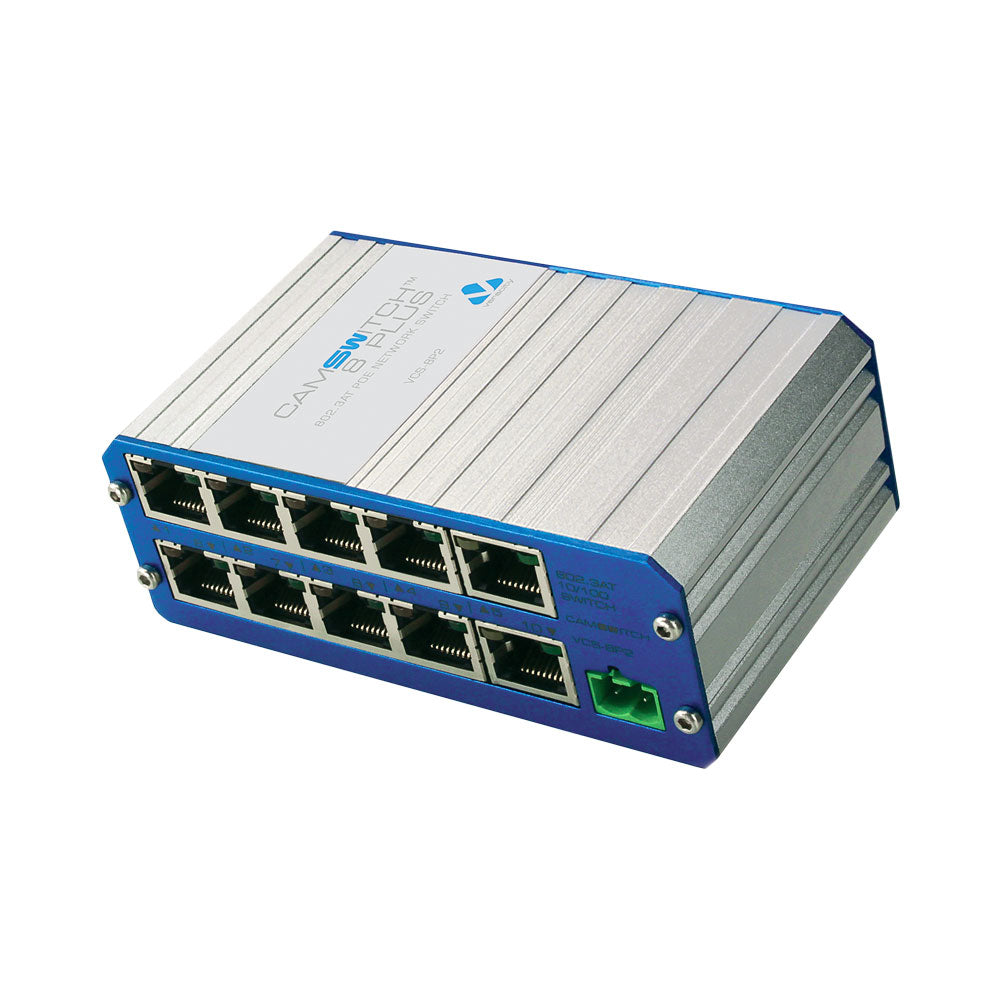

- Camswitch 8 Plus features 8 802.3 at POE ports, as well as 2 further network ports, and is compatible with Veracity's rack-mounting system
Specifications
- Total Camera Power Budget
40 watts - VPSU-57V-800 power supply
78 watts - VPSU-57V-1500 power supply
25 watts - VOR-OSP POE injector
10 watts - 802.3af POE switch
Network
- 5/10 port unmanaged 10/100 switch
- Auto-configuring for speed (10BASE-T or 100BASE-T) and duplex
- Use with Cat 5, Cat 5e or Cat 6 patch or crossover cables
- VCS-8P2 supports VLAN trunking
Power
- Device power: 3W
- POE outputs: IEEE802.3af / IEEE802.3at compliant
- POE input: IEEE802.3af compliant / custom high power
Dimensions
- W: 110m / 131mm with side clips
- D: 64mm / 76-80mm including connectors
- H: 22mm (VCS-4P1) / 40mm (VCS-8P2)
- Weight: 135g (VCS-4P1) / 225g (VCS-8P2)
Shipping Dimensions
