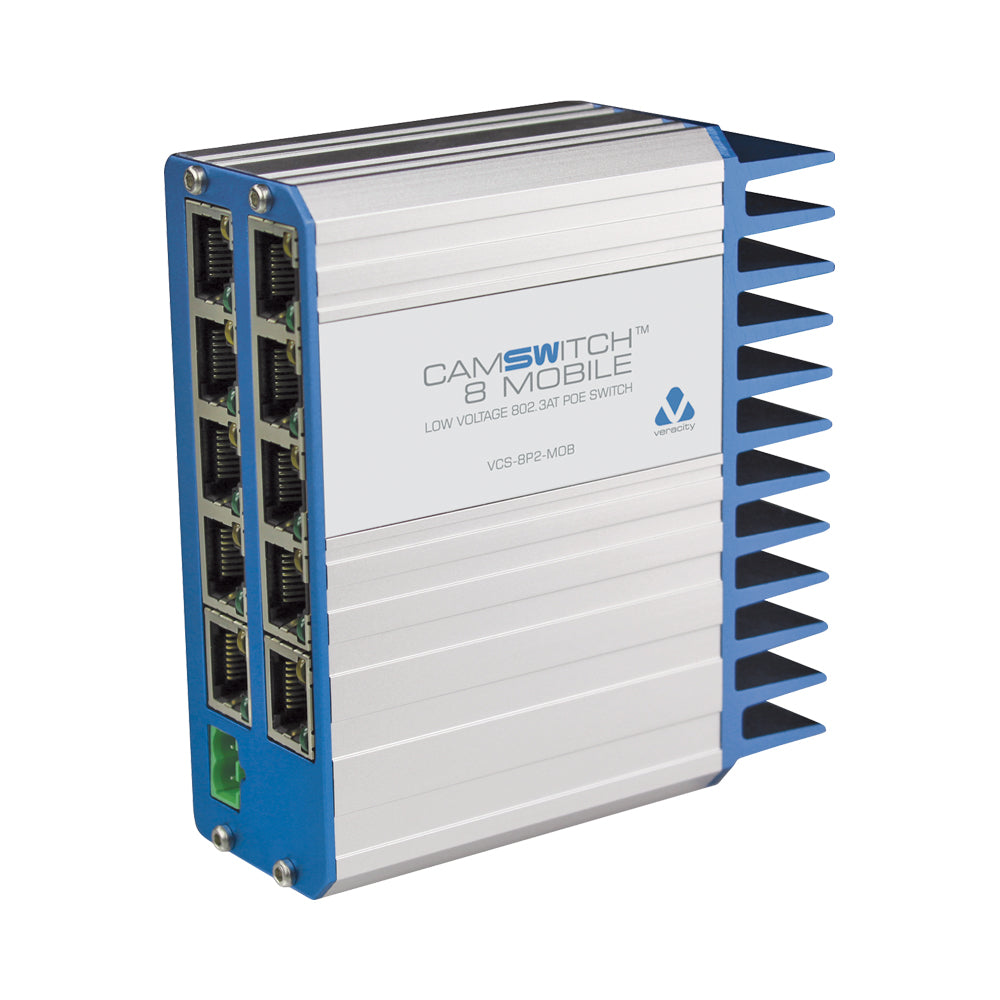

CAMSWITCH 8 MOBILE

Features

• Designed for Mobile Power Systems - Operates from a 12~24V DC source such as a vehicle battery, ideal for mobile surveillance installations
• 8× PoE Camera Ports - Connect and power up to eight IP cameras using IEEE 802.3af / 802.3at PoE and PoE+ outputs
• 80W Total PoE Budget - Provides up to 80W of power to connected devices for reliable camera operation
• 2× Dedicated Uplink Ports - Additional network ports for connecting devices such as a mobile NVR, NTP time server or 4G modem
• Auto-Configuring 10/100 Switch - Plug-and-play Ethernet switching with automatic network configuration
• Rugged Mountable Enclosure - Durable housing with adjustable mounting brackets for secure installation in vehicles or mobile environments

Specifications

Ower Input

Dc Connector

• Detachable Screw Terminal

Dc Voltage

• 8.5~40V DC (Minimum Startup Voltage: 10.5V)
• Supports Engine Cranking and Reduced Over-Discharge
• DC Only (Contact Veracity for 24VAC Applications)

Fusing

• Use of an External Fuse is Recommended
• Rating: 5A for 24VDC or 10A for 12VDC Supply (Slow Blow Type)

Device Power

• 3W

Poe Outputs

Poe Standard

• IEEE 802.3af / IEEE 802.3at Compatible
• Not Isolated from DC Input (For Use in Closed System Transport Applications)
• Connected Devices Must be IEEE Compliant
• Veracity Enhanced PoE Supports Maximum Efficiency and Range

Power Budget

24V Input

• 80W Total Camera Power

12V Input

• 80W (Reduce to 65W for Max. 30°C Temperature Rise Above Ambient)

<12V Input

• 60W (Reduce to 50W if Voltage Can Drop Below 10V)

Notes

• PoE Power Conversion Produces Heat
• Above Limits are for Horizontal Mounting with Ventilation
• Installation in Enclosed Spaces Will Cause Additional Heating and Power Limiting
• Warning: Enclosure May Become Hot in Operation

Ethernet Interface

Connector

• RJ45, 8-Port Unmanaged 10/100 Switch

Rates

• 100Base-TX or 100Base-T
• Duplex Auto-Configuring for Speed

Cable

• Straight Through or Crossover CAT5, CAT5e or CAT6 Patch
• Supports VLAN Trunking

Led Indicators

Green – Poe Ports

• Constant: PoE Enabled
• Off: No PoE Requested

Green – Non Poe Ports

• Constant: Power OK
• Off: No Power

Yellow

• Constant: Ethernet OK
• Blink: Network Activity

Physical / Environmental

Dimensions (L × W × H)

• 110mm (131mm with Side Clips) × 100mm (Including Connectors) × 40mm

Mounting (Brackets Included)

• 5mm Mounting Holes on 122mm Centres

Weight

• 350g

Operating Temperature

• 10~50°C

Relative Humidity

• Up to 85%, Non-Condensing

Compliance

• CE
• FCC
• RoHS

Shipping Dimensions

• Length: 13.6 cm
• Width: 10.5 cm
• Height: 4.5 cm
• Weight: 0.65 kg
