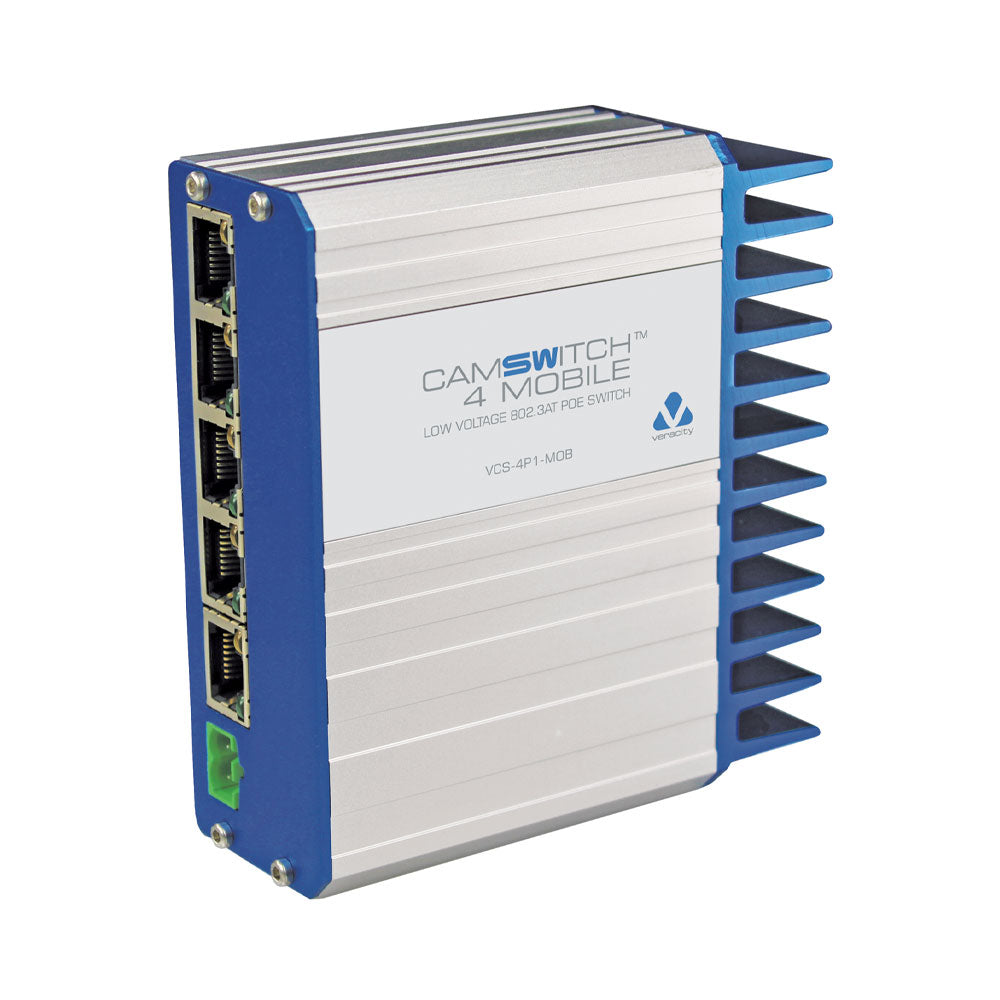

CAMSWITCH 4 MOBILE

Features

• CAMSWITCH Mobile is the ideal solution for installing IP cameras and other POE and network devices in transport, battery/solar powered, and other low-voltage applications
• It integrates a 5 or 10 port 10/100 Ethernet switch with the capability to convert a 8 to 40 volt DC supply into an 80 watt IEEE 802.3af/at compliant power source
• CAMSWITCH 4 Mobile features 4 802.3at POE ports, 1 non-POE port, and a versatile DC power input

Specifictations

• Network: 5/10 port unmanaged 10/100 switch
• Auto-configuring for speed (10BASE-T or 100BASE-TX) and duplexUse with Cat 5, Cat 5e or Cat 6 patch or crossover cables
• VCS-8P2-Mob supports VLAN trunking

Power

• Unit power 3W
• DC input: 8-40V DC, 2.5-13A
• Battery circuit fuse required
• POE outputs: IEEE802.3af / IEEE802.3at compatible
• Total device power budget up to 80 watts (see manual)
• Non-isolated POE, use with IEEE compliant devices only
• Dimensions: 110 x 100 x 40mm

Applications

• Transportation: 12 and 24 volt bus, train and car power supplies can all be converted to POE power
• Solar and battery power: CAMSWITCH Mobile is ideal for solar powered wireless systems and temporary installations

Shipping Dimensions

• Weight: 0.30 kg
