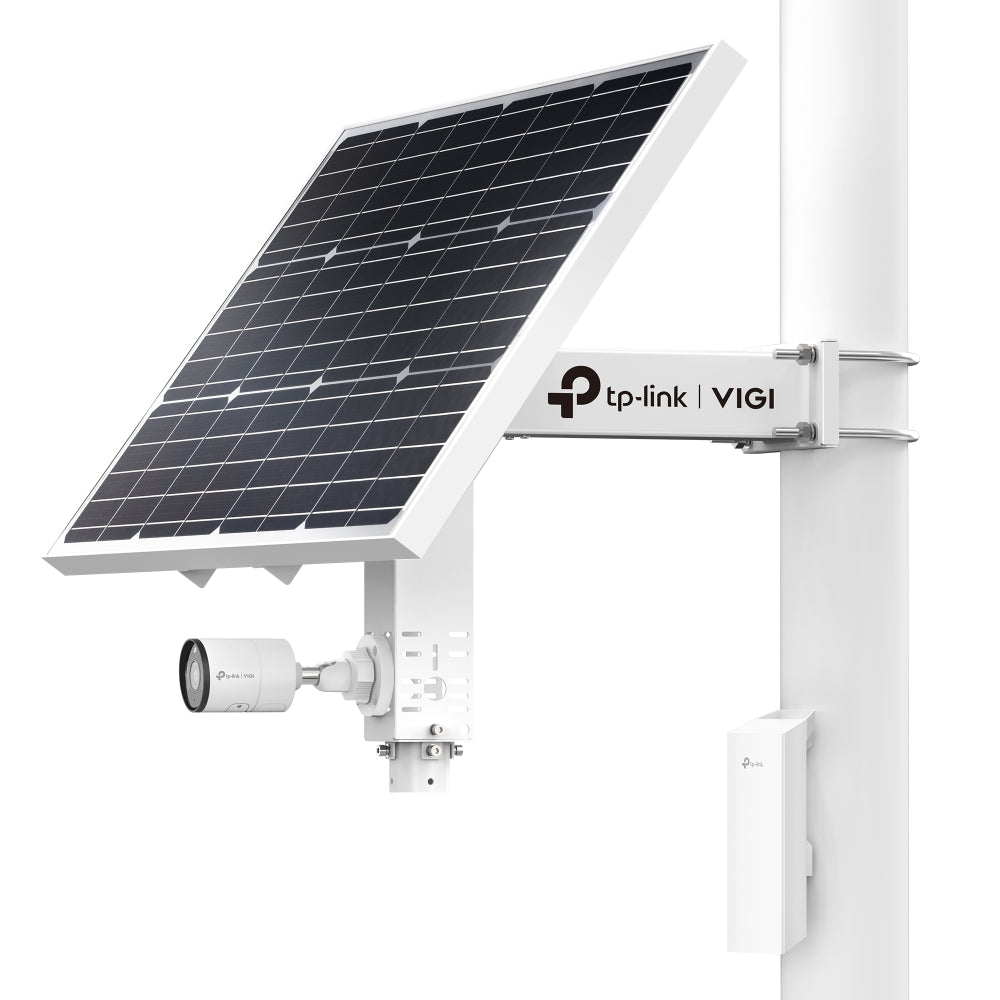

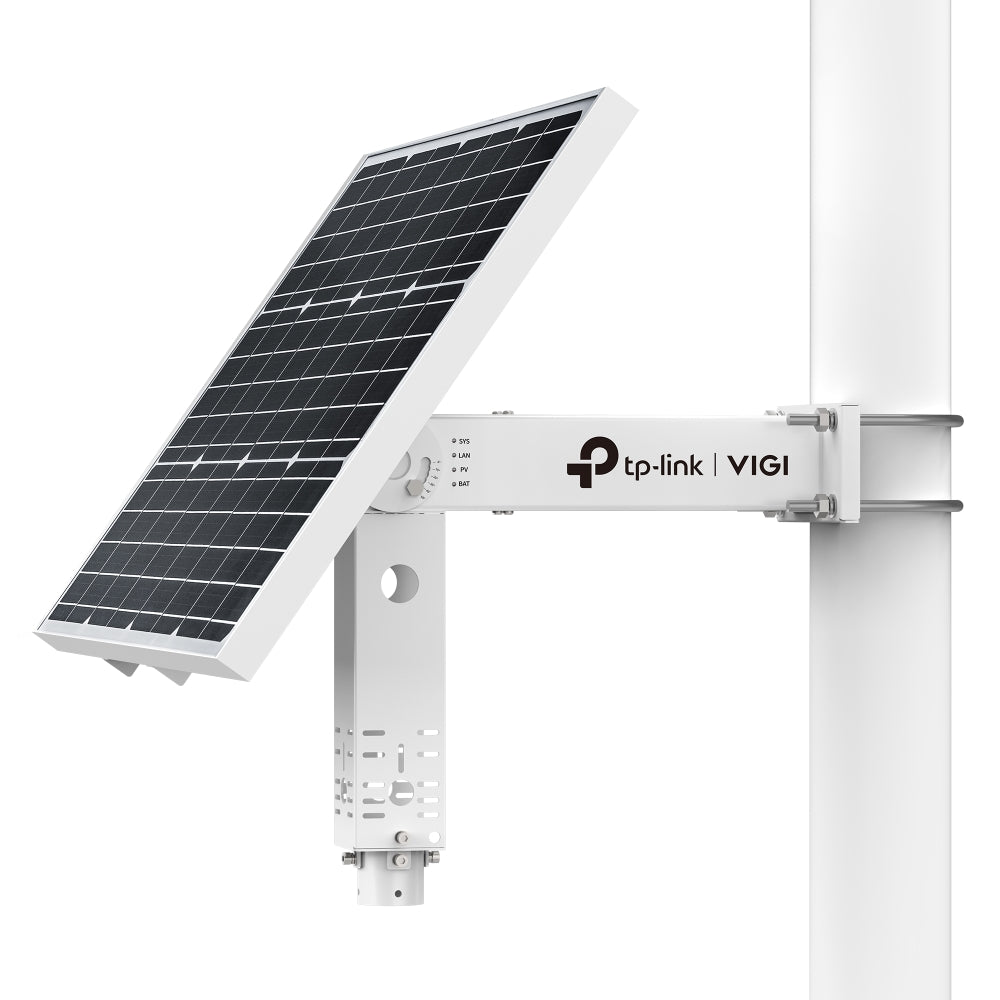

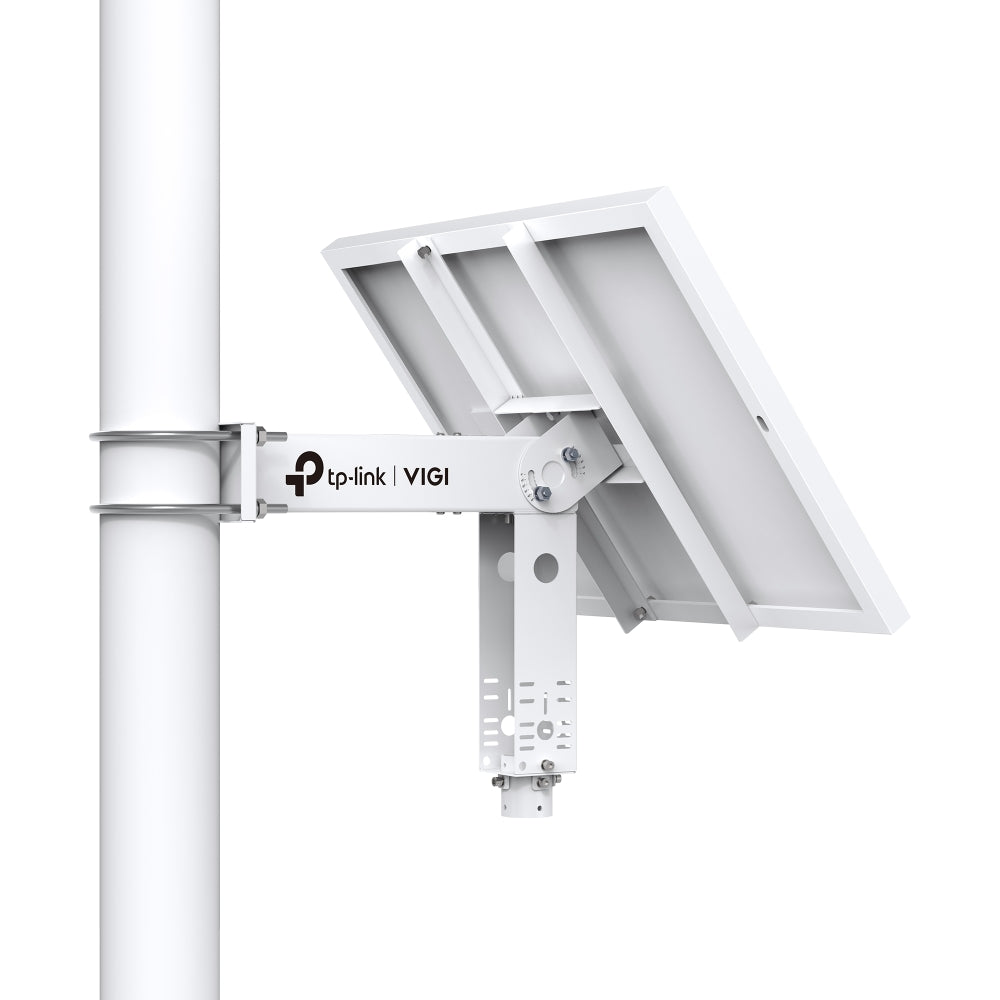

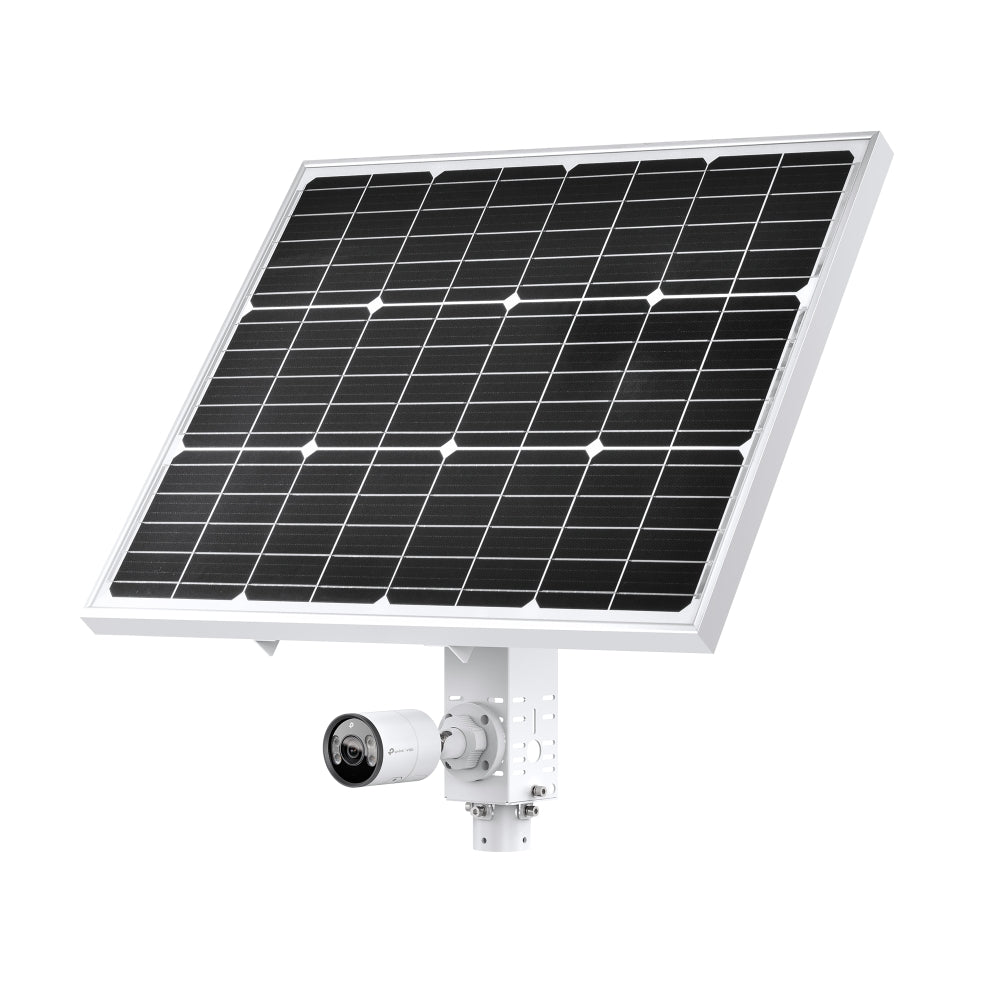

TP-Link VIGI SP6030 60W 31.2Ah Intelligent Solar Power Supply System
Off-Grid Power. Always-On Security.
Deploy surveillance and network infrastructure anywhere without relying on grid power. The VIGI SP6030 Intelligent Solar Power Supply System integrates a 60W high-efficiency solar panel, a 31.2Ah 10.8V lithium battery, and a rugged IP66 weatherproof design to deliver stable, continuous power in demanding outdoor environments. Built for remote sites, farms, construction areas and perimeter security, it eliminates complex cabling while reducing installation costs. With intelligent energy management, remote monitoring and automatic fault recovery, the system ensures reliable, uninterrupted operation wherever it is deployed.
Features
- 60W High-Efficiency Solar Panel - Grade-A monocrystalline design for optimal energy conversion
- 31.2Ah 10.8V Lithium Battery - Reliable energy storage with intelligent auxiliary heating technology
- IP66 Weatherproof Design - Durable protection against rain, dust, and harsh outdoor conditions
- 3× DC Output Ports - Power multiple devices simultaneously with stable voltage output
- Modular Design - Flexible installation with simplified maintenance and scalability
- Adjustable Mounting Angles - 5° / 15° / 25° / 35° / 45° / 55° positioning for optimal sunlight capture
- MPPT Charging Controller - Maximum Power Point Tracking for improved charging efficiency
- Intelligent Power Management - Remote monitoring, alerts and automatic fault recovery via app
- All-Weather Operation - Stable performance in extreme temperatures with smart protection systems
- True Off-Grid Deployment - No mains power required for remote surveillance and networking applications
Specifications
- Solar Power: 60W
- Solar Voltage: 18V
- Solar Dimensions: 690 × 516 × 30mm
- Battery Type: Lithium
- Battery Capacity: 31.2Ah
- Battery Voltage: 10.8V
- Battery Max. Output Voltage: 12.6V
- Intelligent Auxiliary Heating: Yes
- Battery Lifecycle: More than 500 Cycles
- Battery Dimensions: 242 × 70 × 65mm
- Adjustment Angles: 5° / 15° / 25° / 35° / 45° / 55°
- Network Interface: 1× 10/100Mbps RJ45
- Solar Connector: 1× Photovoltaic Panel Connector
- DC Outputs:
- #1, #2: 9~12.6V Dc 2A
- #3: 12V Dc 2A
- Power Outputs: 3× 5.5mm DC Plugs
- LED Indicators: 4× (SYS, LAN, PV, BAT)
- LED Colour: Blue
Software Features
- Load Control: Yes
- Real-Time Load Monitoring: Yes
- Power Consumption Statistics: Yes
- Battery Level Display: Yes
- Remote Management: Yes
- Remote Reboot: Yes
- Remote Reset: Yes
- Remote Message Push: Yes
- Firmware Remote Update: Yes
- Local LAN Management: Yes
- Account Management: Yes
- Schedule Saving: Yes
- Time Zone and Region Selection: Yes
- Smart Charging Control: -30~5°C
Protection Features
- High and Low Temperature Protection: Yes
- Over-Discharge Protection: Yes
Environment
- Operating Temperature: -30~60°C (With Intelligent Auxiliary Heating)
- Operating Humidity: 10~90% RH (Non-Condensing)
General
- Certification: CB, PSE (Battery), CE, FCC, VCCI, IC, IP66
- Compatible Pole Diameter: ø80~120mm
- Weight: 14kg
