TP-Link VIGI InSight S245 4MP Full-Colour Dome Network Camera - 4mm
Smarter Surveillance. Full Colour Clarity.
Capture every detail with vivid 4MP imaging and full-colour night vision, ensuring clear footage day and night without relying on infrared. The VIGI InSight S245 combines intelligent human and vehicle detection with advanced video analytics to minimise false alerts and improve monitoring accuracy. Built with an IP67 weatherproof and IK10 vandal-proof design, it delivers reliable performance in demanding outdoor environments. Efficient H.265+ compression reduces storage and bandwidth usage, while seamless remote access via the VIGI app keeps you connected and in control from anywhere.
Features
- 4MP Ultra HD Imaging - High-resolution video capture for clear and detailed surveillance
- Full-Colour Night Vision - Maintains vivid colour footage in low-light conditions without IR-only limitations
- Smart Human and Vehicle Detection - Accurate classification reduces false alarms and improves monitoring efficiency
- IK10 Vandal-Proof and IP67 Weatherproof - Built for harsh environments with strong impact and weather resistance
- H.265+ Video Compression - Reduces bandwidth and storage requirements while maintaining video quality
- Active Deterrence Support - Enhances security response with intelligent alert features
- Two-Way Audio - Built-in microphone and speaker for real-time communication
- Remote Monitoring via VIGI App - Real-time viewing, playback and management from anywhere

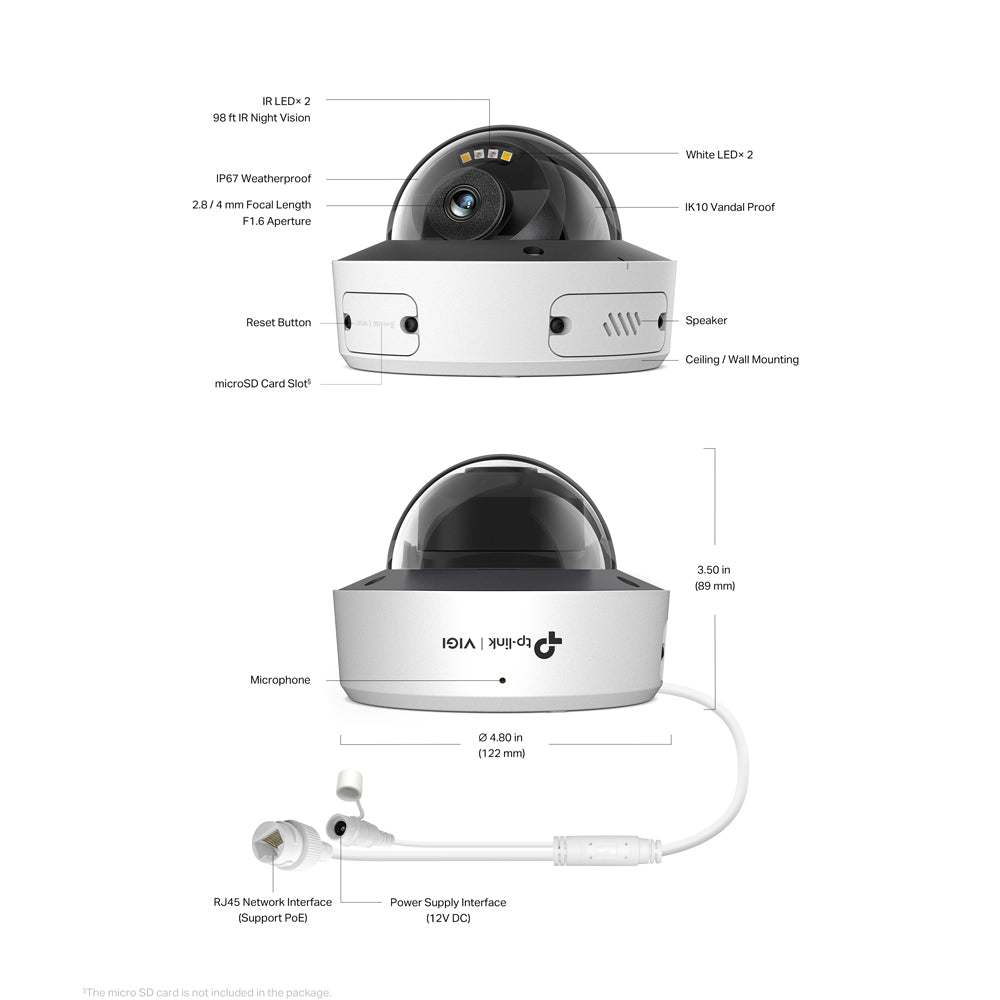

Specifications
- Sensor: 1/2.7" Progressive Scan CMOS
- Minimum Illumination: 0.005 Lux / 0 Lux with IR
- Lens Options: Fixed 4mm
- Aperture: F1.6
- Field of View: 88° (H) / 46° (V) / 105.4° (D)
- DORI: Detect 80m / Identify 8m
- Max Resolution: 2688 × 1520
- Frame Rate: up to 30fps
- Video Compression: H.265+ / H.265 / H.264+ / H.264
- Bit Rate:
- Main Stream: 256Kbps–6Mbps
- Sub Stream: 64Kbps–512Kbps
- Streams: 1× Main + 1× Sub
- IR LEDs: 2×
- White LEDs: 2×
- Night Vision Distance: up to 30m
- Modes: Auto / Scheduled / Always On / Off
- WDR: 120dB
- SNR: ≥52dB
- Enhancements: BLC, 3D DNR, HLC, SmartIR
- Image Adjustments: Brightness, Contrast, Saturation, Sharpness
- Privacy Mask: up to 4× Zones
- Human and Vehicle Classification
- Smart Detection:
- Line Crossing
- Intrusion
- Region Enter / Exit
- Loitering
- Object Removal / Abandonment
- Scene Change
- Abnormal Sound Detection
- Two-Way Audio: Yes
- Microphone: Built-in
- Speaker: Built-in
- Audio Compression: G.711
- Protocols: TCP/IP, HTTP(S), DHCP, RTSP, NTP, FTP, IPv4/IPv6
- ONVIF: Profile G / S / T
- Live View: up to 3× Main + 3× Sub Streams
- Management: VIGI App, Web UI, VMS, Cloud
- Port: 1× RJ45 (10/100Mbps, PoE)
- Storage: microSD (up to 512GB)
- Button: Reset
- DC Input: 12V ±5% (Max. 10.54W)
- PoE: 802.3af/at (Max. 12.52W)
- Protection: IP67 / IK10
- Material: Metal
- Operating Temperature: -30~60°C
- Humidity: ≤95% (Non-Condensing)
- Dimensions: 122 × 122 × 89mm
- Weight: 0.62kg
