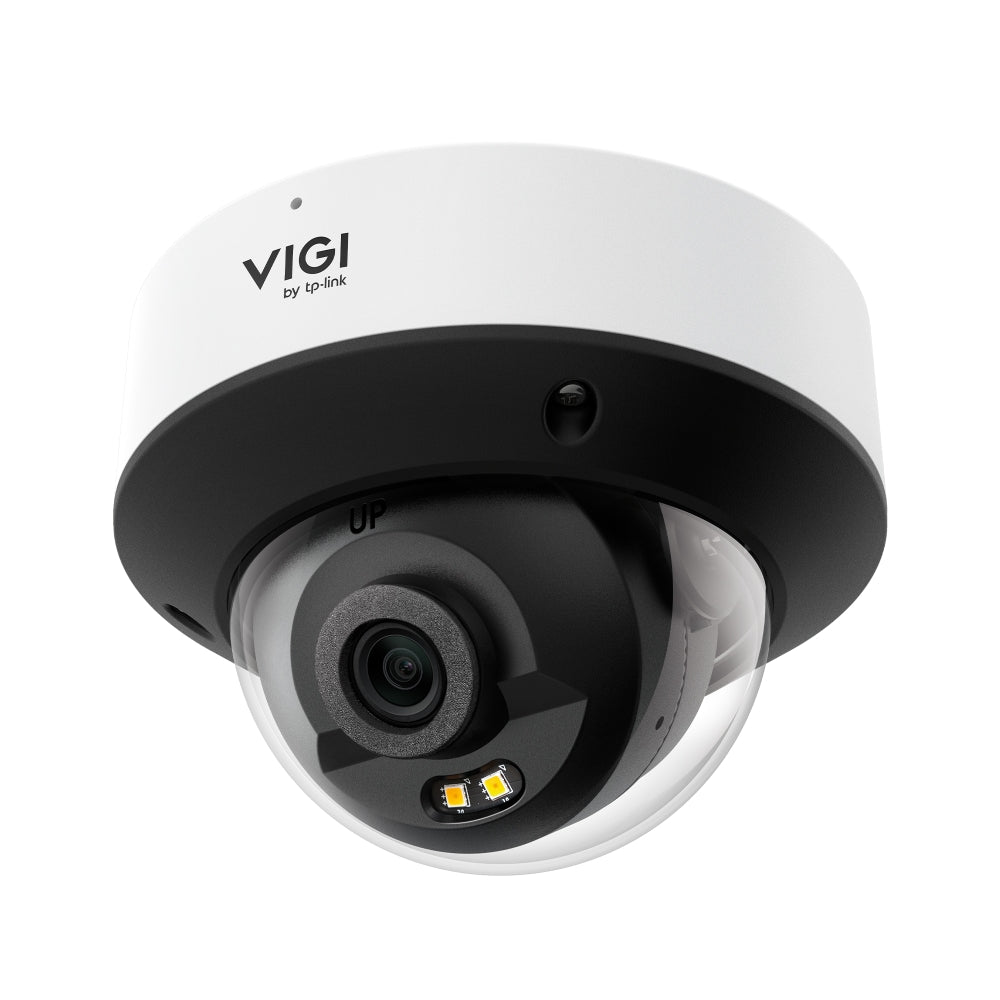

TP-Link VIGI InSight S225 2MP Full-Colour Dome Network Camera - 2.8mm
Sharper Vision. Stronger Protection.
Capture every detail with the VIGI InSight S225, delivering high-resolution 4MP clarity with advanced AI-powered detection for smarter, more accurate surveillance. Designed with IK10 vandal-proof and IP67 weatherproof protection, it stands up to harsh environments and tampering. Smart analytics including human and vehicle classification enhance security while reducing false alarms. With built-in two-way audio, it enables real-time communication on-site. Flexible storage, remote management, and seamless integration make it ideal for professional security deployments. Reliable, intelligent monitoring for any modern surveillance environment.
Features
- 2MP Full HD Video - 1920 × 1080 resolution for clear surveillance footage
- 2.8mm Wide-Angle Lens - Up to 98.8° field of view for broader coverage
- IK10 Vandal-Proof Design - Reinforced metal housing for anti-tampering protection
- IP67 Weatherproof Housing - Reliable operation in harsh outdoor environments
- LightPro Full-Colour Night Vision - Smart IR and white light switching for enhanced visibility
- IR Night Vision - Up to 30m infrared range for low-light monitoring
- Smart AI Detection - Human and vehicle classification reduces false alarms
- Advanced Smart Events - Line crossing, intrusion, region enter/exit detection
- Built-in Microphone - Captures on-site audio for enhanced monitoring
- H.265+ Compression and Remote Management - Efficient storage with VIGI app, VMS and cloud support
Specifications
- Sensor: 1/3" Progressive Scan CMOS
- Minimum Illumination: 0.005 Lux / 0 Lux with IR or White Light
- Lens Options: Fixed 2.8mm
- Aperture: F2.0
- Field of View: 98.8° (H) / 53.5° (V) / 117° (D)
- DORI (2.8mm): Detect 47m / Observe 19m / Recognise 9m / Identify 5m
- Max Resolution: 1920 × 1080
- Frame Rate: up to 30fps
- Video Compression: H.265+ / H.265 / H.264+ / H.264
- Bit Rate:
- Main Stream: 256Kbps~4Mbps
- Sub Stream: 64Kbps~512Kbps
- Streams: 1× Main + 1× Sub
- IR LEDs: 2×
- White LEDs: 2×
- Night Vision Distance: up to 30m
- Modes: Auto / Scheduled / Always On / Off
- WDR: DWDR
- SNR: ≥52dB
- Enhancements: BLC, 3D DNR, HLC, SmartIR
- Image Adjustments: Brightness, Contrast, Saturation, Sharpness, Exposure, White Balance
- Privacy Mask: up to 4× Zones
- ROI: 1× Region
- Human and Vehicle Classification
- Smart Detection:
- Line Crossing
- Intrusion
- Region Enter / Exit
- Built-in Microphone: Yes (Audio Input Only)
- Audio Compression: G.711
- Protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP, SSL/TLS
- ONVIF: Profile S / T
- Live View: up to 3× Main + 3× Sub Streams
- Management: VIGI App, Web UI, VMS, Cloud
- Port: 1× RJ45 (10/100Mbps, PoE)
- Storage: NVR / Network Storage (No On-Board Storage)
- DC Input: 12V ±5%
- PoE: 802.3af/at
- Protection: IP67 / IK10
- Material: Metal
- Operating Temperature: -30~60°C
- Humidity: ≤95% (Non-Condensing)

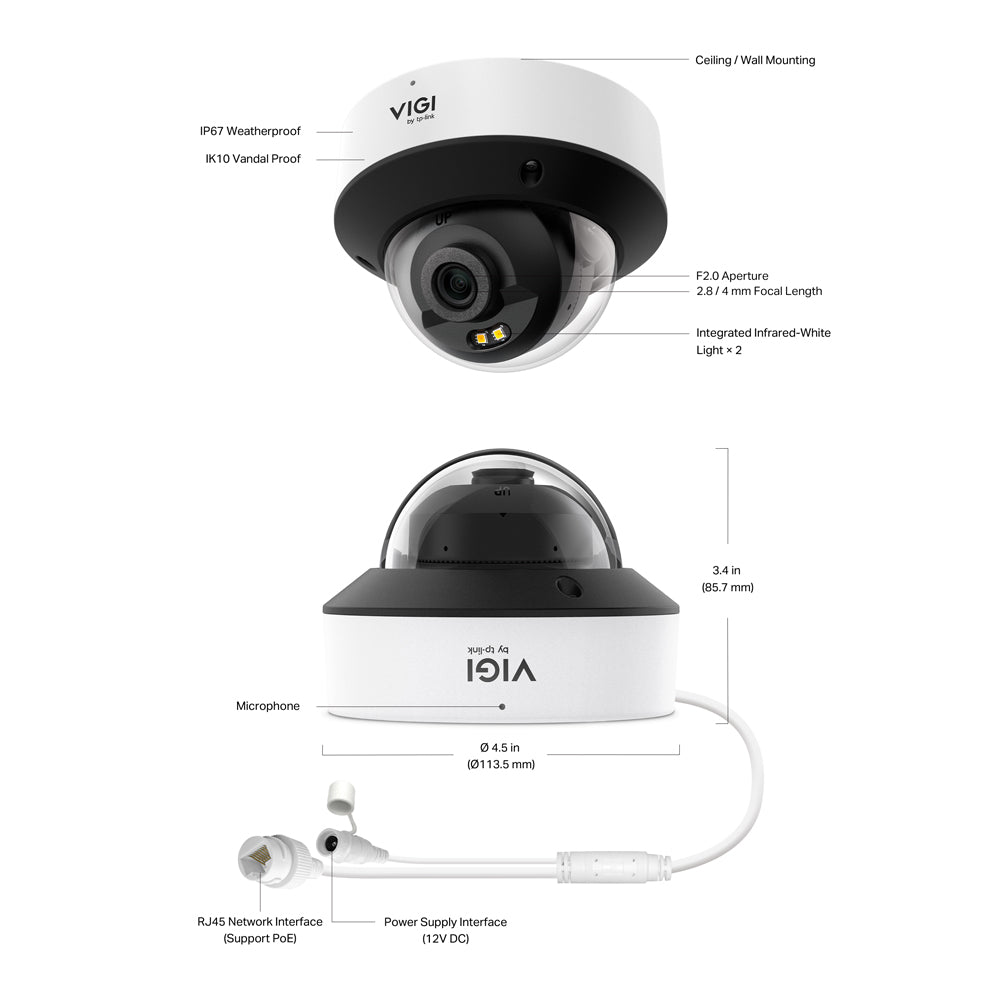

- Dimensions: ø113.5 × 85.7mm
- Weight: 0.5kg
