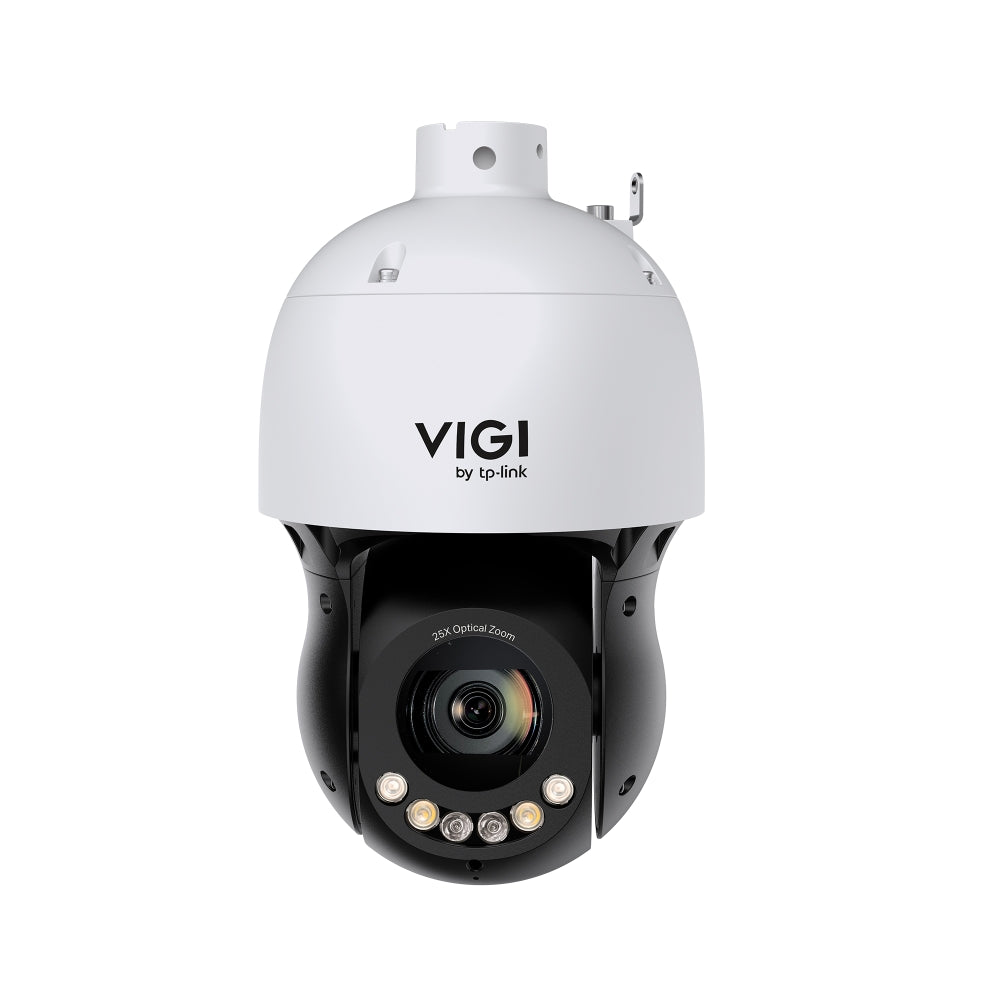

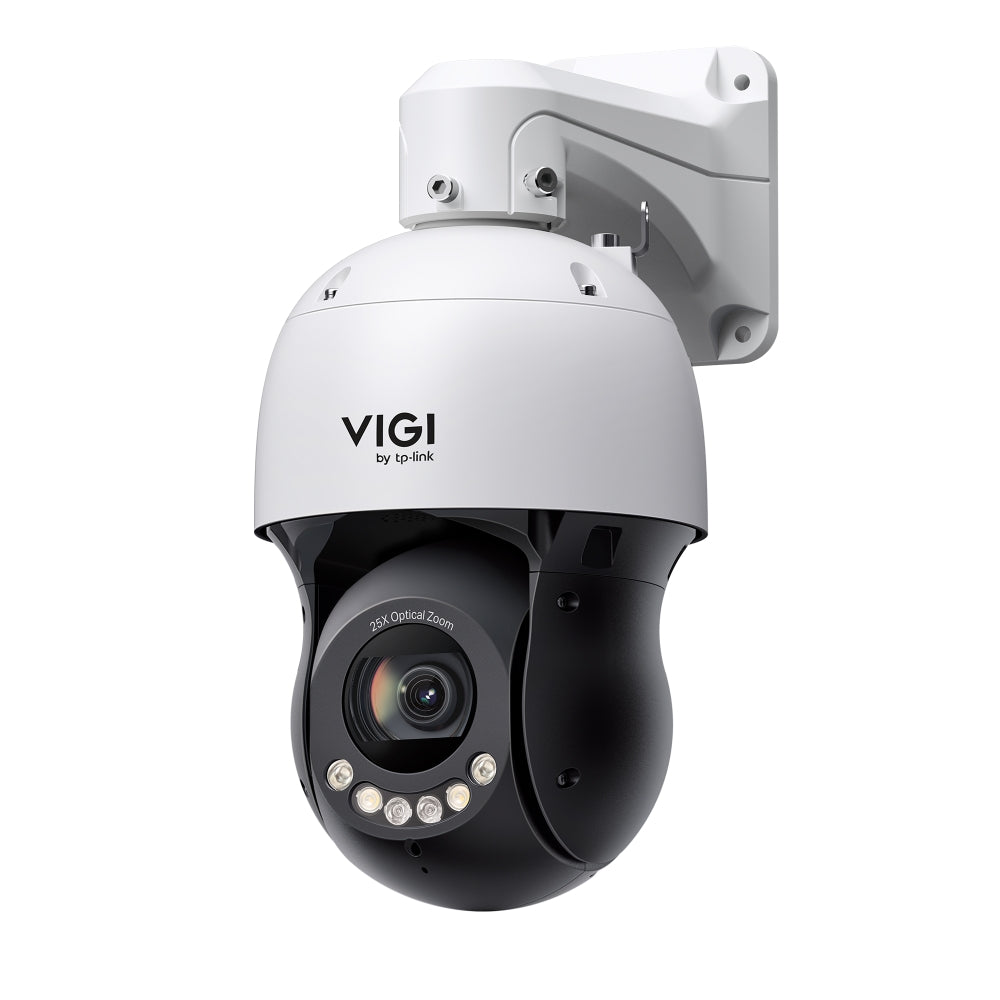

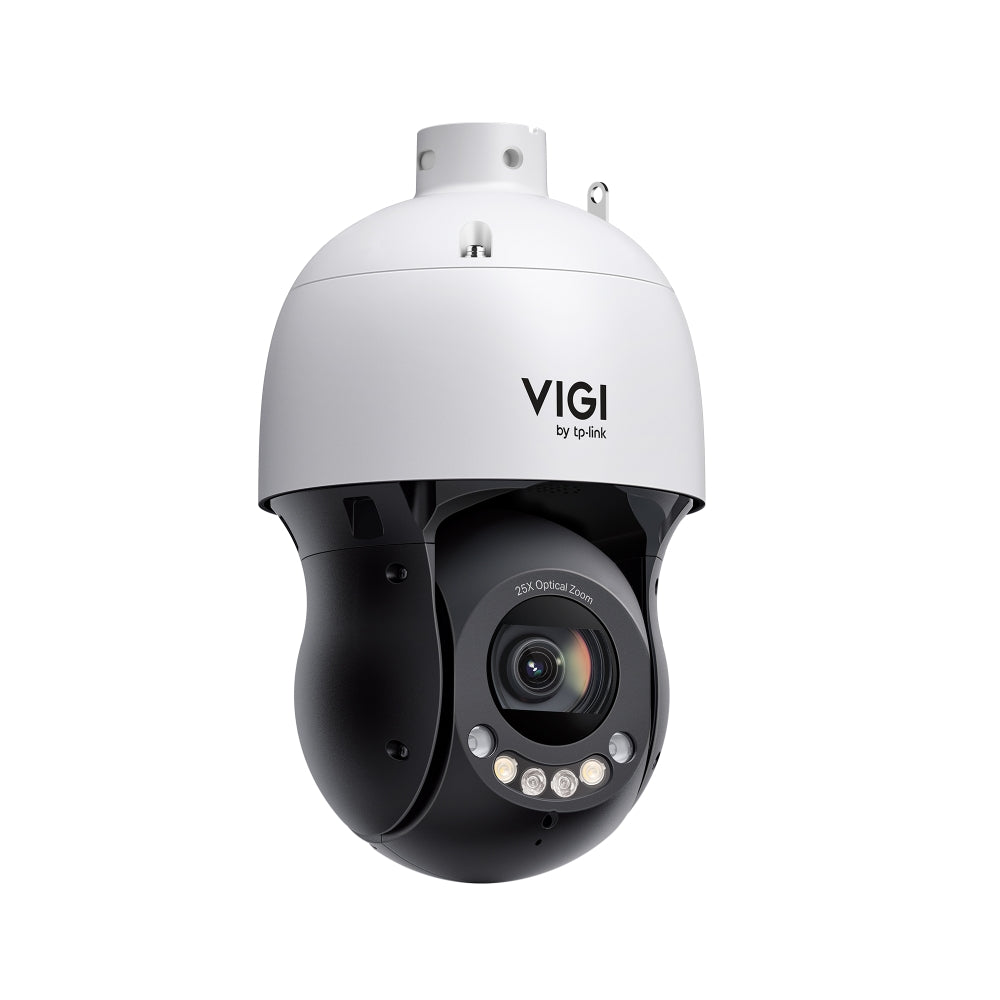

TP-Link VIGI InSight PTZ5425 4MP 25× Full-Colour PoE Speed Dome Camera with Varifocal Lens
Intelligent 360° Surveillance with Powerful Long-Range Detail.
The TP-Link VIGI InSight PTZ5425 combines wide-area surveillance with powerful long-range monitoring for demanding outdoor security environments. Its 4MP sensor captures detailed video at up to 2688 × 1520, while the motorised 5.2~130mm varifocal lens provides 25× optical and 16× digital zoom for clear close-ups at a distance. Intelligent auto tracking follows detected people, vehicles or security events, supported by advanced analytics for faster identification and investigation. Full-colour illumination reaches up to 50m, while infrared night vision extends up to 100m. Red and blue warning lights, a siren and two-way audio provide active deterrence, while PoE support simplifies installation. A metal IP66 and IK08-rated enclosure ensures reliable outdoor operation.
Features
- 4MP High-Resolution Video - Captures detailed footage at up to 2688 × 1520
- 25× Optical Zoom - Provides clear long-range monitoring without sacrificing image detail
- 16× Digital Zoom - Enables additional enlargement for closer examination
- 360° PTZ Coverage - Monitors wide areas with continuous pan and flexible tilt movement
- Intelligent Auto Tracking - Tracks detected people, vehicles and security events automatically
- People and Vehicle Analytics - Supports attribute-based filtering for faster post-event searches
- Smart Detection - Includes intrusion, line-crossing, loitering, region entering and region exiting detection
- Long-Range Night Vision - Provides infrared illumination up to 100m
- Full-Colour Monitoring - White light illumination captures colour detail at distances up to 50m
- Active Deterrence - Uses red and blue flashing lights with an integrated siren to warn intruders
- Two-Way Audio - Built-in microphone and speaker enable remote communication
- Smart Video Enhancement - Includes 120dB WDR, Smart IR, 3D DNR, EIS and Digital Defog
- H.265+ Compression - Reduces storage and bandwidth requirements while maintaining image quality
- PoE Connectivity - Transmits power and data through one compatible network cable
- Durable Outdoor Construction - IP66 weatherproof, IK08 vandal-resistant and protected against 6kV lightning surges
Specifications
Camera
- Image Sensor: 1/2.9" Progressive Scan CMOS
- Maximum Resolution: 2688 × 1520
- Maximum Frame Rate: 30fps
- Shutter Speed: 1/3~1/30000s
- Minimum Illumination: 0.005 Lux, 0 Lux with IR or White Light
- Day and Night Mechanism: IR Cut Filter
- Wide Dynamic Range: 120dB
- Signal-to-Noise Ratio: ≥52dB
- Image Enhancement: BLC, 3D DNR, HLC and Smart IR
- Image Stabilisation: Electronic Image Stabilisation
- Defog: Digital Defog
- Privacy Masks: Up to 4
- Regions of Interest: 8
Lens
- Lens Type: Motorised Varifocal Lens
- Focal Length: 5.2~130mm
- Maximum Aperture: F1.6
- Optical Zoom: 25×
- Digital Zoom: 16×
- Horizontal Field of View: 2.30°~57.06°
- Vertical Field of View: 1.31°~32.74°
- Diagonal Field of View: 2.63°~65.01°
Ptz
- Pan Range: 0°~360°
- Tilt Range: -20°~90° with Auto Flip
- Configurable Pan Speed: 0°~160°/s
- Preset Pan Speed: 240°/s
- Configurable Tilt Speed: 0°~120°/s
- Preset Tilt Speed: 200°/s
- Presets: 300
- Patrol Scans: 8, with Up to 8 Presets per Patrol
- Pattern Scans: 16
- PTZ Protocols: Pelco-D, Pelco-P and Self-Adaptive
Illumination
- Infrared LEDs: 2
- Integrated Infrared and White LEDs: 2
- Infrared Distance: Up to 100m
- White Light Distance: Up to 50m
- Illumination Control: Automatic, Scheduled, Always On or Always Off
Smart Detection
- Classification: Human and Vehicle
- Smart Tracking: Human, Vehicle and Event-Triggered Auto Tracking
- Smart Events: Intrusion, Line-Crossing, Region Entering, Region Exiting, Loitering, Human, Vehicle, Abnormal Sound and Scene Change Detection
- Basic Events: Motion Detection, Camera Tampering and Illegal Login Detection
- People and Vehicle Analytics: Supported with Specified VIGI Software
- Active Defence: Red and Blue Warning Lights with Sound Alarm
Video And Audio
- Main Stream Compression: H.265+, H.265, H.264+ and H.264
- Sub-Stream Compression: H.265 and H.264
- Third Stream Compression: H.265, H.264 and MJPEG
- Bit Rate Control: CBR and VBR
- Audio Communication: Two-Way Audio
- Microphone: Built-In, Up to 5m Recording Radius
- Speaker: Built-In
- Audio Interfaces: 1× Input and 1× Output
- Environment Noise Filtering: Supported

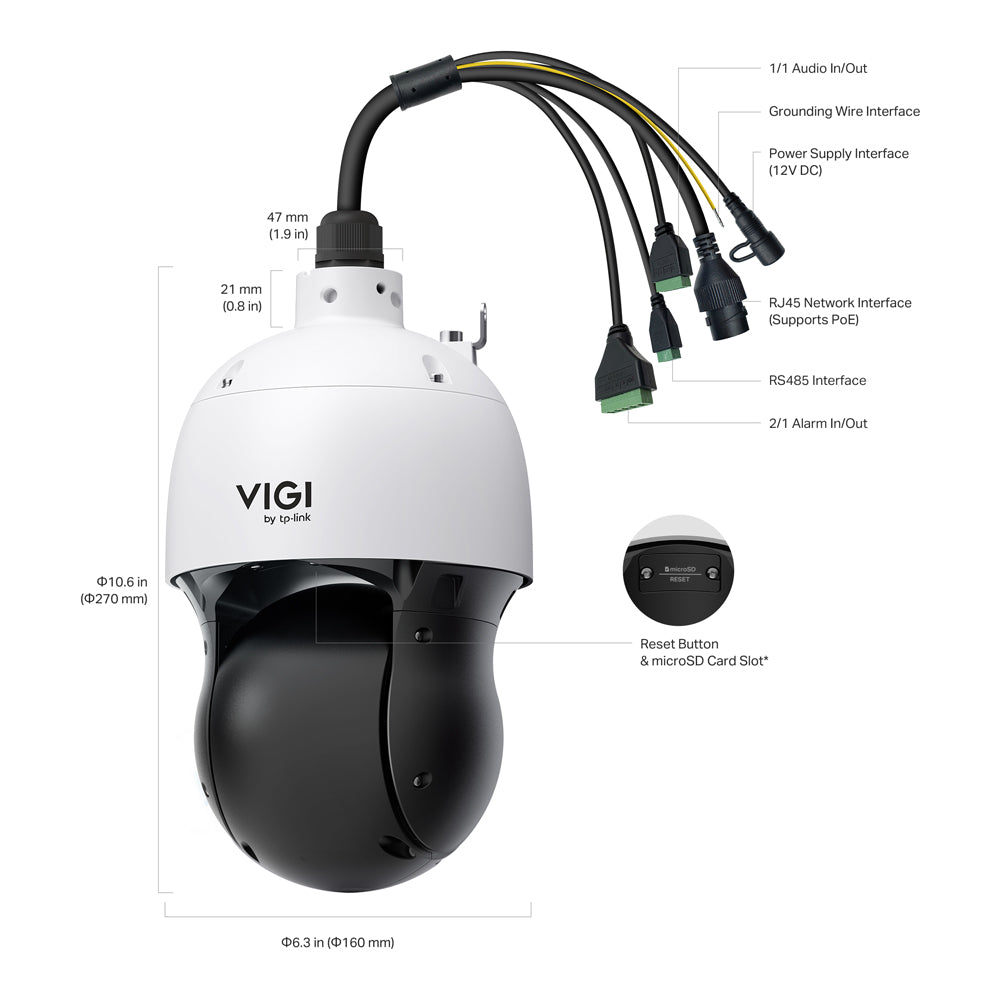

Network And Storage
- Network Interface: 1× RJ45 10/100Mbps Self-Adaptive Ethernet Port
- Power over Ethernet: Supported
- ONVIF: Profiles G, S and T
- Management: VIGI App, Web Interface and VIGI Cloud VMS
- Memory Card Slot: Built-In microSD Slot
- Maximum microSD Capacity: 512GB
- Alarm Interfaces: 2× Inputs and 1× Output
- RS-485 Interface: Yes
- Reset Button: Yes
Power And Environment
- DC Power: 12V DC ±5%, Maximum 21.6W
- PoE Standard: IEEE 802.3at, Class 4
- Maximum PoE Power: 24.7W
- Weather Protection: IP66
- Vandal Resistance: IK08
- Lightning Protection: 6kV
- Operating Temperature: -30~65°C
- Storage Temperature: -40~65°C
- Operating Humidity: ≤95% RH, Non-Condensing
- Housing Material: Metal

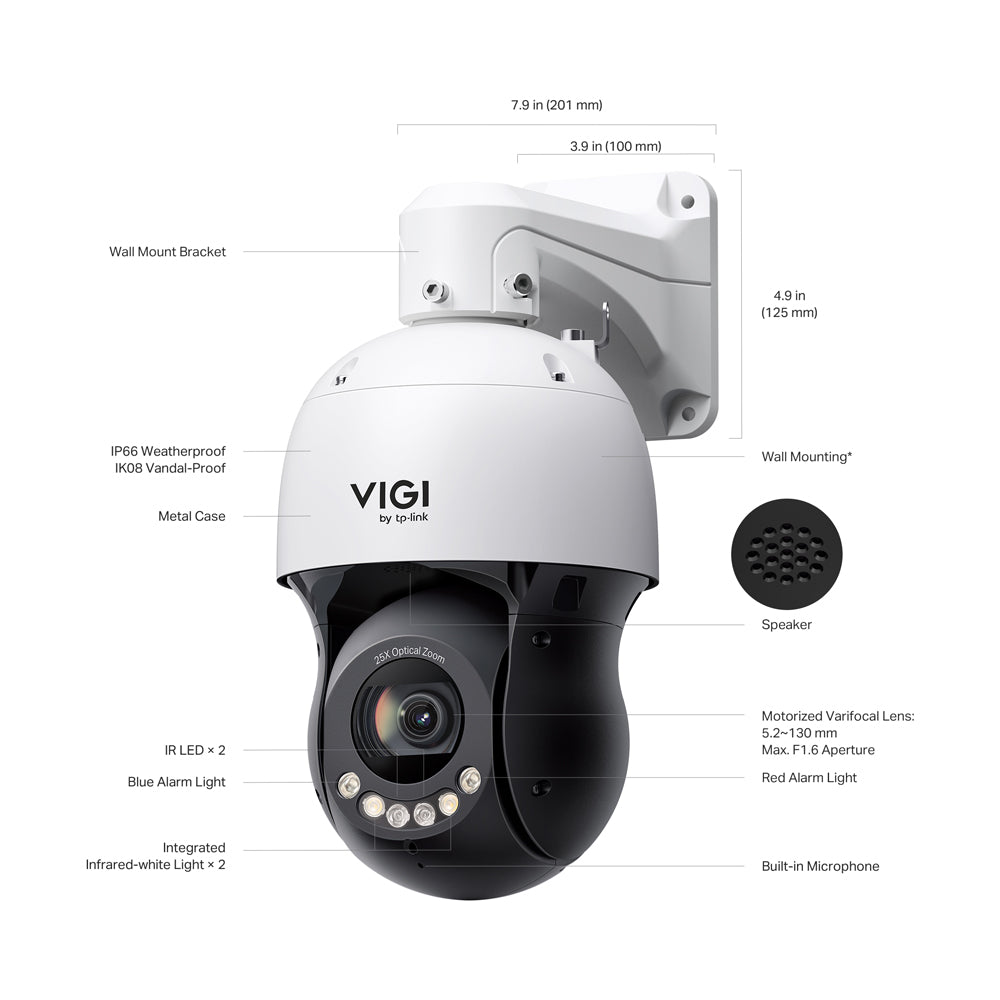

Physical
- Mounting Type: Wall Mount

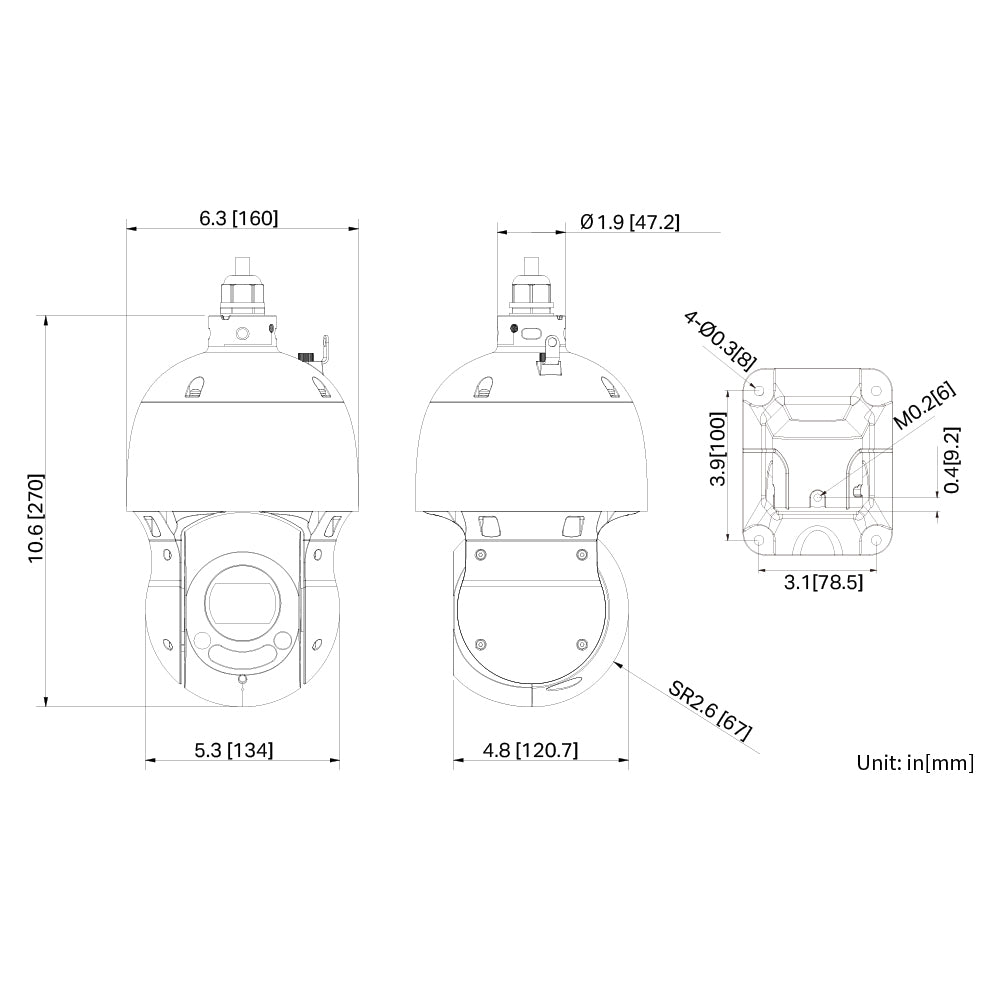

- Dimensions: Ø160 × 270mm
- Net Weight: 2.8kg
- Certifications: CE, NTRA, VCCI, KC, BSMI, FCC, IP66, IK08 and ONVIF
