TP-Link VIGI NVR2008H-8MP 8-Channel PoE+ Network Video Recorder
Powerful Recording. Smarter Surveillance.
Secure and manage your surveillance with confidence using the VIGI NVR2008H-8MP. Designed for high-resolution monitoring, it supports up to 8MP recording with smooth playback and reliable storage for professional security environments. With intelligent video management, remote access and seamless integration with VIGI cameras, it delivers efficient, centralised control for homes, businesses and enterprise deployments. Built for performance and simplicity, it ensures your footage is always accessible, protected and easy to manage.
Features
- 8MP Video Recording - Supports ultra-high-definition surveillance for clear, detailed footage
- 8-Channel Input - Connect and manage up to 8× IP cameras simultaneously
- PoE+ Ports with 93W Budget - Power and connect cameras directly via Ethernet
- H.265+ Compression - Reduces bandwidth and storage requirements without compromising quality
- HDMI and VGA Output - Dual video outputs with up to 4K display support
- Remote Monitoring - Access live view and playback via VIGI app, web UI or VMS
- Smart Playback - Quickly locate events with intelligent timeline navigation
- ONVIF Compatibility - Works with a wide range of IP cameras
- SATA Storage Support - Supports large-capacity HDD for extended recording
Specifications
- Video Input: 8× IP Channels
- Incoming Bandwidth: 80Mbps
- Outgoing Bandwidth: 60Mbps
- HDMI Output: up to 4K (3840 × 2160)
- VGA Output: up to 1080p (1920 × 1080)
- Video Output Mode: HDMI / VGA Simultaneous
- Multi-View Display: 1 / 4 / 6 / 8
- Video Compression: H.265+ / H.265 / H.264+ / H.264
- Audio Compression: G.711 A / G.711 U / G.726
- Recording Resolution: up to 8MP
- Playback: 8-Channel Synchronous
- Decoding Capability:
- 2× 8MP / 4× 4MP / 8× 2MP (25fps)
- 4× 5MP / 4× 3MP (30fps)
- Recording Modes: Manual / Schedule / Motion Detection
- Playback Modes: Instant / Regular / Tag / Event
- Backup: Regular / Video Clip
- Playback Functions:
- Play / Pause / Stop
- Fast Forward / Backward
- Frame-by-Frame
- Digital Zoom
- Clip / Export
- Lock Recording
- Network Protocols: TCP/IP, DHCP, NTP, UPnP
- Remote Access: Android / iOS
- Web Browser Support: Chrome / Firefox / Edge
- ONVIF: Yes

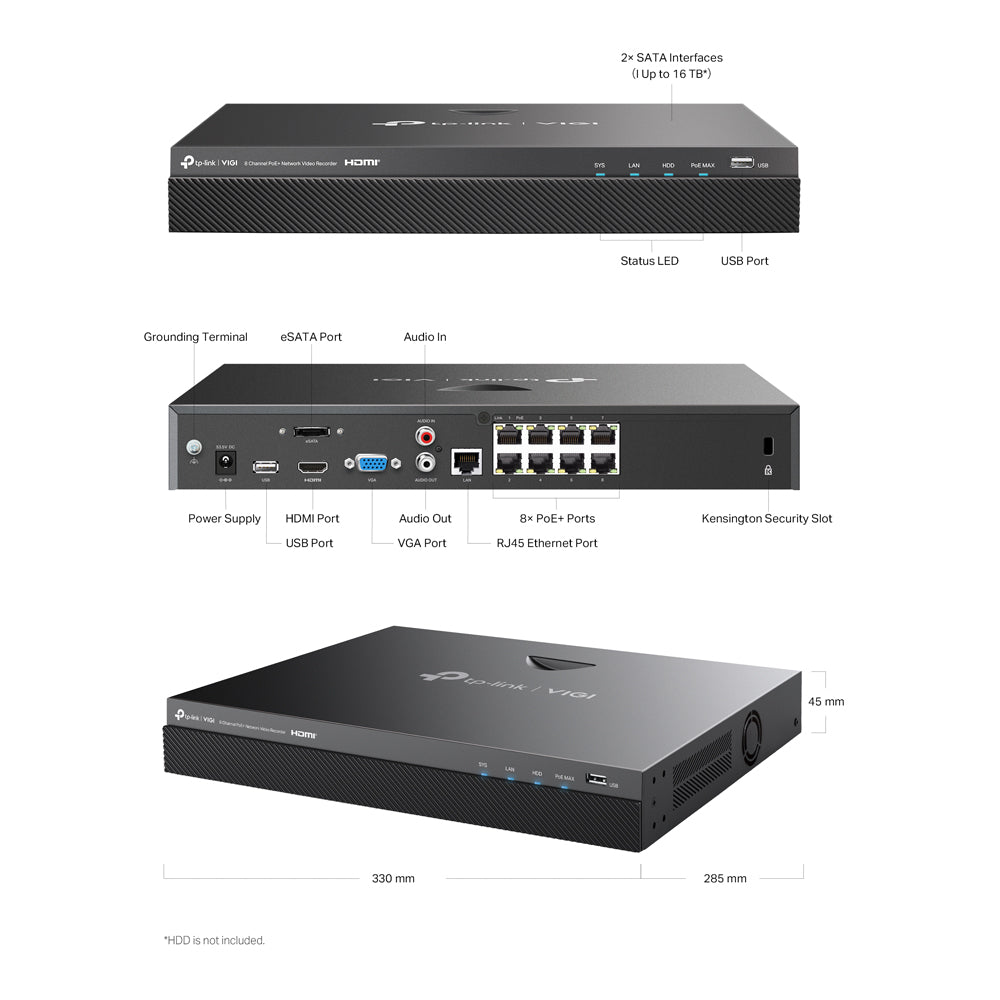

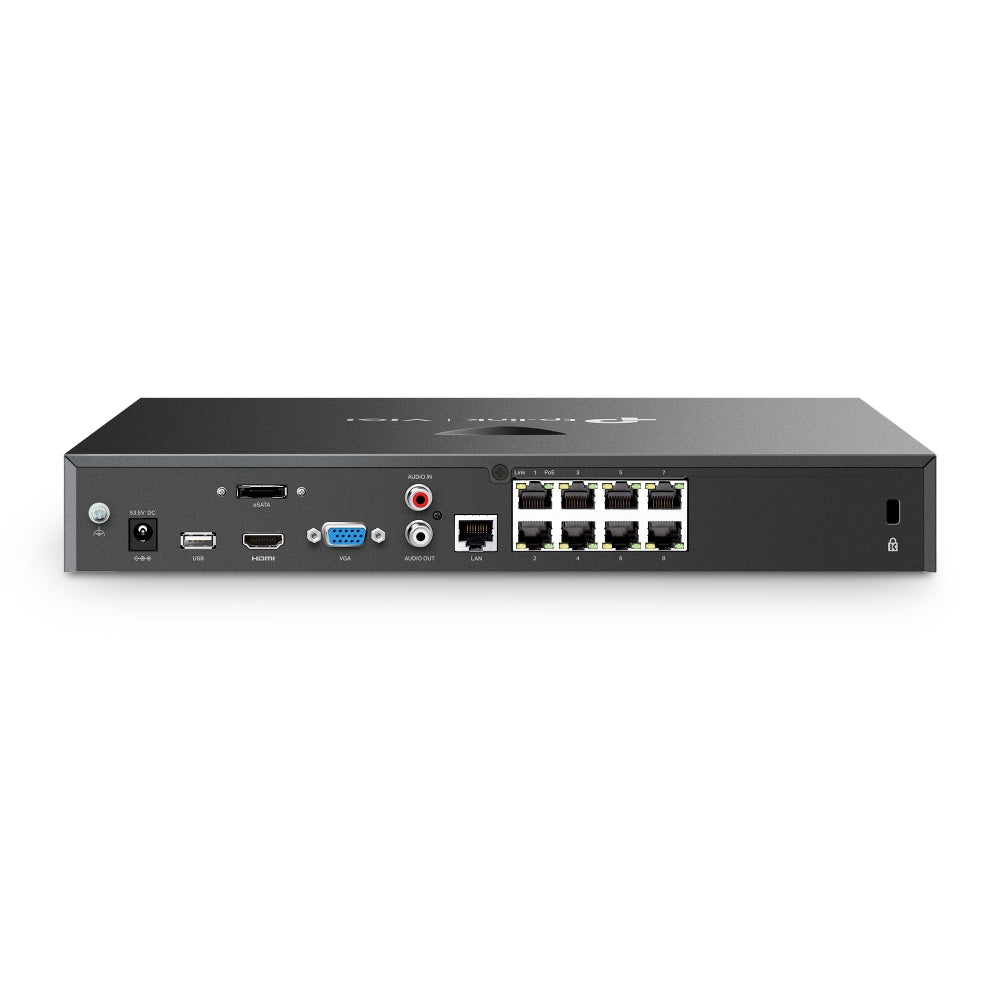

- Network Interface: 1× RJ45 (10/100Mbps)
- USB: 2× USB2.0 (Front + Rear)
- Audio: 1× In, 1× Out
- HDMI: 1×
- VGA: 1×
- eSATA: 1×
- HDD Interface: 2× SATA
- Capacity: up to 16TB per HDD
- PoE Standard: 802.3af/at
- PoE Ports: 8× RJ45
- PoE Budget: 93W (Max. 30W per Port)
- Smart Events:
- Motion Detection
- Line Crossing / Intrusion
- Region Enter / Exit
- Object Abandon / Removal
- Vehicle / Human Detection
- Alarm Events:
- Video Loss / Offline
- IP Conflict
- Disk Exception
- Login Exception
- Alarm Actions: Recording / Notification / Buzzer / Log
- Operating Temperature: 0~40°C
- Storage Temperature: -40~70°C
- Operating Humidity: 10~90% RH (Non-Condensing)
- Dimensions: 330 × 285 × 45mm
- Net Weight: 2.1kg
- Power Supply: 53.5VDC 2.43A
- Max Power Consumption:
- 4.9W (Without HDD)
- 35W (With HDD)
- Certifications: CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI
