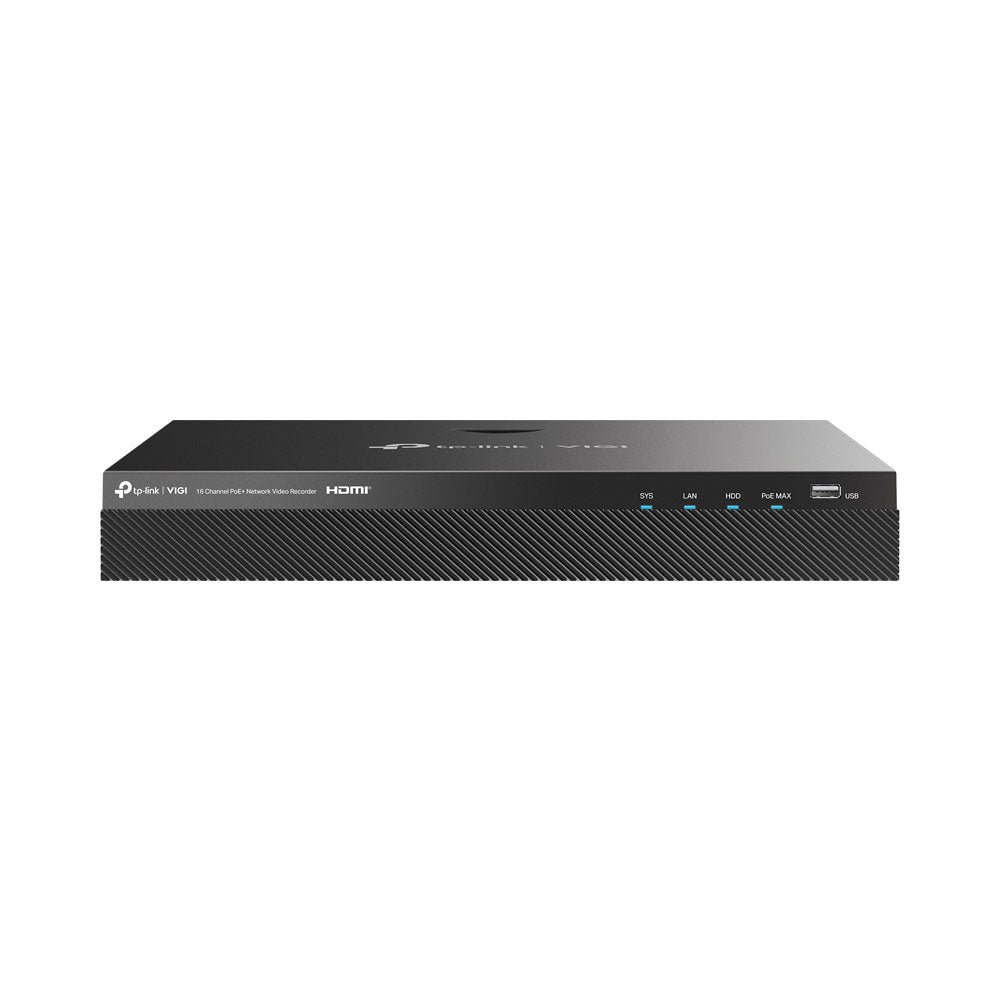

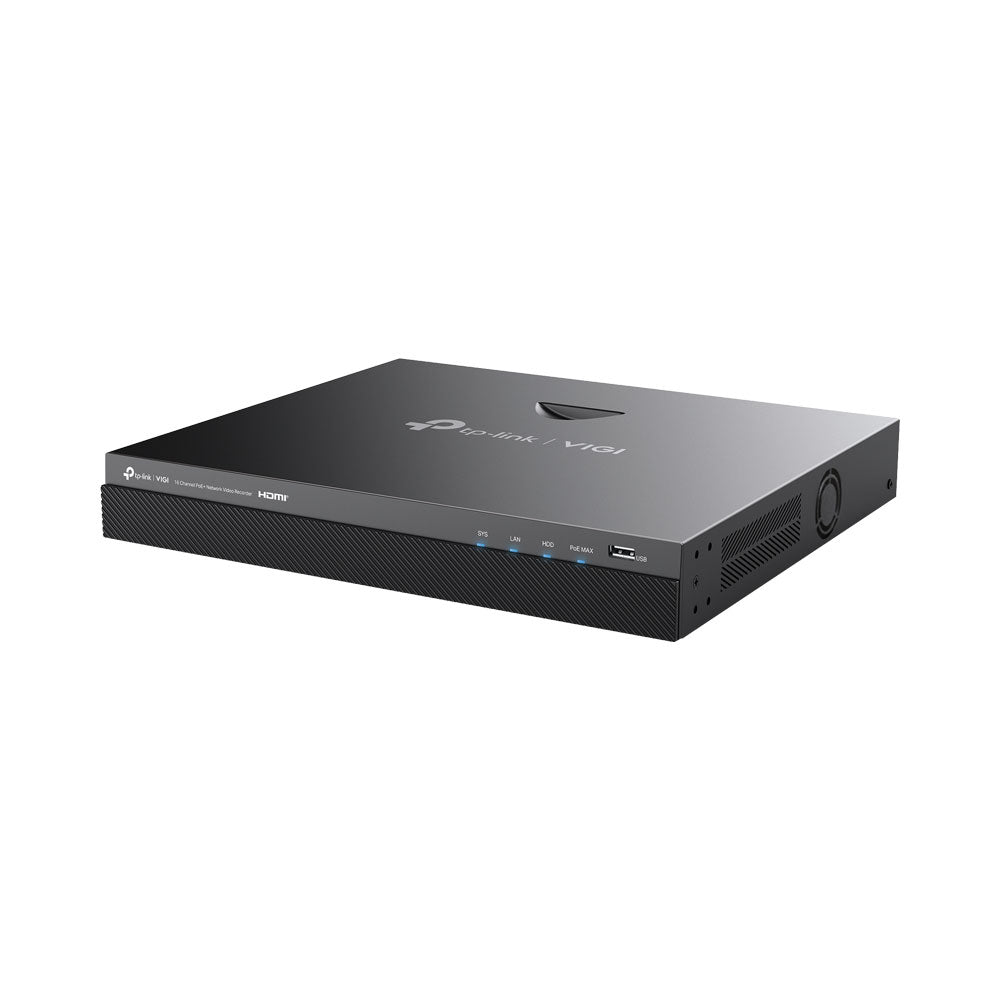

TP-Link VIGI NVR2016H-16P 6-Channel PoE+ Network Video Recorder (90W PoE Budget)
Sharp image definition up to 8MP (4K) ensures you capture every detail. 8-ch@2MP decoding capacity allows you to enjoy more-channels live view and playback at the same time.
Features
- 4K HDMI Video Output and 16MP Decoding Capacity - Sharp image definition up to 8MP and 8-Channel @2MP decoding capacity allows you to enjoy more channels live view and playback at the same time
- 90W PoE Budget - 16× 802.3af/at-compliant PoE+ ports with a total power supply of 90W
- 16-Channel Simultaneous Playback - Replay the feed from up to 16× cameras at the same time, increase replay speed and find events in the video schedule to easily review footage
- H.265+ - Compresses the video size without sacrificing video quality, easing the network load and saving disk space
- ONVIF Ensures Compatibility - Easily add IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibility
- Auto Initialise for Quick Configuration - Just click "Auto Initialize" to set up basic IPC and hard disk parameters, significantly reducing your configuration time
- 24/7 Continuous Recording - Stores up to 20TB of footage (1,048 storage days) from connected cameras to secure your data for quick, convenient access
- Two-Way Audio - With voice intercom support, scare off any potential thieves or intruders from wherever you are
- Remote Monitoring - The dedicated VIGI App and client enable remote monitoring, providing ease and convenience
Specifications
Video And Audio
- IP Video Input: 16-Channel
- Incoming Bandwidth: 80Mbps
- Outgoing Bandwidth: 60Mbps
- HDMI Output Resolution: 1-Channel, Resolution: 3840 × 2160 @30Hz, 1920 × 1080 @60Hz, 1680 × 1050 @60Hz, 1440 × 900 @60Hz, 1280 × 1024 @60Hz, 1280 × 720 @60Hz
- VGA Output Resolution: 1-Channel, Resolution: 1920 × 1080 @60Hz, 1680 × 1050 @60Hz, 1440 × 900 @60Hz, 1280 × 1024 @60Hz, 1280 × 720 @60Hz
- Video Output Mode: HDMI/VGA Simultaneous Output
- Multi-View Display: 1/4/6/8/9/16
Decoding
- Audio Compression: G.711A/G.711U/G.726
- Video Compression: H.265+/H.265/ H.264+/H.264
- Record Resolution: 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
- Synchronous Playback: 16-Channel
- Capability: 25fps:
- 2-CH @8MP, 4-CH @4MP, 8-CH @2MP
- 30fps:
- 4-CH @3MP, 2-CH @5MP
Record Management
- Record Mode: Manual Recording, Scheduling Recording, Motion Detection Recording
- Playback Mode: Instant Playback, Regular Playback, Tag Playback, Event Playback
- Backup Mode: Regular Backup, Video Clip Backup
- Playback Function: Play, Pause, Stop, Fast Forward, Fast Backward, Play By Frame, Full
- Screen, Video Clip, Export Clip, Digital Zoom, Lock Recording, Audio On/Off
Network
- Protocol: UPnP (Plug and Play), NTP (Network Timing)
- Mobile Phone Access: Android, iOS
- Web Browser: Chrome (57+), Firefox (52+), Edge (91+)
- Interoperability: ONVIF, CGI

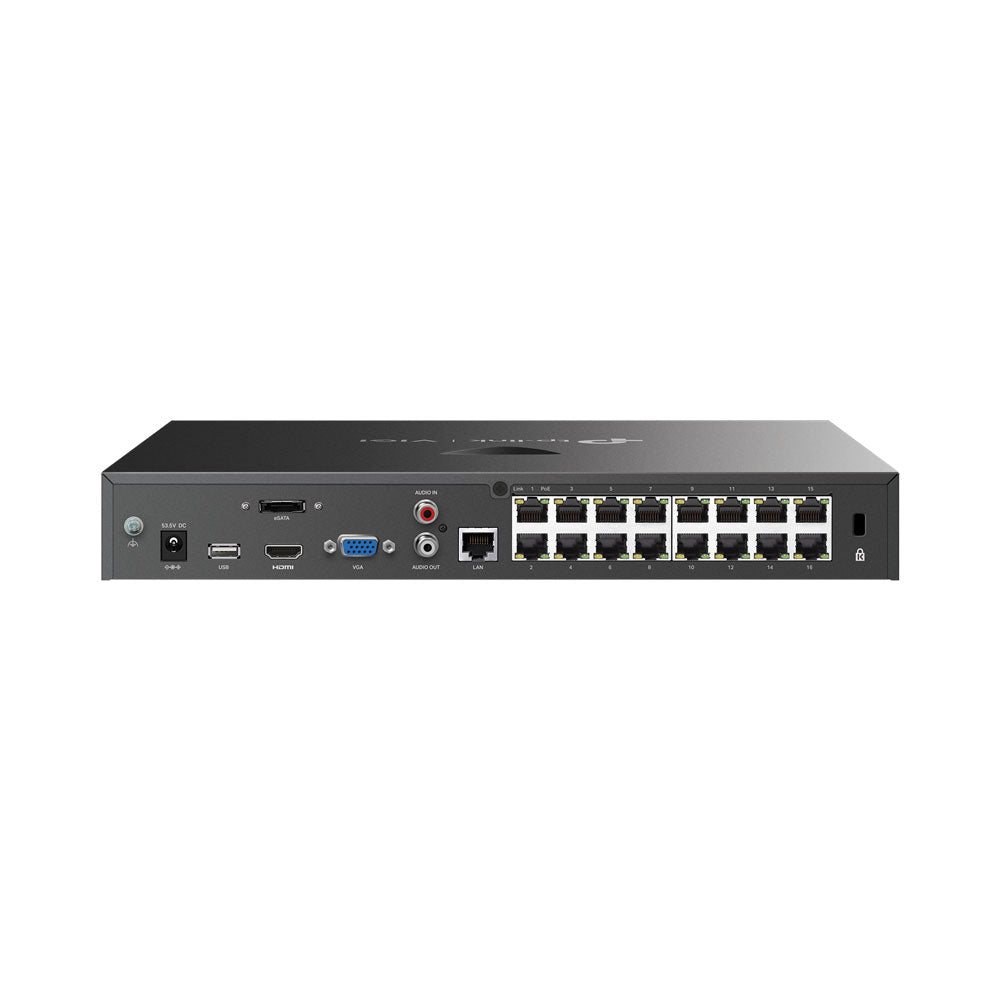

External Interface
- Network Interface: 1× RJ45 10/100/1000Mbps Self-Adaptive Ethernet Interface
- USB Interface: 1× Front USB2.0 Port, 1× Rear USB2.0 Port
- Audio Interface: 1× Audio In; 1× Audio Out
- Alarm In/Out: N/A
- Serial Interface: N/A
- Power: 1× DC Jack
- Reset Button: 1×
- Speaker: N/A
- eSATA: 1×
- HDMI: 1×
- VGA: 1×
Hard Disk
- SATA: 2× SATA Interfaces
- Capacity: Up to 10TB Capacity for Each HDD
- POE Standard: 802.3at/af Compliant
- Interface: 16× RJ45 10/100Mbps Self-Adaptive Ethernet Interface PoE Budget: 90W Available for All PoE+ Ports, 30W Max. per Port
Alarm
- General Alarm: Motion Detection, Video Tampering, Line-Crossing Detection, Intrusion Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned/Removal Detection, Vehicle Detection, Human Detection, Smart Frame
- Anomaly Alarm: Video Loss, Offline and IP Conflict, Disk Exception, Login Exception, Fan Exception
- Alarm Linkage: Recording, White Light Alarm, Buzzer, Log, Audible Alarm
General
- Storage Temperature: -40~70°C
- Storage Humidity: 10%~90% RH Non-Condensing
- Working Temperature: NVR: -10~55°C
- Power Adapter: 0~40°C
- Working Humidity: 10%~90% RH Non-Condensing
- Dimensions (W × D × H): 330 × 285 × 45mm
- Net Weight: 1.9kg
- Gross Weight: 3.2kg
- Power Supply: 53.5V DC 2.43A
- Power Consumption: 6.2W (Without Disk)
- 40W (With Disk)
- Certifications: CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI
