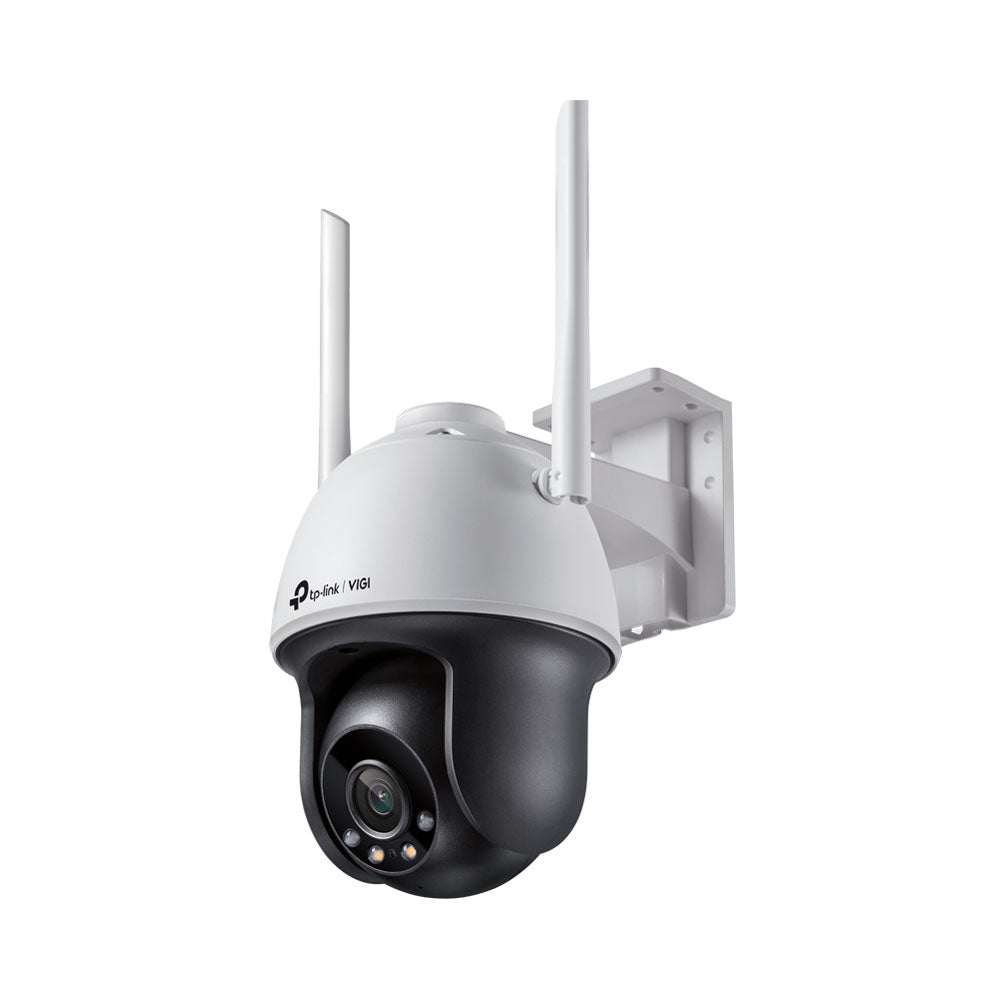

TP-Link VIGI C540-W 4MP Outdoor Full-Colour Wi-Fi Pan Tilt Network Camera
Monitor 24-hour clear and colorful details even in pitch dark night. VIGI Full-Color camera provides maximum 4MP resolutions and ensures colorful monitoring with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights.
Features
- 4MP High Definition: The camera comes with 4MP - more than enough pixels to pick up some of the more discrete details
- 24h Full-Colour: Obtain 24-hour colour details, even in pitch-black conditions, via a high-sensitivity sensor and included spotlight LEDs
- Powerful Pan Tilt: Customised patrol routes and auto tracking provide more intelligent options to monitor key areas and improve security within your property
- Waterproof: Reliable IP66 for stable outdoor performance
- Smart Detection (human detection, motion detection, area intrusion, line-crossing, video tampering): Receive notifications and check feeds when someone crosses a boundary, enters an area you've set or obstructs the camera
- H.265+: Without using any extra bandwidth, your camera transmits compressed crystal-clear video to save disk space, ease network loads and reduce monitoring costs without sacrificing image quality
- VIGI App: Manage your security from the palm of your hand with the VIGI app
Specifications
Camera
- Image Sensor: 1/3" Progressive Scan CMOS
- Lens: Fixed focal lens (4 mm)
- Aperture: 4mm: F1.6
- Lens Mount: M12
- Viewing Angle: (4mm) Horizontal FOV: 79° Vertical FOV: 43° Diagonal FOV: 93°
- Digital Zoom: Yes
- Day/Night Mechanism: IR Cut Filter
- IR Working Distance: 30m
- Illumination Distance: 30m
- Minimum Illumination: 0 lux with IR/white Light
- Pan/Tilt Range: Pan: 0° to 350°, Tilt: 0° to 120°
- Weatherproof Rating: IP66
- Digital Noise Reduction: 3D DNR, WDRDWDR
Network
- Security: Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
- Protocol: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
- Wireless Rate: 11 Mbps (802.11b), 54 Mbps (802.11g), 150 Mbps (802.11n)
- Frequency: 2.4GHz
- Wireless Security: WPA/WPA2-PSK
- API: ONVIF
- Simultaneous Live View: 3 Main Streams & 3 Sub-Streams
- Operating Temperature: -30 - 60 °C
- Certifications: CE, RCM, BSMI, VCCI, RoHS, NCC, JRF, KC
- Dimensions (H x W x D): 120 x 172 x 198 mm
- Material: Plastic
- General Features: Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening
- Power Requirements: 12V DC ± 5%, 5.5mm Coaxial Power Plug
- Power Supply: 12V DC ± 5%, 5.5mm Coaxial Power Plug
- Power Consumption: 12V DC: Max 15.5W
Video/Image
- Video Compression: Main stream: H.265+/H.265/H.264+/H.264
- Sub-Stream: H.265/H.264
- Frame Rate & Resolutions: Main Stream
- Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
- Resolution: 2560x1440, 2304x1296, 2048x1280, 1920x1080
- Sub-Stream Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
- Resolution: 640x480, 352x288, 320x240
- Video Streaming: Main Stream, Sub-Stream
- Image Settings: Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software
- Image Enhancement: BLC/3D DNR/Prevent Overexposure to Infrared Light
- Video Bit Rate: Main Stream: 256 Kbps to 4 Mbps
- Sub-Stream: 64 Kbps to 512 Kbps
Smart Feature-Set
- Smart Event: Area Intrusion Detection, Line-Crossing Detection, Human Detection
- Basic Event: Motion Detection, Camera Tampering Detection, Exception (illegal login)
- Linkage Method: Trigger Notification: ONVIF, HTTPS
- Region of Interest: 1 Region
Interfaces
- Network Interface: 1 RJ45 10/100M Self-Adaptive Ethernet Port
- Audio Input: Built-in Microphone
- Audio Output: Built-in Speaker
- Button: Reset Button
- Slot: Micro SD card
- On-board Storage: Built-In Memory Card Slot, Support MicroSD Card, Up to 256 GB
