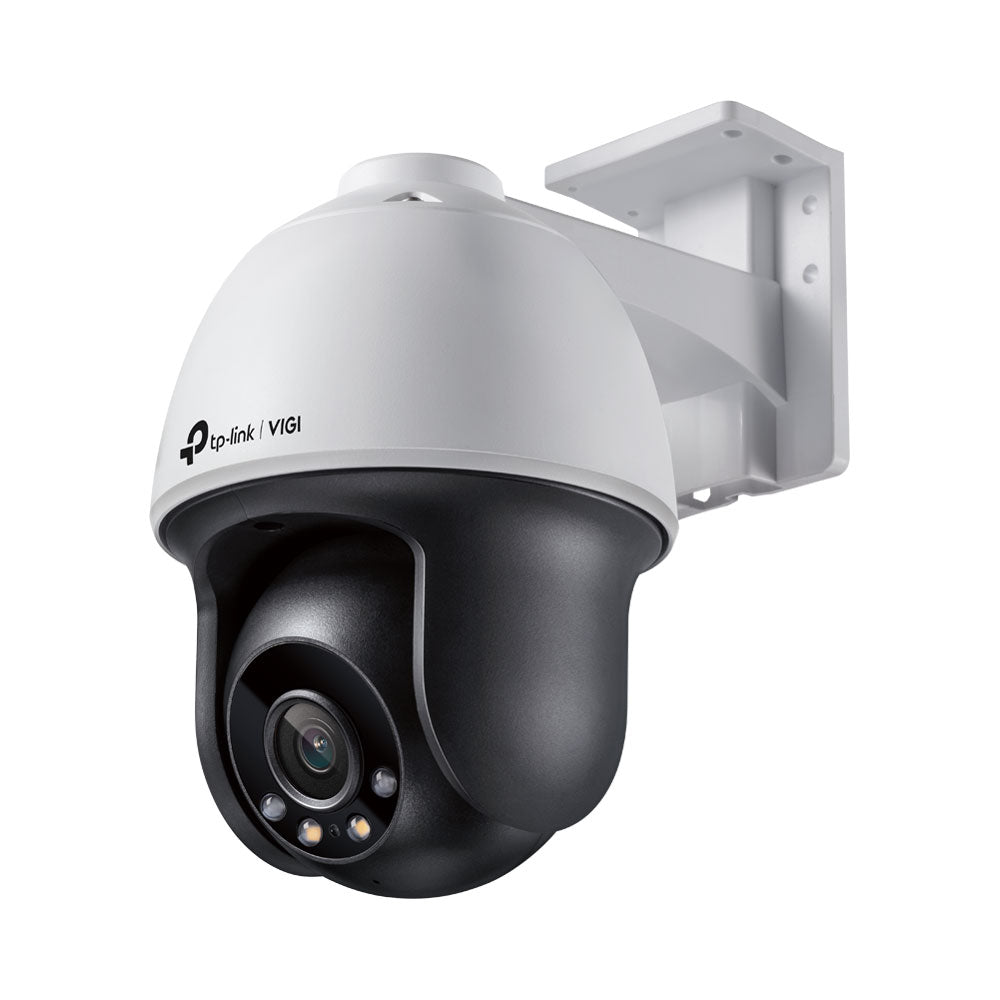

TP-Link VIGI C540 4MP Outdoor Full-Colour Pan Tilt Network Camera
Features
- 4MP High Definition: The camera comes with 4MP - more than enough pixels to pick up some of the more discrete details
- 24h Full-Colour: Obtain 24-hour colour details, even in pitch-black conditions, via a high-sensitivity sensor and included spotlight LEDs
- Powerful Pan Tilt: Customised patrol routes and auto tracking provide more intelligent options to monitor key areas and improve security within your property
- Waterproof: Reliable IP66 for stable outdoor performance
- Smart Detection (human detection, motion detection, area intrusion, line-crossing, video tampering): Receive notifications and check feeds when someone crosses a boundary, enters an area you've set or obstructs the camera
- H.265+: Without using any extra bandwidth, your camera transmits compressed crystal-clear video to save disk space, ease network loads and reduce monitoring costs without sacrificing image quality
- PoE/12V DC: Two power supply ways not only give you more convenience but also make your wiring remarkably easy
- VIGI App: Manage your security from the palm of your hand with the VIGI app
Specifications
Camera
- Image Sensor: 1/3" Progressive Scan CMOS
- Lens: Fixed focal lens (4 mm)
- Aperture: 4mm: F1.6
- Lens Mount: M12
- Viewing Angle:(4mm) Horizontal FOV: 79°, Vertical FOV: 43°, Diagonal FOV: 93°
- Digital Zoom: Yes
- Day/Night Mechanism: IR Cut Filter
- IR Working Distance: 30m
- Illumination Distance: 30m
- Minimum Illumination: 0 lux with IR/white Light
- Pan/Tilt Range: Pan: 0° to 350°, Tilt: 0° to 120°
- Weatherproof Rating: IP66
- Digital Noise Reduction: 3D DNR, WDRDWDR
Network
- Security: Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
- Protocol:TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
- API: ONVIF
- Simultaneous Live View: 3 Main Streams & 3 Sub-Streams
- Operating Temperature: -30 - 60 °C
- Dimensions: (H x W x D) 120 x 172 x 198mm
- Material: Plastic
- Weight: 195g
- General Features: Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening
- Power Requirements: 12V DC ± 5%, 5.5mm Coaxial Power Plug, PoE (802.3af/at, class 0)
- Power Supply: 12V DC ± 5%, 5.5mm Coaxial Power Plug, PoE (802.3af/at, class 4)
- Power Consumption: 12V DC: Max 14W, PoE: Class 4
Video/Image
- Video Compression: Main stream: H.265+/H.265/H.264+//H.264
- Sub-Stream: H.265/H.264
- Frame Rate & Resolutions: Main Stream
- Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
- Resolution: 2560x1440, 2304x1296, 2048x1280, 1920x1080
- Sub-Stream: Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
- Resolution: 640x480, 352x288, 320x240
- Video Streaming: Main Stream
- Sub-Stream: Image Settings: Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software
- Image Enhancement: BLC/3D DNR/Prevent Overexposure to Infrared Light
- Video Bit Rate: Main Stream: 256 Kbps to 4 Mbps
- Sub-Stream: 64 Kbps to 512 Kbps
Smart Feature-Set
- Smart Event: Area Intrusion Detection, Line-Crossing Detection, Human Detection
- Basic Event: Motion Detection, Camera Tampering Detection, Exception (illegal login)
- Linkage Method: Trigger Notification: ONVIF, HTTPS
- Region of Interest: 1 Region
Interfaces
- Network Interface: 1 RJ45 10/100M Self-Adaptive Ethernet Port
- Audio Input: Built-in Microphone
- Audio Output: Built-in Speaker
- Button: Reset Button
- Slot: Micro SD card
- On-board Storage: Built-In Memory Card Slot, Support MicroSD Card, Up to 256 GB
