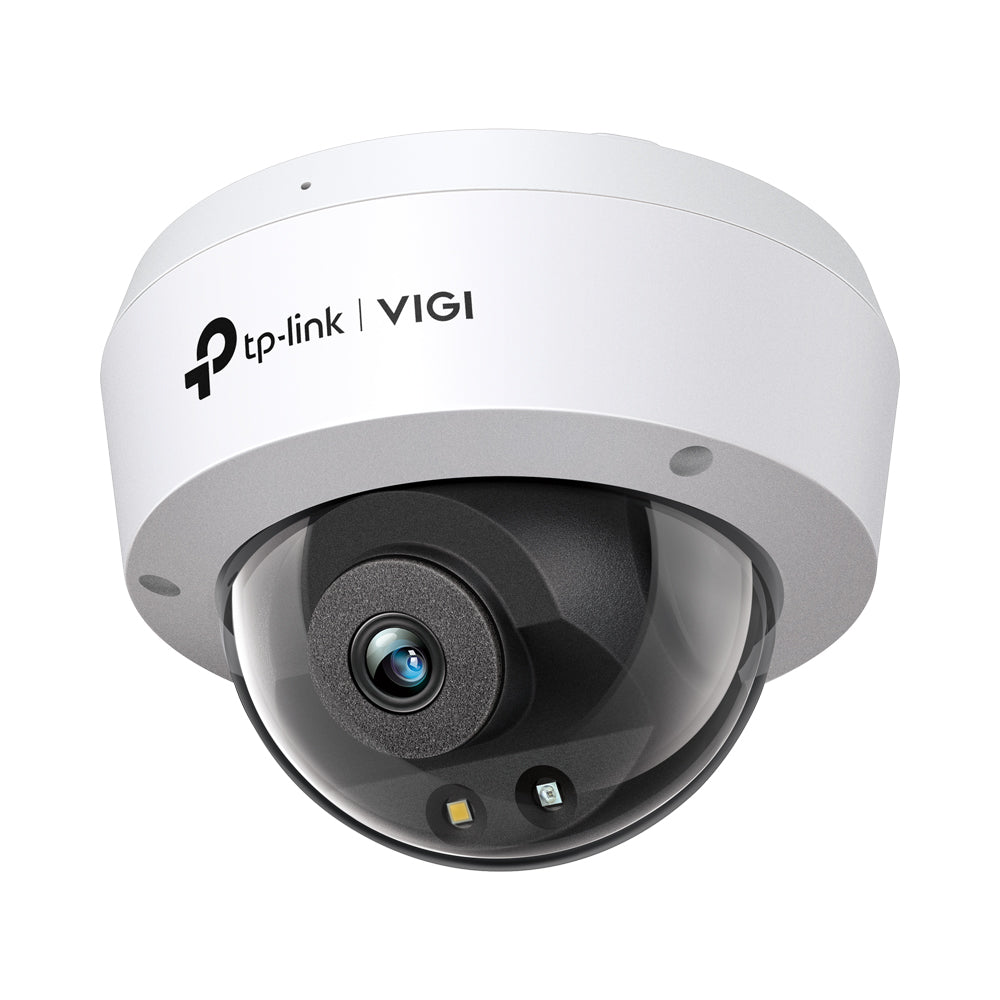

TP-Link VIGI C230 3MP Full-Colour Dome PoE Network Camera
Monitor 24-hour clear and colorful details even in pitch dark night. VIGI Full-Color camera provides maximum 3MP resolutions and ensures colorful monitoring with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights.
Features
- 3MP Super-High Definition: The camera comes with 3MP - more than enough pixels to pick up some of the more discrete details
- 24h Full-Colour: Obtain 24-hour colour details, even in pitch-black conditions, with its large-aperture lens, high-sensitivity sensor and attached supplemental lights
- Human and Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications
- Smart Detection: Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, obstructs the camera or removes/abandons objects
- Built-In Microphone: Features a built-in microphone to record anything going on within a 4.5m radius of the camera
- IK10 Vandal-Proof and IP67 Waterproof: With vandal-resistant, rugged housing and waterproof design, this VIGI dome camera is built tough to withstand vandalism and harsh environments with rain and dust for constant security anywhere and anytime
- H.265+: Without using any extra bandwidth, your camera transmit compressed crystal-clear video to save disk space, ease network load and reduce monitoring costs without sacrificing image quality
- Smart Video Enhancement: VIGI's professional technologies process videos to greatly improve their quality that is vital to your monitoring, including Smart IR, WDR, 3D DNR and Night Vision
- 12V DC/PoE: Two types of power supply not only gives you more convenience but also makes your wiring remarkably easy
- Flexible Management: Take full control over your security via four management methods: the web UI, NVR UI, VIGI app and VIGI Security Manger
Specifications
Camera
- Image Sensor: 1/2.8" Progressive Scan CMOS
- Shutter Speed: 1/3 to 1/10000 s
- Slow Shutter: Yes
- Minimum Illumination: Colour: 0.005 Lux; 0 Lux with IR/White Light
- Day/Night Mechanism: IR Cut Filter
- Day/Night Switch: Unified / Scheduled / Auto
- Lens: 2.8mm
- Aperture: 2.8 mm: F1.6
- Lens Mount: M12
- Viewing Angle: 2.8mm
- Horizontal FOV: 107.5°, Vertical FOV:57.2°, Diagonal FOV: 128.7°
- Pan/Tilt Range: Pan: 0° to 360°, Tilt: 0° to 85°, Rotate: 0° to 360°
- Digital Noise Reduction: 3D DNR, WDR, DWDR
- Weatherproof Rating: IP67
Lens
- Type: Fixed Focal Lens
- Focal Length: 2.8mm
- Aperture: 2.8 mm: F1.6
- FOV: 2.8 mm:
- Horizontal FOV: 107.5°, Vertical FOV: 57.2°, Diagonal FOV: 128.7°
- Lens Mount:M12
- DORI Distance: 2.8 mm:
- Detect: 52m
- Observe: 22m
- Recognise: 10m
- Identify: 5m
Video
- Max. Resolution: 2304 × 1296
- Main Stream: Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
- Resolution: 2304 × 1296, 2048 × 1280, 1920 × 1080, 1280 × 720
- Resolution: 704 × 576, 640 × 480, 352 × 288, 320 × 240
- Sub-Stream: H.265/H.264
- H.264 Type: Main Profile/High Profile
- H.264+: Main Stream Supported
- H.265 Type: Main Profile
- H.265+: Main Stream Supported
- Video Bit Rate: Main Stream: 256Kbps to 4Mbps
- Sub-Stream: 64Kbps to 512Kbps
Illuminator
