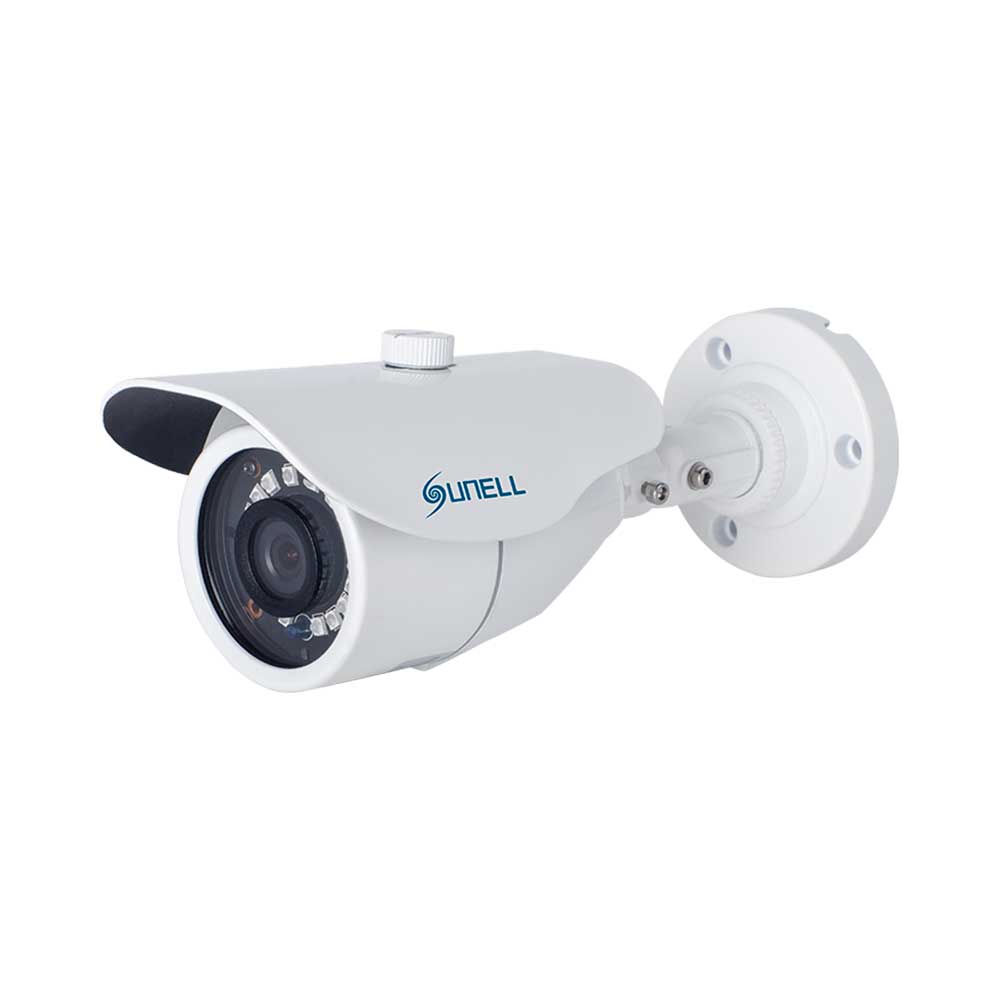

Sunell 2MP AHD/TVI/CVI/CVBS Analogue Bullet Camera (SN-B1302ZS-CB3)
Features
- 1/2.9" Progressive Scan CMOS
- 3.6mm Lens
- HD 1080P
- Video Transmission 300m
- IR Range up to 20m
- 3D DNR, dWDR, ICR, BLC, GLOBAL, AWB, Privacy Masking, Motion Detection
- Support AHD/TVI/CVI/CVBS Output
- IP66
Specifications
- Camera Image Sensor: 1/2.9" Progressive Scan CMOS
- Effective Pixels: 1920(H) x 1080(V)
- Scanning System: Progressive
- Electronic Shutter: Auto, PAL 1/50-1/50000s, NTSC 1/60-1/60000s
- Min. illumination: ColoUr 0.01Lux @(F1.2,AGC ON), B/W 0Lux @(IR LED ON)
- S/N Ratio: More than 48dB
- IR Range: up to 20m
- IR On/Off Control: Auto/Manual
- IR LEDs: 18pcs
- OSD Joystick: N/A
- Up the Coax: Support
- Pan/Tilt/Rotation Range: Pan 0˚~360˚, Tilt 0˚~90˚, Rotation 0˚~360˚
Lens
- Lens Type: Fixed
- Iris: Fixed Iris
- Focal Length: 3.6mm
- F Number: F2.0
- Angle of View: 85°
- Focus Control: Fixed
- Close Focus Distance: 0.5m
Video
- Resolution: 1080P (1920×1080)
- Frame Rate: PAL 25fps, NTSC 30fps
- OSD Menu: Support
- Wide Dynamic Ranged: WDR, OFF/ON
- Gain Control: Auto/Manual
- Noise Reduction: DNR, AUTO/MANUAL (1-10)
- White Balance: Auto
- BLC: Support
- Mirror: N/A
- Motion Detection: Support
- Privacy Masking: Support
General
- Power Supply: DC12V ±10%
- Power Consumption: Max. 3W (12V DC, IR ON)
- Operating Temperature: -10~55°C
- Operating Humidity: Less than 85% RH
- Ingress Protection: IP66
- Certifications: CE/FCC
- Casing: Metal
- Dimensions: 176 × 69 × 65mm
- Net Weight: 300g
