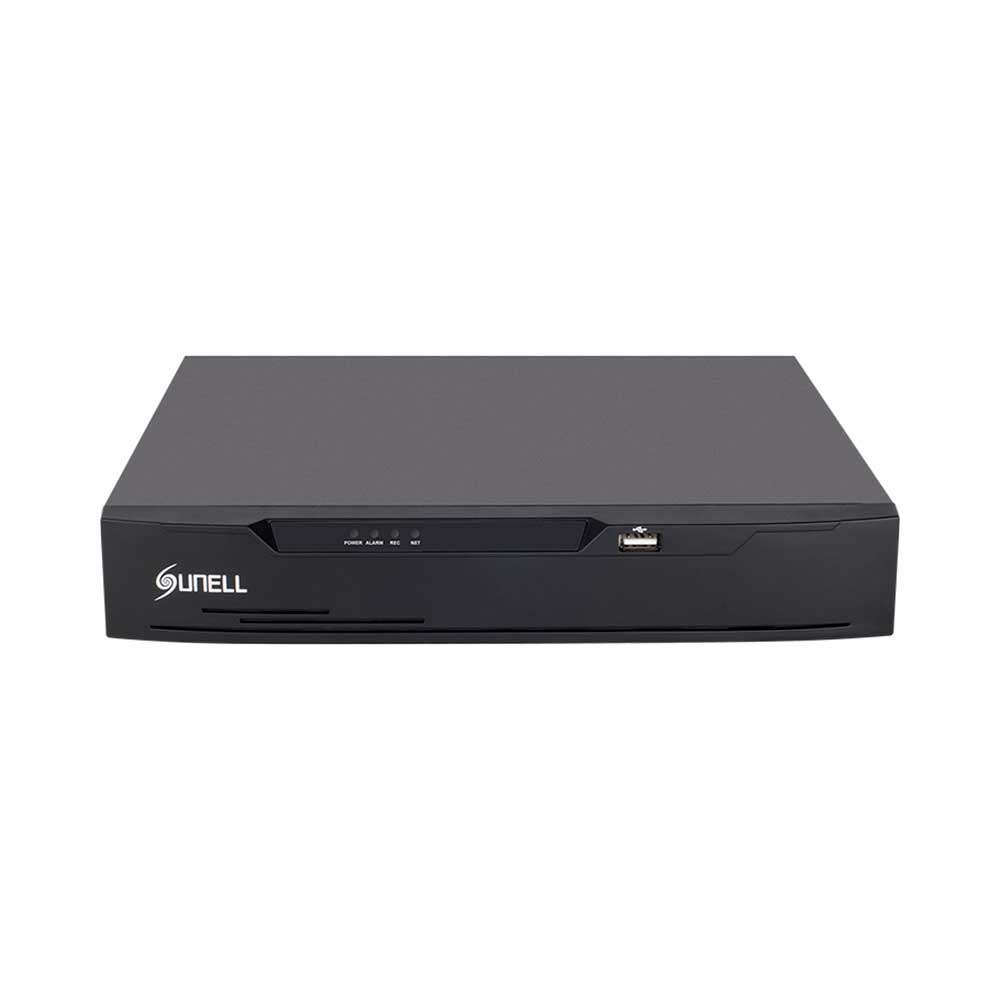

Sunell SN-ADR2204E1 4-Channel 1-Bay Hybrid Digital Video Recorder, 1x LAN, H.264
The Sunell SN-ADR2204E1 hybrid DVR is a high definition DVR with the ability to connect analogue and IP cameras simultaneously, which adopt the standard H.264 high profile compression format and the most advanced SOC technique to ensure real time recording in each channel and realise outstanding robustness of the system. It is ideal for a wide range of applications such as home safety, grocery, warehouse, education and financial institutions.
Features
- Supports AHD/TVI/CVI/CVBS/IP video inputs
- Supports VGA, HD-OUT, CVBS output
- Easy to use Same Interface of GUI/WEB/Client
- Support various mobile monitoring:（IOS, Android)
- Support more than languages
- Perfect protection circuit, unique triple watchdog function
- Supporting web, IMS, provide SDK development
Specifications
System
- Main Processor: Embedded processor
- Operating System: Embedded LINUX
Video and Audio
- Analog UE Camera Input: 4ch BNC
- AHD Camera: 1080p / 720P / 960H @25/30fps
- TVI Camera: 1080p / 720P / 960H @25/30fps
- CVI Camera: 1080p / 720P / 960H @25/30fps
- CVBS Camera: PAL/NTSC
- IP Camera Input: 4ch, each channel up to 1080p
- Audio In/Out: 4ch input, 1ch output, RCA
Two-way Talk: N/A
Display
- Interface: 1ch HD-OUT, 1ch VGA, 1ch CVBS
- Resolution: HD-OUT: 1920×1080, 1280×1024, 1440×900
- VGA: 1920×1080, 1280×1024, 1440×900
- Multi-screen Display: 1/4
Recording
- Compression: H.264 High Profile
- Resolution: 1080p/720P/960H
- Record Rate: 1080p @12fps, 960H (1~25/30fps)
- Bit Rate: 1~6144Kbps Per Channel
- Record Mode: Manual, Event, Timer
- Record Interval: Post-record: 5~60 sec
Video Detection and Alarm
- Trigger Events: Recording, Buzzer, Push message, Pop up message
- Video Detection: Motion Detection, Video Loss, Camera Tamper
- Alarm input: N/A
Network
- Interface: 1 RJ-45 port (10/100Mbps)
- Network Function: HTTP, TCP/IP, UDP, NTP, DHCP, DNS, IP Filter, DDNS,
- Max. User Access: Access 3 users
- Smart Phone: iPhone, iPad, Android
- Interoperability: ONVIF 2.6, SDK
Playback and Backup
- Playback: 4/1
- Search Mode: Time /Date, Alarm, Picture Grid, Event
- Playback Function: Play, Pause, Stop, Next Frame, Fast play, Slow Play, Layout, Shuffle, Backup Selection,
Digital Zoom
Storage
- Internal HDD: 1 SATA Ports, up to 6TB for each HDD
- Mounting Mode: Embedded
eSATA: N/A
Interface
- USB Ports: 2× USB2.0
- RS232: N/A
- RS485: 1 Port, for PTZ Control
General
- Power Supply: DC12V 2A
- Power Consumption: Max 5W (without HDD)
- Operating Temperature: -10 °C ~ 50°C
- Strorage Conditions: Less than 90% RH
- Certifications: CE/FCC
- Dimensions (L × W × H): 255 × 244 × 44mm
- Net Weight: 900g
