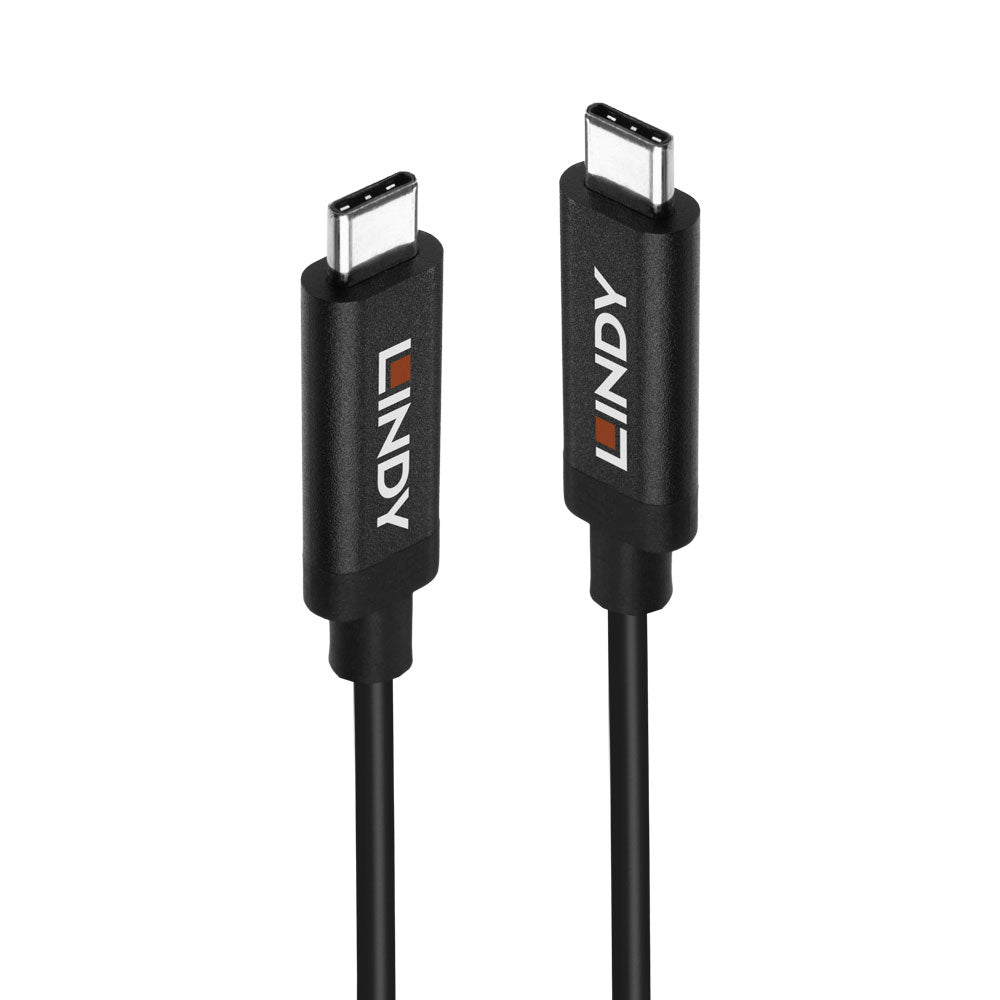

Lindy 5m USB3.1 Gen 2 Active Cable (43308)
USB active cables allow users to extend the connection distance between two USB devices. These cables feature integrated active electronics to boost the signal for high speed data transfer.
Features
- 5 metre USB3.2 Gen 2 Active Cable for data and video extension
- Data transfer rates up to 10Gbps
- Supports DisplayPort 1.4 Alternate Mode and video resolutions up to UHD 8K 7680 x 4320 @60Hz including 4K 4096 x 2160 @120Hz
- Supports Power Delivery up to 100W (20V 5A)
- 2 year warranty
Connectors
- Connector A: USB Type-C Male
- Connector B: USB Type-C Male
- Power: PD 5A/20V (100W)
- Housing Material: TPE
- Connector Plating: Nickel plated
- Pin Construction: Copper
- Pin Plating: Gold
- Dimensions (approx.) WxDxH: 41 x 12.4 x 8.8mm each
Cable Construction
- Length: 5m
- Standard: USB3.2 / 3.1 Gen 2
- Colour: Black
- Type: Round
- Jacket Diameter: 5.3mm
- Jacket Material: TPE, PP
- Conductor Material: Tinned Copper
- Conductor Gauge: 29AWG + 32AWG + 22AWG
- Shielding: 85% Tinned Copper
Specifications
- Supported Bandwidth: 10Gbps
- Maximum Resolution: UHD 8K 7680 x 4320 @60Hz including 4K 4096 x 2160 @120Hz
- Nominal Attenuation: -15.6Db @5GHz
- Minimum Bend Radius: 106mm
- Operating Temperature: 0°C to 40°C
- Storage Temperature: -10°C to 60°C
- Transmission Medium: Twisted Pair
- Transmission Technology: USB3.2 / 3.1 Gen 2
