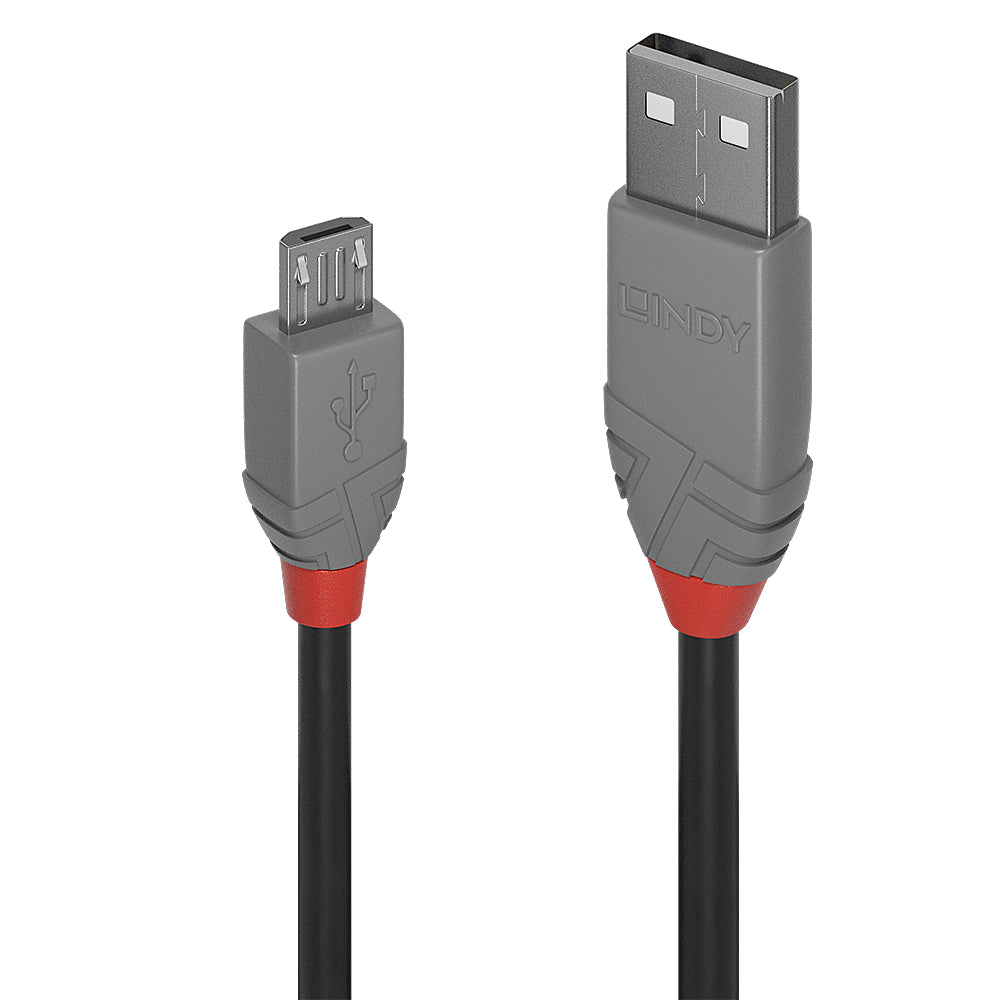

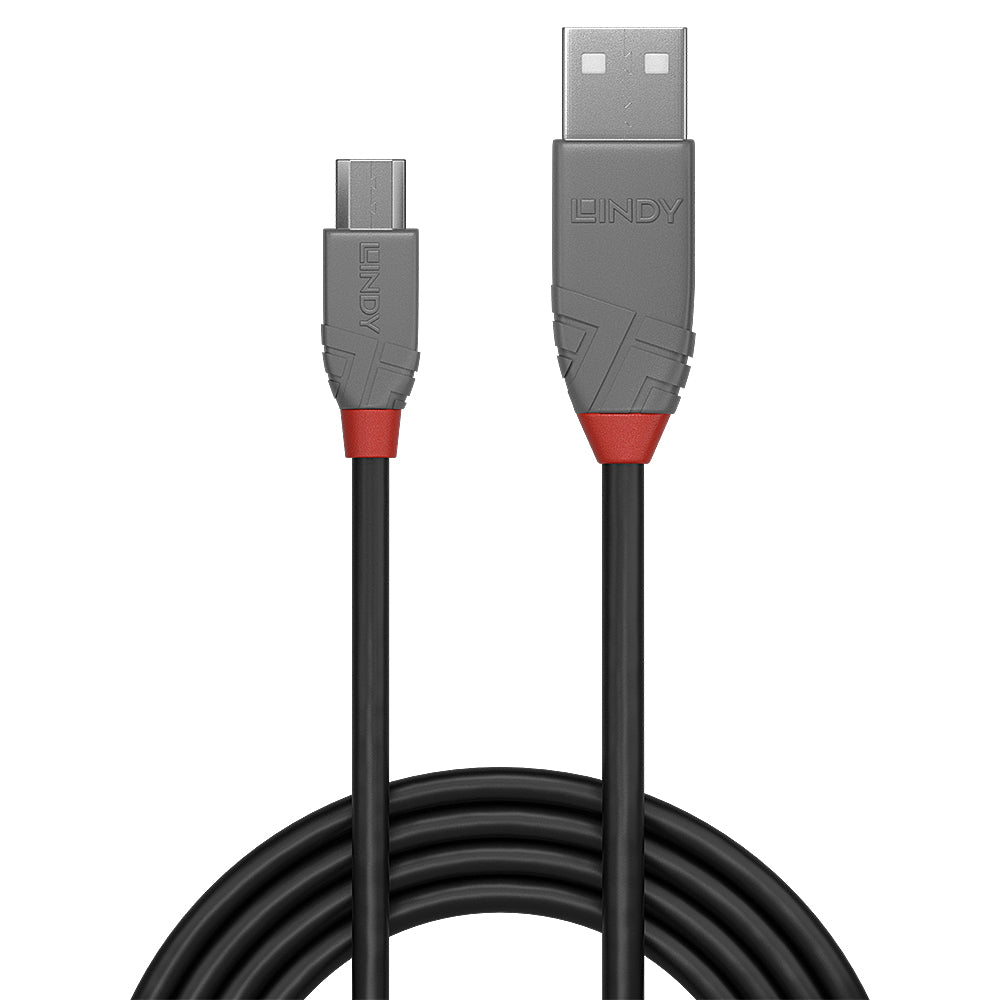

Lindy 1m USB 2.0 A Male to Micro-B Cable – Anthra Line (36732)
The Anthra Line USB 2.0 Type A to Micro-B cables from Lindy's Cable Lines concept are the professional choice for high performance connections in commercial AV and IT installations.
Features
- Professional choice USB2.0 Type A to Micro-B cable for commercial and high performance AV and IT installations
- Supports data transfer speeds up to 480Mbps
- Robust PVC housing, nickel connectors and gold plated contacts
- Double shielded cable, corrosion resistant tinned copper conductors
- 10 year warranty
Connectors
- Connector A: USB2.0 Type A Male
- Connector B: USB2.0 Type Micro-B Male
- Housing Material: PVC
- Connector Plating: Nickel
- Pin Construction: Brass
- Pin Plating: Gold
- Dimensions (approx.) WxDxH:
A: 15.5 x 35 x 7.8mm
Micro-B:10 x 24 x 7.6mm
Cable Construction
- Length: 1m
- Standard: USB2.0
- Colour: Black
- Type: Round
- Jacket Diameter: 3.5mm
- Jacket Material: PVC
- Conductor Material: Tinned Copper
- Conductor Gauge Power: 28AWG
- Conductor Gauge Data: 28AWG
- Shielding: Aluminium Magnesium Braid 57%
Specifications
- Supported Bandwidth: 480Mbps
- Nominal Attenuation: 0.5-400MHz < 5.8dB
- Minumum Bend Radius: 16mm
- Operating Temperature: 0°C - 40°C
- Storage Temperature: 0°C - 70°C
