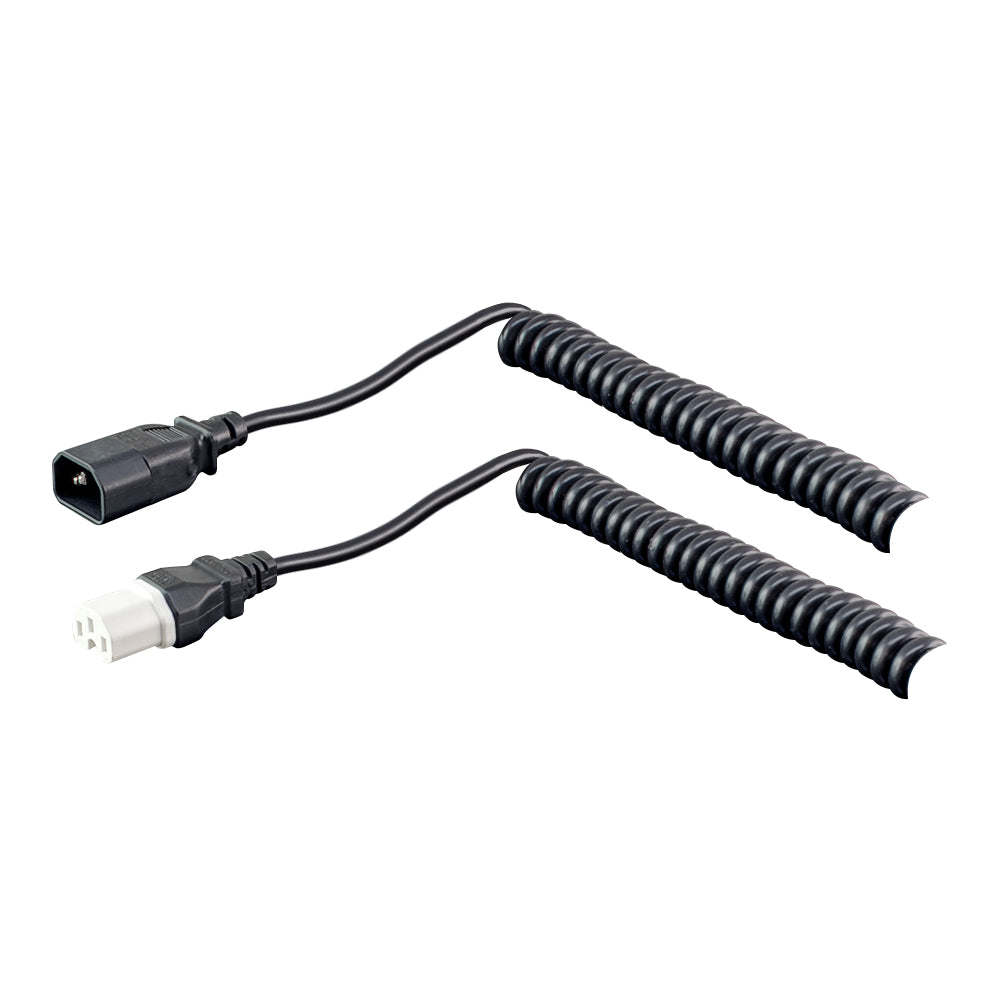

LinkQnet C14 to C15 Hot-Socket Coiled Power Extension Cable - 0.6m to 1.8m
Flexible Power Extension That Expands When Needed.
The LinkQnet C14 to C15 Hot-Socket Coiled Power Extension Cable provides a flexible power connection between compatible IEC equipment. Its coiled construction measures approximately 0.6m when retracted and extends up to 1.8m, providing additional reach when required while reducing loose cable when equipment is positioned closer together. The IEC C14 male connector plugs into a compatible C13 output on a UPS system or rack PDU, while the IEC C15 female hot-socket connector connects to suitable equipment with a compatible C14 or C16 inlet. Designed for server rooms, data centres and network cabinets, it can be used with compatible servers, high-power PoE switches, network switches, storage equipment and other rack-mounted hardware. Moulded connector assemblies provide an integrated finish, while the three-core 0.75mm² cable is rated for 10A at 250V.
Features
- Coiled Length Adjustment - Extends from approximately 0.6~1.8m for flexible equipment positioning
- IEC C14-to-C15 Connection - Connects compatible power sources and equipment through standard IEC connectors
- Server-Rack Power Connectivity - Connects compatible UPS and rack PDU outputs to suitable rack-mounted equipment
- C15 Hot-Socket Connector - Connects to compatible equipment fitted with an IEC C14 or C16 inlet
- 10A 250V Rating - Suitable for compatible equipment within the specified electrical limits
- Three-Core Cable - Uses three 0.75mm² cores for power transmission
- Moulded Connectors - Provides integrated connector assemblies at both ends
- Reduced Cable Clutter - Retracts when additional cable length is not required
- Contrasting C15 Insert - White insert helps identify the hot-socket connector
Specifications
Connectivity
- Input Connector: 1× IEC C14 Male
- Output Connector: 1× IEC C15 Female Hot-Socket
- Connector Configuration: Male-to-Female
- Compatible Power Outlet: IEC C13 Female
- Compatible Equipment Inlet: IEC C14 or C16 Male
Electrical
- Rated Voltage: 250V
- Rated Current: 10A
Cable Construction
- Conductor Configuration: 3× 0.75mm² Cores
- Cable Outer Diameter: 7mm
- Retracted Length: Approximately 0.6m
- Extended Length: Up to 1.8m
Notes
- Do not exceed the cable’s 10A 250V rating
