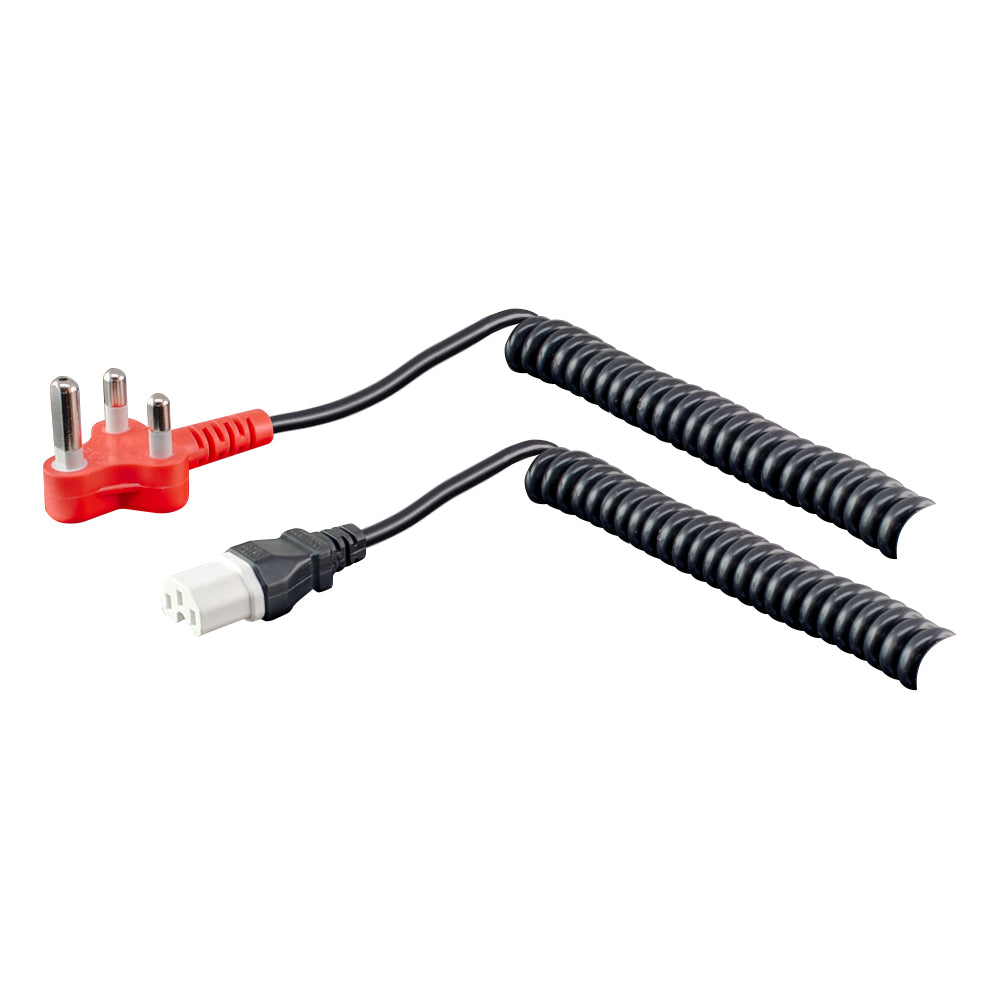

LinkQnet Dedicated IEC C15 Hot-Socket Coiled Power Cable - 0.6 to 1.8m
Dedicated Power with Flexible Reach.
The LinkQnet Dedicated IEC C15 Hot-Socket Coiled Power Cable provides a flexible mains connection for compatible computing, networking and rack-mounted equipment. Its coiled construction extends from approximately 0.6~1.8m, providing additional reach when required while retracting to reduce loose cable around workstations and equipment installations. The IEC C15 female hot-socket connector supports devices fitted with compatible IEC C14 or C16 male inlets, including selected servers, desktop computers, monitors, PoE switches, network switches and storage equipment. A moulded South African dedicated plug connects to a corresponding dedicated socket outlet and features a distinctive flat-on-top earth pin, commonly described as a shaved earth pin. The three-core 0.75mm² cable is rated for up to 10A at 250V, while the moulded connector assemblies provide an integrated construction.
Features
- Coiled Length Adjustment - Extends from approximately 0.6~1.8m for flexible equipment placement
- Dedicated Power Connection - Connects to a compatible South African dedicated socket outlet
- Flat-on-Top Earth Pin - Distinguishes the dedicated plug profile and fits compatible dedicated socket outlets
- IEC C15 Hot-Socket Connector - Provides a compatible power connection for IEC C14 and C16 equipment inlets
- 10A 250V Rating - Supports compatible equipment within the specified electrical limits
- Three-Core Cable - Uses three 0.75mm² cores for power transmission
- Reduced Cable Clutter - Retracts when the full extended length is not required
- Colour-Coded Plug - Red plug helps identify the dedicated power connection
Specifications
Connectivity
- Input Connector: 1× South African Dedicated Male Plug with Flat-on-Top Earth Pin
- Output Connector: 1× IEC C15 Female Hot-Socket
- Compatible Equipment Inlets: IEC C14 and IEC C16 Male
Electrical
- Maximum Rated Current: 10A
- Rated Voltage: 250V
- Power Connection: Dedicated South African Socket Outlet
Cable Construction
- Cable Type: Coiled Power Cable
- Conductor Configuration: 3× 0.75mm² Cores
- Cable Outer Diameter: 7mm
- Coiled Length Range: Approximately 0.6~1.8m
Notes
- The dedicated plug is compatible with a corresponding dedicated socket and can also fit a conventional South African socket
