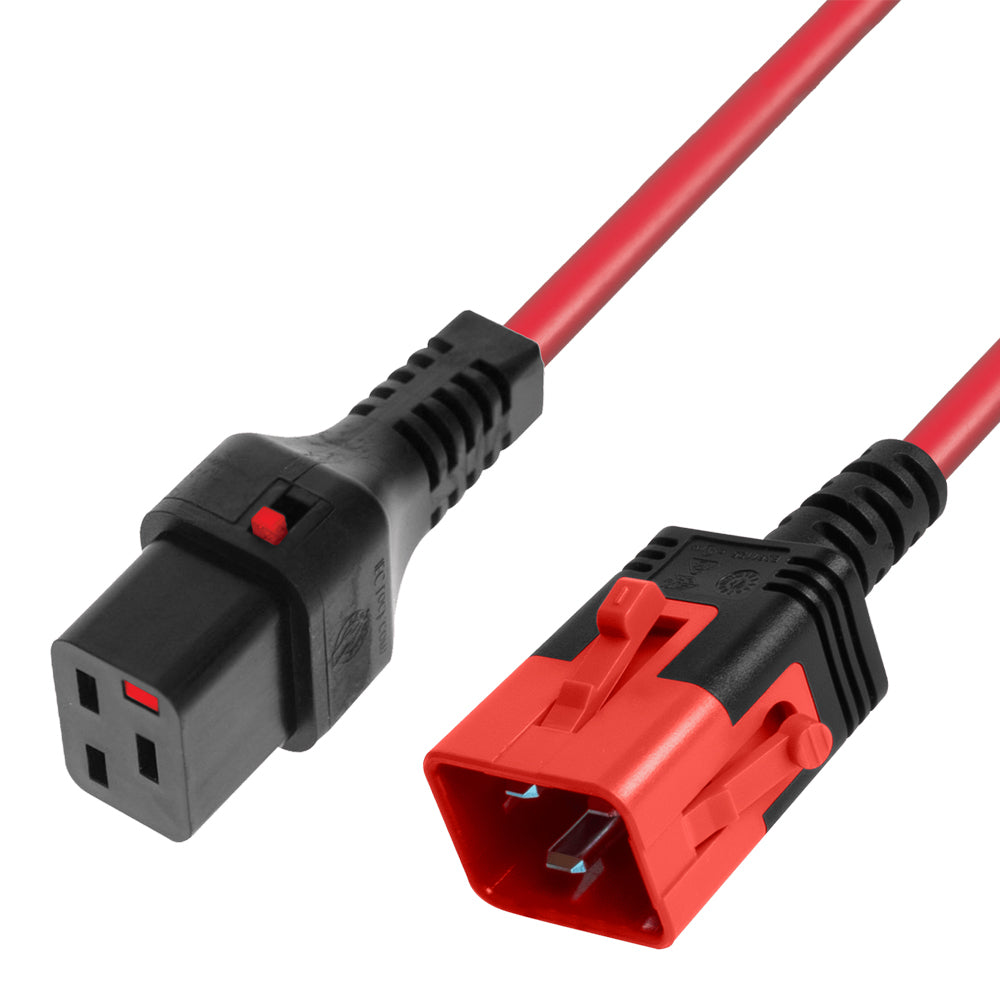

IEC Lock PC3637 2m C20 Dual-Lock to C19 Locking Power Cable - Red
Secure Power Connections for Critical Equipment.
The IEC Lock PC3637 is a 2m locking power cable designed to help prevent accidental disconnection in data centres, server rooms, broadcast systems, medical environments and other critical installations. Its C20 Dual-Lock connector secures into compatible C19 outlets using side and bottom locking tabs, while the C19 IEC Lock connector helps maintain a secure connection to standard C20 equipment inlets. Rated at 16A/250V, the cable uses 3-core 1.50mm² H05VV-F / 15AWG SJT construction with bare copper conductors and a durable red PVC jacket. A lock retention force greater than 100N helps protect connected equipment against cables being pulled loose or disconnected through vibration.
Features
- Dual Locking Power Connection - Locking connectors at both ends help protect against accidental cable disconnection
- C20 Dual-Lock Connector - Side and bottom locking tabs secure the plug into compatible C19 outlets
- C19 IEC Lock Connector - Locks securely into compatible standard C20 equipment inlets
- Greater Connection Security - Helps prevent cables from being pulled or vibrated out of connected equipment
- Greater Than 100N Lock Retention - Provides a secure mechanical connection for critical installations
- 16A High-Current Rating - Suitable for compatible servers, PDUs, UPS systems and network equipment
- 2m Cable Length - Provides practical reach within racks and equipment installations
- Universal Cable Construction - Uses 3-core 1.50mm² H05VV-F / 15AWG SJT cable
- Red Cable Jacket - Supports quick identification of individual power feeds and circuits
- Quick Release Mechanisms - Dedicated release controls allow intentional cable removal
- Class I Protection - Includes protective earth conductor for compatible earthed equipment
Specifications
- Connector A: 16A C20 Dual-Lock Male Connector
- Connector B: 16A C19 IEC Lock Female Connector
- Complete Power Cable Rating: 16A/250V

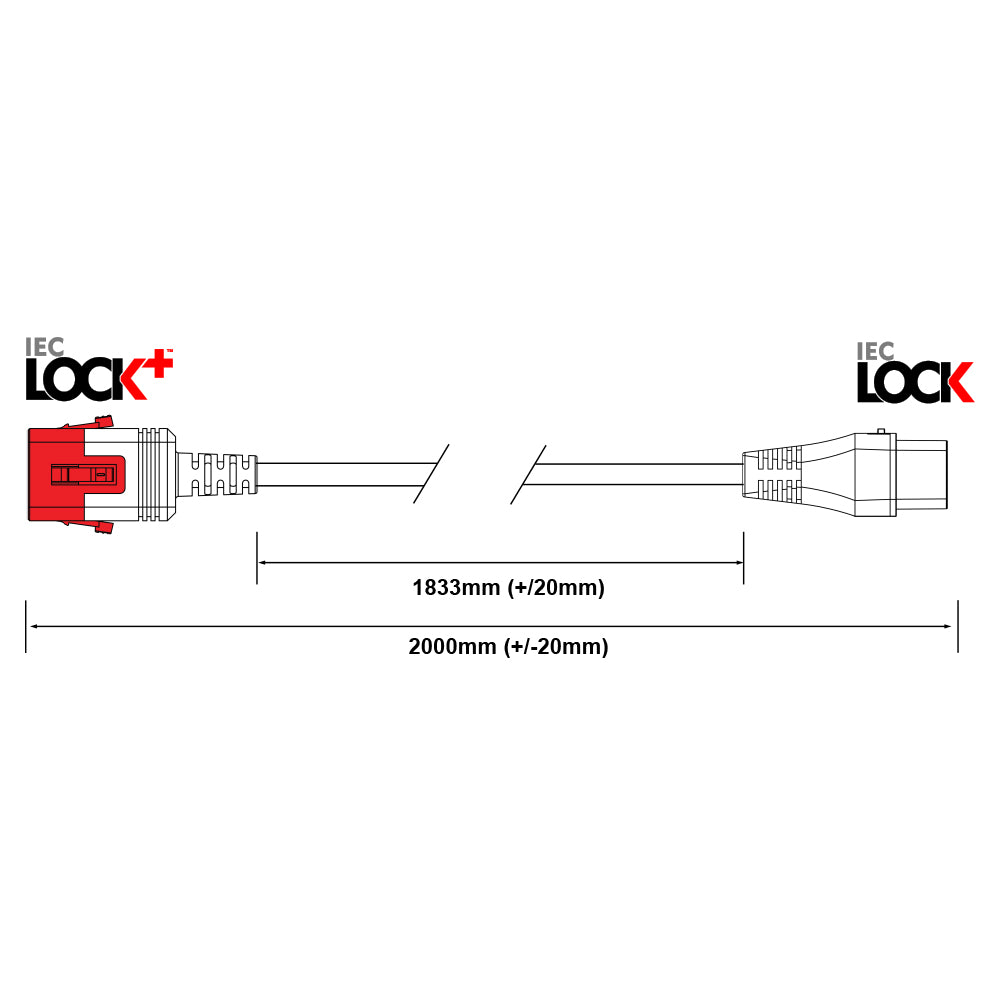

- Cable Length: 2m ±20mm
- Cable Length Between Connector Bodies: 1833mm ±20mm
- Cable Type: 3-Core H05VV-F / SJT
- Conductor Cross-Sectional Area: 1.50mm² / 15AWG
- Number of Conductors: 3
- Number of Strands: 83
- Conductor Material: 99.9% Bare Copper
- Core Colours: Brown, Blue And Green/Yellow
- Cable Jacket Material: PVC
- Insulation Material: PVC
- Cable Colour: Red, RAL3020
- Overall Cable Diameter: 9mm
- Jacket Wall Thickness: 0.9mm
- Insulation Wall Thickness: 0.76mm
- Minimum Bend Radius: 45mm
- Rated Temperature: -20~105°C
- Lock Retention: Greater Than 100N
- Protection Class: Class I
- Connector Colours: Black and Red
Materials
- C20 Housing: PBT
- C20 Over-Moulding Cover: PVC
- C20 Pins: Brass Strip
- C19 Terminal Housing and Handle: Nylon PA66
- C19 Over-Mould: PVC
- C19 Lock Lever and Release Button: Polycarbonate
Standards And Compliance
- IEC / BS EN 60320-1:2015
- IEC / BS EN 60320-3:2014
- BS EN 50525-2-11
- UL 60320-1
- UL 60320-3
- CSA C22.2 60320-1-11
- CSA C22.2 60320-3
- AS/NZS 60320-1:2012
- AS/NZS 60320-3:2014
- AS/NZS 60227.5:2003
- UL62
- UL1581
- C22.2 No. 49
- UKCA, CE, UL, CSA, ENEC and RCM Markings
- Manufactured Under ISO 9001:2015 Process Controls
