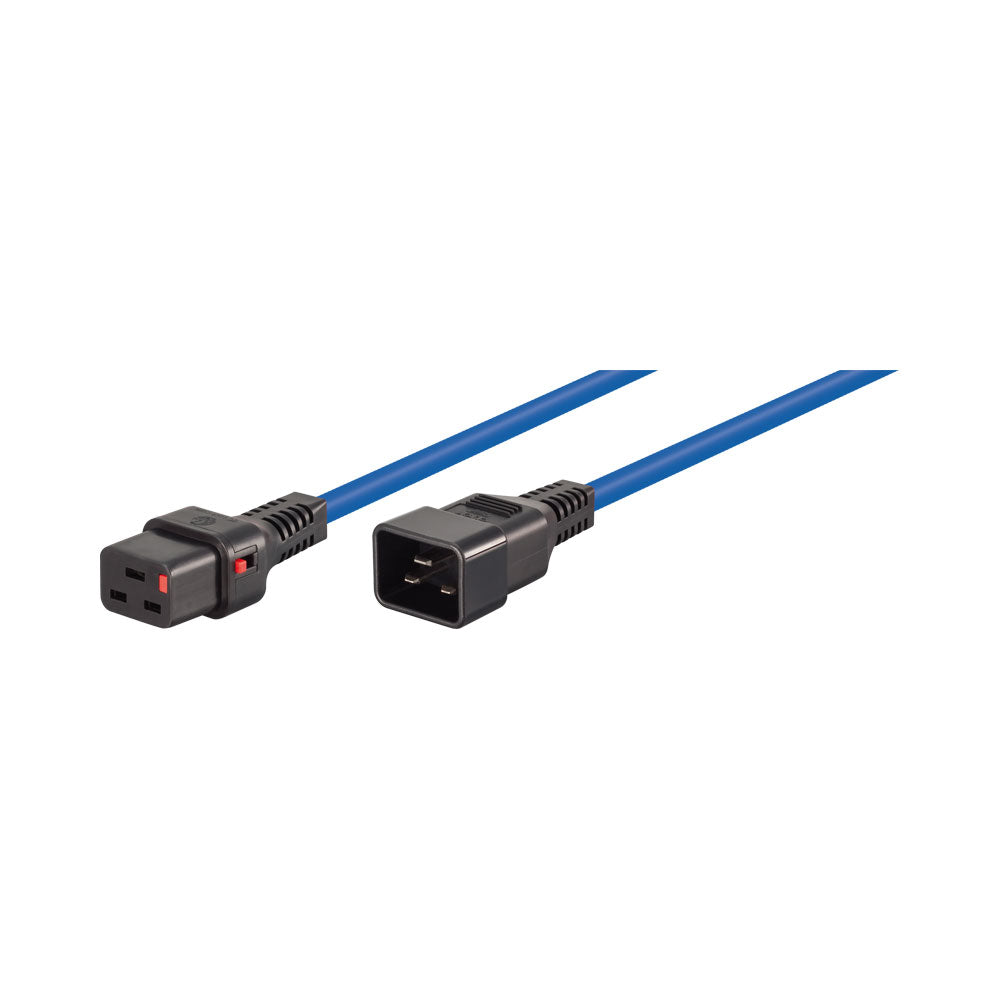

IECLock 2m C20 to C19 IECLock Connector (3G 1.50mm² H05VV-F) Cable - Blue
Designed for high-power IT environments, this IEC Lock C20 to C19 power cable delivers a secure, vibration-resistant connection for mission-critical equipment. The IEC Lock mechanism prevents accidental disconnection, making it ideal for servers, PDUs and enterprise-grade UPS systems. Built with heavy-duty 3G 1.50mm² conductors and a durable H05VV-F jacket, it ensures reliable power delivery in data centres and network racks where uptime is non-negotiable.
Features
- Secure IEC Lock C19 Connector - Prevents accidental unplugging with high retention force
- C20 to C19 Power Configuration - Designed for high-power rack-mounted equipment
- Heavy-Duty Cable Construction - 3G 1.50mm² H05VV-F for reliable continuous power delivery
- 2m Cable Length - Provides flexible routing within racks and cabinets
- Enterprise Equipment Compatibility - Ideal for servers, PDUs and UPS systems
- Data-Centre Ready Design - Built for continuous operation in professional IT environments
Specifications
- Connector A: C20 Moulded Straight Connector (IEC 60320)
- Connector B: C19 Moulded IEC Lock Straight Connector (IEC 60320)
- IEC Lock Retention Force: >100N Withdrawal Force for Secure Connection
- Rated Voltage and Current: 16A 250V
- Application: Suitable for Rough and U
- Conductor Cross Sectional Area: 1.50mm²
- Conductor Material: Bare Copper (99.97%)
- Jacket Material: PVC
- Jacket Wall Thickness: 0.9mm
- Jacket Elongation: 150%
- Insulation Material: PVC (Colour Coded)
- Insulation Wall Thickness: 0.7mm
- Insulation Elongation: 150%
- Nominal Resistance: 13.3 Ohm/km
- Overall Cable Diameter: 8.3mm
- Bend Radius: 41.5°
- Rated Temperature: -15 to +70°C
- Standards Compliance:
BS EN 60320-1: 2015 (DEKRA File 2152866.01)
BS EN 60320-3: 2014 (DEKRA File 2152866.01)
DIN EN 50525-2-11: 2012-01 (VDE File 40010839)
BS EN 50525-2-11: 2011 (VDE File 40010839)
BS EN 60320-3: 2014 (DEKRA File 2193512.01)
